Kulbaba AB 300-410 MHz EW System with Kulbaba Inverter — Drone Protection
The Kulbaba AB (300-410) EW system from AWEDYNE is a portable FPV control suppression system designed to significantly increase the survival rate of vehicles against kamikaze drone attacks, as well as to protect trenches and stationary objects. Model name: Kulbaba AB 300-410 MHz EW System with Kulbaba Inverter. The device belongs to the category: EW jammers.

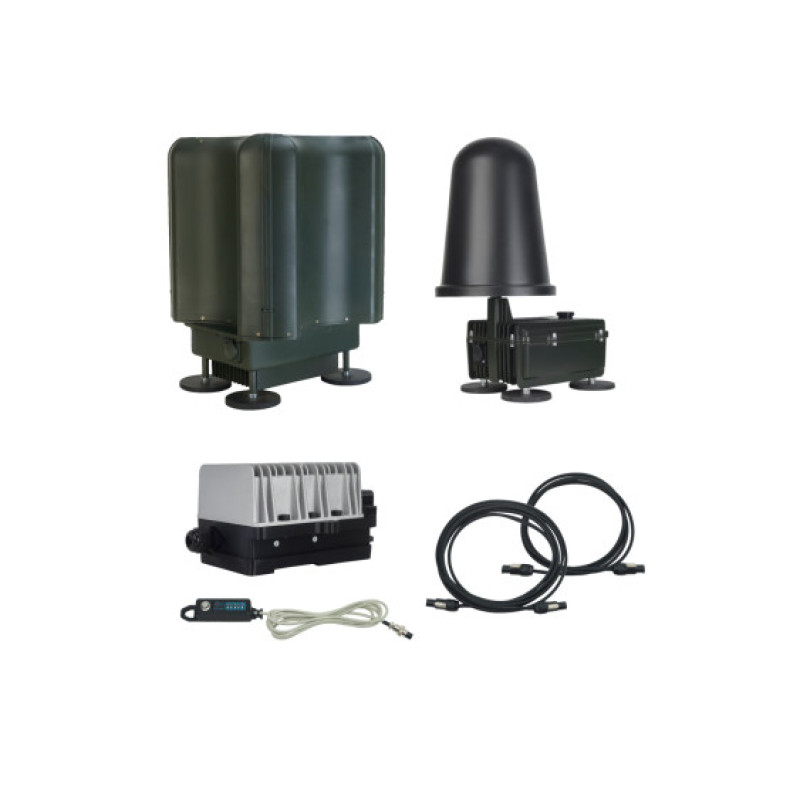

The device consists of independent modules, each with a separate casing, its own antenna, and a connector for power supply from the included portable LiFePo4 24V 12Ah battery. Power is supplied exclusively from the included portable battery; connection to the vehicle's onboard network or other power sources is not provided. Operating time on one battery: 2.5 hours for two modules.
The antennas on each module are specially designed for a specific frequency and are not removable, which prevents operation of the module without an antenna and reduces the risk of amplifier burnout in the electronic module. The antenna design is reinforced to maintain geometry under the influence of weather conditions and vehicle vibrations. Neodymium magnets with rubber coating are used for quick and reliable attachment of the modules to the vehicle body.
Key Features
- Portable power from the included LiFePo4 24V, 12Ah battery (included).
- Independent modules with separate casings and antennas, each module is autonomous.
- Non-removable, reinforced antennas designed for a specific frequency (300–410 MHz).
- Neodymium magnets in rubber protection for quick mounting on vehicles.
- Passive cooling is recommended; avoid active cooling solutions due to the risk of failure in case of precipitation or contamination.
Important Recommendations and Warnings
- 1. Many devices visually similar to "Kulbaba" have appeared, but the official manufacturer of the "Kulbaba" system is only AWEDYNE. Other devices may have nothing in common with the original.
- 2. Devices with multiple bands in one casing and multiple antennas may not work correctly: antennas must be spaced apart for proper operation. Do not trust overly convenient designs that reduce protection effectiveness.
- 3. Collinear dipole antennas form a "donut-shaped" field with a gap above the object — this is a vulnerable zone. Use antennas that provide dome protection.
- 4. Power only from the included battery. Do not modify the device for the vehicle's network. If the operating time is insufficient, it is recommended to purchase an additional battery pack.
- 5. If the device has active cooling, it may fail due to rain, snow, or dirt, leading to fan jamming and overheating. Choose solutions with passive cooling.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency range, MHz | 300-410 |
| Codification | Yes |
| Module power, W | 50 |
| Supply voltage, V | 24 |
| Number of modules, pcs. | 2 |
This description contains all essential data about the Kulbaba AB (300-410) EW System: model, manufacturer AWEDYNE, category EW jammers, power information (LiFePo4 24V 12Ah, portable battery only included), operating time (2.5 hours for two modules), antenna features (non-removable, reinforced design), rubber-coated magnetic mounts, recommendations for passive cooling, and a list of important notes regarding counterfeits and design nuances. If necessary, we provide additional consultations on installation, compatibility of additional batteries, and options for mounting modules on vehicles.
