The “Vishchun-K1B” complex is a set of equipment for FPV control.

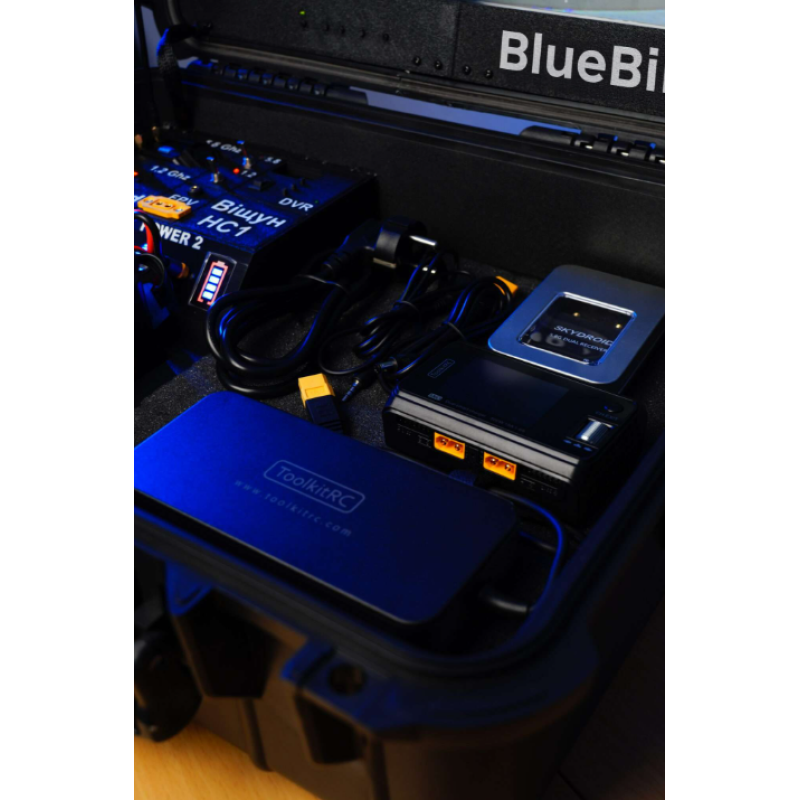

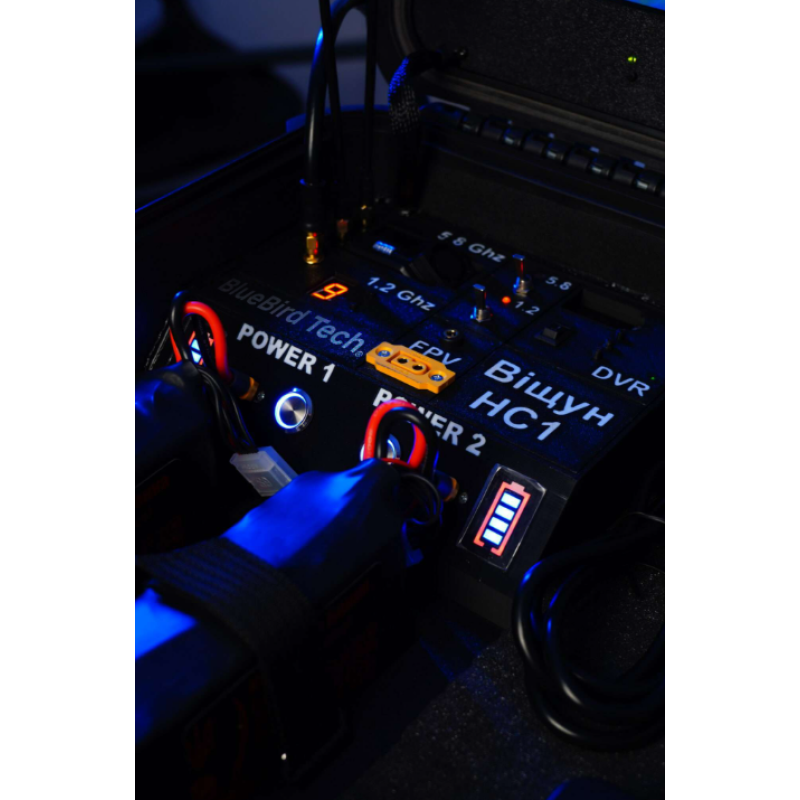

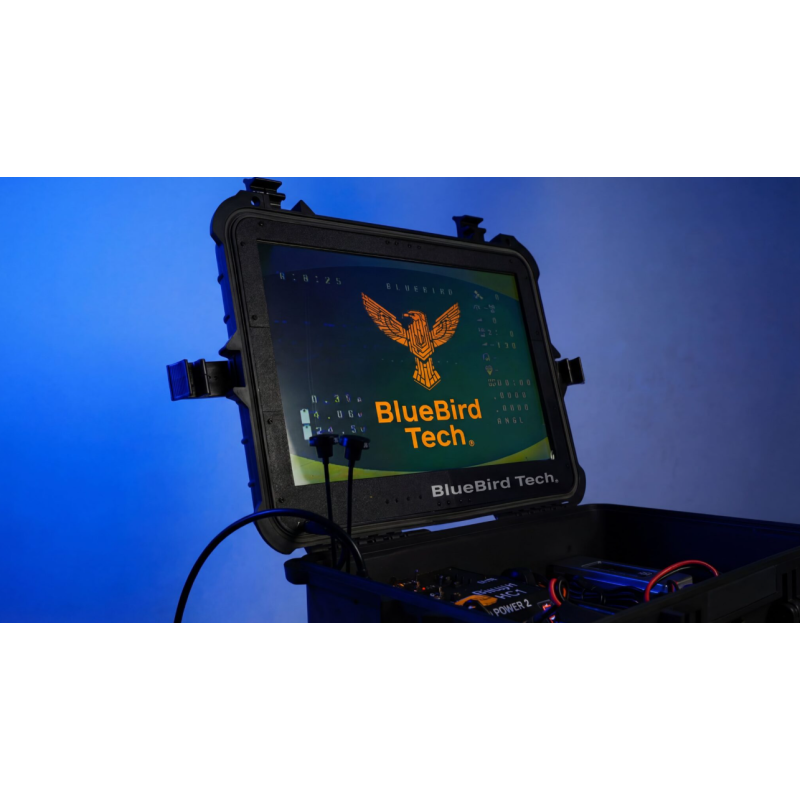

Ground station «Vishchun-NS1» by BlueBird Tech — is a modern device for professional FPV drone control, developed with the needs of military operators in mind. The station provides reliable reception of video signals and transmission of control commands in difficult operating conditions. It allows the crew to work from a safe location (dugout, room, vehicle) thanks to the use of remote antenna modules.

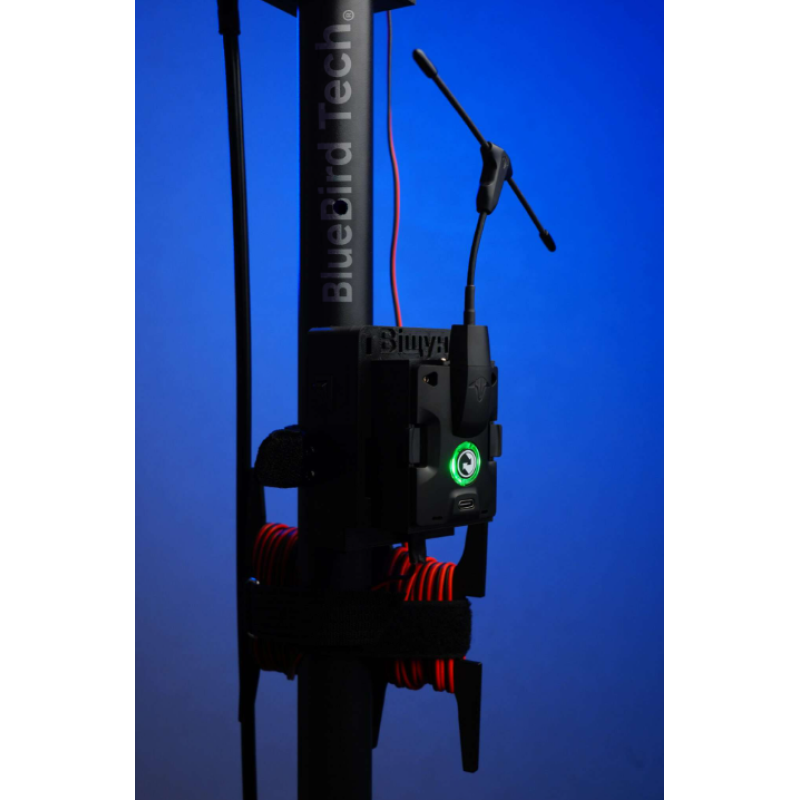

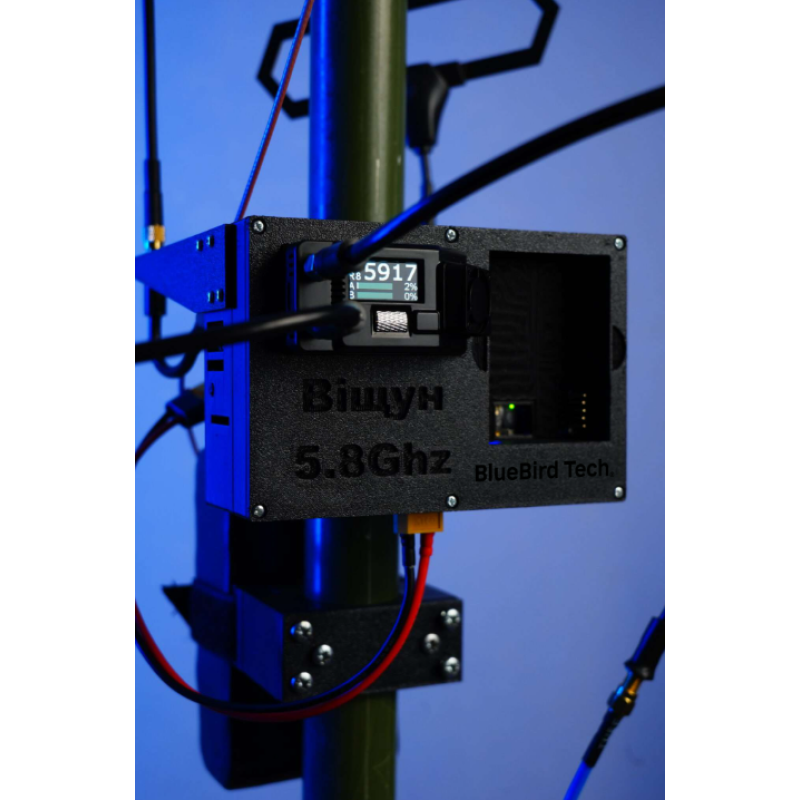

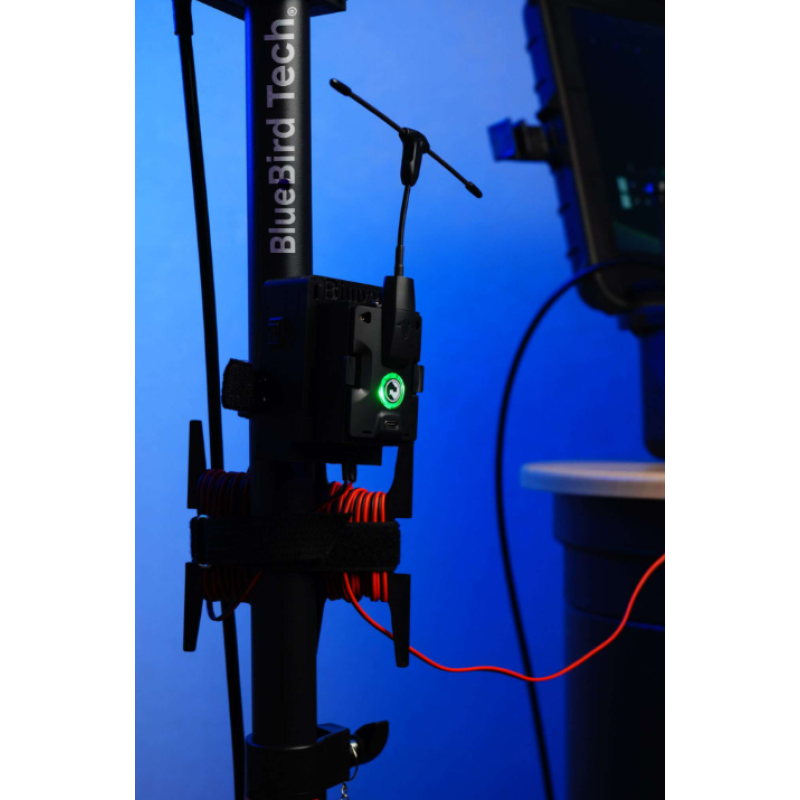

Ground wireless repeater «Vishchun-5.8» by BlueBird Tech — is a device designed to significantly increase the flight range of FPV drones (up to 45 km). The device is mounted on a mast and acts as a bridge between the operator and the UAV, ensuring stable communication at distances unattainable for standard equipment.

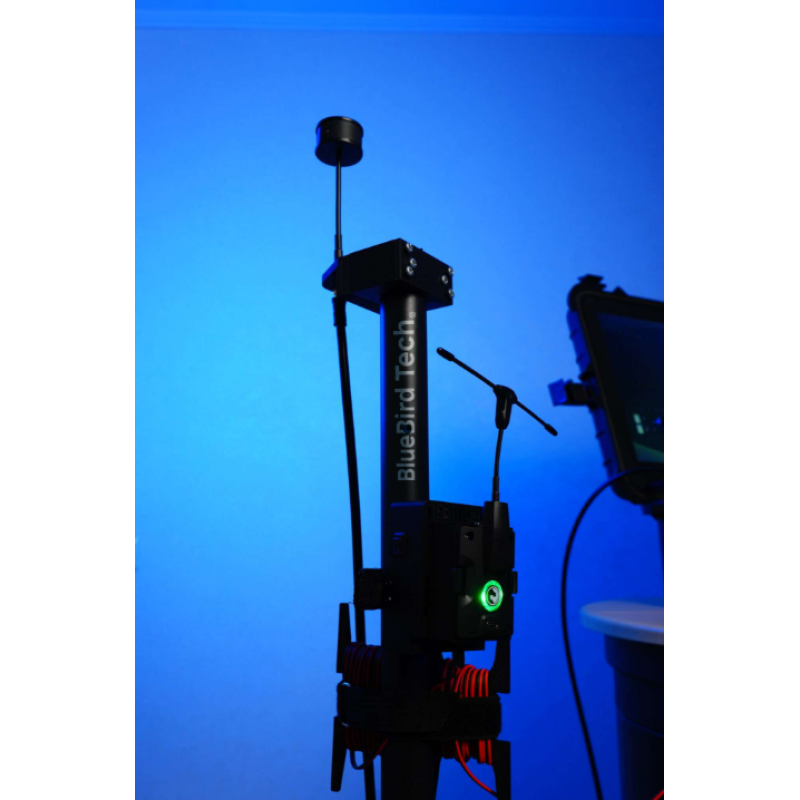

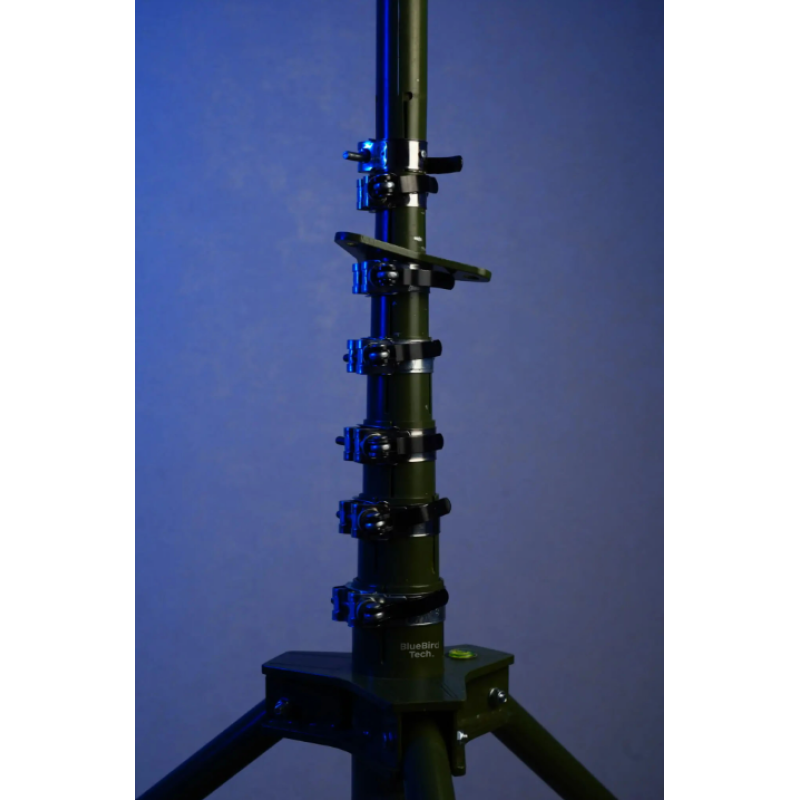

Mast (9m high) – An aluminum telescopic mast designed for quick and convenient mounting of various transceiving equipment, such as antennas, repeaters, surveillance cameras, and other sensors. This significantly improves communication quality, visibility, and safety.

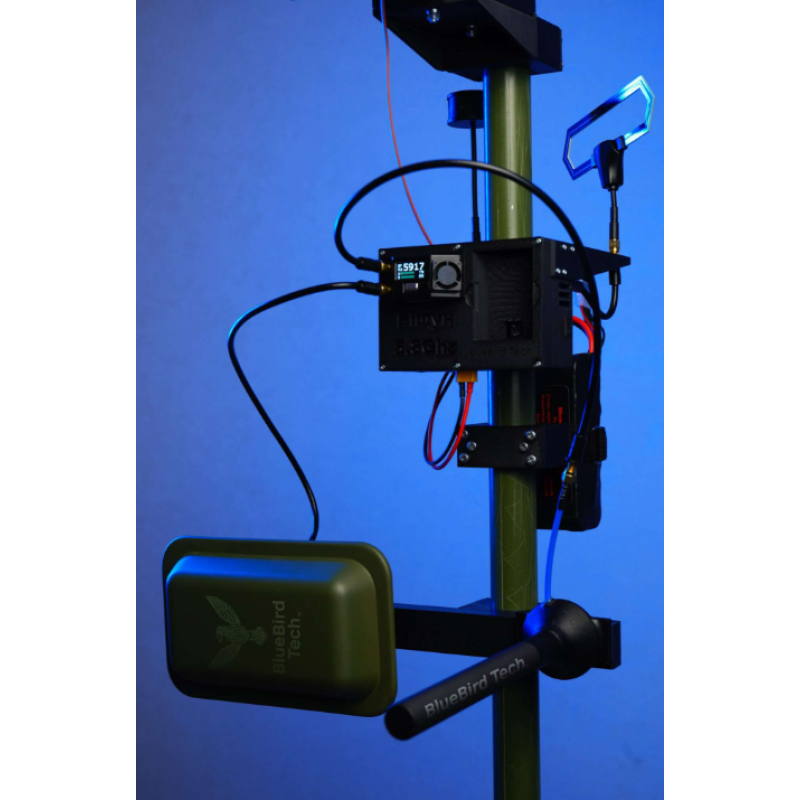

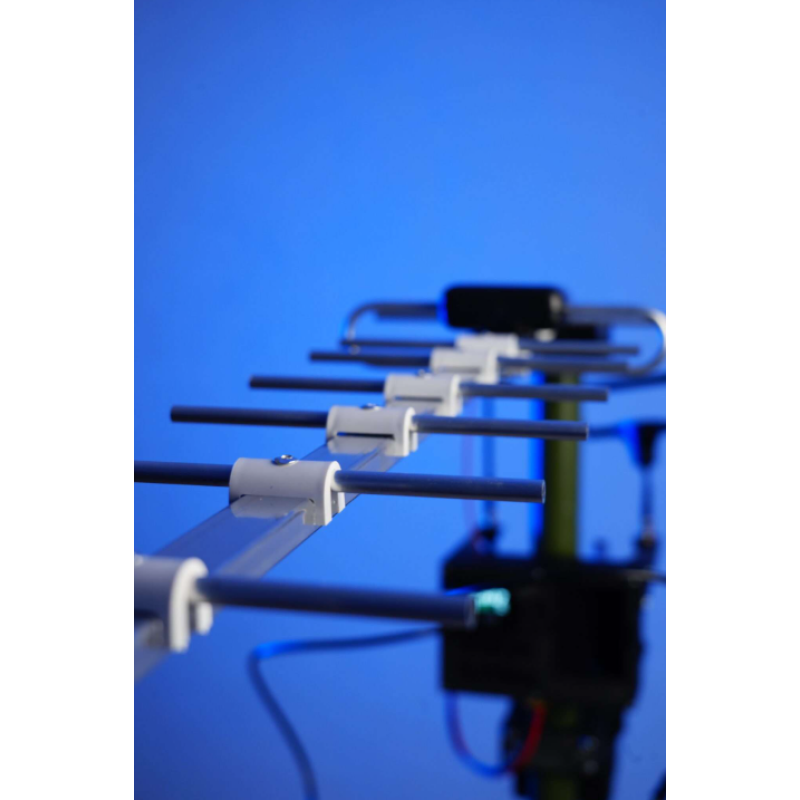

Antennas, used in the complex with a high level of signal amplification for video and control, ensure stable communication over significant distances (up to 45 km).
Purpose
The ground station allows the pilot and navigator to control the UAV from a safe location (shelter, dugout, room, vehicle, etc.), maintaining full control over the drone and receiving high-quality video. The station is a critical component for professional FPV operations where operator safety and communication reliability are paramount.
The repeater is designed to provide reliable communication between the operator and the UAV over long distances. The device receives the video signal from the drone, transmits it to the operator, and also relays control signals. This allows operators to remain in a safe location while maintaining full control over the drone.
The mast allows for mounting and raising the necessary relay devices to the required height.
Key advantages
- Pilot safety: Thanks to the use of remote antenna modules from the ground station, the pilot and co-pilot can work from cover (dugout, room, vehicle, etc.).

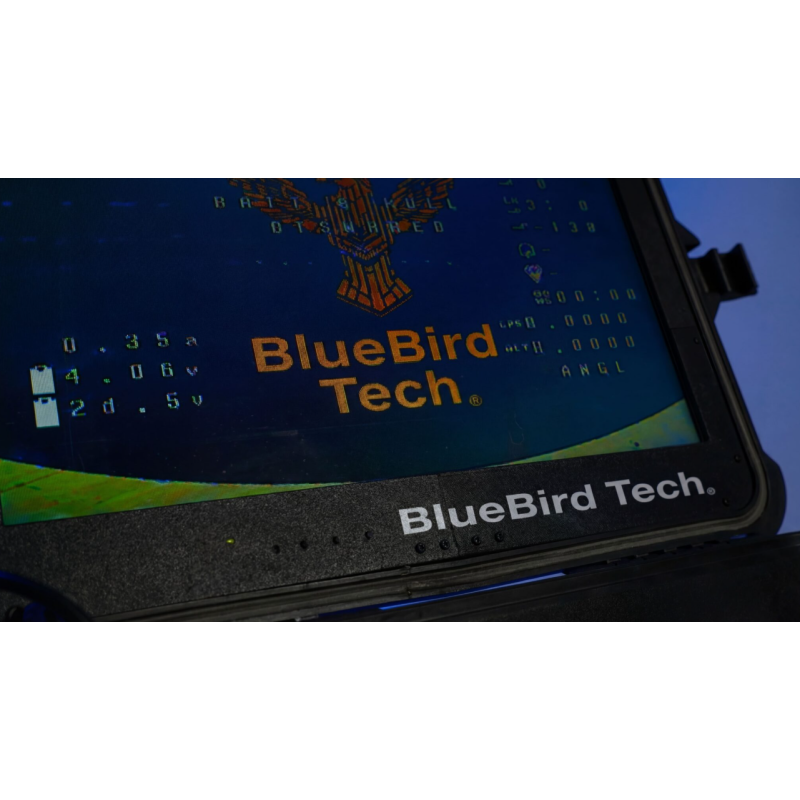

- Convenience: The presence of a large 19-inch monitor and the ability to stream video to goggles increases the convenience and effectiveness of UAV control and pilot-navigator interaction.
- Device power supply: The station can power and charge all necessary devices for UAV operation.
- Wireless communication with the pilot: The pilot is not tied to the cable length and is at a safe distance from the mast with the repeater (up to 1km line of sight).
- Mobility and autonomy: Thanks to its portable design and autonomous power supply, the repeater can be easily installed on any type of mast.
- Long range and reliable communication: Extends the drone's range up to 45 km depending on conditions.
- Quick installation: Preparation for use takes only a few minutes thanks to quick-mount fasteners.
- High quality components: Use of premium components for maximum reliability.
- Stable operation in difficult conditions: Maintains communication even with certain obstacles and interference.
Technical specifications:
Ground station technical specifications
| Parameter | Characteristic |
|---|---|
| Video reception from drone | |
| VRX1 | 5.8GHz SKYZONE Steadyview X 5G (4.990–5.945GHz) |
| VRX1 Antennas | RHCP FOXEER Pagoda Pro 5.8GHz, 3 dBi |
| VRX2 | 1.2GHz (1.080–1.360GHz) |
| VRX2 Antenna | 1.3GHz TrueRC 1280 V2 (RHCP Bottom), 1.9 dBi |
| Receiver sensitivity | –98 dBm ± 1 dBm |
| Control reception from drone | |
| Remote module for TX** | JR ERLS / TBS / Lora with autonomous power supply |
| Remote module for VRX antenna | SMA Female connector |
| Cables for antenna connection | |
| TX module cable | 15 m (XT30 – XT30) |
| VRX module cable | 15 m (SMA Male – SMA Male) |
| Power supply | |
| Ground station | Two 6S2P batteries |
| Remote module for TX | Two 18650 batteries |
| Operating time | |
| Ground station | Up to 6 hours |
| Remote antenna module | Up to 6 hours |
| Pilot goggles connection | |
| Power | XT60 12V connector |
| Video | 3.5 x 4pin connector – 2 pcs. |
| Cables for goggles connection | |
| Power* | 1–3 m |
| Video* | 1–3 m |
| Monitor | Built into case, 19″ |
| DVR | MicroSD recording with viewing capability |
| Charging ports | |
| Type-C | 45W QC |
| USB 3.0 | 18W QC |
| Weight | (not specified) |
| Dimensions | (not specified), case |
* Length chosen by customer
** Optional addition of TX ERLS/TBS/Lora (not included)
Repeater technical specifications
| Parameter | Characteristic |
|---|---|
| Reception from drone | |
| VRX | 5.8GHz SKYZONE Steadyview X 5G (4.990–5.945GHz) |
| Receiver sensitivity | –98 dBm ± 1 dBm |
| TX** | ERLS / TBS / Lora – not included (max. 2W) |
| Antenna connectors | SMA Female |
| Wireless transmission to operator | |
| VTX | ReadytoSky VTX 1.2G / 1.3G, 800 mW, 9 channels |
| VTX Antenna | TrueRC Singularity 1280 V2 (RHCP Bottom90), 1.9 dBi |
| RX | TBS Crossfire Nano |
| RX Antenna | TBS Diamond 915MHz, 2.88 dBi |
| Distance to operator | Up to 1 km (line of sight) |
| Power supply | |
| Repeater | 6S2P battery |
| Operating time | Up to 8 hours |
| Weight | (not specified) |
| Dimensions | (not specified) |
Mast technical specifications
| Parameter | Characteristic |
|---|---|
| Height (folded) | 2.15 m |
| Height (unfolded) | 9 m |
| Weight | 15 kg |
| Dimensions | (not specified) |
