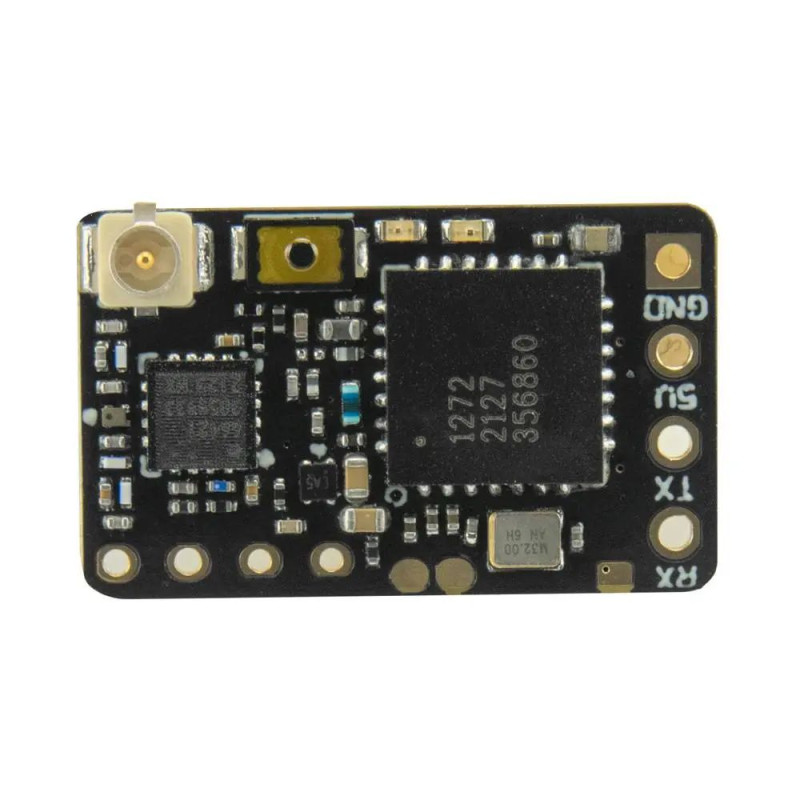

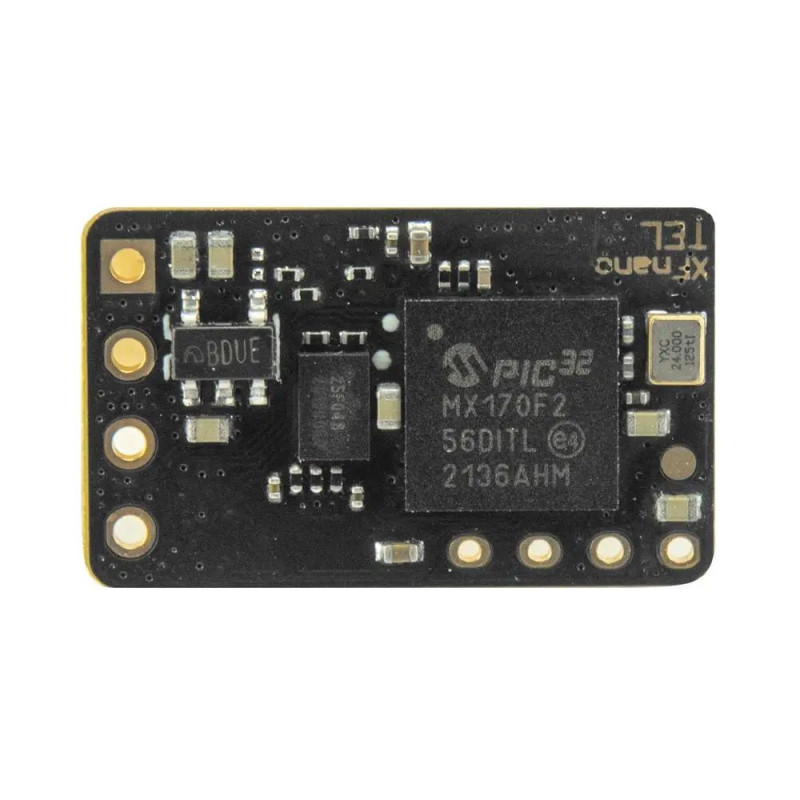

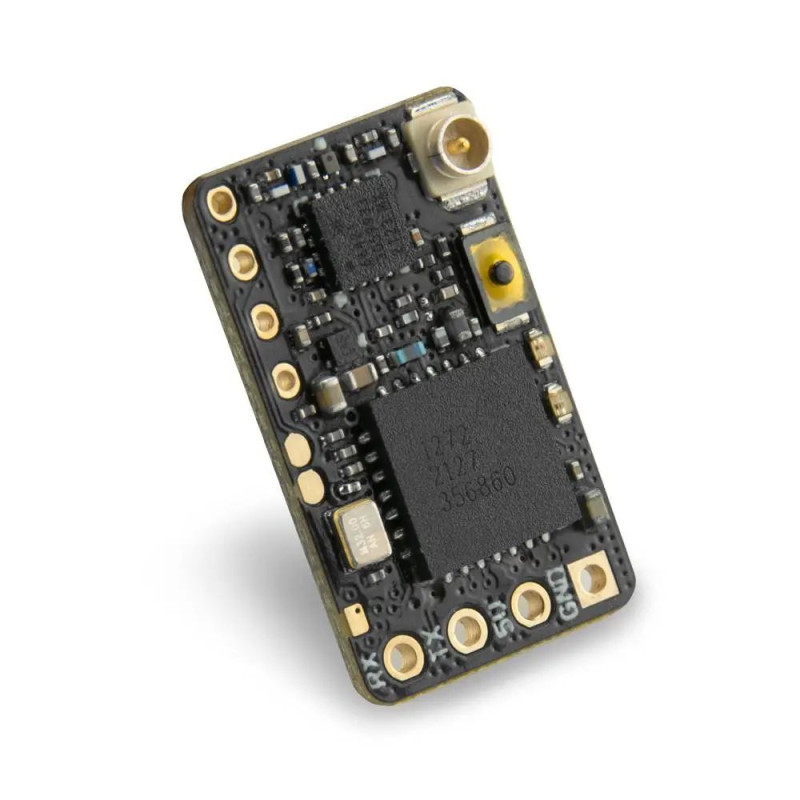

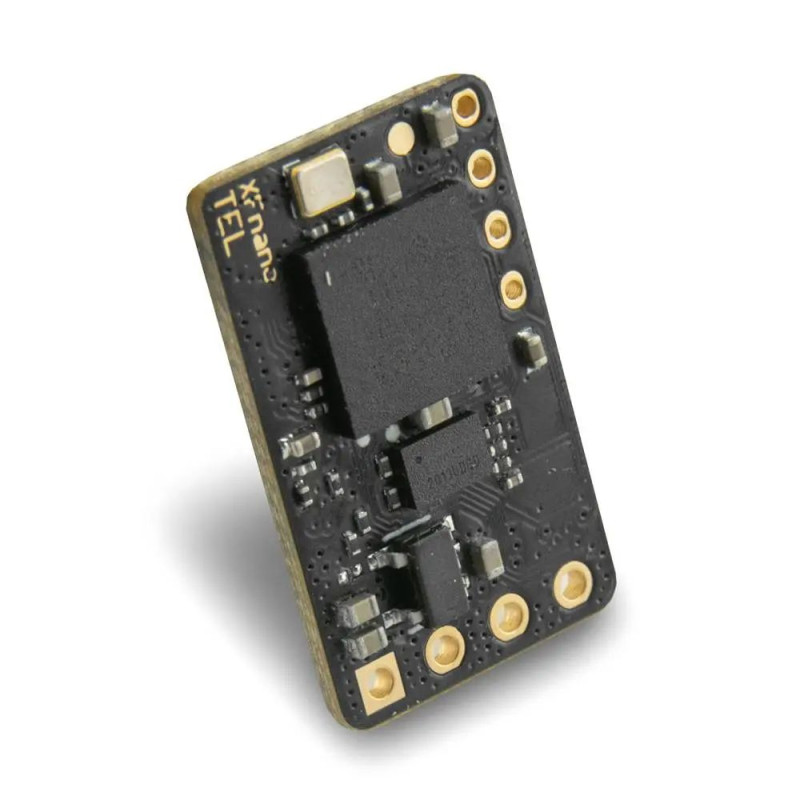

TBS Crossfire Nano Rx Pro Radio Receiver

Brand: TBS. Category: Drones & Quadcopters > Drone Components > Drone Parts > Receivers. The TBS Crossfire Nano RX Pro receiver is an ultra-compact and ultra-lightweight receiver module designed for mini and micro drone pilots, as well as for builds where weight and dimensions are critical. The device retains all the capabilities of the Crossfire line, providing stable communication and low latency with minimal impact on the aircraft's mass and center of gravity.

Specifications:

• Weight: 0.5 g (receiver only)
• Size: 11 mm x 18 mm
• Firmware required: V6.14
• Input power: 3.3 V to 8.4 V

Miniature dimensions of 11×18 mm and a weight of 0.5 g allow the Nano Rx Pro to be integrated into the most space-constrained designs without significantly affecting the center of mass and overall weight of the drone. The input voltage range of 3.3 V to 8.4 V makes the receiver compatible with most power schemes: it can be powered directly from the flight controller or from a battery via appropriate inputs, which simplifies installation in racing and freestyle builds.

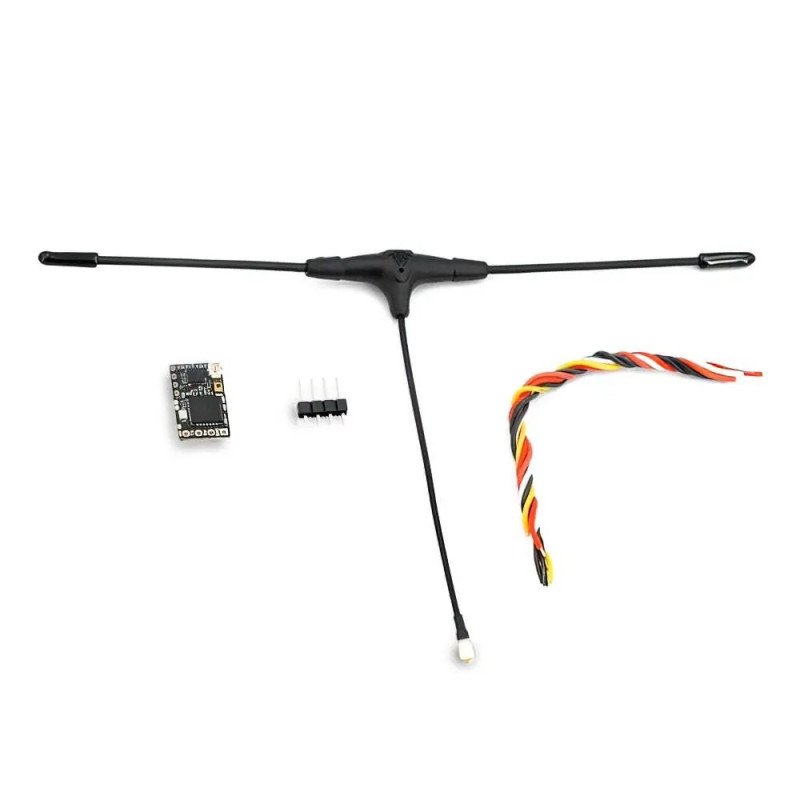

Package Contents:

• TBS Crossfire Nano RX Pro Receiver
• TBS Crossfire Immortal T Antenna
• Spare heat shrink tubing
• 30 AWG silicone-coated wire – 6 pcs (2 black, 2 red, 1 white, 1 yellow)
• 1×4 Connector

The package includes everything necessary for quick installation and connection: thin 30 AWG silicone wires for neat routing between the flight controller and receiver, an Immortal T antenna for reliable Crossfire signal reception, spare heat shrink tubing for protecting solder joints or connectors, and a 1×4 connector for convenient power and control channel connection.

Before operation, be sure to check the receiver's firmware version: firmware V6.14 or newer is required for correct operation and compatibility with the transmitter. This ensures access to all Crossfire system functionalities, communication stability, and optimal telemetry performance.

The TBS Crossfire Nano Rx Pro is ideal for applications where minimal weight, compactness, and reliable control link are important: mini-drones for racing, freestyle, crane projects with limited space for components, as well as for enthusiasts who want to get the most functionality from the Crossfire line with minimal receiver dimensions. Thanks to high compatibility and ease of integration, this module will be a good choice for modern builds.

The TBS Crossfire Nano Rx Pro receiver from TBS combines compactness, lightness, and professional compatibility with the Crossfire line, making it an excellent choice for those looking for a reliable receiver with minimal impact on drone weight.
