AWEDYNE Kulbaba T 840-950 MHz EW System — Portable Modular Protection

The Kulbaba T 840-950 MHz FPV Control Jamming System is designed to increase the chances of preserving mobile and stationary assets from kamikaze drone attacks. This is a modular portable electronic warfare (EW) jammer from AWEDYNE, developed for field operation and the protection of trenches, vehicles, and critical points.

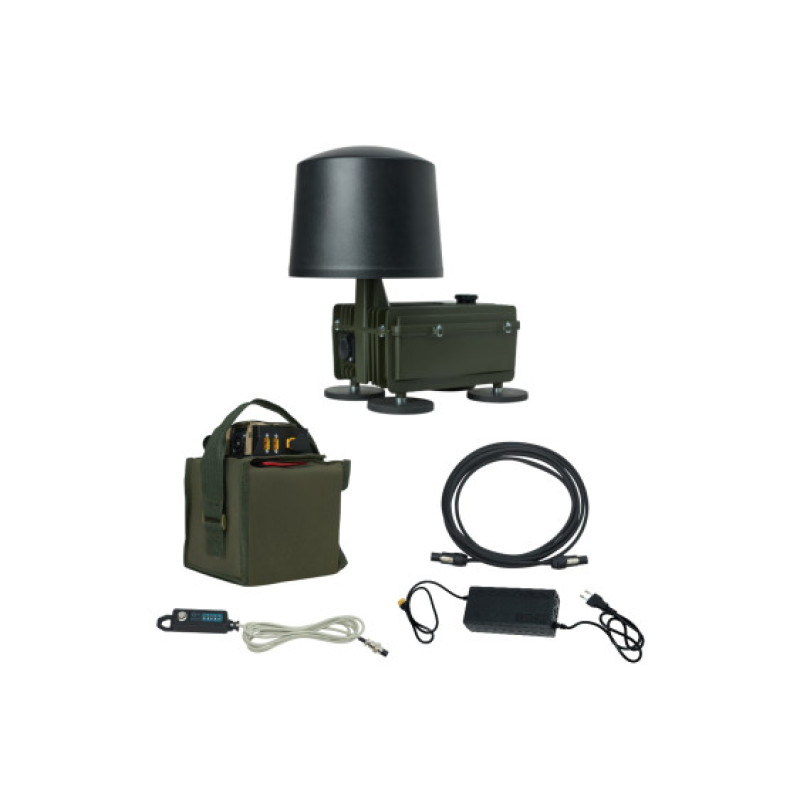

Structurally, the system consists of independent blocks: each block has a separate casing, its own non-removable antenna, and a connector for power supply from the included portable LiFePo4 24 V, 12 Ah battery. Power is supplied exclusively from the included battery; connection to a vehicle's onboard network or other external sources is not provided. Operating time from one included battery is approximately ≈2.5 hours when using two blocks.

Each antenna is designed for a specific frequency range of 840–950 MHz and is non-removable, which protects the amplifying elements from operating without a load and increases reliability. The antennas have a reinforced design to maintain geometry under the influence of weather conditions and body vibration.

The blocks are equipped with rubber-impregnated neodymium magnets, allowing for quick and reliable mounting on a vehicle's body. This design ensures simple installation and fixation while in motion without additional fasteners.

IMPORTANT!

• 1. Many devices externally similar to "Kulbaba" have appeared on the market, but the original manufacturer is only AWEDYNE. Other products are not related to this model; please be careful when purchasing.
• 2. Multi-band solutions in a single casing with multiple antennas often malfunction; for correct operation, antennas must be physically separated from each other. Do not trust compact "convenient" options that reduce protection effectiveness.
• 3. Collinear dipole antennas form a "donut-shaped" field with a hole above the protected object — this is a vulnerable zone. Use only correct antennas for dome-shaped (cupola-shaped) protection.
• 4. Power is only from the included battery. Do not modify the device for a vehicle's onboard network. If the operating time is insufficient, it is recommended to purchase an additional battery pack.
• 5. Avoid devices with active cooling: active fans or coolers can fail due to rain, snow, dirt, or jamming, leading to overheating and malfunction. Prefer solutions with passive cooling.

Key Features

Model: Kulbaba T 840-950 MHz EW System. Manufacturer: AWEDYNE. Product Category: EW Jammers. Power: LiFePo4 24 V, 12 Ah (battery included). Operating time: ≈2.5 hours from one battery when using two blocks. Features: modular design, non-removable antennas for specific 840–950 MHz frequency, reinforced antenna construction, rubber-impregnated neodymium magnets for quick attachment, passive cooling recommended only.

If you need a reliable portable system for protecting mobile and stationary assets at 840–950 MHz frequencies, the Kulbaba T model from AWEDYNE offers a ready-made field solution: modules with separate casings and antennas, simple magnetic attachment, autonomous power from the included LiFePo4 battery, and well-designed mechanics for electronic module safety.
