Kulbaba G 500-560 MHz EW Jammer System with Kulbaba Inverter
Manufacturer: AWEDYNE. Product type: EW jammers, category: Vehicle EW Jammers. The Kulbaba G FPV control suppression system with an integrated inverter is designed to significantly increase the probability of preserving rolling stock and protecting trenches and stationary objects from kamikaze drone attacks. The model is designed as a portable, modular system for operational use in the field, ensuring flexible placement of units and rapid deployment.

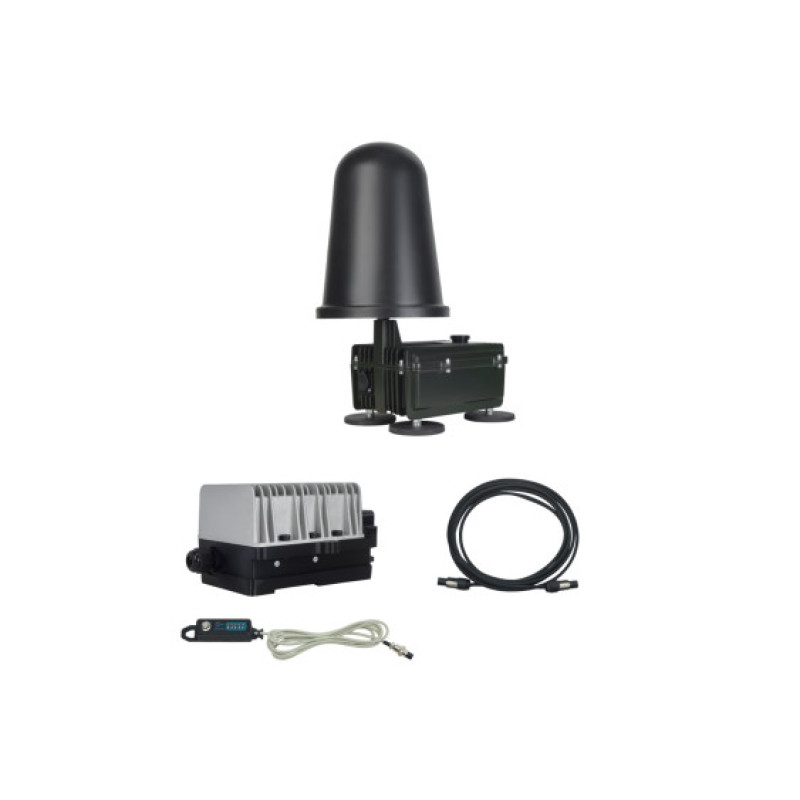

The system consists of independent modules: each unit has its own housing, a non-removable reinforced antenna, and a connector for power supply from the included LiFePo4 24-volt 12 Ah battery (24 V, 12 Ah). Power is only possible from the portable battery included in the kit; connection to the vehicle's onboard network or other external power sources is not provided. The operating time from one battery pack for two units is approximately 2.5 hours; to extend operation, it is recommended to purchase additional battery packs.
The antennas in each unit are designed for a specific operating range and are not removable, which prevents the amplifier from starting without a properly installed antenna and reduces the risk of component burnout. The antenna design is reinforced to protect against weather conditions and vibrations during vehicle operation. The units are equipped with rubber-permeated neodymium magnets, ensuring quick and reliable attachment to the vehicle body or roof, as well as mechanical stability during movement.
IMPORTANT!
- 1. Numerous devices outwardly similar to "Kulbaba" have appeared on the market. The original manufacturer of the "Kulbaba" system is only AWEDYNE. Other devices are not related to this product, so be careful when choosing.
- 2. Devices with multiple bands and multiple antennas in one housing often do not work correctly — antennas must be spaced apart from each other; avoid "convenient" designs that reduce protection effectiveness.
- 3. Collinear dipole antennas form a "donut-shaped" field with a vulnerable zone above the device; use only antennas that provide dome-shaped protection.
- 4. Power only from the included battery. Do not modify the power supply for the vehicle network. If the operating time is insufficient, purchase an additional battery pack for the units.
- 5. Avoid solutions with active cooling: fans and other active elements can fail due to rain, snow, or dirt, leading to overheating and device failure. Prefer passive cooling.
Description of Key Design Features
Each module has its own spaced antenna, housing, and power connector, allowing flexible placement of units on the vehicle for optimal coverage. Non-removable reinforced antennas reduce the risk of mechanical deformation, and rubber-permeated neodymium magnets ensure quick installation and reliable fixation. The system is equipped with an inverter, operates in the 500–560 MHz range, and has an encoding function (codification – yes), which increases operational stability in complex electromagnetic environments.
Main Characteristics of the Kulbaba G (500-560) EW Jammer System with Inverter
| Technical Parameters | |
|---|---|
| Frequency range, MHz | 500-560 |
| Codification | Yes |
| Supply voltage, V | 24 |
| Number of modules, pcs. | 1 |
The Kulbaba G model with inverter is recommended for operational protection of personnel and equipment in highly mobile conditions. Consider the limitations regarding the power source and antenna placement principles when planning operation. If necessary, additional units or additional battery packs can be ordered from the supplier to extend operating time or expand coverage.
