Holybro M9N GPS Navigation Module

The Holybro M9N GPS Navigation Module is a professional solution for drones and quadcopters, providing precise positioning and reliable operation in challenging conditions. The module meets the needs of both amateurs and commercial applications, combining a high-sensitivity receiver, built-in compass, and useful indication and protection elements.

Brand: Holybro
Category: Drones & Quadcopters > Drone Accessories

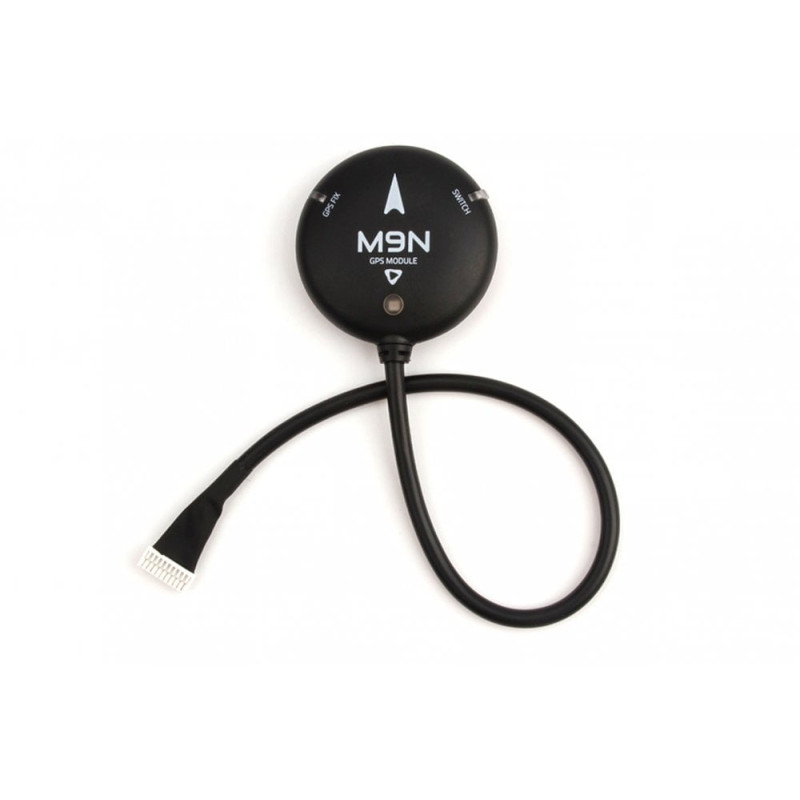

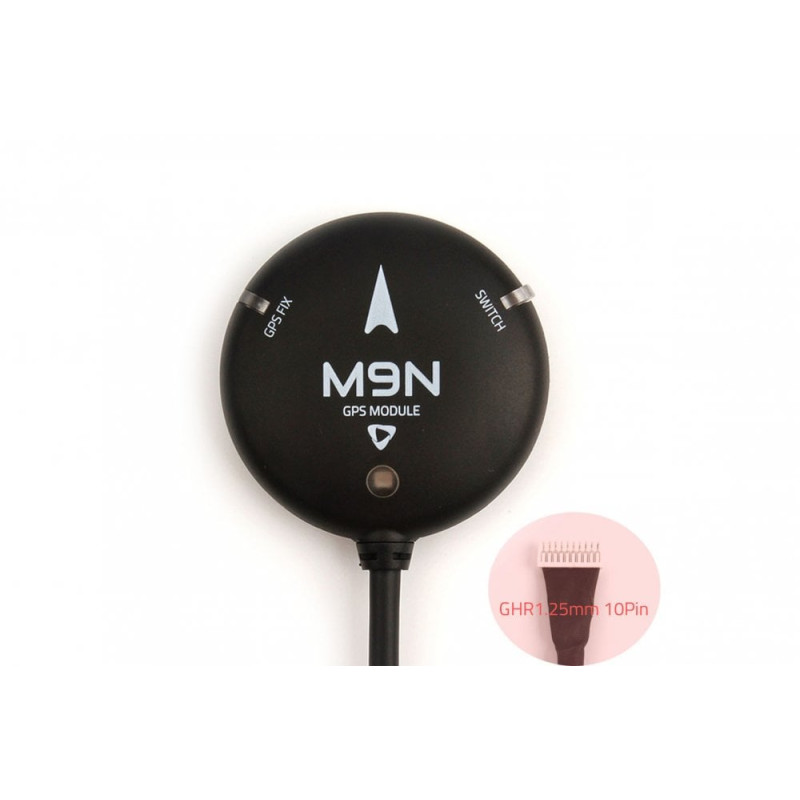

Description and Design: The M9N is equipped with a UBLOX M9N (Ublox Neo-M9N) module and a 25 x 25 x 4 mm ceramic patch antenna, ensuring stable signal reception. The housing features a protective coating and a tri-color LED indicator for quick visual diagnosis of the module's status. A safety switch is also provided for quick disconnection of the navigation unit.

Key Technical Specifications:

• Positioning Module: UBLOX M9N (Ublox Neo-M9N)
• Compass: IST8310
• Tri-color LED indicator and safety switch
• Data Transfer Rate: 115200 bps, position update rate 5 Hz
• Cold Start: approximately 26 seconds
• Amplifier/LNA: MAX2659ELT+
• Ceramic Patch Antenna: 25 x 25 x 4 mm
• Rechargeable LED capacitor (for indication)
• Low-noise regulator: 3.3 V
• Current Consumption: less than 150 mA at 5 V
• Navigation Sensitivity: up to -167 dBm (best in class)

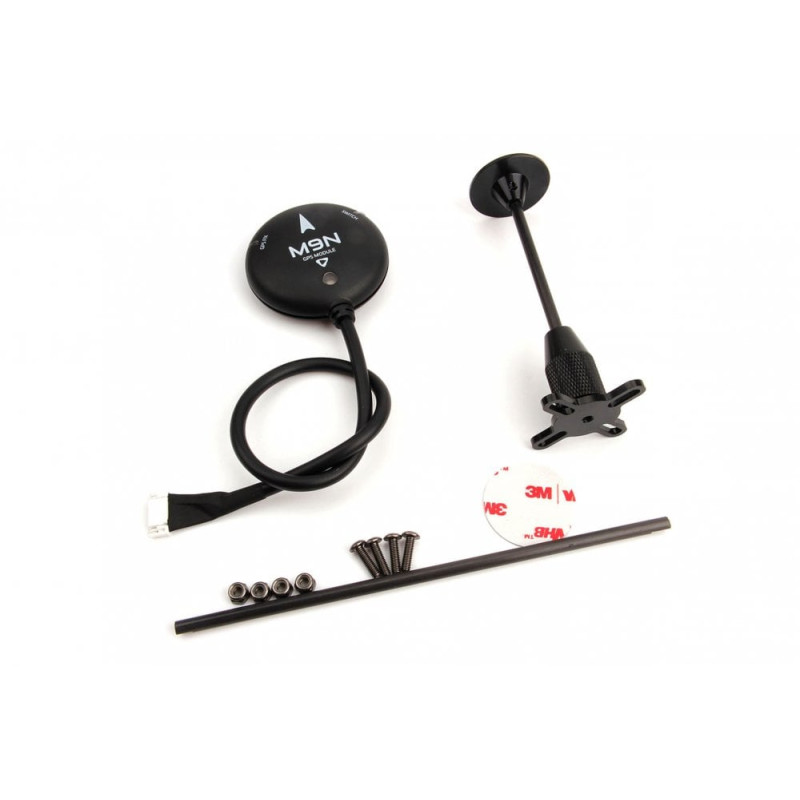

• Package Contents: 26 cm cable included
• Dimensions: 50 mm diameter
• Weight: 32 g

Advantages of Use: The Holybro M9N is distinguished by its high sensitivity and signal stability even in difficult reception conditions, thanks to the Ublox Neo-M9N module and MAX2659ELT+ amplifier. The built-in IST8310 compass allows for precise platform orientation, and the protective housing enhances operational reliability in flight. The tri-color LED indicator simplifies setup and diagnostics, while the safety switch adds security during maintenance.

Applications: The module is ideal for use in industrial and consumer drones, mapping systems, autonomous navigation, and any projects requiring precise GPS/GLONASS/Galileo/BeiDou navigation and stable platform orientation.

The Holybro M9N is a reliable navigation module with a full set of features for professional tasks, combining modern GNSS technologies, a built-in compass, status indicators, and compact size with low weight.

Product information is taken from the original description: UBLOX M9N module, IST8310 compass, tri-color indicator, safety switch, 115200 bps speed, 5 Hz update, 26 s cold start, MAX2659ELT+ LNA, 25 x 25 x 4 mm ceramic patch antenna, rechargeable LED capacitor, 3.3 V low-noise regulator, consumption
