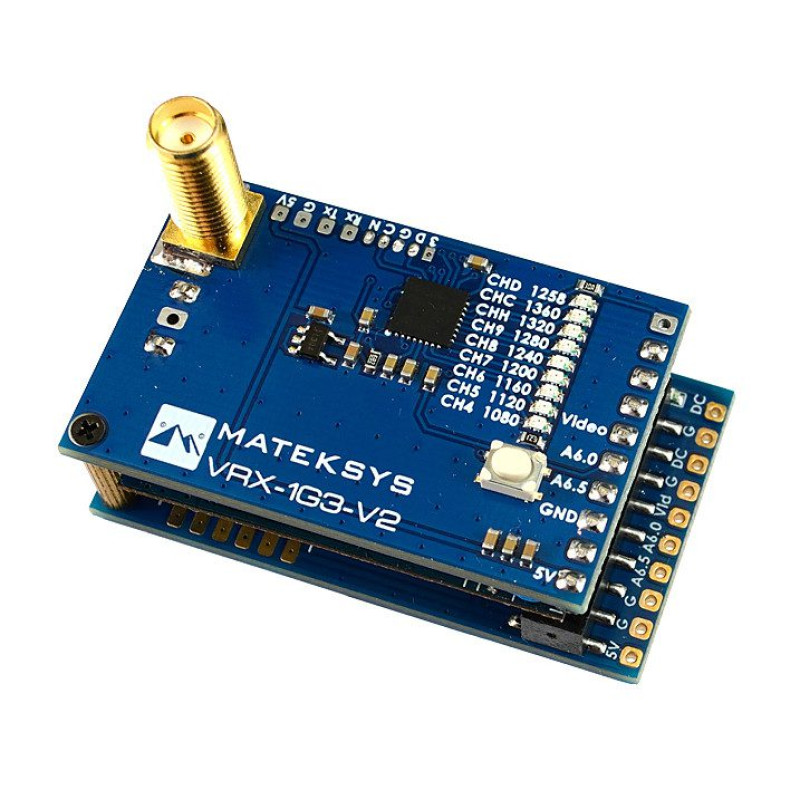

MATEK VRX-1G3 V2 1.2-1.3GHz Video Receiver

Brand: Matek. Category: Drones & Quadcopters > Transmitters. Introducing the updated VRX-1G3 V2 video receiver from Matek — a reliable and compact module for FPV systems, optimized for operation in the 1.2–1.3 GHz range (1080–1360 MHz). This module combines high sensitivity, a wide power supply range, and convenient control, making it an excellent choice for racing and long-range multicopters, as well as for upgrading existing airborne video surveillance systems.

Key Features

• Frequency coverage 1080 - 1360 MHz (1.2–1.3 GHz) for stable reception over long distances.
• 9-channel compatibility for flexible frequency selection, including operation with Matek VTX-1G3-9 transmitters and other compatible VTXs.
• High RX sensitivity of -95 dBm ensures reception of even weak signals.
• Built-in 950 ~ 1450 MHz broadband filter significantly reduces interference and improves image quality.
• Support for various power options: 4 ~ 5V via pins or 6 ~ 30V via the "DC" pad on the VRX-DK.
• Convenient button control with LED indicators allows quick channel switching and reception status monitoring.

Technical Specifications

Additional Information

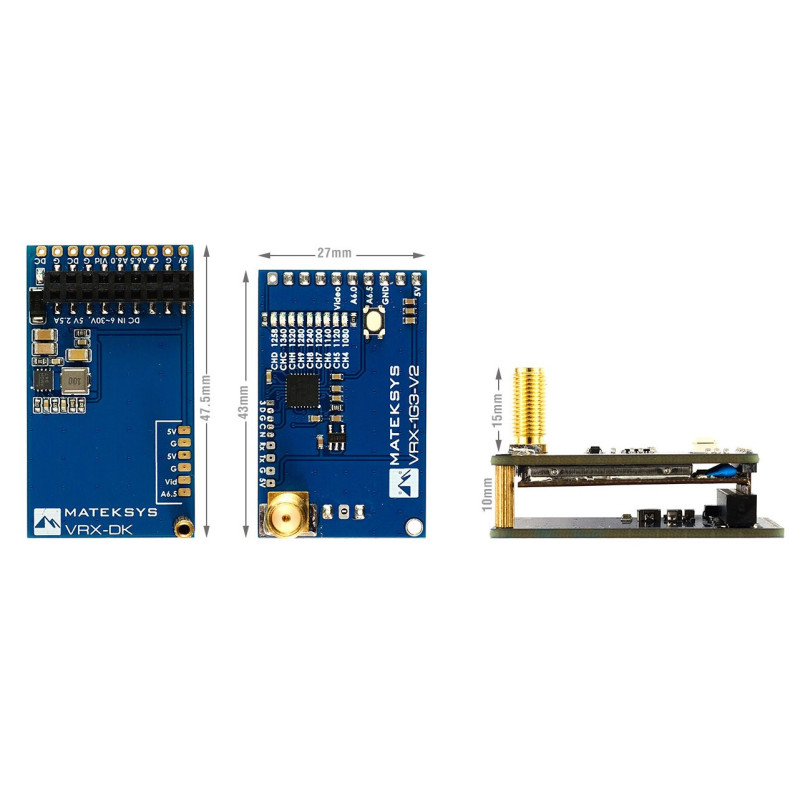

The VRX-1G3 V2 has an output impedance of 75 Ohm and an input impedance of 50 Ohm, which meets standard video system requirements. The SMA connector allows connecting standard or high-gain antennas to improve range and signal quality; the standard dipole antenna has a center frequency of 1240 MHz. For power, two approaches are possible: low-voltage connection 4–5V via pins for minimal consumption, or a wider range of 6–30V via the VRX-DK, where the built-in regulator provides stable 5V 2A for connected devices. Its low weight and compact dimensions (43 x 27 mm) allow easy integration of the module into most designs without significantly increasing the aircraft's mass.

Package Contents

The kit includes:

• 1 x Matek VRX-1G3 V2 1.2/1.3G video receiver
• 1 x VRX-DK (docking station)

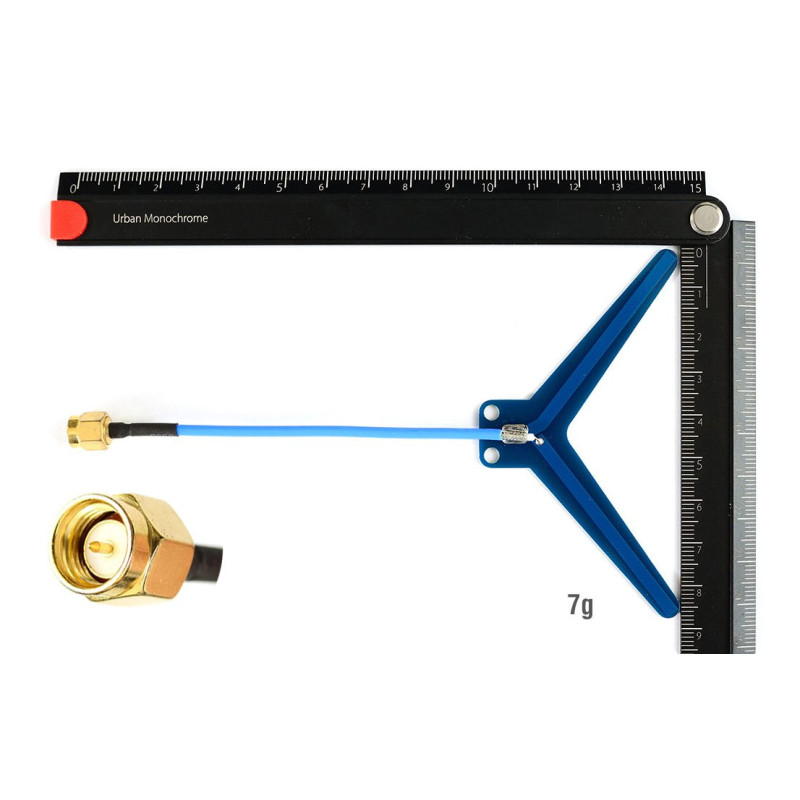

• 1 x SMA dipole antenna, center frequency 1240MHz

The VRX-1G3 V2 is ideal for upgrading FPV systems, installing in racing or long-range multicopters, and testing compatibility with various transmitters. By choosing the Matek VRX-1G3 V2, you get a powerful, compact, and versatile receiver with wide power options and simple control, allowing you to focus on flying and recording high-quality video from your FPV flights.
