Kulbaba FG 410-500 MHz EW Jammer with Inverter — AWEDYNE
FPV Control Jamming System Kulbaba FG (410-500 MHz) with inverter from manufacturer AWEDYNE is a modular mobile solution for protecting moving and stationary objects from kamikaze UAV attacks. Product type: EW jammers (category: EW jammers > Vehicle EW jammers). This portable system provides targeted and reliable suppression of drone communication channels in the 410-500 MHz range.
Purpose and Key Features
The system is designed to significantly enhance the protection level of rolling stock, trenches, and stationary objects. Kulbaba FG is a portable modular system that is easy to deploy, quick to install, and does not require stationary power. It is ideal where autonomy, reliability, and quick installation are crucial.
Design and Power Supply Description

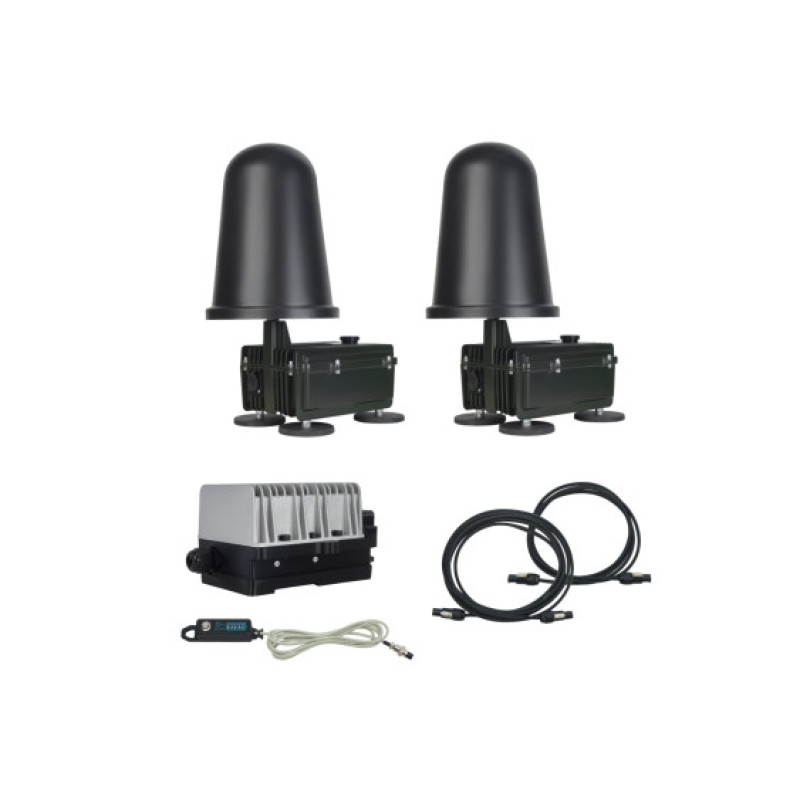

The system consists of independent modules: each module has a separate casing, its own non-removable antenna, and a connector for power supply from the included LiFePo4 24 V 12 Ah battery. Power is supplied only from the portable battery; connection to the vehicle's onboard network or other external sources is not provided. Operating time from one battery when using two modules is approximately 2.5 hours. To extend operating time, it is recommended to purchase an additional battery kit.
Antennas and Mounting
Each module's antenna is specifically designed for its corresponding frequency and is non-removable, which prevents accidental operation of the module without an antenna and reduces the risk of amplifier failure. The antennas have a reinforced design to maintain geometry under the influence of weather conditions and transport vibrations. For quick and reliable mounting, each module is equipped with rubber-impregnated neodymium magnets, ensuring fixation on metal surfaces.
Cooling and Reliability
When designing Kulbaba FG, the manufacturer prioritized passive cooling: active fans can prove unreliable in wet or dirty conditions, increasing the risk of device failure. The passive cooling system enhances the system's survivability during operation in rain, snow, dust, and strong vibrations.
Important Notes
- 1. Many devices resembling "Kulbaba" have appeared on the market. The original manufacturer is only AWEDYNE. Other devices are not original — be careful when choosing.
- 2. Devices combining several frequency bands in one casing with multiple antennas in a shared casing often operate incorrectly — antennas must be spaced apart for proper operation. Do not trust "convenient" solutions that create an illusion of protection.
- 3. Collinear dipole antennas form a field with a "hole" at the top, creating a vulnerable zone. For dome protection, choose an antenna that provides adequate coverage.
- 4. Power is supplied exclusively from the included battery. Do not modify for vehicle power. If the operating time is too short — purchase an additional battery kit.
- 5. Active cooling is risky: fans can get clogged with dirt, flooded with water, or freeze, leading to overheating and failure. Passive cooling is recommended.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency range, MHz | 410-500 |
| Codification | Yes |
| Module power, W | 50 |
| Supply voltage, V | 24 |
| Number of modules, pcs. | 2 |
The Kulbaba FG 410-500 MHz EW jammer with inverter is a mobile, modular, and reliable product from AWEDYNE for effective suppression of UAV control channels in the specified range. It combines autonomous power, a reinforced antenna design, and resistance to external conditions, making it optimal for use in field and mobile operating environments.
