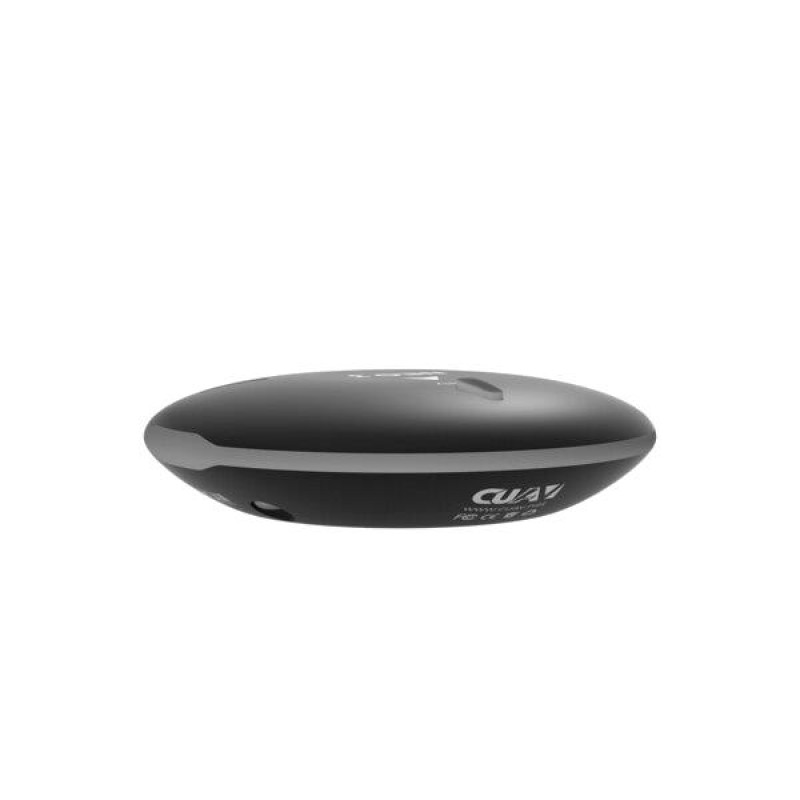

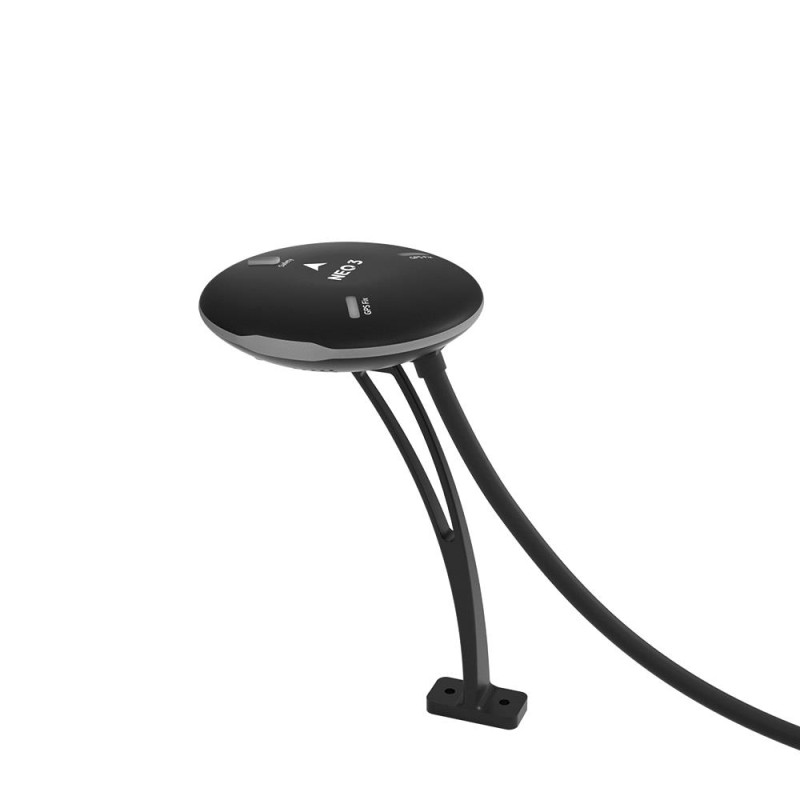

GPS Navigation Module CUAV NEO 3

The GPS Navigation Module CUAV NEO 3 is a compact and functional solution for professional and amateur platforms based on Pixhawk and compatible controllers. The module is designed for integration into drone and quadcopter kits where high positioning accuracy, stable multi-system satellite reception, and RTK support are required. The CUAV NEO 3 provides simultaneous reception of GPS, GLONASS, BeiDou, and Galileo signals thanks to the Ublox M9N receiver, which increases positioning reliability in urban and field conditions.

Description and Features

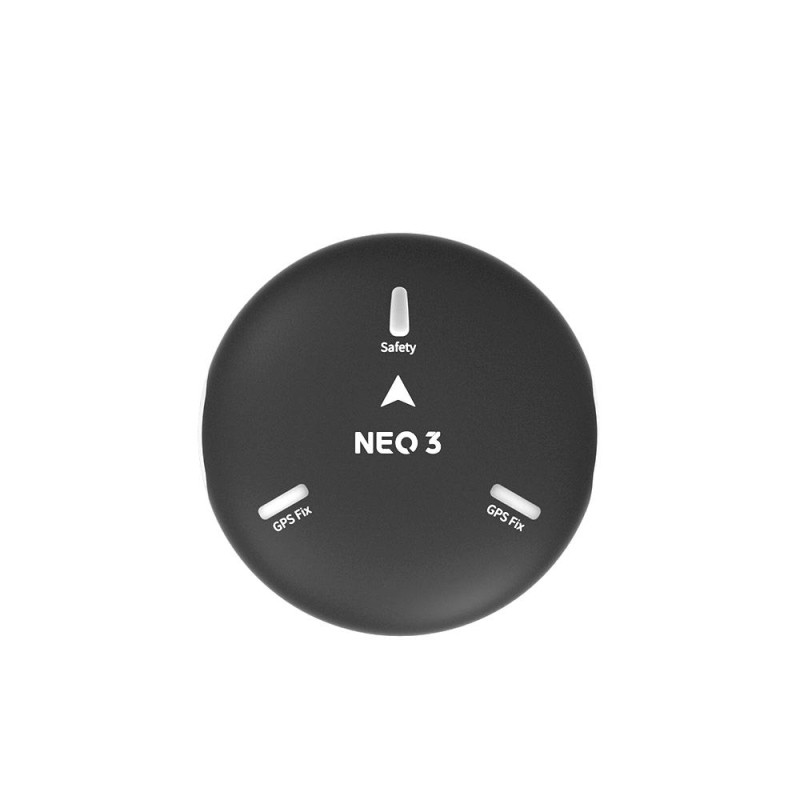

The CUAV NEO 3 continues the hardware design of the previous NEO V2 version but is equipped with an updated Ublox NEO M9N GNSS module. The device has an integrated IST8310 compass and MS5611 barometer, a built-in safety switch, a buzzer, and an RGB indicator for status indication. It supports open-source ArduPilot and PX4, compatible with UAV 4, which simplifies setup and operation on popular controllers.

Key Technical Specifications

• Model: CUAV-NEO3
• Brand in description: Feetech
• Country of origin / brand: China
• Processor: STM32F412
• Sensors: IST8310 compass, MS5611 barometer, Ublox M9N RTK receiver

GNSS Parameters

• GNSS bands: GPS/QZSS L1 C/A, GLONASS L1OF, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN)
• Number of simultaneous GNSS: 4 (simultaneous satellite information reception)
• Maximum number of satellites: up to 32
• RTK update rate: up to 25 Hz

Precision Indicators and Interfaces

• Position accuracy: horizontal up to 0.7 m (description also states accuracy up to 1.5 m)
• Cold start: 24 s
• Assisted start: 2 s
• Reacquisition: 2 s
• Tracking and navigation sensitivity: -167 dBm
• Cold start sensitivity: -148 dBm
• Reacquisition sensitivity: -160 dBm
• Interface protocols: UART + I2C + IO
• Connection interface type: GHR-10V-S
• Input voltage: 5V

Operating Conditions and Mechanical Characteristics

• Operating temperature: -10 to +70 degrees Celsius
• Size: 60x60x16 mm
• Weight: 33 g

The CUAV NEO 3 is suitable for use in challenging conditions thanks to multi-system reception and RTK support, making it an optimal choice for tasks requiring precise geolocation — mapping, inspections, industrial applications, and autonomous missions. The integrated IST8310 compass and MS5611 barometer provide additional data for correcting platform position and orientation. The presence of an RGB indicator and buzzer simplifies visual monitoring of the module's status during setup and flight.

The module is compatible with ArduPilot and PX4, easily integrates with Pixhawk controllers and compatible boards, allowing for quick navigation setup and access to RTK functions. The CUAV NEO 3 is recommended for both professional systems and enthusiasts who seek to improve the accuracy and reliability of their unmanned platforms' navigation.

SKU (ID): 11747. Product category: Drones and Quadcopters > Drone Components > Drone Accessories.
