Kulbaba FG 410-560 MHz EW Jammer System "Kulbaba"

Manufacturer: AWEDYNE
Product type: EW Jammers

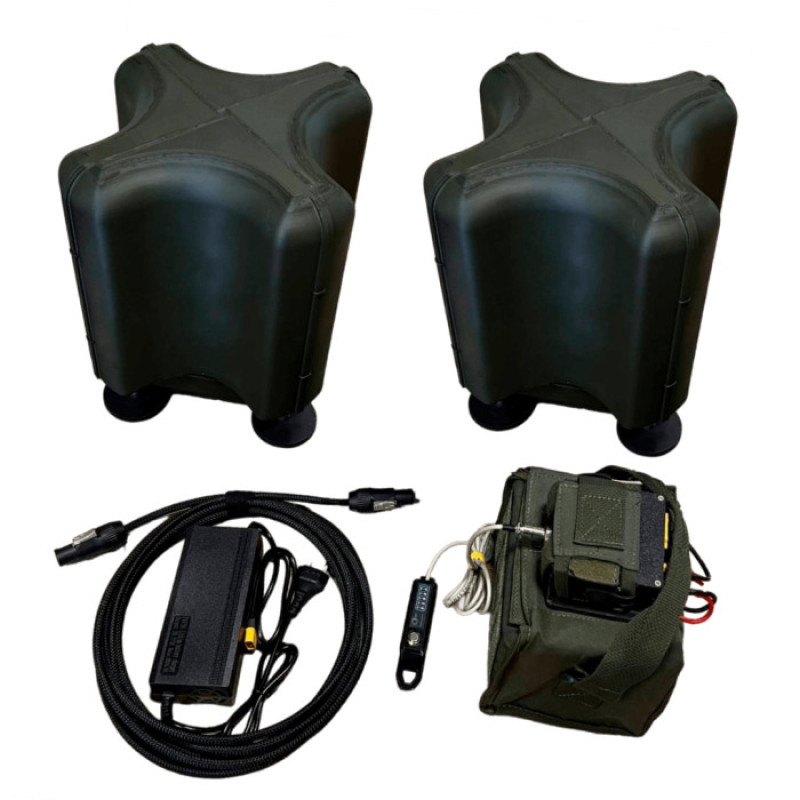

The Kulbaba FG FPV control suppression system (410-560 MHz range) is designed to significantly enhance the protection of moving vehicles, trenches, and stationary objects against kamikaze drone attacks. The device is implemented as a set of independent portable units: each unit has its own casing, a non-removable antenna, and a separate connector for power connection from the included portable LiFePo4 24 Volt battery, which is supplied as part of the kit. Power is supplied exclusively from the included battery; connection to the vehicle's onboard network or other power sources is not provided. The operating time from one set of batteries is approximately 2.5 hours when two units are operating.

Design Features

The antenna on each unit is designed for a specific frequency and is non-removable, which prevents operation without an antenna and reduces the risk of burnout of the electronic module's amplification elements. The antennas have a reinforced design to maintain geometry under the influence of weather conditions and vehicle vibrations. For quick and reliable mounting on vehicles, the unit design uses rubber-impregnated neodymium magnets; this allows for very easy and quick installation of the device on the vehicle body.

IMPORTANT!

• 1. Many devices visually similar to "Kulbaba" have appeared on the market, but the official manufacturer of the "Kulbaba" system is only AWEDYNE. Other products have nothing in common with this item. Please be careful when choosing.
• 2. Devices with multiple bands or multiple antennas in one housing may not operate correctly: antennas must be spaced apart from each other. Convenient technical solutions do not always provide adequate protection.
• 3. Collinear dipole antennas form a field with a "hole" above the protected object — this is a vulnerable zone. Use the correct antennas for dome protection.
• 4. Power only from the included battery. Do not modify for the vehicle's onboard network. If the operating time is insufficient, it is recommended to purchase additional battery packs for the units.
• 5. Active cooling can fail under the influence of rain, snow, or dirt and lead to device malfunction. Choose solutions with passive cooling or provide additional protection from environmental influences.

Operation Description

Each unit in the kit has a separate antenna, fixed to the housing, which increases reliability and prevents operation without an antenna. Mounting on vehicles is quick thanks to magnetic elements. The delivery set includes a portable LiFePo4 24 V, 12 Ah battery, designed for autonomous power supply of the units. At the same time, the technical parameters of the system indicate a battery capacity of 24 Ah — please clarify the battery configuration when ordering if the duration of autonomous operation is critical for your task. General operating requirements include using only the included battery and preferring passive cooling.

Key Features of the Kulbaba FG EW System (410-560)

Technical Parameters

Attention: the description text mentions an included LiFePo4 24 V, 12 Ah battery, while the technical parameters list a battery capacity of 24 Ah. We recommend clarifying the battery configuration when ordering if the duration of autonomous operation is critical for your task.

The Kulbaba FG system is designed for field operation, providing a modular approach to protection and quick installation on vehicles. It is suitable for applications where reliability, ease of maintenance, and protection against erroneous solutions from market competitors are important. Brand: AWEDYNE. Product type in category: EW Jammers, specifically solutions for automotive applications.
