BetaFPV Matrix 1S G4 3 IN 1 HD V1.0 Brushless Flight Controller

Manufacturer: BetaFPV

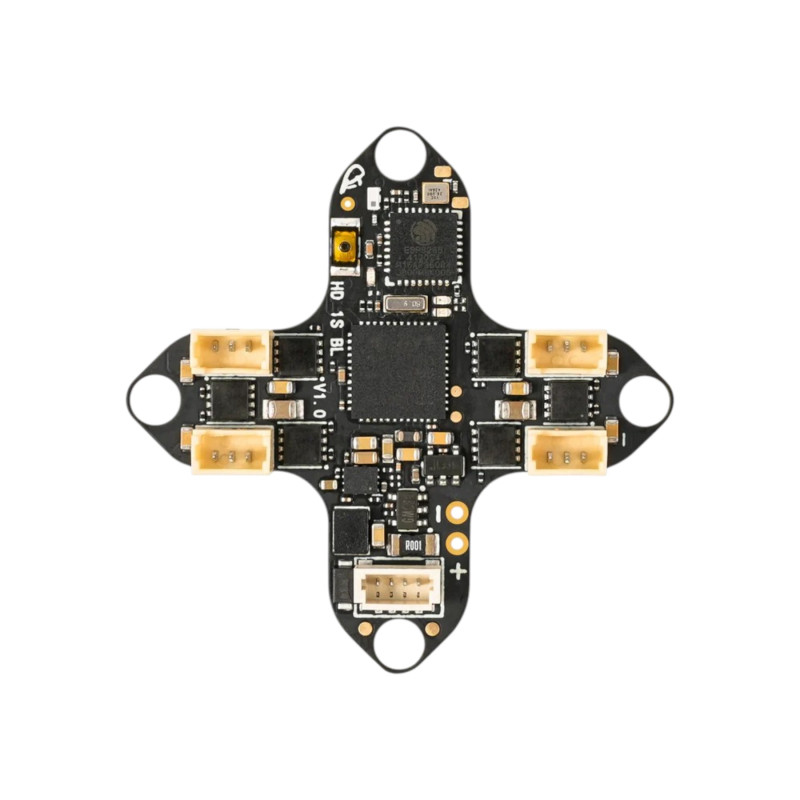

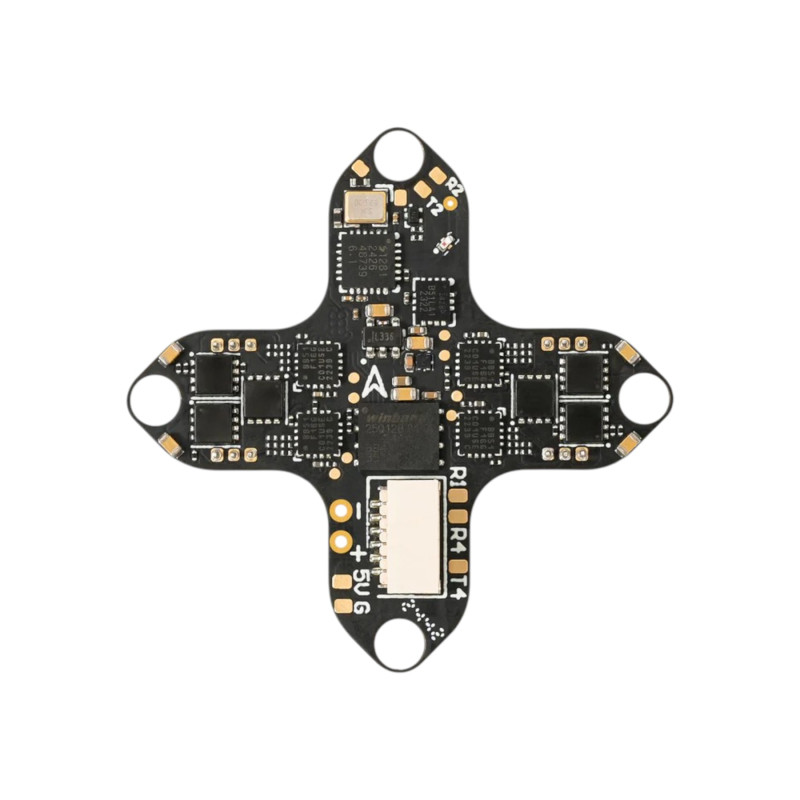

Product Description: The Matrix 1S 3IN1 HD Brushless Flight Controller is an all-in-one solution for digital 1S FPV drones, designed for maximum performance in a compact form factor. The controller features a cross-shaped design that integrates three key components: flight controller (FC), electronic speed controller (ESC), and ExpressLRS 2.4GHz receiver, allowing you to build a modern tinywhoop or 1S HD whoop without excessive soldering or wires.

Key Advantages and Features:

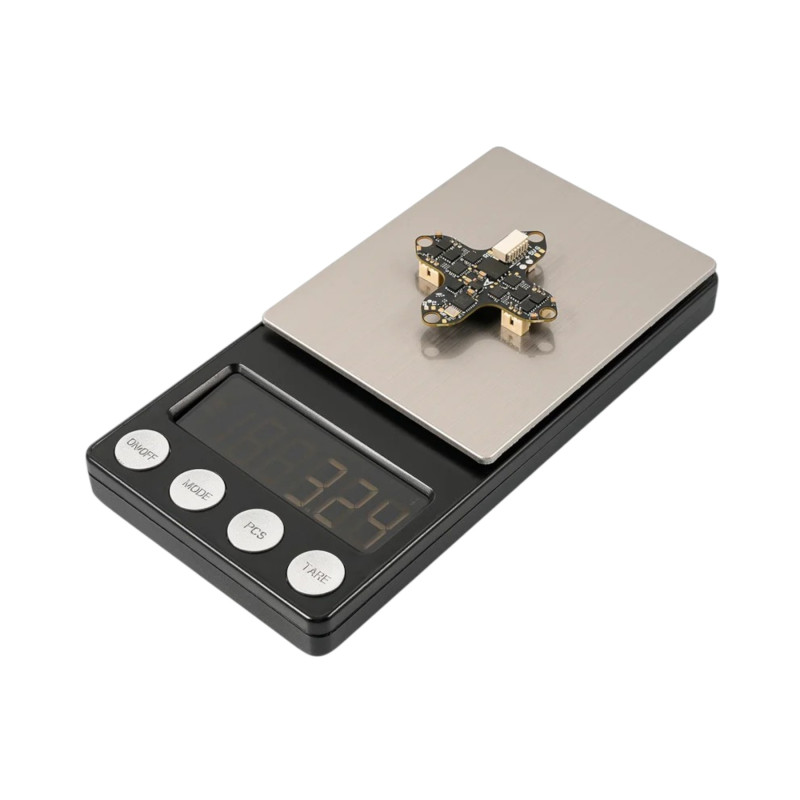

• Compact and Lightweight: The complete module weighs only 4.2g, ideal for lightweight 1S HD builds.
• Smooth Digital Video: An advanced BEC system stably powers the HD video transmitter even at low voltages, ensuring a clear picture during flight.
• Powerful ESC: Rated current of 12A with a peak value up to 18A, providing ample thrust for heavier HD configurations.
• Flight Precision: Independent power supply for the IMU increases sensor accuracy and in-flight stability.
• Easy Installation and Maintenance: The connector system (SH1.0) allows for solder-free drone assembly and quick module replacement.

Application and Compatibility: The Matrix 1S is designed specifically for small digital tinywhoop drones operating on 1S power. The controller supports DSHOT300/600 protocols, provides integration with ExpressLRS 2.4GHz for clean and reliable communication, telemetry, and modern configuration options. ELRS firmware updates via Wi-Fi and updates/configuration via Betaflight Passthrough are supported.

Technical Details (included in description): Compact cross-shaped design, integrated FC + ESC + RX (ExpressLRS 2.4GHz), DSHOT300/600 support, 12A ESC (peak current up to 18A), independent IMU power supply, BEC for stable HD video system power, compatibility with tinywhoop and application examples like Meteor65 Pro O4.

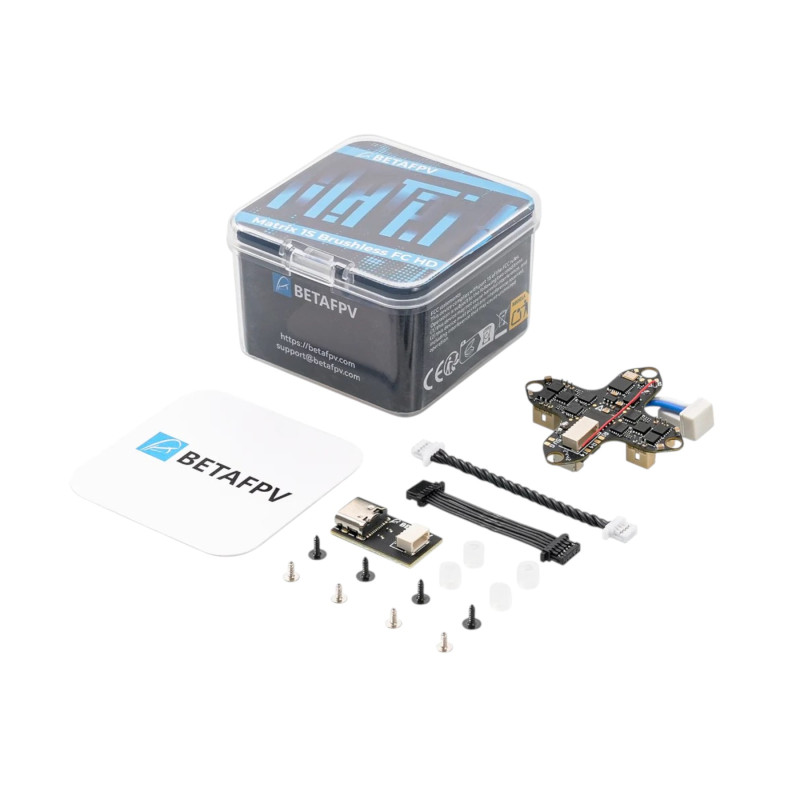

Package Contents:

• 1 x Matrix 1S 3IN1 HD
• 1 x USB Type-C → SH1.0 adapter
• 1 x SH1.0-4Pin cable
• 1 x SH1.0-6Pin cable
• Mounting hardware (M1.2/M1.4 screws)
• Damping pads

Product Category: Drones & Quadcopters > Stacks (FC+ESC)

The Matrix 1S G4 3 IN 1 HD V1.0 from BetaFPV is an excellent choice for pilots seeking a highly integrated, lightweight, and high-performance solution for digital 1S drones. The module combines ease of installation, modern communication protocols, stable power for HD video, and sufficient thrust for dynamic flight, making the assembly and configuration of your whoop drone simple and fast.
