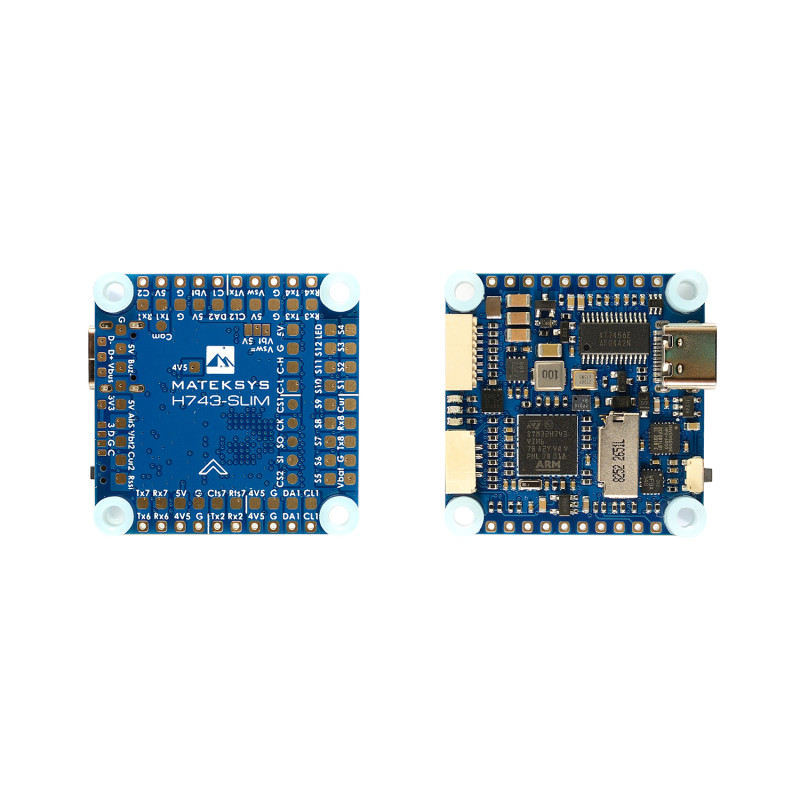

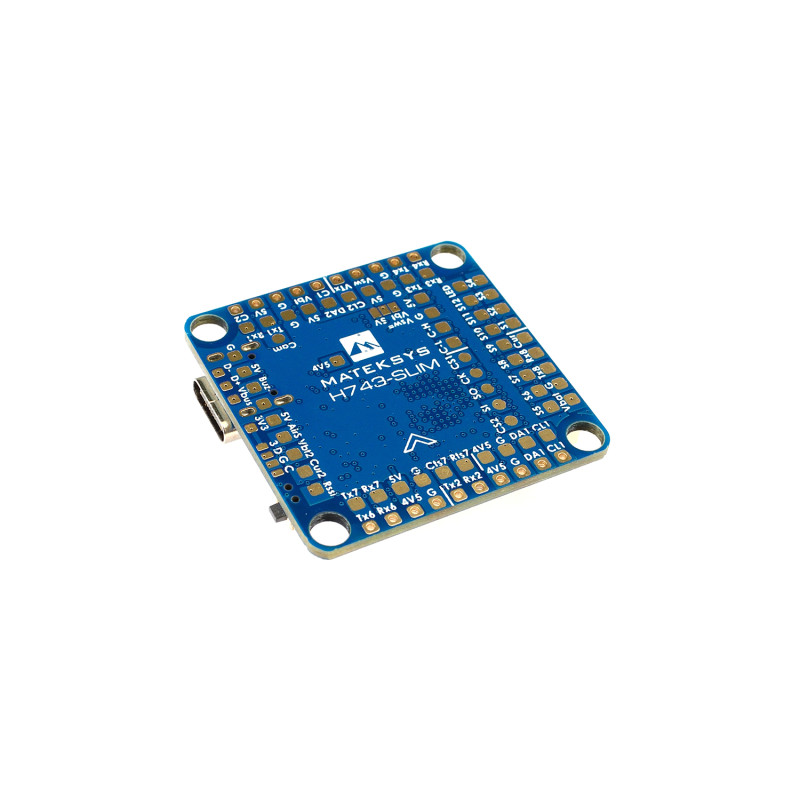

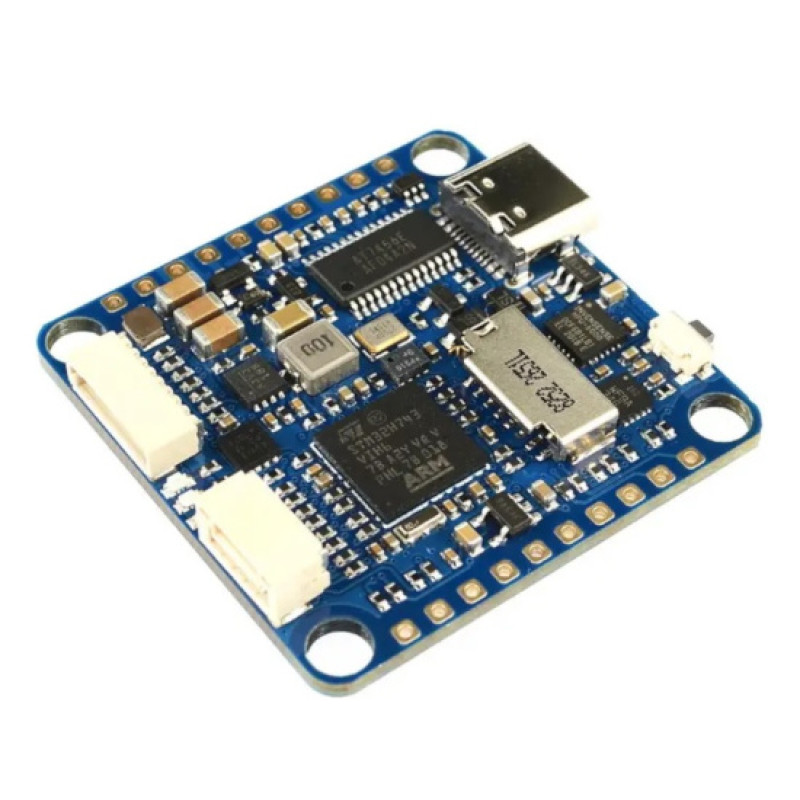

Matek H743-SLIM V3 Flight Controller

Matek H743-SLIM V3 is a compact and high-performance flight controller from the Matek brand, designed for professional and amateur unmanned aerial vehicles. This controller combines a powerful H7 series processor, a wide range of interfaces, and compatibility with popular firmware, making it a versatile solution for racing drones, heavy platforms with additional equipment, autonomous robotic systems, and integration projects.

Category: Drones & Quadcopters > Stacks (FC+ESC). Manufacturer: Matek. The device has small dimensions and weight, allowing it to be installed in compact configurations without loss of functionality.

Key Features

• Processor: STM32H743VIT6 (H7) with a clock speed of 480 MHz, equipped with 1 Mb RAM and 2 Mb flash memory — ensures fast processing of sensor data and complex autopilot algorithms.
• Motion Sensors: combined set of MPU6000 (SPI1) and ICM42605/42688p (SPI4) for reliable orientation and motion detection.
• Barometer: Infineon DPS310 (I2C2) for accurate altitude measurement.
• OSD: AT7456E (SPI2) with the ability to connect via any UART for DJI FPV OSD.
• Blackbox: MicroSD card slot (SDIO) for recording telemetry and flight logs.
• Communications: 7 UART ports (1,2,3,4,6,7,8) with built-in inversion, 2 I2C ports, 1 CAN port, and SPI breakout for expansion.
• Outputs: 13 PWM outputs (including LED pad) for connecting ESCs and peripherals.
• Indicators: 3 LEDs for FC status (blue, red) and 3.3V BEC indicator (red).
• Analog-to-Digital Inputs: 6 ADC — VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2.
• Connectors: JST-SH 1.0 8-pin for Vbat / G / Curr / Rx8 / S1 / S2 / S3 / S4; JST-GH 1.25 4-pin for 5V / CAN-H / CAN-L / G.
• Support for two cameras with switchable inputs and a physical ON/OFF switch for 5V/Vbat power with filter.
• Input Voltage: 6–36V (supports up to 8S LiPo).
• BEC: 5V 2A (max. 3A); LDO: 3.3V/max. 200mA.
• ADC Vbat2 supports up to 69V (voltage divider 1K:20K).
• Static Power: approximately 200mA at 5V with Betaflight and 150mA at 5V with ArduPilot.
• Supported Firmware: ArduPilot (MATEKH743, ChibiOS), BetaFlight (MATEKH743), INAV (MATEKH743, supported from version 3.0.1).

Applications and Advantages

Thanks to its powerful H7 processor, a large number of UART/I2C/CAN interfaces, and compatibility with ArduPilot, BetaFlight, and INAV, the Matek H743-SLIM V3 is ideally suited for a wide range of tasks: from high-speed racing drones to autonomous platforms with navigation, heavy frames with additional equipment, and industrial robotic solutions. The compact form factor and weight make the controller convenient for upgrades and new designs, while extended connectivity options allow for the integration of additional sensors, telemetry, and cameras.

Package Contents

• 1× Matek H743-SLIM V3 Flight Controller
• 6× M3, M4 silicone grommets
• 1× JST-SH 8-pin cable, 5 cm
• 2× JST-SH 8-pin connectors
• 1× JST-GH-4P to JST-GH-4P cable for CAN port, 20 cm

Technical Specifications (full list)

This controller from Matek combines a compact form factor (30.5 x 30.5 mm mounting, Φ4mm holes with Φ3mm grommets), low weight (7 g), and a rich set of interfaces, making it an excellent choice for upgrading or building new hardware configurations. If you need a reliable FC with scalability and support for various firmware — the Matek H743-SLIM V3 meets these requirements.
