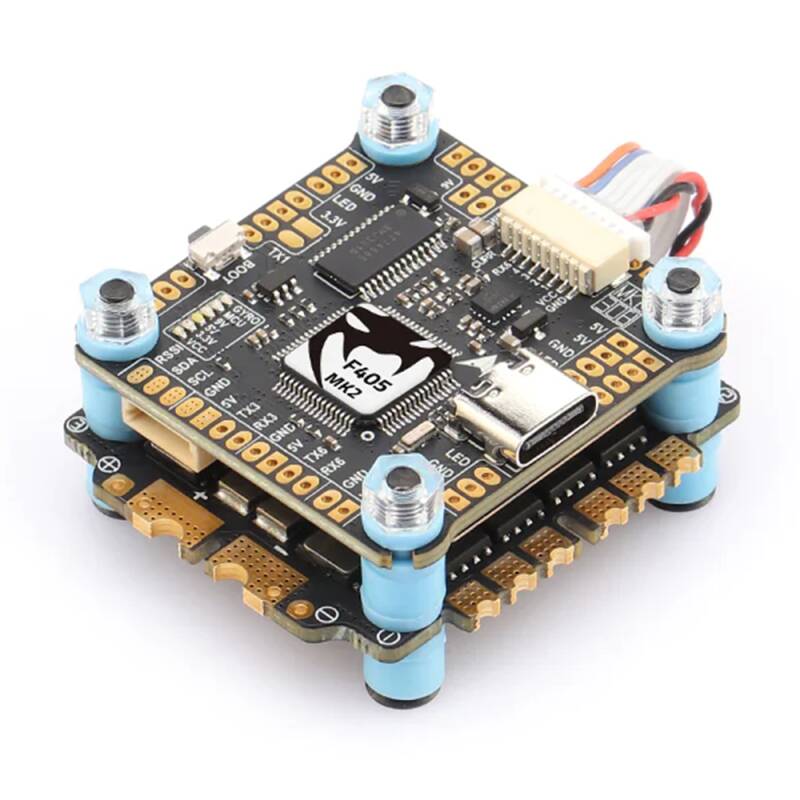

Product Description: Diatone MAMBA F405 MK2 Flight Controller and 50A ESC

Diatone MAMBA F405 MK2 and 50A ESC — a high-performance flight stack from Diatone, designed for racing and freestyle quadcopters. This kit combines the Mamba Basic F405 MK2 flight controller and the Mamba F50 BLS ESC with up to 50A of power, ensuring stability, reliability, and broad compatibility with popular firmware.

Key Advantages

This kit is ideal for pilots seeking a balance between weight and power, who desire advanced configuration and diagnostic capabilities. Advantages include BetaFlight and BLHeli_S support, built-in OSD, Blackbox memory for flight recording, ESC telemetry, and TVS protection in both modules, which reduces the risk of damage from power interference.

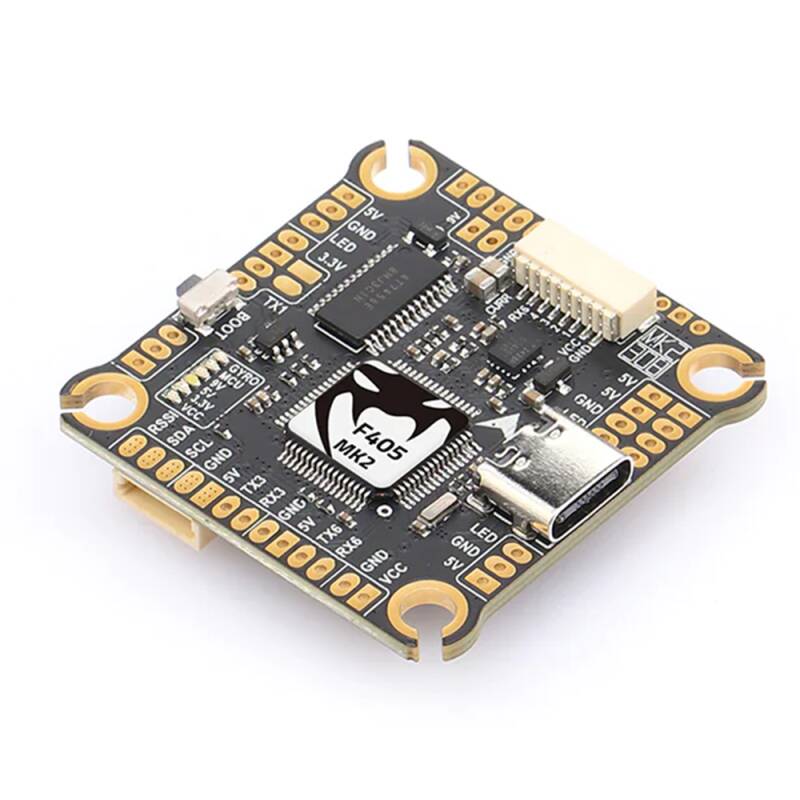

Mamba F405 MK2 Flight Controller Specifications

• Processor: STM32F405RGT6 at 168 MHz
• Gyroscope: MPU6000
• Barometer: None
• OSD: Yes
• Blackbox: 16 MB flash memory
• UARTs: 3
• ESC Telemetry: Yes
• LED Power: Yes
• LED Controller: BF LED (4 sets of 2812 LEDs)
• F-Port: None
• RSSI: Supported
• Buzzer: Supported
• TVS Protection: Yes
• Firmware: BetaFlight
• BetaFlight Target: FURYF4OSD
• BEC: 3.3V 0.5A, 5V 2A, and 9V 2A
• Weight: 7.5 g

Mamba F50 BLS ESC Specifications

• Continuous Current: 50A
• Peak Current: 60A (10 seconds)
• Current Sensor: Yes
• BEC: None
• Firmware: BLHeli_S
• Target: CH40
• Protocol: Dshot 300/600
• TVS Protection: Yes
• Weight: 10 g
• Input Voltage: 2~6S LiPo (8.4 ~ 25.2V)
• Mounting Pattern: 30.5 x 30.5 mm, M3 thread

Mounting and Compatibility Details

The mounting pattern for both components is 30.5 x 30.5 mm with M3 threads, ensuring easy integration into modern drone frames. Both devices are optimized for fast reactions and precise control, suitable for a wide range of quadcopter designs thanks to their standard mounting pattern and compatible interfaces.

Diagnostics and Configuration

The presence of OSD and Blackbox (16 MB) allows for recording flight parameters and quickly finding and correcting settings in BetaFlight. ESC telemetry provides real-time monitoring of motor performance and current, while TVS protection enhances reliability against voltage spikes or electrical interference.

Package Contents

1 x Mamba F405 MK2 Flight Controller
1 x Mamba F50 HV BL_Heli_S ESC

Manufacturer: Diatone. This product is suitable for pilots who value a balance between weight and power, seek convenient configuration via BetaFlight, and demand the reliability of BLHeli_S electronics in the ESC.

Recommended Use: Racing and freestyle quadcopters, builds with a standard 30.5 x 30.5 mm mounting pattern, pilots using DShot 300/600, and those requiring ESC telemetry and Blackbox for debugging.
