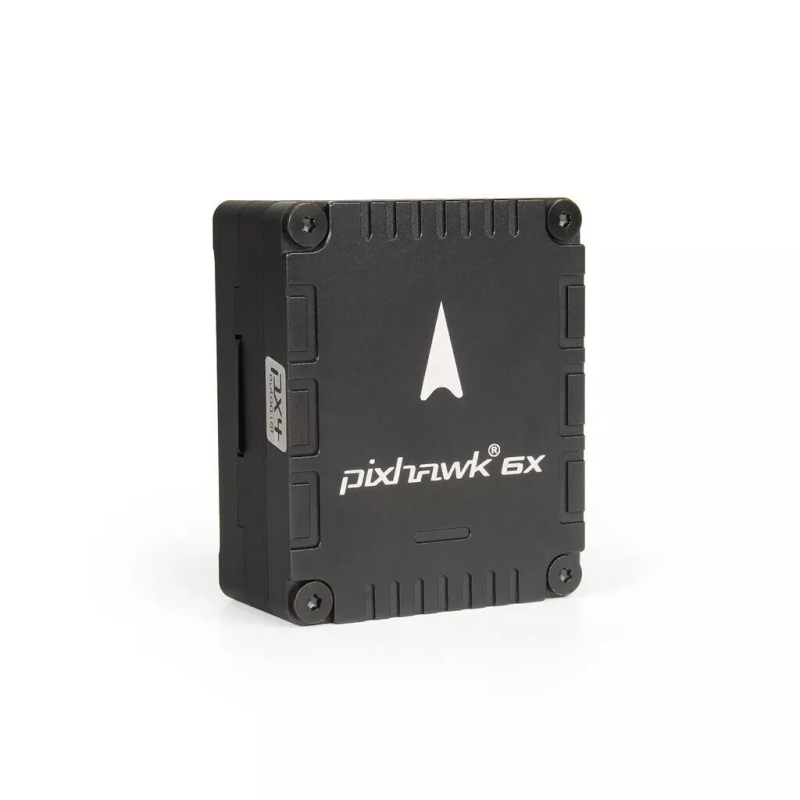

Holybro Pixhawk 6X Flight Controller with NVIDIA Jetson Orin NX (16GB) — Overview

Brand: Holybro. Model: Holybro Pixhawk Jetson Baseboard — a versatile baseboard for integrating Pixhawk autopilots and NVIDIA Jetson compute modules (Orin NX or Jetson Nano) with the open Pixhawk Autopilot Bus (PAB) specification. The device is designed for developers and professionals who aim to add machine learning capabilities, real-time image processing, object recognition, and intelligent route planning to their drones.

Key Features

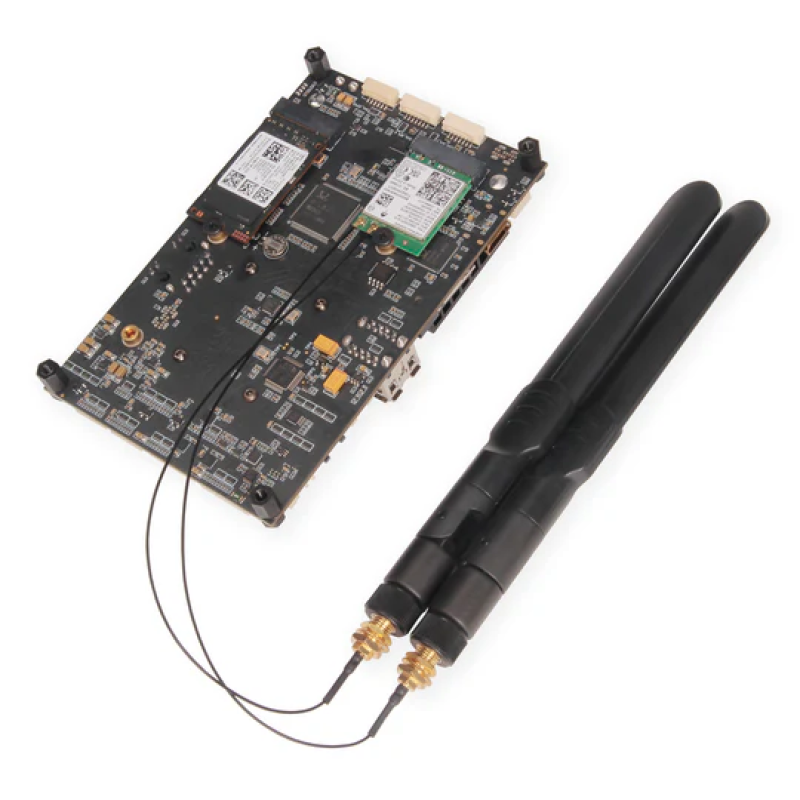

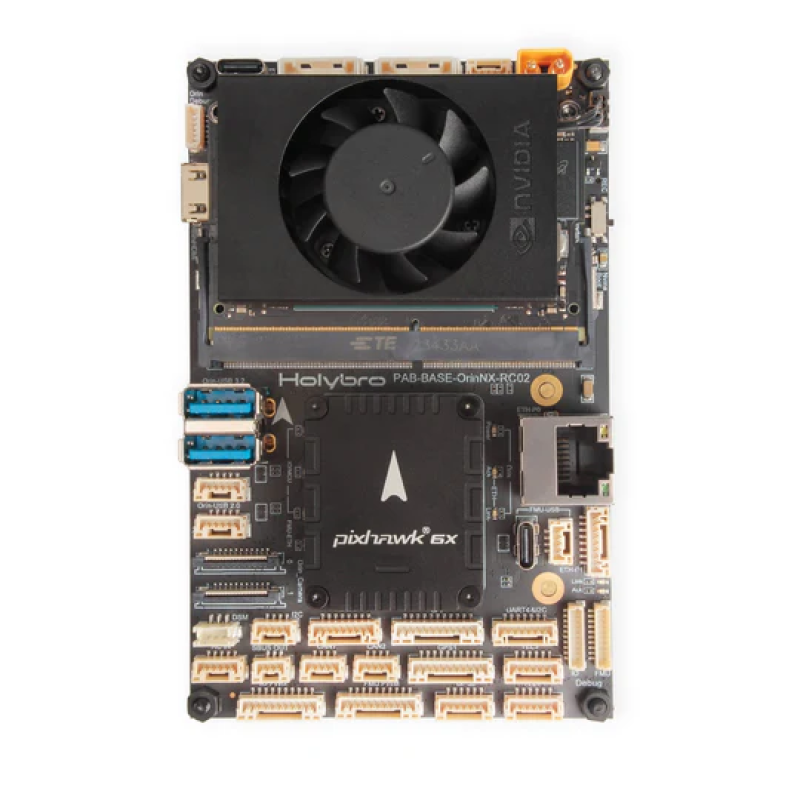

The Pixhawk Jetson Baseboard combines a classic Pixhawk autopilot with high-performance NVIDIA Jetson neural computing. The baseboard provides a full set of ports for connecting cameras, SSDs, and wireless communication modules, and also features redundant power capabilities for enhanced reliability during flight. Includes support for Wi-Fi modules, SSD, and camera (according to the "with Wi-Fi & SSD & Camera" configuration).

Technical Specifications

Processors and Sensors:

• FMU Processor: STM32H753 32-bit Arm® Cortex®-M7, 480 MHz, 2 MB Flash, 1 MB RAM.
• IO Processor: STM32F103 32-bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM.
• Gyroscope/Accelerometer: 3x ICM-45686 (BalancedGyro™).
• Barometer: ICP20100 and BMP388.
• Magnetometer: BMM150.

Ports and Connections:

• 2x Gigabit Ethernet ports (connection to Jetson and autopilot via RTL8367S Ethernet switch).
• 2x MIPI CSI camera inputs (4 lanes, 22-pin FFC).
• 2x USB 3.0 Host ports, 2x USB 2.0 Host ports.

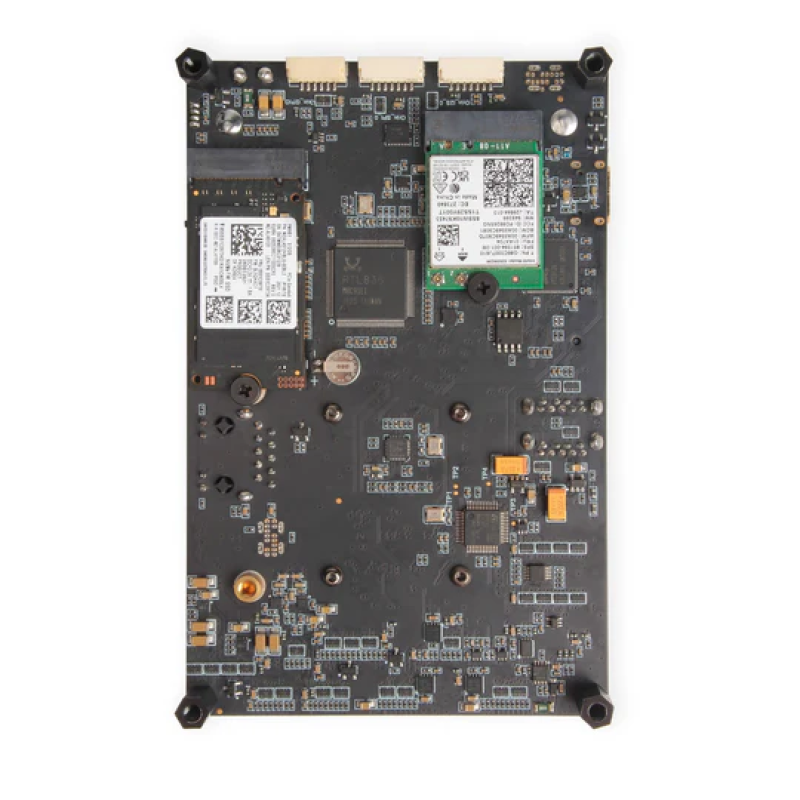

• Mini HDMI output; PCIe ports for SSD and WiFi/BT modules.
• CAN port, SPI port, I2C port, UART ports.

Power:

• Input power: XT30 connector, voltage: 7-21V (3S-4S).
• Supports Holybro UBEC 12A for power with higher requirements (3-14S).
• Minimum power requirements: 8V/3A (depends on configuration and connected devices).

Dimensions and Weight:

• Dimensions without Jetson module and flight controller: 126x80x38 mm.
• Weight (with Jetson, heatsink, flight controller, SSD, Wi-Fi module): 203.2 g.

The Holybro Pixhawk Jetson Baseboard is optimally suited for creating autonomous systems with computer vision and artificial intelligence: from prototypes to commercial solutions. The open Pixhawk Autopilot Bus (PAB) specification ensures compatibility with standard autopilots and allows flexible scaling of hardware configuration for specific tasks. The board features a rich set of interfaces for connecting cameras via MIPI CSI, storing data on SSD via PCIe, organizing high-speed data exchange via Gigabit Ethernet, and expanding with wireless Wi-Fi/BT modules.

This module is designed for engineers, UAV developers, and enthusiasts who require powerful on-board data processing for real-time operations, log storage, and autonomous decision-making. The board supports redundant power schemes and peripheral connections, which enhances flight stability during intensive computations.

Other technical details and illustrations, connection diagrams, and block diagrams are available on the manufacturer's page and in the seller's catalog.
