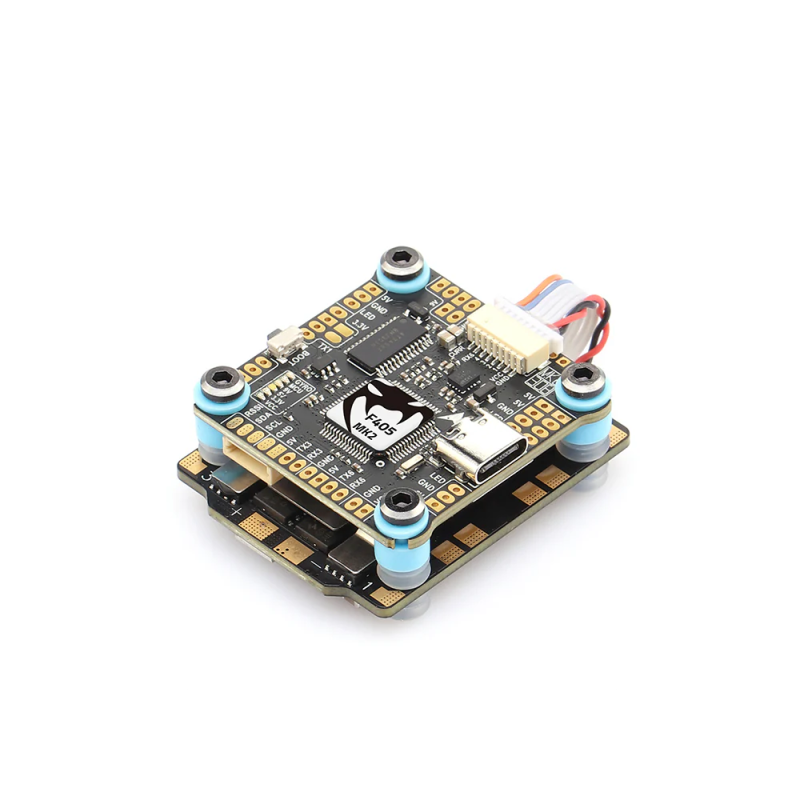

Flight Controller with ESC Diatone Mamba F405MK2 V2 F55_BLS Stack

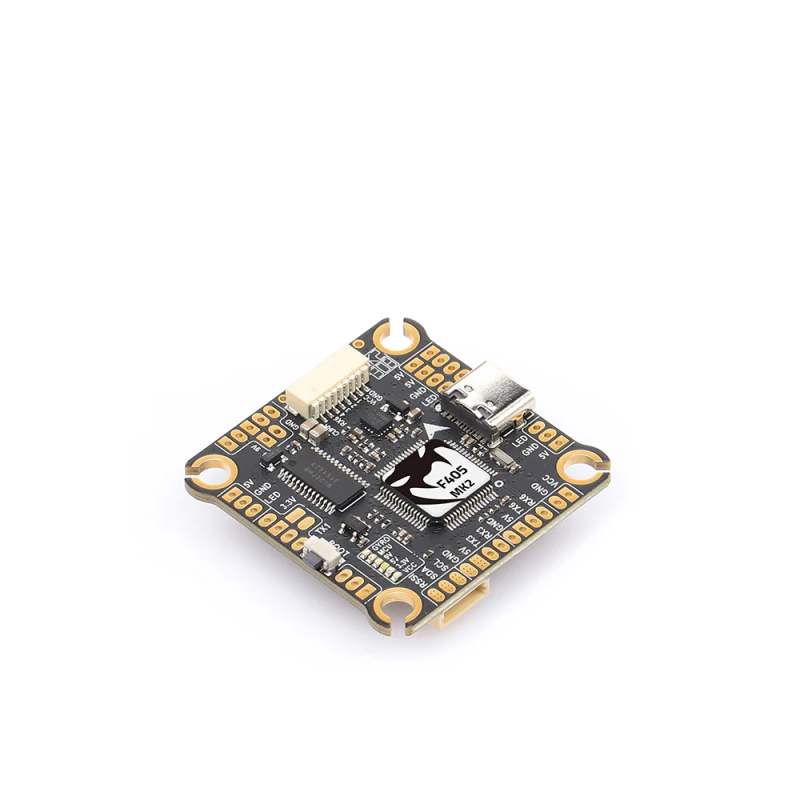

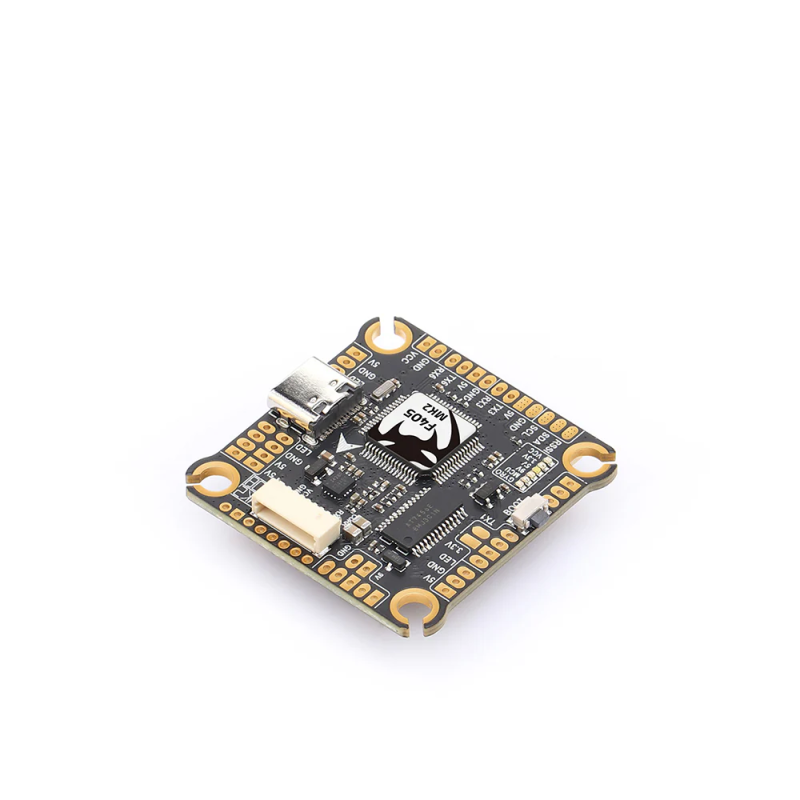

The professional Diatone Mamba F405MK2 V2 F55_BLS stack combines a powerful flight controller and a high-performance 4-in-1 ESC, designed for racing and freestyle drones. The Diatone Mamba F405MK2 V2 flight controller features a fast STM32F405 processor, ensuring rapid processing of telemetry and commands for precise and responsive control. Betaflight firmware is officially supported, allowing flexible adjustment of flight parameters to suit your style and tasks, while the integrated Betaflight OSD enables real-time monitoring of critical flight data (voltage, time, RPM, etc.).

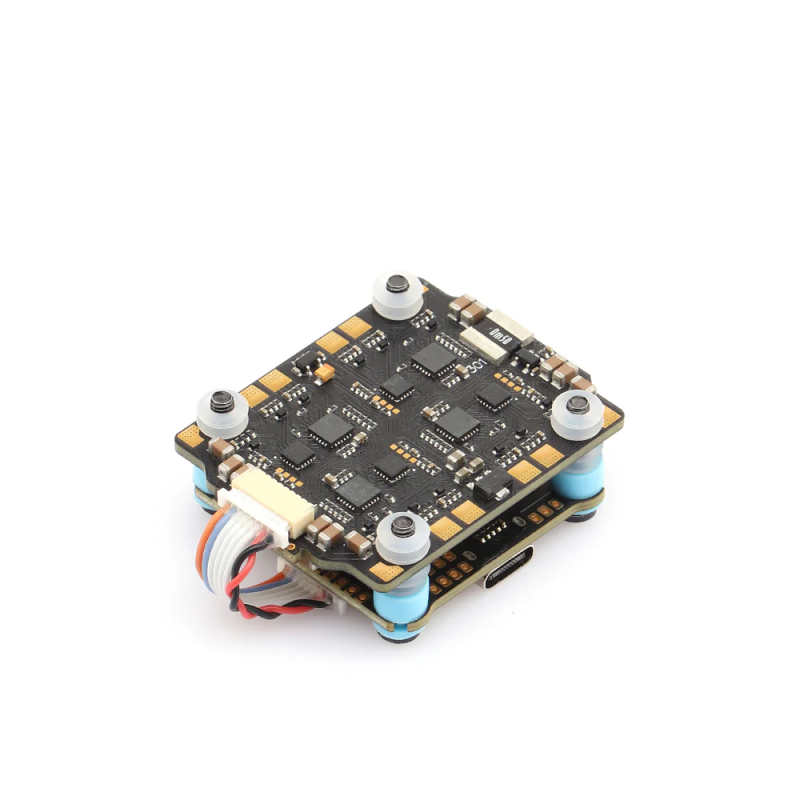

The kit includes the Diatone F55_BLS 55A 4-in-1 ESC with BLHeli_32 firmware and DShot protocol support, providing smooth and precise control of brushless motors. The ESC can withstand a continuous current of 55A and a peak of up to 65A, allowing it to handle high loads during maneuvers and accelerations required for competitions or aggressive freestyle.
The stack is made of high-quality components and features well-designed electronic circuitry for durability under high loads. Its compact and lightweight design makes it compatible with most FPV frames: the controller has dimensions of 37x37x7 mm and weighs only 11 grams, which is crucial for high-speed and agile builds.
Key Features and Compatibility
The controller supports 2-6S LiPo (12–25.2 V) battery connection, has a built-in USB for configuration, UART, and I2C interfaces for integrating additional modules. The hardware includes an accelerometer, gyroscope, and compass for accurate orientation determination and stabilization. The stack is compatible with standard mounts for FPV drone frame installation and supports FPV camera connections with resolutions up to 4K, ensuring excellent video quality for recording and transmission.
Additional features include 3D mode support, automatic gyroscope calibration, and the ability to back up settings. OSD integration and Betaflight compatibility make setup intuitive for both experienced pilots and beginners learning FPV flying.
| Specifications | Description |
|---|---|
| Flight Controller | Diatone Mamba F405MK2 V2 with robust STM32F405 processor for fast and accurate data processing |
| ESC | Diatone F55_BLS 55A 4-in-1 ESC with BLHeli_32 and DShot protocol support for smooth control |
| Firmware | Betaflight support for configuring and optimizing flight parameters |
| OSD | Integrated Betaflight OSD for real-time monitoring of important flight data |
| Input | Supports 2-6S LiPo with voltage from 12 to 25.2 volts |
| Flight Controller Dimensions | Compact dimensions of 37x37x7 mm with a weight of only 11 grams |
| ESC Output Current | 55A continuous current with a peak of up to 65A for efficient control of brushless motors |
| Brushless Motors | Supports brushless motors with precise and smooth control thanks to DShot protocol support |
| Interfaces | Built-in USB, UART, I2C for convenient connection and configuration |
| Integrated Sensors | Accelerometer, gyroscope, and compass for accurate determination of drone position and orientation |
| Camera Support | Compatible with FPV cameras with resolutions up to 4K for excellent image quality |
| Features | 3D mode support, automatic gyroscope calibration, ability to back up settings |
| Compatibility | Standard mounts for mounting ESC and flight controller on FPV drone frame |
Package Contents
- Diatone Mamba F405MK2 V2 Flight Controller with integrated STM32F405 processor.
- Diatone F55_BLS 55A 4-in-1 ESC with BLHeli_32 and DShot protocol support.
- PL – Series sensor cable, 150 mm long.
- Case for electronics protection.
Brand: Diatone. Product Category: Drones & Quadcopters > Drone Components > Drone Parts > Stacks (FC+ESC). This stack will be a reliable choice for those seeking a combination of compactness, high power, and ease of setup — suitable for both competitions and flight training.
