Diatone Mamba F722APP MK1 WiFi 50A 6S Flight Controller from the Diatone brand — a high-performance stack (FC+ESC) for drones and quadcopters, compatible with the category: Drones & Quadcopters > Stacks (FC+ESC). This kit is designed for amateur and racing models where compactness, reliability, and a wide range of connection interfaces are important.

Description and Features

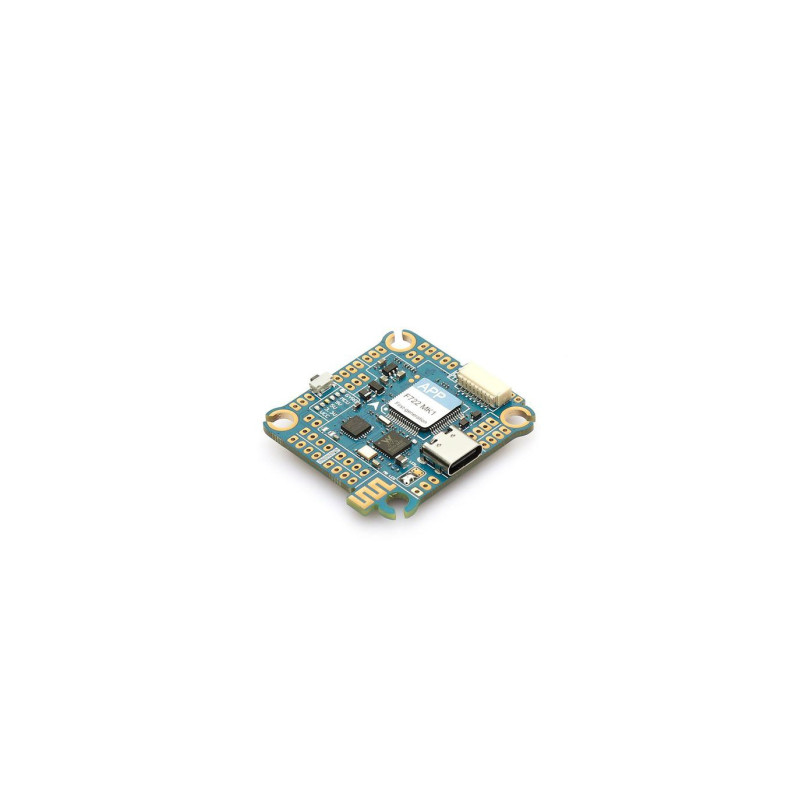

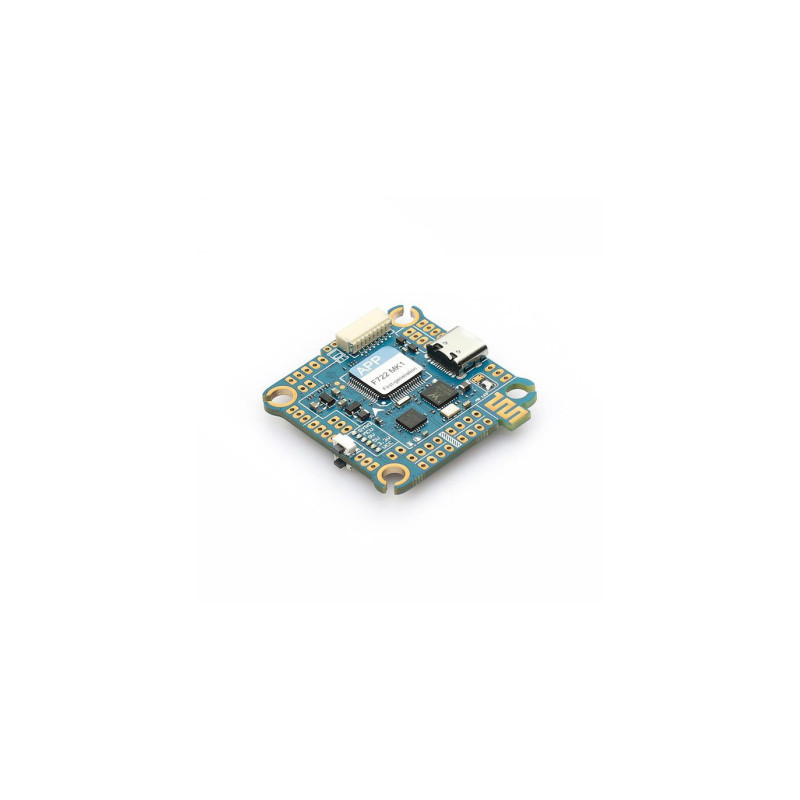

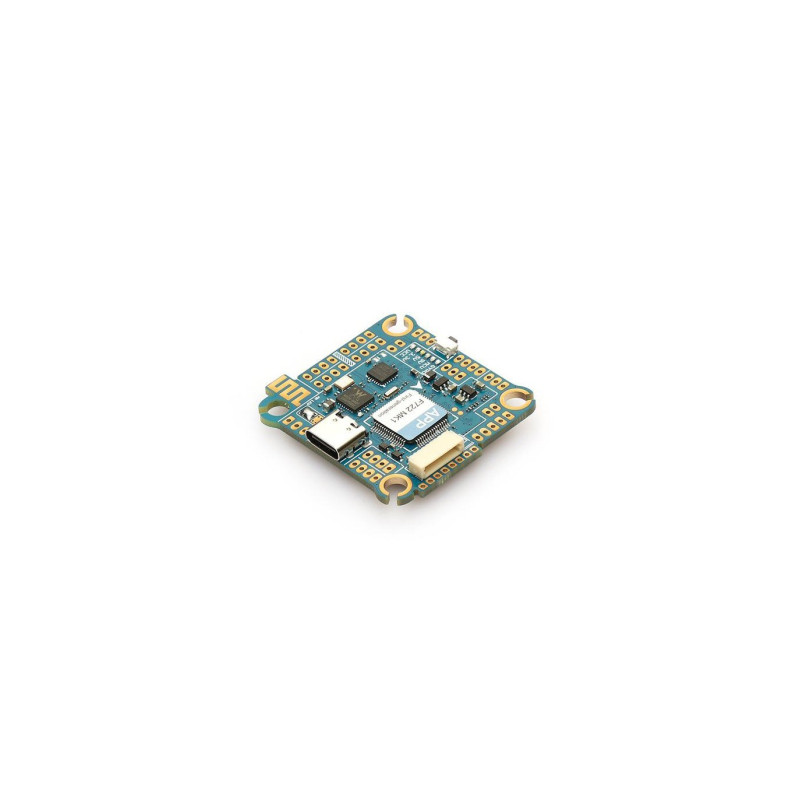

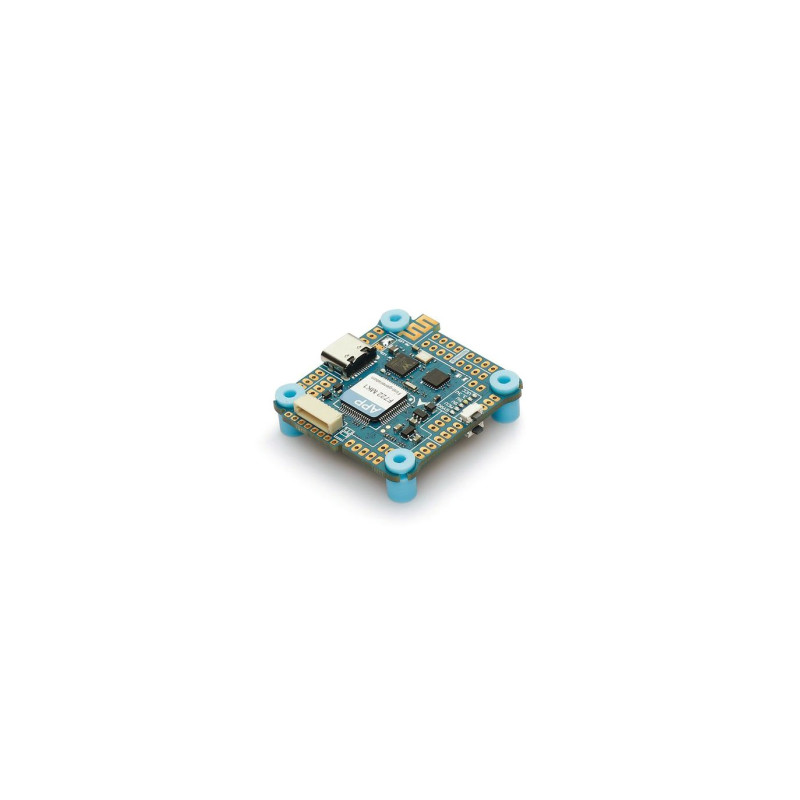

The Mamba APP F722 MK1 — a modern flight controller with built-in Wi-Fi for connection via the SpeedyBee mobile app. The device combines a fast microcontroller, a high-quality inertial system, and an integrated OSD, providing convenient telemetry monitoring. The controller is suitable for replacing elements in ready-made kits, as well as for building your own racing quadcopter.

Key Features of MAMBA F722APP

• Microcontroller (MCU): STM32 F722
• Inertial System: MPU6000
• Flash Memory: 16M
• OSD: Yes
• BEC: 5V 2A and 9V 2A
• LED Control: 4 sets of 2812 LEDs

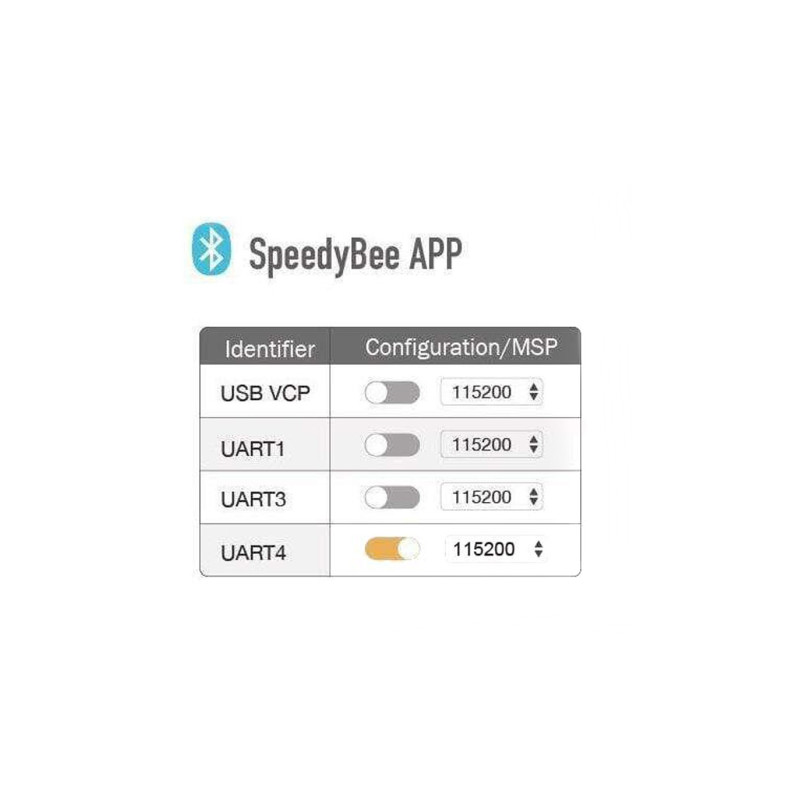

• Wi-Fi/BT Connection: SpeedyBee App
• UART: 6 sets
• Input Voltage: 3–6S LiPo (12.6V–25V)
• Mounting: 30.5 mm / M3
• Product Size: 37.9×37.9 mm
• Weight: 6 g

Specifications of MAMBA 506 50A 3-6S Dshot1200 4IN1 ESC

• Input Voltage: 3–6S LiPo (12.6V–25V)
• Continuous Current: 50A × 4
• Peak Current: 55A (at 10S)
• BEC: None
• Software (Protocol): Dshot300 / Dshot600 / Dshot1200
• Mounting: 30.5 mm / M3
• Power / Filtering: Panasonic 470uF / 35V High-Frequency Capacitor
• Product Size: 36.5×46.5×6.4 mm
• Weight: 11.5 g (ESC) and 3.1 g (Heatsink)

Advantages and Applications

The Mamba F722APP ensures stable flight thanks to the combination of the powerful STM32 F722 and the reliable MPU6000 sensor. The built-in OSD simplifies telemetry tracking, and two BEC channels (5V 2A and 9V 2A) allow powering the camera, receiver, and additional peripherals without extra converters. Wi-Fi support and the SpeedyBee app enable quick parameter configuration and firmware updates directly from a mobile device. The MAMBA 506 50A 4IN1 ESC provides powerful thrust and high response speed due to DShot protocol support, which is especially important in racing and acrobatic models where precise and fast motor commutation is required.

Package Contents

• 1 x MAMBA F722APP Flight Controller
• or 1 x MAMBA 506 50A 3-6S Dshot1200 4IN1 ESC
• or MAMBA F722S Stack

The product is suitable for users looking for a reliable stack with extensive settings for various drone configurations: from replacing components in a ready-made kit to building their own racing quadcopter or test bench. All technical parameters listed above are taken into account to facilitate the selection of compatible components and correct installation.

Other technical data and compatibilities are present in the description above; carefully check the mounting dimensions (30.5 mm / M3) and permissible input voltage (3–6S LiPo) before installation.
