Product Code: FA123-2615400385-123
In Stock
1 600 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA (Male)
Material:
PETG Plastic
Polarization:
RHCP
Weight (depends on size):
63 g
Frequency range:
4.0–6.0 GHz
All specifications
We will deliver this product:
Payment
Bought together with
-80x80.jpg "Antenna Helical LHCP 17.8 dBi 22 turns 4.9-6.1 GHz")
Description

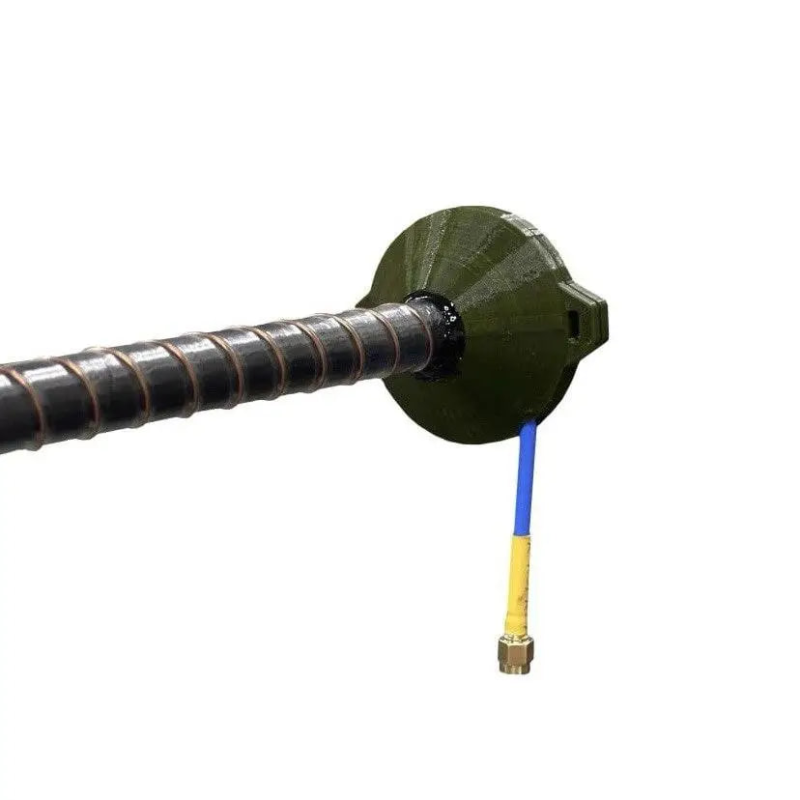

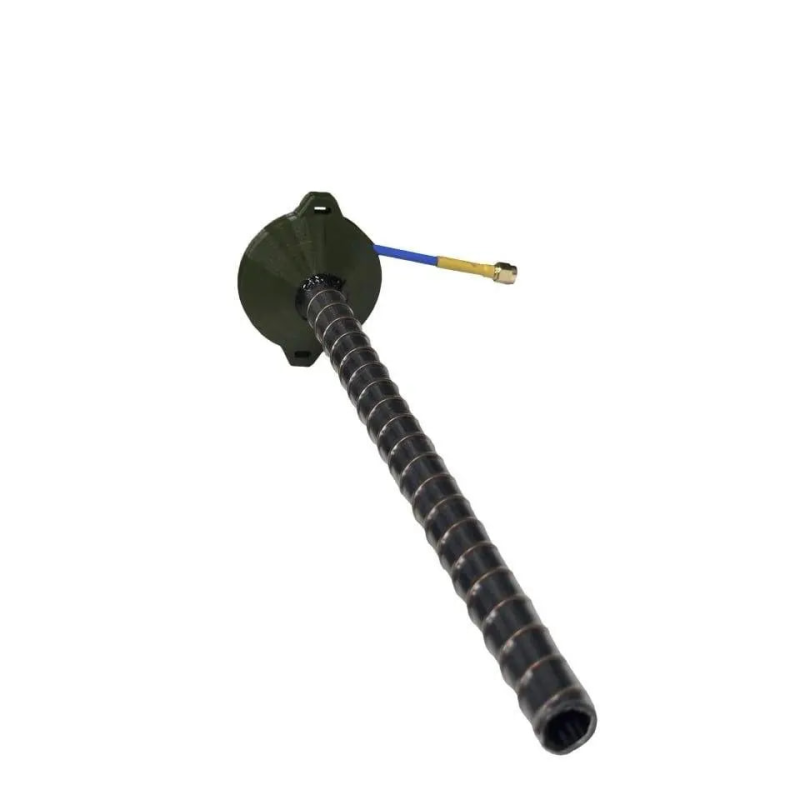

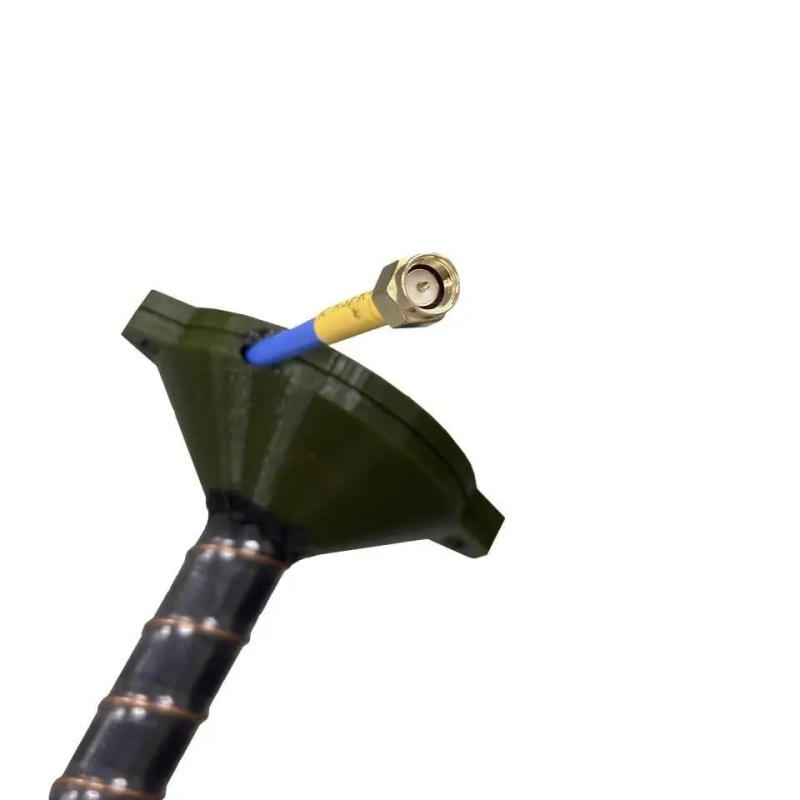

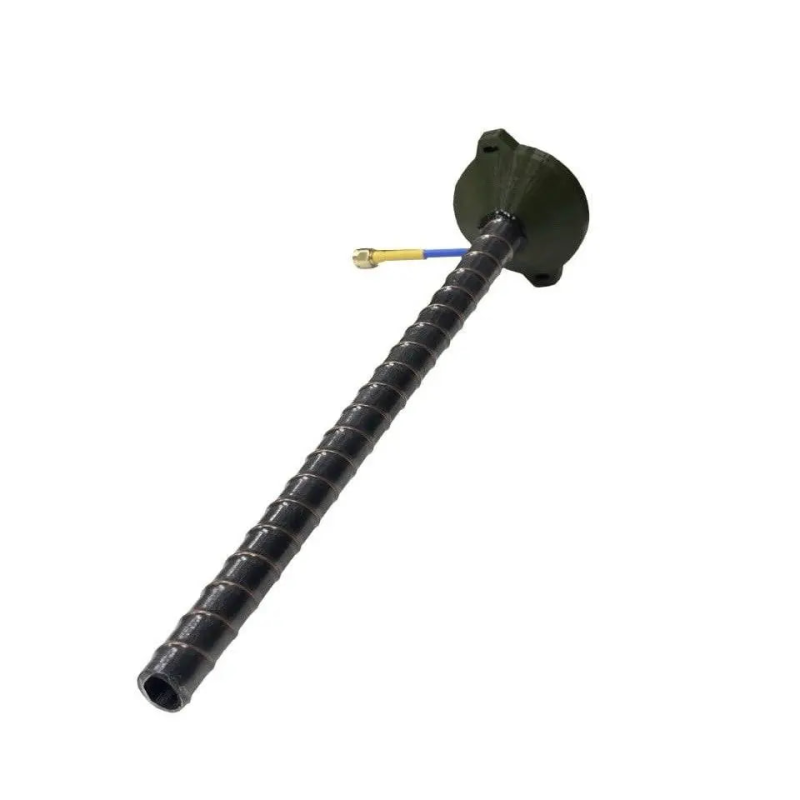

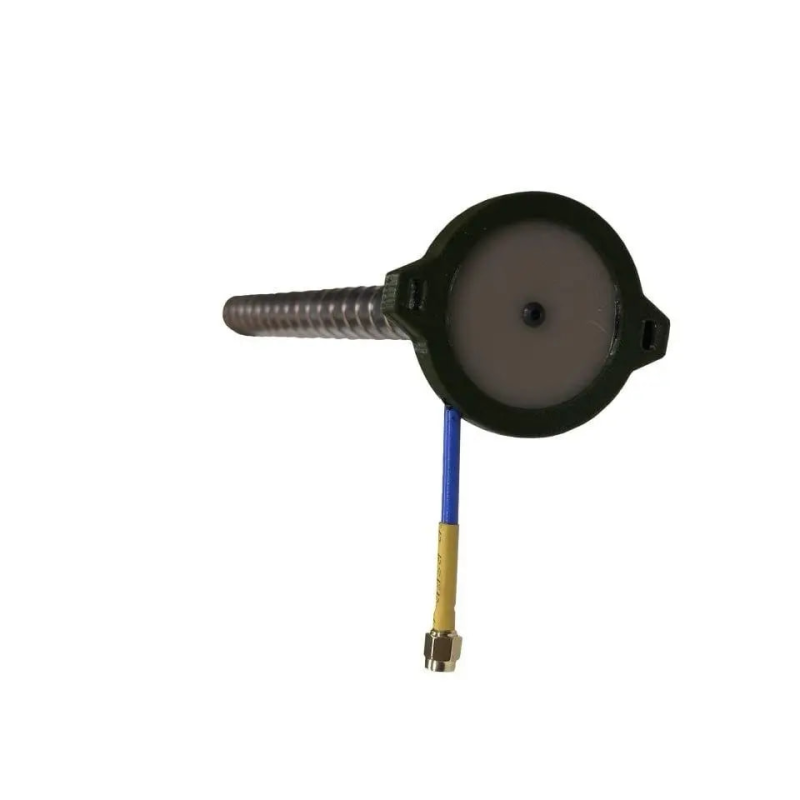

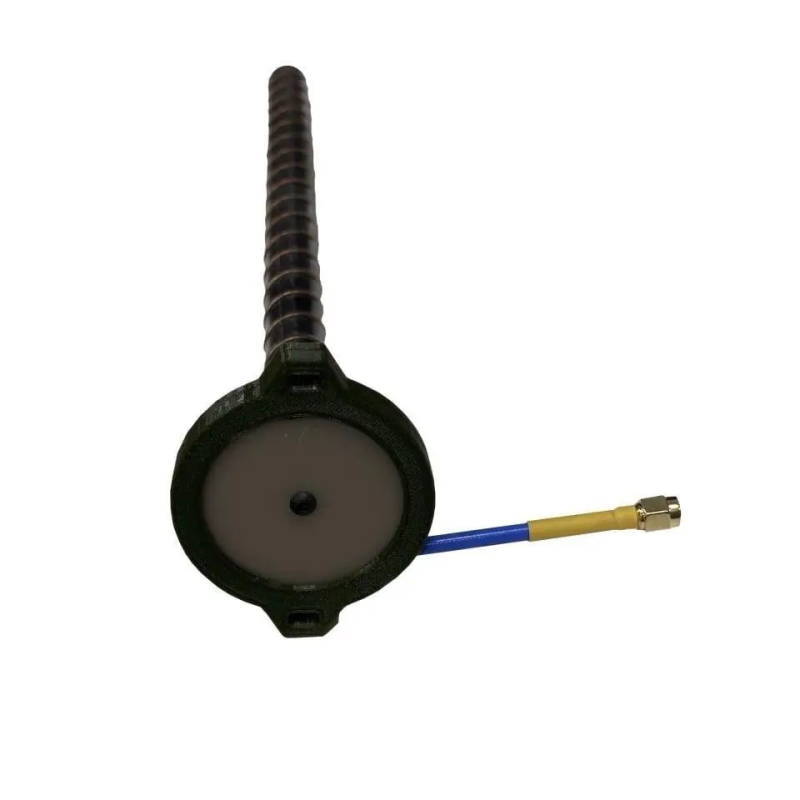

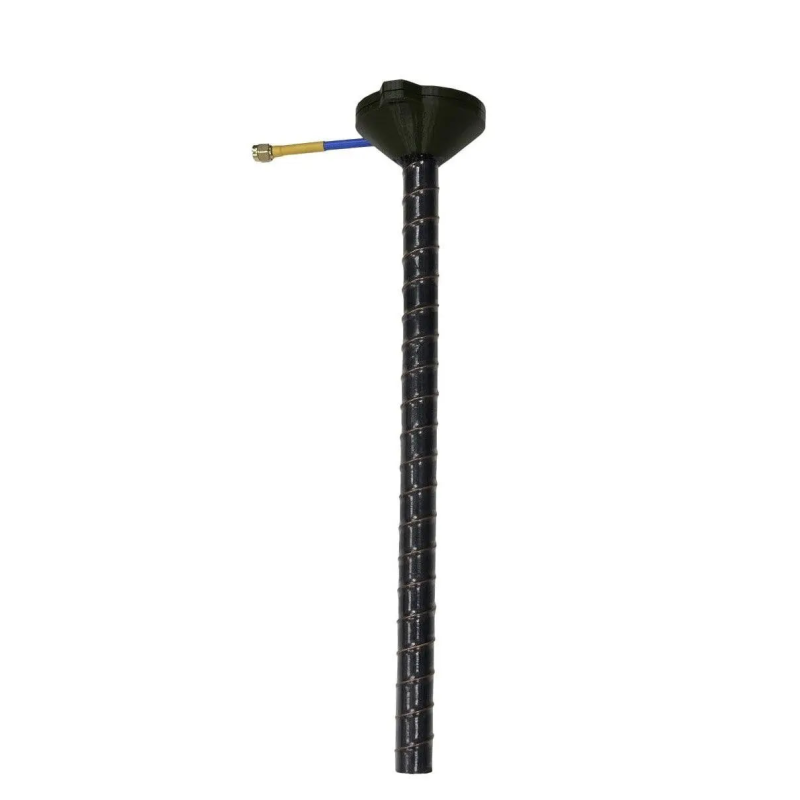

Helix (Helical) 21-turn Antenna SKYNOVA
Ideal for long-range communication and stable operation
This powerful 21-turn antenna with 17 dBi gain is your reliable choice for uninterrupted long-range communication. It can be used across a wide frequency range (4.0-6.0 GHz), making it versatile for various tasks, including drones and military applications.
Advantages:
- ⚡ Calculated gain of 17 dBi for stable signal over long distances.
- Beamwidth - 34° for wide coverage.
- Operating range:
- 4.9-5.9 GHz at VSWR 1.1
- 4.0-6.0 GHz at VSWR 1.
- Polarization: RHCP (LHCP upon request).
- Screen (reflector) size: 50 mm.
Custom orders: we will manufacture the antenna to your needs. Shipping on the day of order!
Ensure your project has stable communication today!
An ideal choice for drones, military, and other special tasks!
Specifications
Connector type
SMA (Male)
Material
PETG Plastic
Polarization
RHCP
Weight (depends on size)
63 g
Size
50 mm
Antennas
Frequency range
4.0–6.0 GHz
Beam angle
34°
Enhancements
17 dBi
