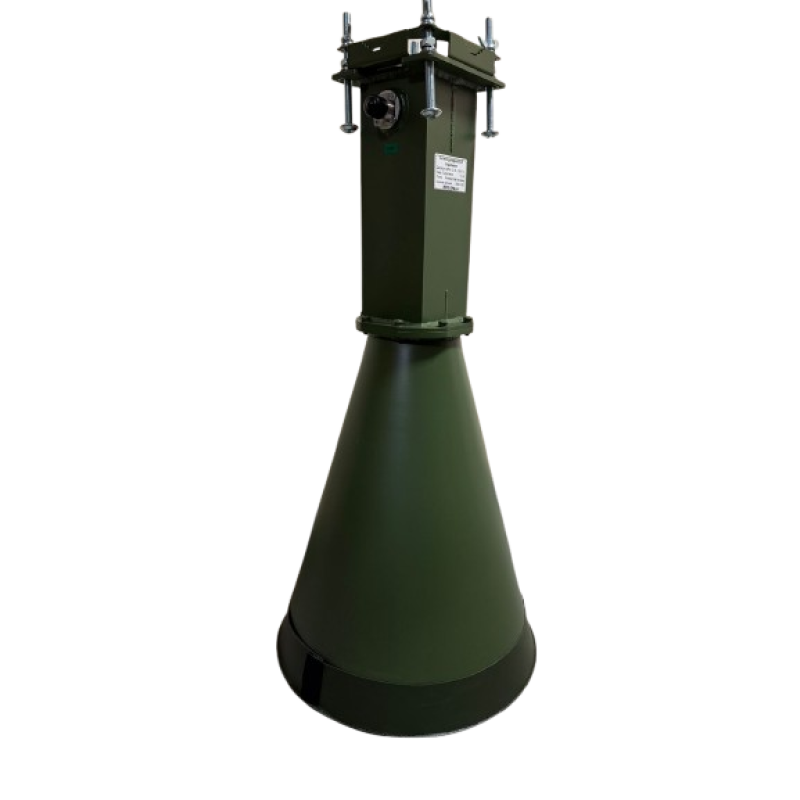

Ensure maximum signal reception and transmission efficiency with this highly directional horn antenna. Designed for operation in the S-band (2050-2650 MHz), it supports simultaneous circular polarization (LHCP and RHCP), making it an ideal solution for professional communication systems, Wi-Fi bridges, and experimental setups where high quality and stable data transmission are required. It is used in electronic reconnaissance (SIGINT) and electronic warfare (EW) systems on the front lines, as well as for Simplex/Duplex control systems for UAVs, for remote drone controls, and guarantees clear and stable reception and transmission of linearly polarized signals in a critically important frequency range.
Purpose
-
Reception and transmission of signals in a wide frequency range of 2050 - 2650 MHz (S-band).
-
Simultaneous operation with circularly polarized signals (both left LHCP and right RHCP).
-
Application in professional communication systems, radio monitoring, measurement complexes, and Wi-Fi networks operating in the specified range.
-
Use in coaxial feeder paths with a characteristic impedance of 50 Ohms.
Technical Specifications

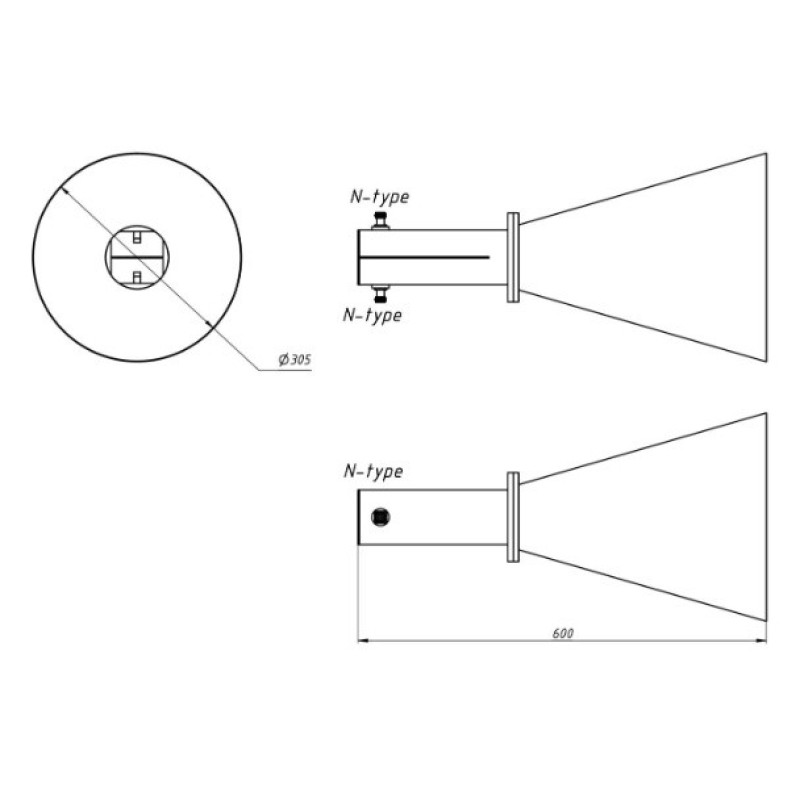

| Parameter | Value |
| Operating frequency range | 2050 - 2650 MHz |
| Directivity (gain), not less than | 17.0 dB |
| Characteristic impedance | 50 Ohms |
| Connector type | N-type female |
| Polarization type | Circular (LHCP+RHCP) |
| Beamwidth at -3 dB, not more than | 28 deg. |
| Cross-polarization isolation, not less than | 20 dB |
| VSWR, not more than | 1.5 |
| Overall dimensions (L×W×H) | 305 × 305 × 600 mm |
| Weight, not more than | 1.6 kg |
Figure 1. Antenna radiation pattern at 2.45 GHz.

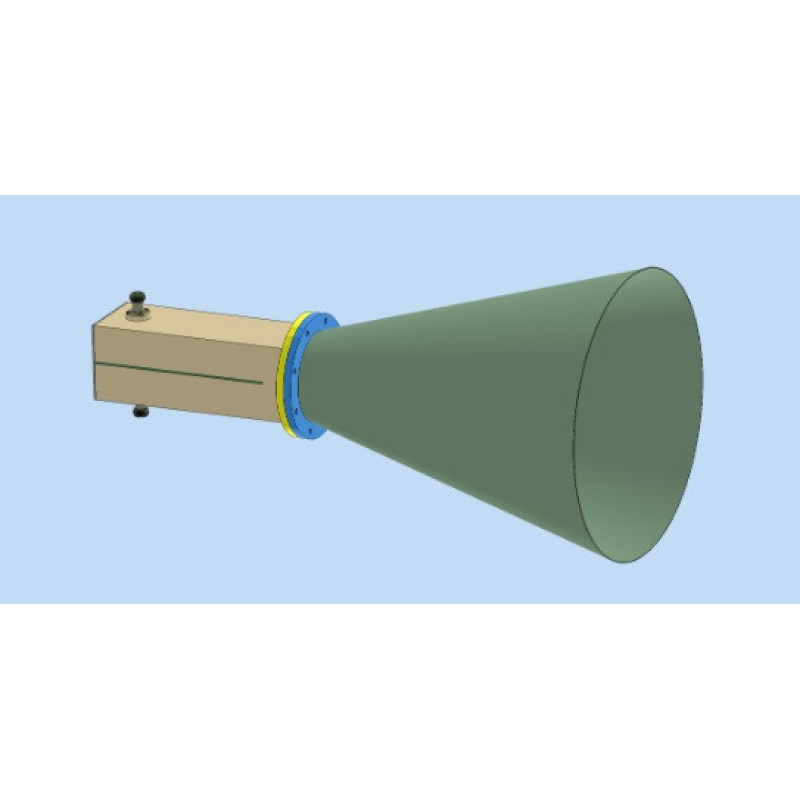

Materials and Construction
-

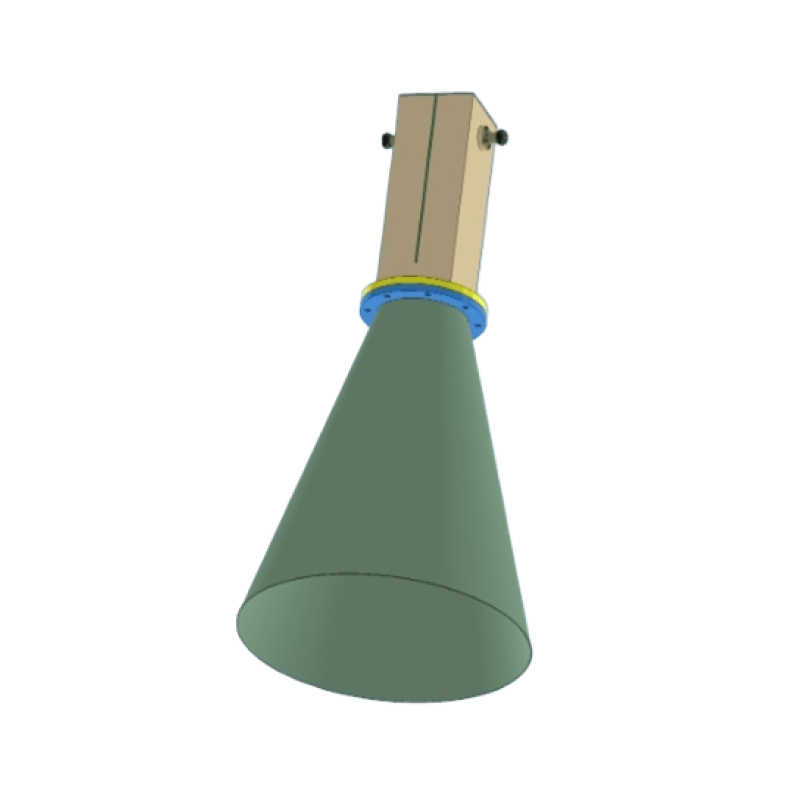

Antenna type: Conical horn based on a rectangular waveguide.
-
Material: Aluminum alloy is used to ensure lightness and durability.
-
Waveguide base: Rectangular waveguide 76 x 76 mm.
-
Connectors: Two coaxial-to-waveguide transitions with N-type (“female”) connectors are integrated for connecting the feeder path.
Functions and Capabilities
The antenna provides high directivity and low side lobes, which minimizes the influence of external interference sources and focuses energy in the desired direction. Good matching (VSWR ≤ 1.5) with a 50-ohm feeder path guarantees minimal power loss and maximum system efficiency. Simultaneous support for circular LHCP and RHCP polarization is a key advantage for specialized systems using this type of signal.
For test ranges and specialized communication systems, such as reception in electronic reconnaissance (SIGINT) and electronic warfare (EW) systems on the front lines, as well as for Simplex/Duplex control systems for UAVs. The design ensures good matching with a 50 Ohm coaxial feeder path.
Compatibility
-
S-band radio equipment (2050-2650 MHz).
-
Transmitters and receivers with a characteristic impedance of 50 Ohms.
-
Coaxial cables and feeder lines compatible with N-type (“male”) connectors.
-
Systems requiring the use of circular polarization (LHCP and RHCP).
-
Wi-Fi 802.11b/g/n/ax equipment operating at 2.4 GHz (partially covered by the range).
Advantages
-
Wide operating range in the S-band (2050-2650 MHz) for versatile application.
-
High directivity (17.0 dB), providing increased communication range and signal quality.
-
Simultaneous support for circular polarization (LHCP+RHCP) for specialized systems.
-
Low VSWR (≤ 1.5), guaranteeing efficient power transmission.
-
Reliable aluminum alloy construction and compact weight (1.6 kg).
-
Low side lobes for increased interference immunity.
-
Standard N-type connector for easy connection.
Package Contents
-
Circularly polarized horn antenna (1 pc.)
-
Mounting kit (1 pc.)
-
Technical passport / Operating instructions (1 pc.)
Packaging
-
Type: Cardboard box or specialized protective case.
-
Protection: Internal cushioning materials (foam, soft insert) to protect against mechanical damage.
-
Marking: Marking applied with product name, main characteristics, and careful handling instructions.
-
Size and weight: Corresponds to the antenna dimensions and additional elements (approximately 305 × 305 × 600 mm + packaging, weight up to 2 kg).
