Experience the power of professional communication with the HORN WiMAX antenna from TM "ROKS". This horn antenna is designed for those who do not compromise on signal stability. With a high gain of 20 dB and operation in the wide range of 5050-6000 MHz, it becomes an indispensable tool for building long-range and interference-resistant data transmission channels. Manufactured in Ukraine, it combines the precision of engineering calculations and practical operation in difficult weather conditions.
Purpose
-
Signal relay and amplification in the 5-6 GHz spectrum for WiMAX networks.
-
Creation of directional communication channels over long distances.
-
Construction of high-bandwidth industrial and corporate wireless networks.
-
Use as part of professional repeater systems and access points.
-
Organization of a stable link in dense urban areas or noisy environments.
Technical Specifications
| Characteristic | Value |
| Operating frequency range | 5050-6000 MHz |
| Wave impedance | 50 Ohm |
| Gain | 20 dB |
| Connector type | N-female |
| Number of connectors | 2 pcs. |
| Polarization | Linear (vertical + horizontal simultaneously) |
| Housing material | Metal (unpainted) |
| Weight | 1.2 kg |
| Overall dimensions | 224 x 224 x 405 mm |
Materials and Construction
-
Classic horn shape for maximum directivity and minimization of side lobes.
-
Unpainted metal housing to preserve reference conductivity characteristics.
-
Reliable sealing of connection points for long-term outdoor operation.
-
Compact design with high gain performance.
Functions and Capabilities
The antenna provides simultaneous vertical and horizontal polarization, which is critically important for modern data transmission systems requiring high channel isolation. The horn design naturally filters out extraneous noise, focusing energy exclusively in the desired direction, which significantly improves the signal-to-noise ratio (SNR).
Compatibility
-
Compatible with any equipment operating in the 5-6 GHz range.
-
Suitable for connection to repeaters and access points with N-type connectors.
-
Full compliance with WiMAX and Wi-Fi 5/6 standards (within frequency limits).
-
Ability to integrate into existing systems with a 50 Ohm coaxial path.
Advantages
-
High gain of 20 dB provides a significant margin of channel stability.
-
Dual linear polarization for increased relay efficiency.
-

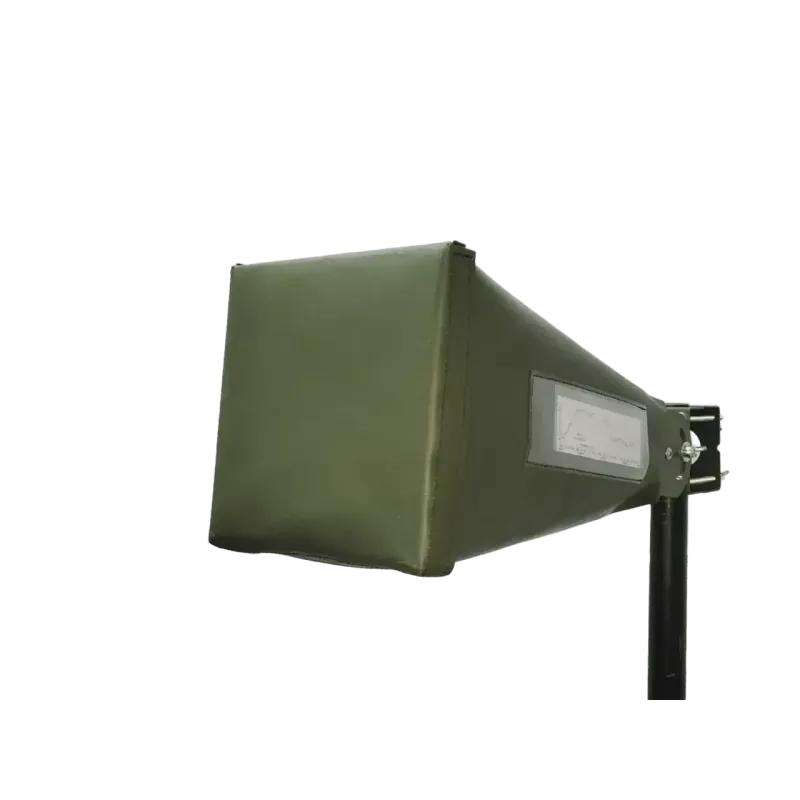

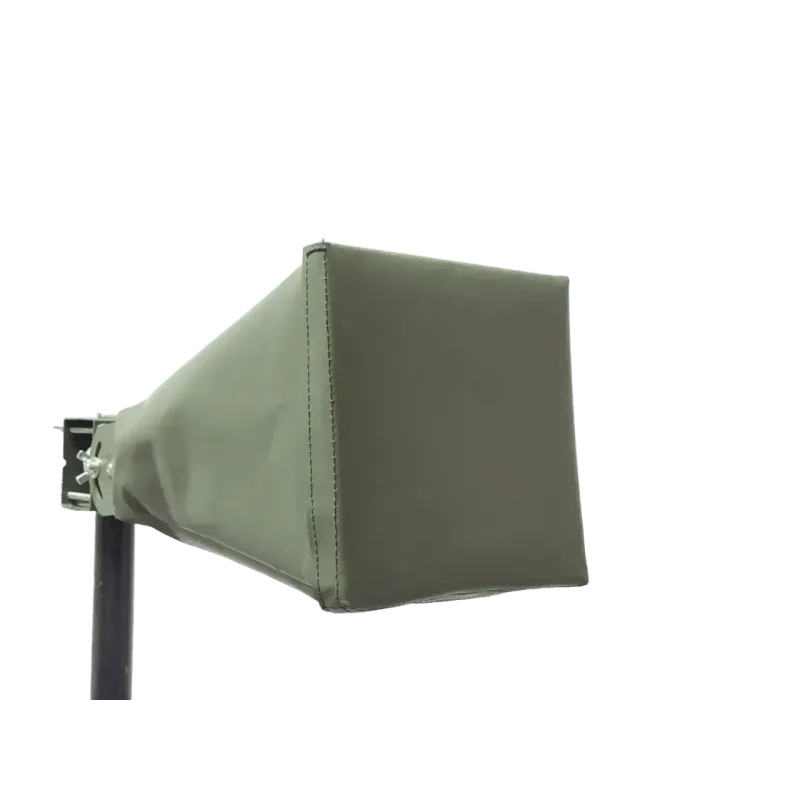

Protective cover included for easier logistics and storage.
-
Absence of factory mounting allows adapting the antenna to any non-standard object brackets.
-
Ukrainian production — guarantee of quality and availability of technical support.
Package Contents
-
HORN WiMAX horn antenna (1 pc.)
-
Protective transport cover (1 pc.)
-
Technical passport (1 pc.)
Packaging
-
Compact cardboard box that protects the horn geometry.
-
Additional internal packaging to prevent damage to connectors.
-
Soft transport cover for reusable use.
Warranty and Service
TM "ROKS" provides an official manufacturer's warranty for this product. Each unit undergoes factory testing of VSWR and gain parameters. Customers have access to setup consultations and the ability to adapt parameters for individual projects.
Order the HORN WiMAX antenna today to ensure uncompromising quality for your network.
