Product Code: FA111-AN 0035 IG-111
In Stock
14 700 грн.
Buy this product in 1 click:
Main specifications
Application:
Indoor/Outdoor
Frequency range:
5.2 – 6.2 GHz
Gain factor:
24
Height:
750
Impedance:
50
All specifications
We will deliver this product:
Payment
Description

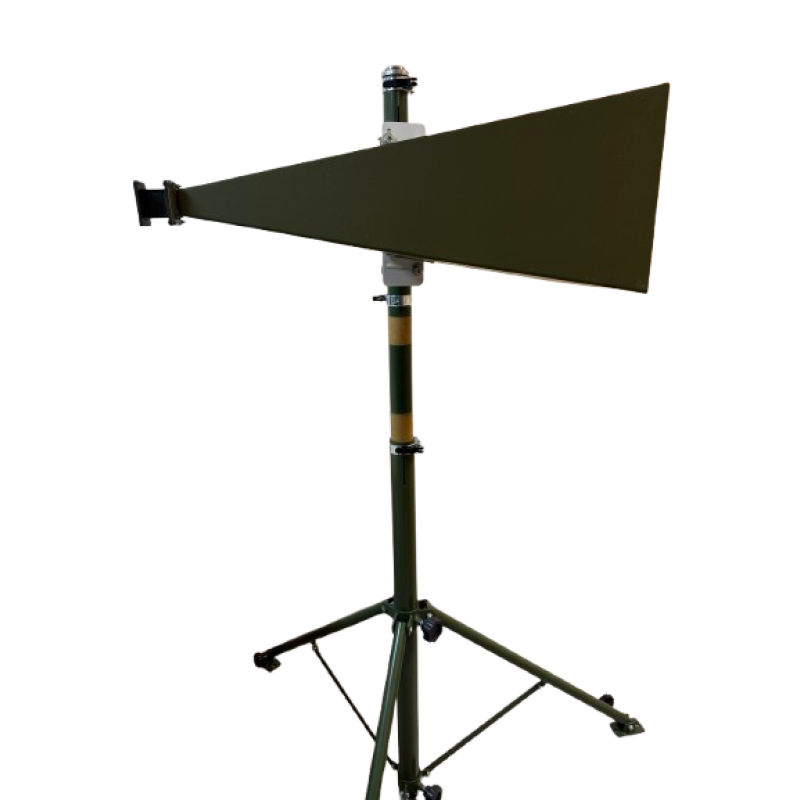

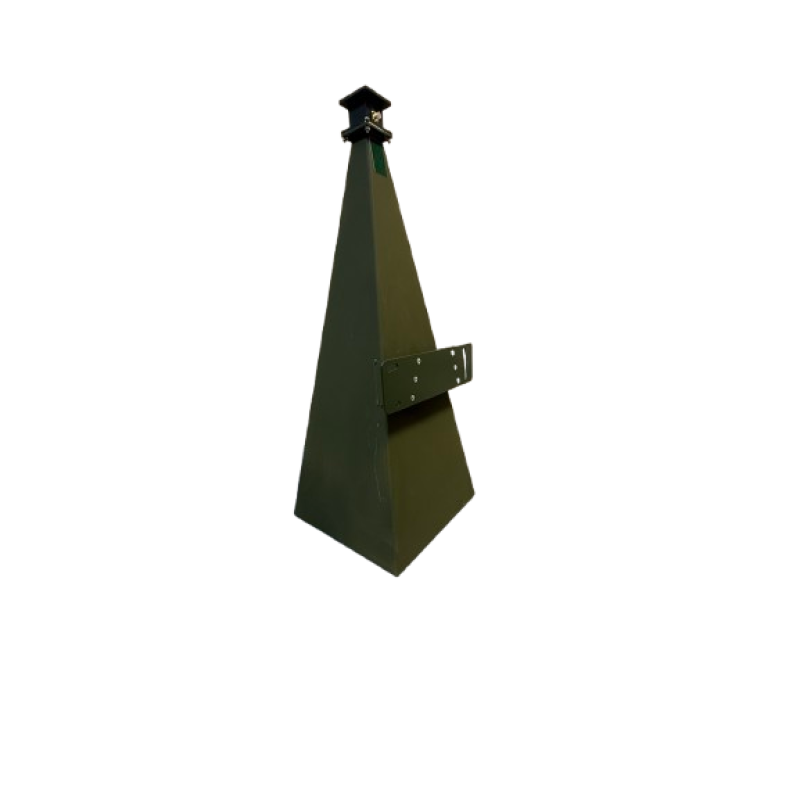

The HORN 58_750R antenna is a directional horn antenna designed for use in unmanned aerial vehicle (UAV) video channels, particularly for FPV (First Person View) flights. Its main feature is high directivity, which allows signal transmission over significant distances with minimal loss. The "58" index in the name indicates the operating frequency range (around 5.8 GHz). "Connector-python" likely refers to the method of attaching the cable to the connector, ensuring additional connection reliability and protection against moisture and mechanical damage.
Key features of HORN 58_750R:
| Characteristic | Value |
|---|---|
| Frequency range | 5.2 - 6.2 GHz (center frequency 5.7 GHz). |
| Gain | 24 dBi. |
| Directivity | Narrow beamwidth, approximately 11 degrees horizontal and 11 degrees vertical (at -3 dB level). This means the antenna concentrates the signal in a narrow beam, providing better range and less susceptibility to interference. |
| Polarization | Right-hand circular (RHCP). Circular polarization is less sensitive to antenna orientation, which is important for UAVs that may change their position in space. Left-hand circular (LHCP) polarization options are available (on order). |
| Social industrial park |
Specifications
Application
Indoor/Outdoor
Frequency range
5.2 – 6.2 GHz
Gain factor
24
Height
750
Impedance
50
KCXH
<1.2
Length
298

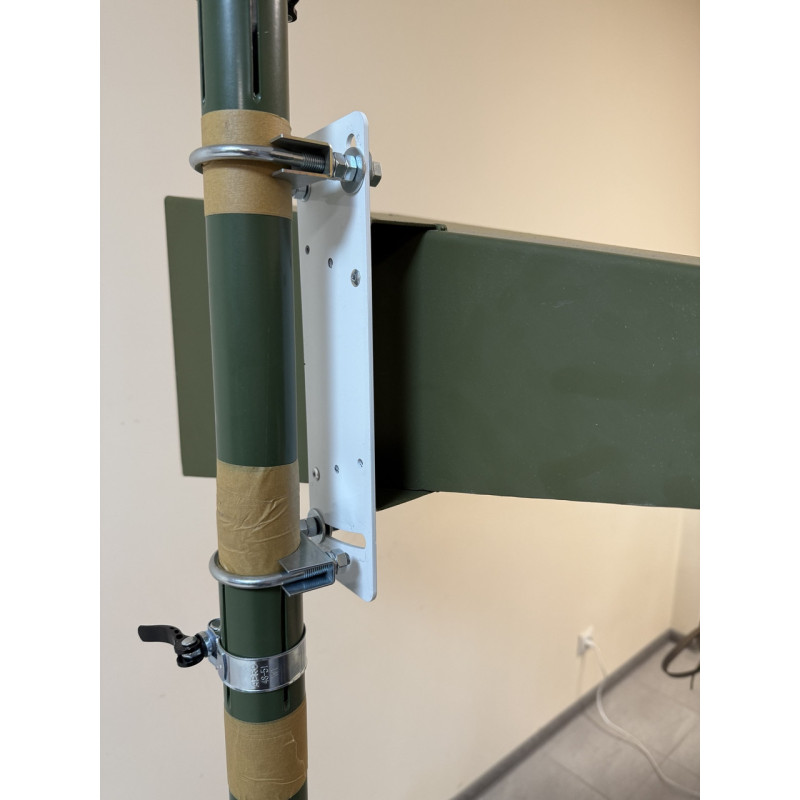

Mounting type
On a mount
Polarization type
Circular (right-hand)
Power
200
Type
Directional
Width
298
Specifications
Weight
3
