Product Code: FA93-4296039-93
In Stock
870 грн.
Buy this product in 1 click:
Main specifications
Connector type:
PL-259 female
Housing type:
Whip antenna
Material:
metal cable
Polarization:
vertical
Frequency range:
136–174 MHz; 400–470 MHz
All specifications
We will deliver this product:
Payment
Description

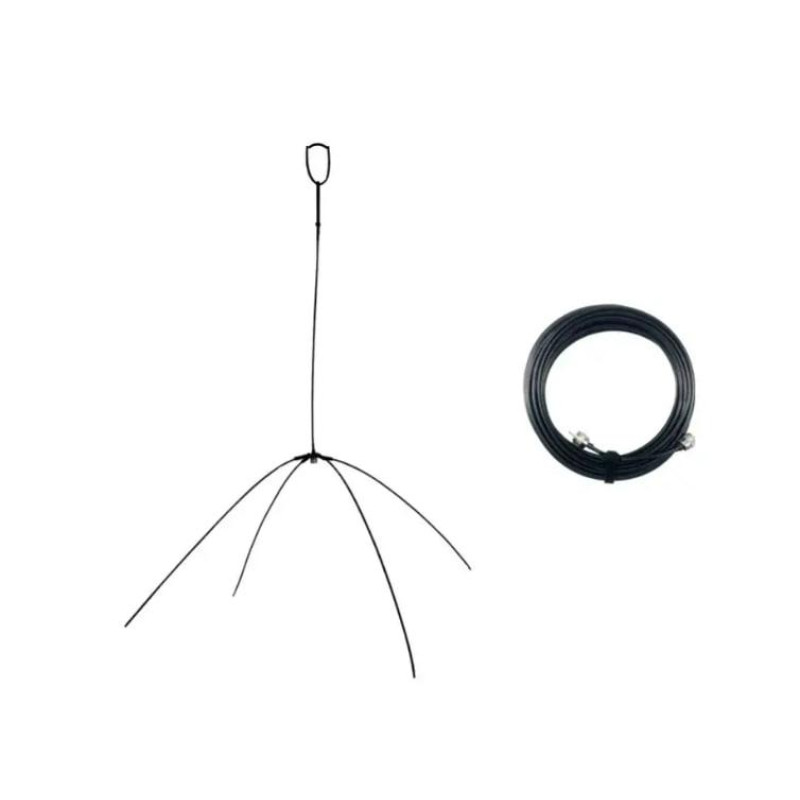

ANTENNA «SPIDER»
The "Spider" antenna is designed to enhance the reception and transmission of a portable two-way radio signal, thereby improving communication quality and range. The antenna was developed to meet the requirements of and for use by law enforcement and military agencies.
The antenna is made of flexible elements, allowing it to be folded during movement or active operations. It has proven excellent in field conditions during combat missions in various weather conditions, complex terrain (elevation changes), dense forest plantations, etc. The radio communication range for portable two-way radios from various manufacturers is significantly increased (2-3 times).
The antenna can be suspended at any height (building roofs, trees, poles, towers, etc.). It is convenient to use when it is necessary to provide radio communication with shelters (dugouts, bunkers, trenches, basements, etc.); in this case, the antenna is deployed externally, thus ensuring both personnel safety and reliable communication.
Electrical characteristics:
Type: 1/4 whip antenna ÷
Operating range: 136 MHz to 174 MHz
400 MHz to 470 MHz
Input impedance: 50 Ω
Radiation pattern in horizontal plane: 360 (omnidirectional)
Polarization: vertical
Detailed description
Mechanical characteristics:

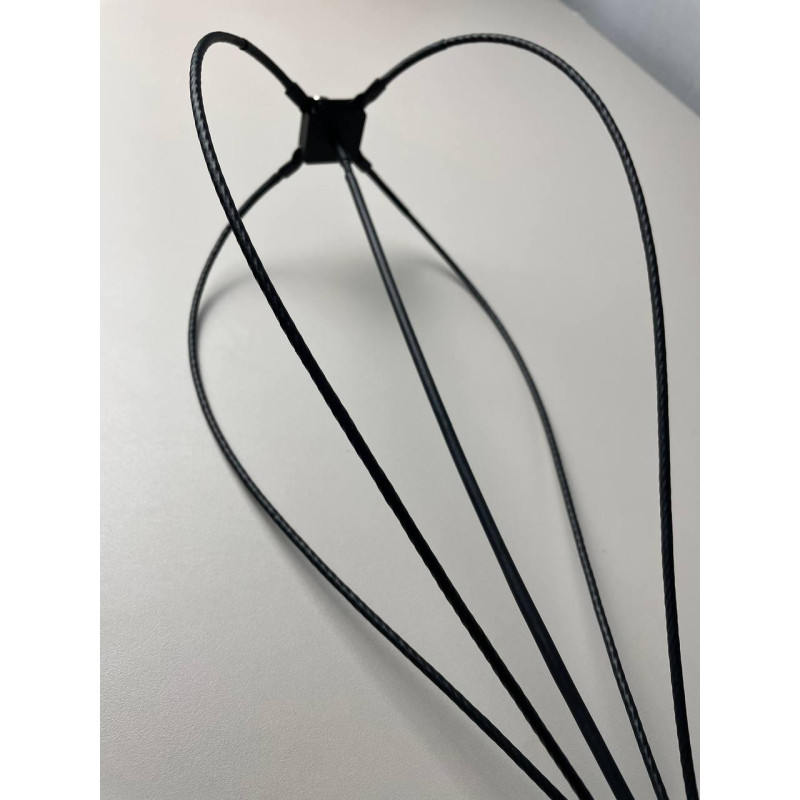

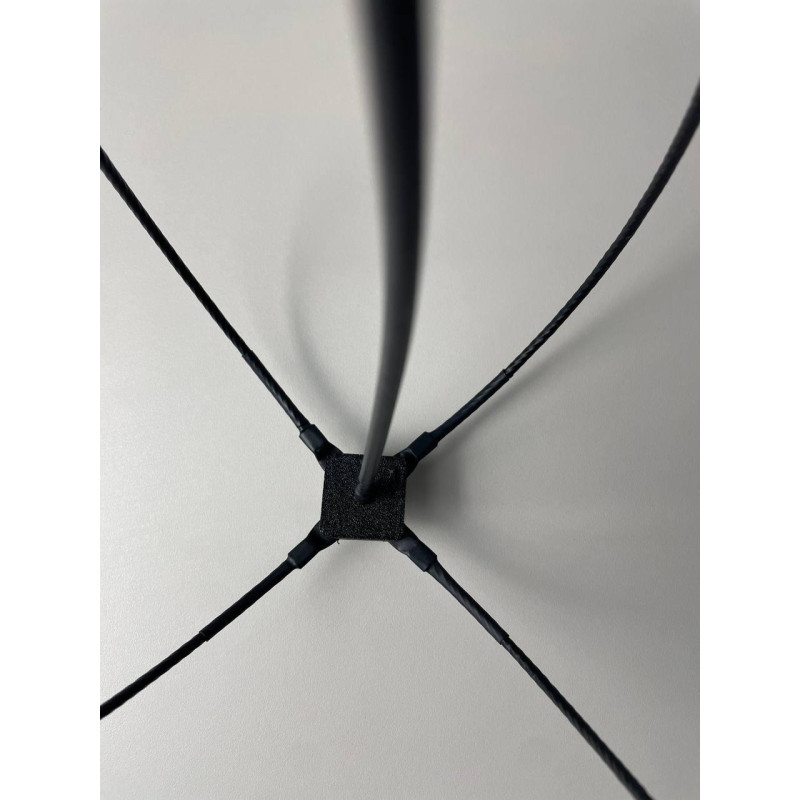

- length: 53 cm + four counterweights of 53 cm each.
- material: metal cable
- connector type: PL-259 female
- color: black

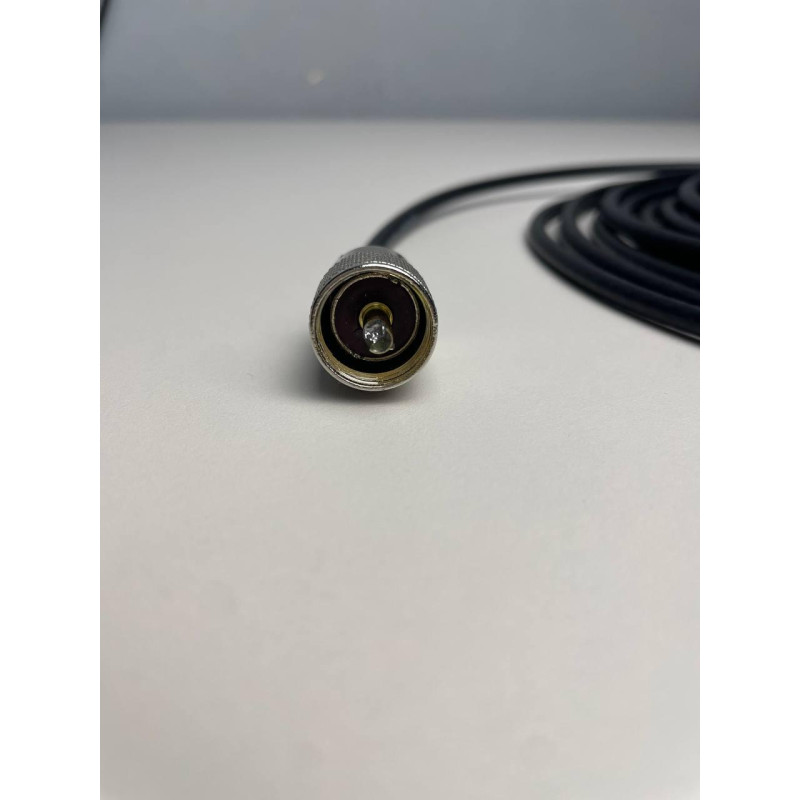

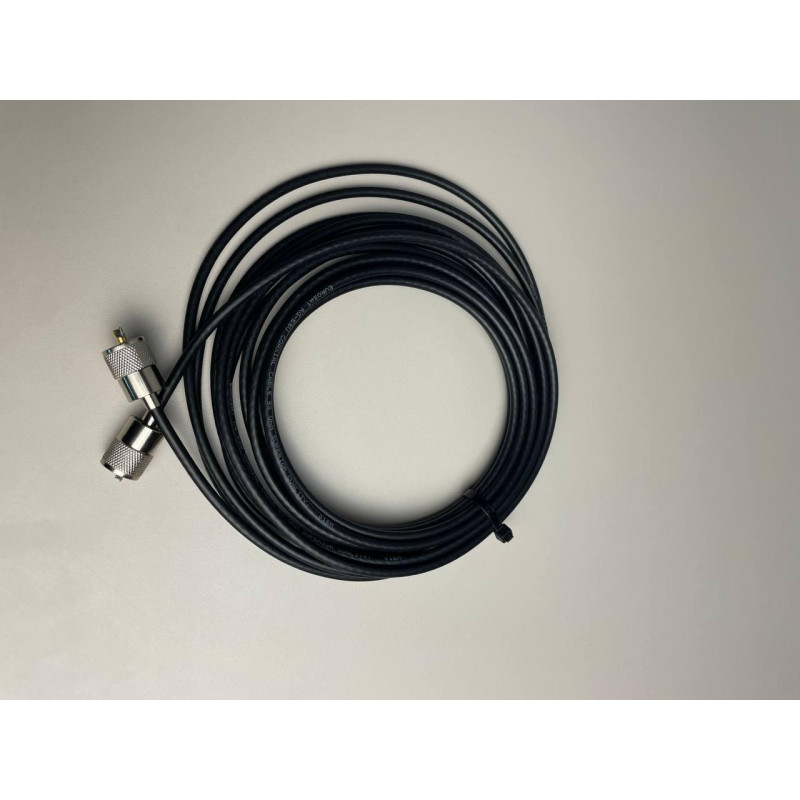

Coaxial antenna cable RF — 5m

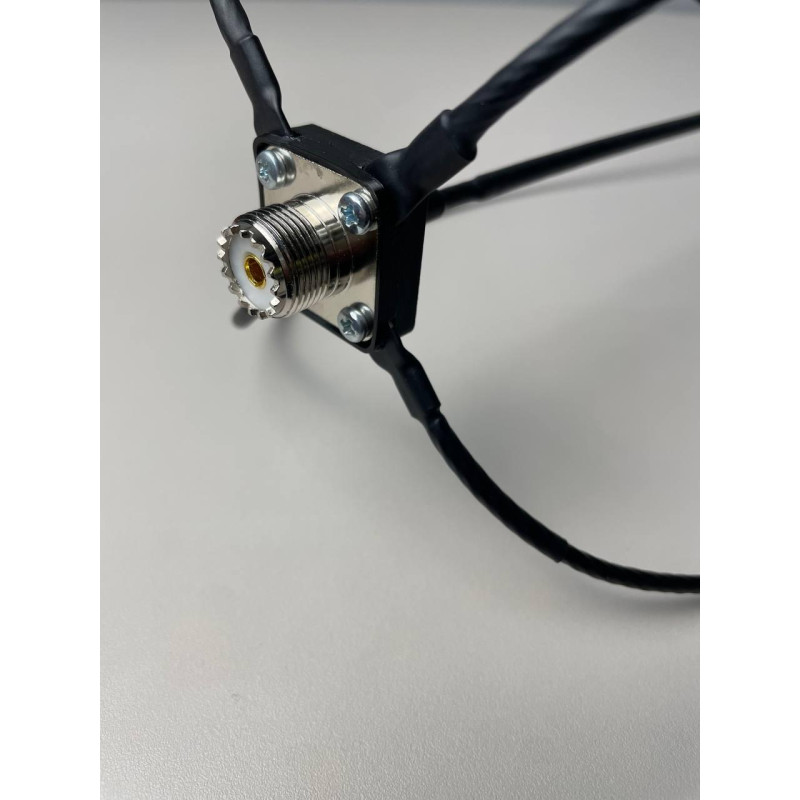

The antenna has an omnidirectional radiation pattern. Radiating elements are enclosed in heat shrink tubing. A UHF PL-259 (female) connector is used to connect the antennas to the cable. All models are equipped with a universal mounting loop.
The "Spider" antenna is designed to enhance the reception and transmission of a portable two-way radio signal, thereby improving communication quality and range. The antenna was developed to meet the requirements of and for use by law enforcement and military agencies.
The antenna is made of flexible elements, allowing it to be folded during movement or active operations. It has proven excellent in field conditions during combat missions in various weather conditions, complex terrain (elevation changes), dense forest plantations, etc. The radio communication range for portable two-way radios from various manufacturers is significantly increased (2-3 times).
The antenna can be suspended at any height (building roofs, trees, poles, towers, etc.). It is convenient to use when it is necessary to provide radio communication with shelters (dugouts, bunkers, trenches, basements, etc.); in this case, the antenna is deployed externally, thus ensuring both personnel safety and reliable communication.
Electrical characteristics:
Type: 1/4 whip antenna ÷
Operating range: 136 MHz to 174 MHz
400 MHz to 470 MHz
Input impedance: 50 Ω
Radiation pattern in horizontal plane: 360 (omnidirectional)
Polarization: vertical
Detailed description
Mechanical characteristics:
- length: 53 cm + four counterweights of 53 cm each.
- material: metal cable
- connector type: PL-259 female
- color: black
Coaxial antenna cable RF — 5m
The antenna has an omnidirectional radiation pattern. Radiating elements are enclosed in heat shrink tubing. A UHF PL-259 (female) connector is used to connect the antennas to the cable. All models are equipped with a universal mounting loop.
Specifications
Connector type
PL-259 female
Housing type
Whip antenna
Material
metal cable
Polarization
vertical
Size
53 cm
Antennas
Frequency range
136–174 MHz; 400–470 MHz
