UGV EW COMPLEX KVERTUS AD BERSERK 220-5900 MHz

Brand: Kvertus

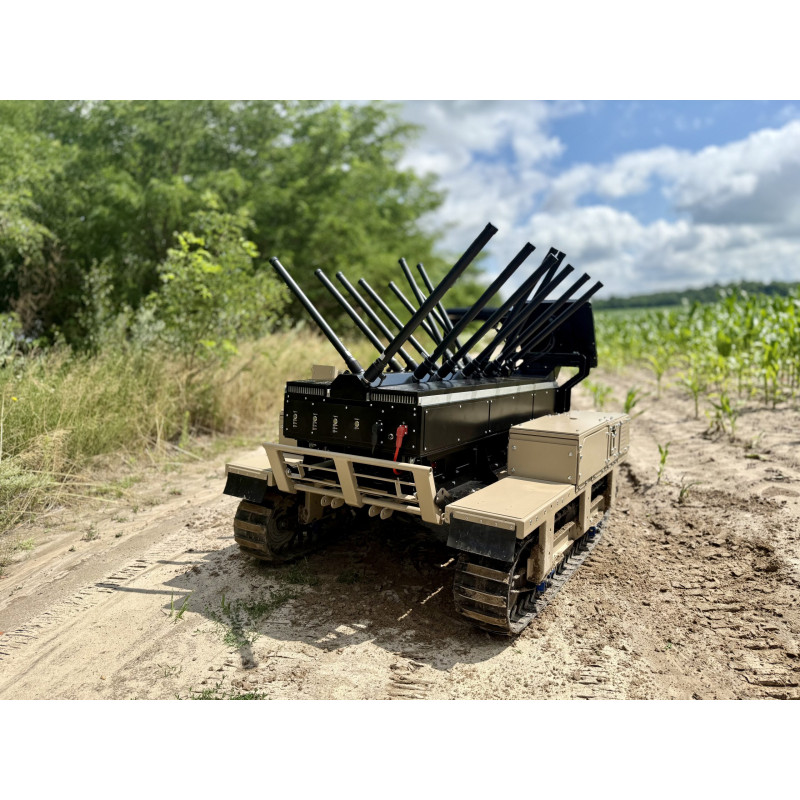

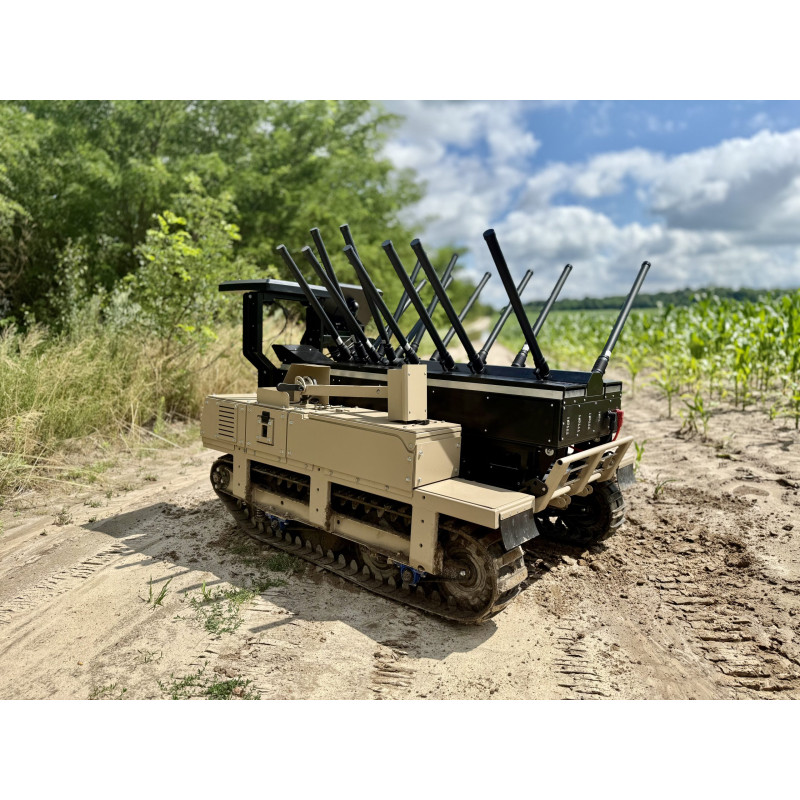

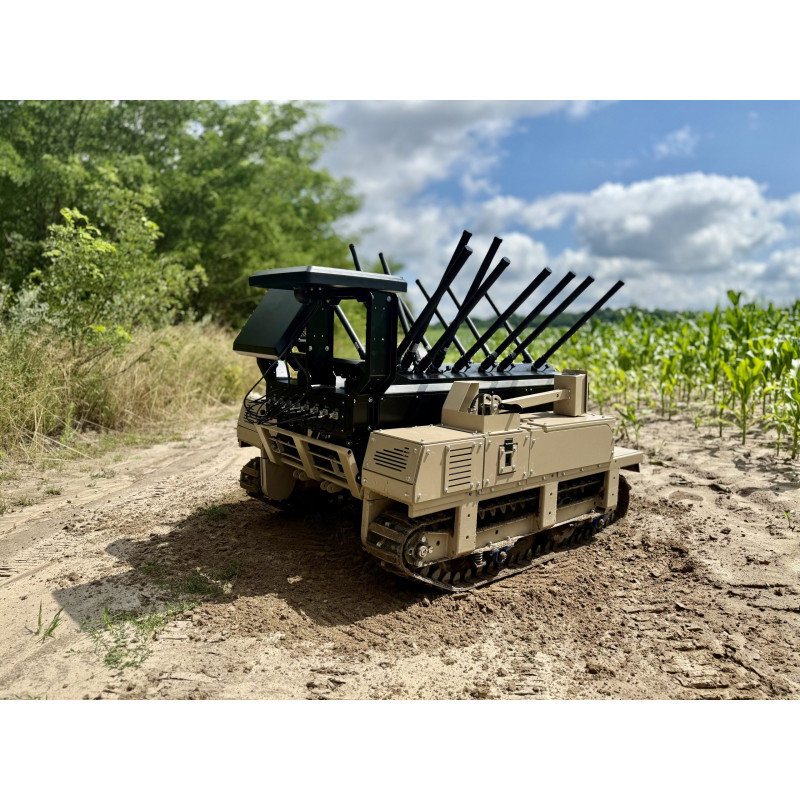

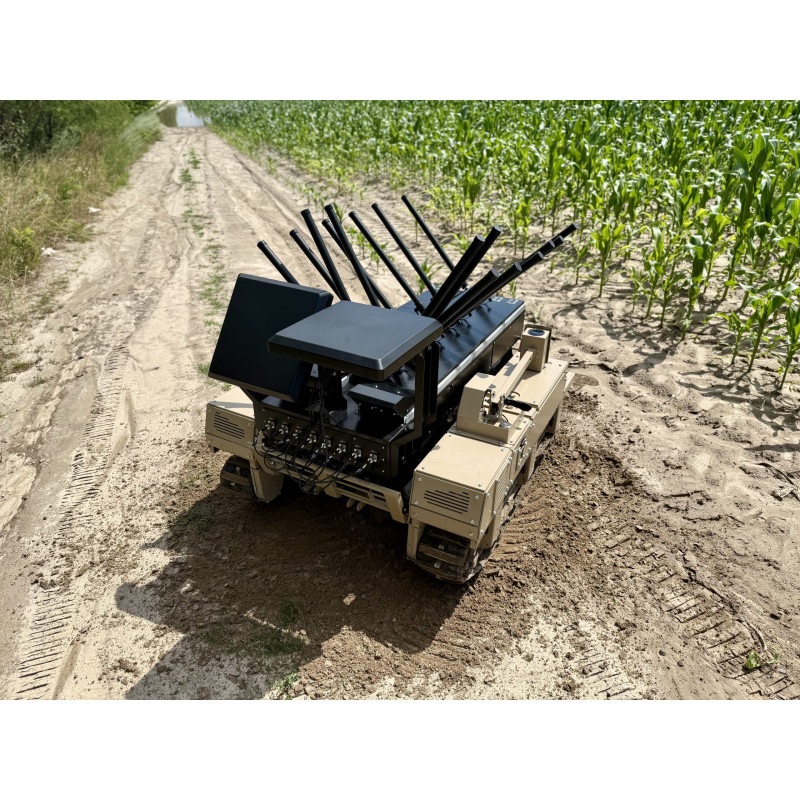

KVERTUS AD BERSERK — a remotely controlled unmanned ground vehicle (UGV) designed for effective protection of personnel and assets from drone threats. BERSERK serves as a carrier for a multi-band EW system that creates a powerful protective dome against FPV drones and provides directional protection against bomber drones. This complex combines mobility, endurance, and integrated EW modules for operation in the most challenging tactical conditions.

Areas of Application

• Covering assault groups and firing positions from FPV drones and bombers.
• Support during humanitarian demining.
• Protecting logistics routes and evacuation points.
• Performing tasks of transporting and evacuating the wounded.
• Delivering cargo to forward positions.

Technical Specifications

The complex boasts impressive autonomy and maneuverability parameters, allowing it to be used in field conditions for extended periods. It is designed for long-range operation and various combat and support scenarios.

• Range: 20 km.
• Control range: up to 20 km.
• Speed: up to 25 km/h.
• Battery life: up to 12 hours.
• Antennas: omnidirectional collinear and directional (antenna module with a 60° beamwidth).
• Effective range: omnidirectional antennas — up to 800 m; directional antennas — up to 1500 m (depending on application conditions).
• Cooling: active.

The presence of combined antenna systems provides both dome-shaped protection in all directions and enhanced cascading effect in the desired zone, making KVERTUS AD BERSERK a versatile solution for protecting personnel and critical infrastructure from various types of UAVs.

Electromagnetic Jamming Spectrum of the Device

The table above shows the distribution of frequency bands, nominal output power for each band, and the number of modules used to create an effective EW field. The complex covers critically important bands from 220 MHz to 5900 MHz, allowing it to neutralize control and navigation signals of modern drones.

KVERTUS AD BERSERK from Kvertus — is a new generation UGV EW complex, designed for operation in real combat and support conditions where reliable mobile counteraction to drone threats is required.
