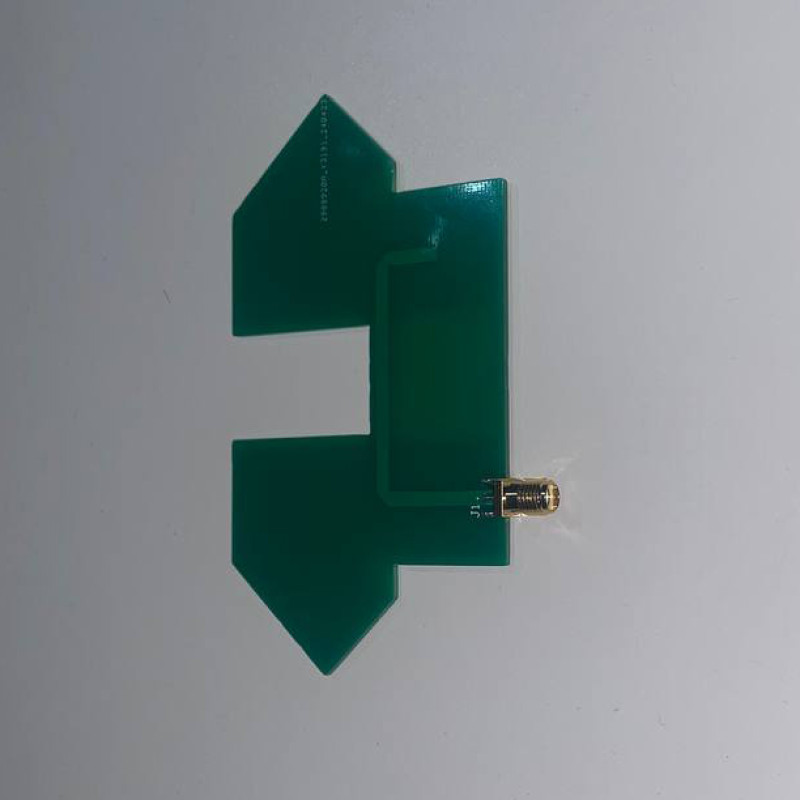

Microstrip Dipole 1200-1300/3780...3970 MHz AB-Antennas

Model: The microstrip dipole antenna from AB-Antennas is designed for applications requiring compactness, stable characteristics, and reliable connection to transceiver equipment. This dipole combines a compact 90x55 mm body with optimized electrical parameters for two operating bands, making the antenna a versatile solution for industrial, mobile, and consumer applications.

• Antenna Type: Microstrip dipole antenna
• Frequency Range: SWR: 1200...1300 MHz / 3780...3970 MHz, with SWR less than 2 in the operating bands
• Gain: 2 dBi
• Radiation Pattern: Omnidirectional
• Polarization: Vertical/Horizontal (depending on mounting)
• Dimensions: 90x55 mm
• Input Impedance: 50 Ohm
• Connector: SMA female

The antenna is suitable for integration with equipment operating in the specified frequency ranges, where compact size and stable SWR are important. The omnidirectional radiation pattern ensures uniform signal reception/transmission in the plane, and the 2 dBi gain improves communication quality without significantly increasing antenna size. Polarization can be either vertical or horizontal, providing flexibility during installation and allowing optimization for compatibility with existing systems.

The 90x55 mm body makes the antenna convenient for placement in confined spaces, such as portable devices, terminals, or industrial tags. The 50 Ohm input impedance and SMA female connector ensure simple and reliable connection to most RF modules and cables without additional matching. The manufacturer AB-Antennas guarantees high-quality factory control and compliance with technical parameters.

This microstrip dipole antenna will be useful for engineers, integrators, and end-users looking for a compact solution for operation in the 1200–1300 MHz and 3780–3970 MHz bands. When choosing an antenna, pay attention to compatibility with your equipment in terms of impedance and connector, as well as mounting conditions, to ensure optimal polarization and maximum operating efficiency.

Brand: AB-Antennas. Category: Dipole Antennas (Antennas > Dipole Antennas).
