Product Code: 59737-moxon-580-700-mhz-50
498 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA (RG316, 230 mm)
Housing type:
Mokson
Material:
textolite
Weight (depends on size):
26 g
Frequency range:
580–700 MHz
All specifications
We will deliver this product:
Payment
Description

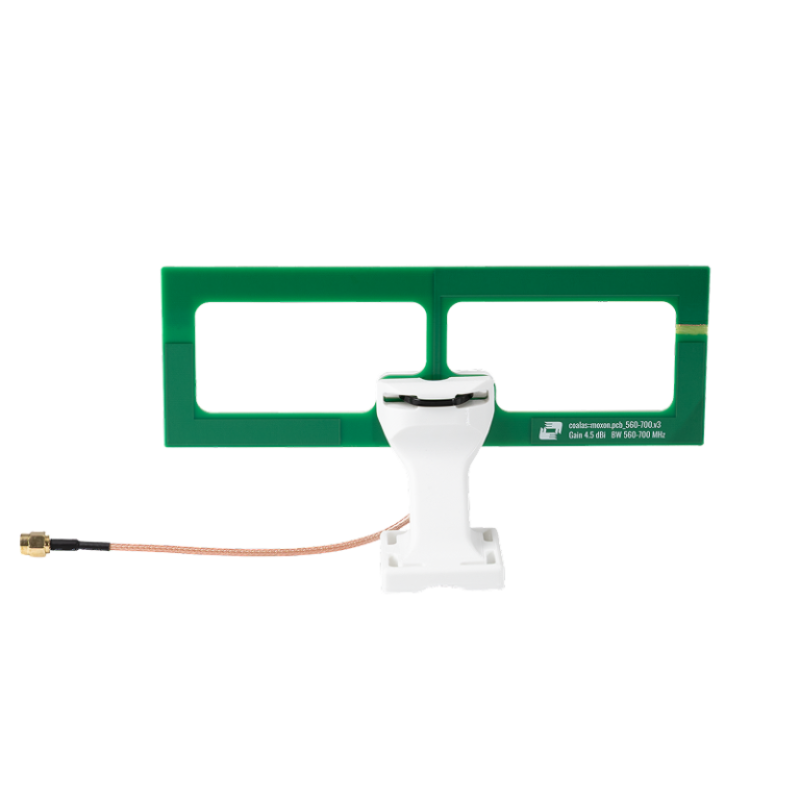

A textolite Moxon antenna, optimized for use with ground stations and repeaters. It provides directional and stable signal transmission, improving communication quality over medium and long distances. Equipped with a reliable SMA connector and a flexible cable, it is easily mounted on both masts and standard mounts. Its lightweight design makes it convenient for integration into mobile and stationary systems.
Specifications
| Band | 580 MHz –700 MHz (VSWR < 1.5) |
| Gain | 4 dBi |
| Input Impedance | 50 Ohm |
| Max Power | 15 W |
| Beamwidth | horiz - 82°, vert - 211° |
| Connector | RG316 (230 mm) + SMA Male |
| Dimensions | 180 x 62 mm |
| Weight | 26 g |
| Mounting | included |
Specifications
Connector type
SMA (RG316, 230 mm)
Housing type
Mokson
Material
textolite
Weight (depends on size)
26 g
Size
180 × 62 mm
Antennas
Frequency range
580–700 MHz
Beam angle
82° (horizontal), 211° (vertical)
Enhancements
4 dBi
