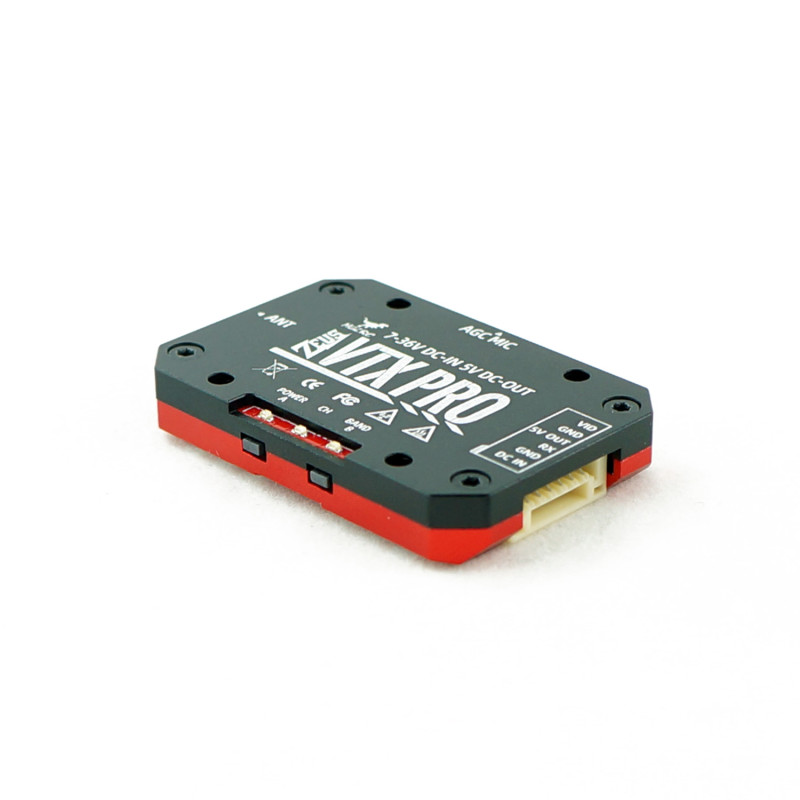

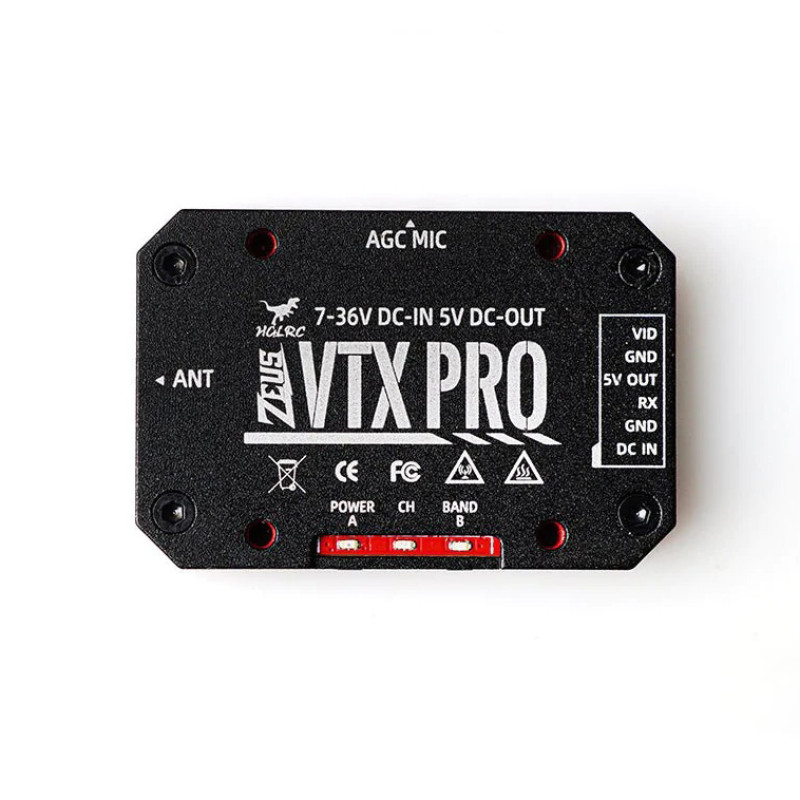

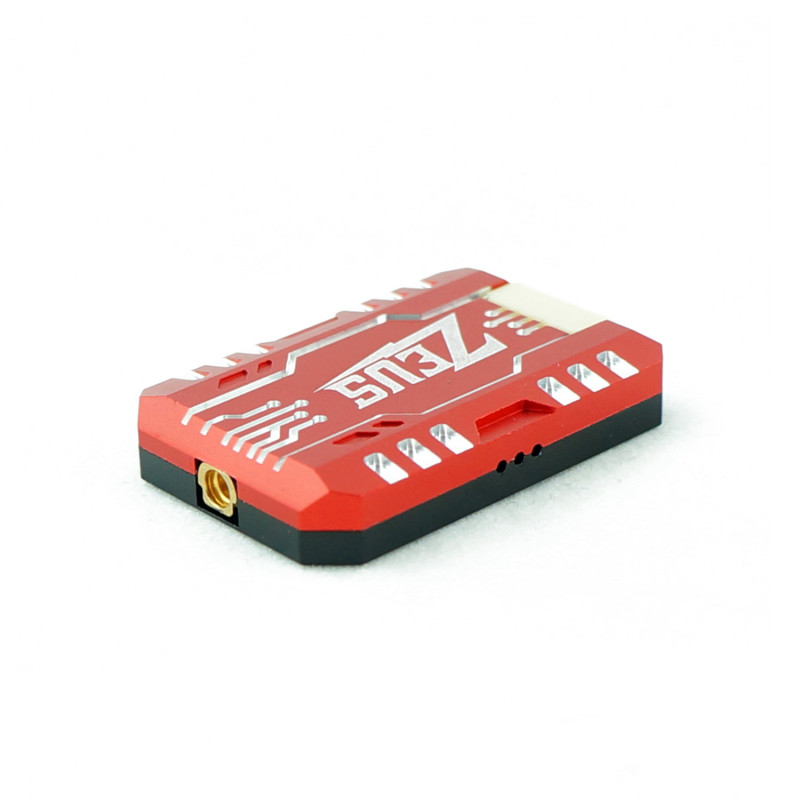

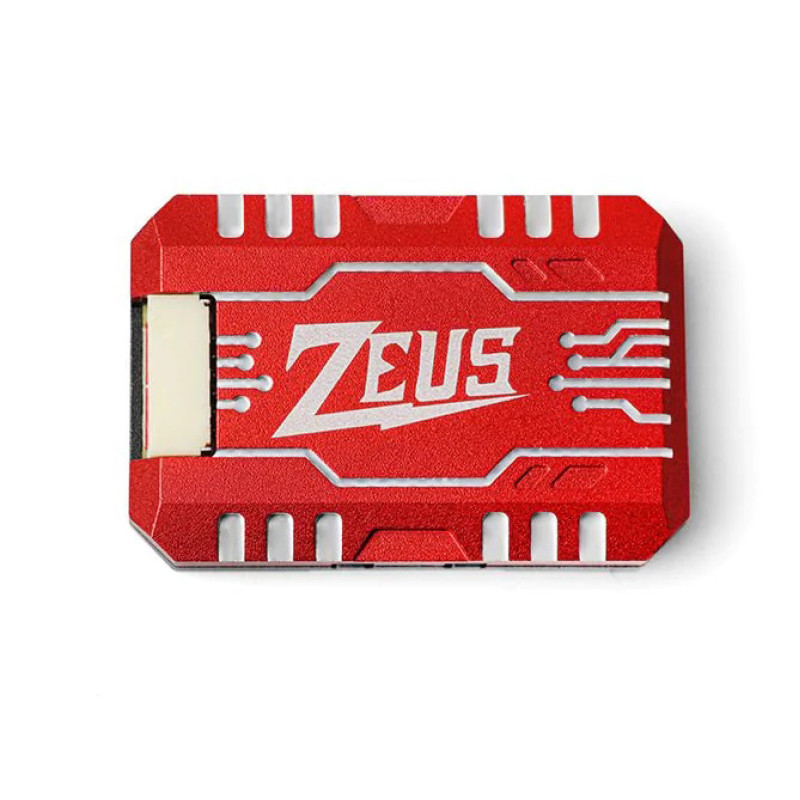

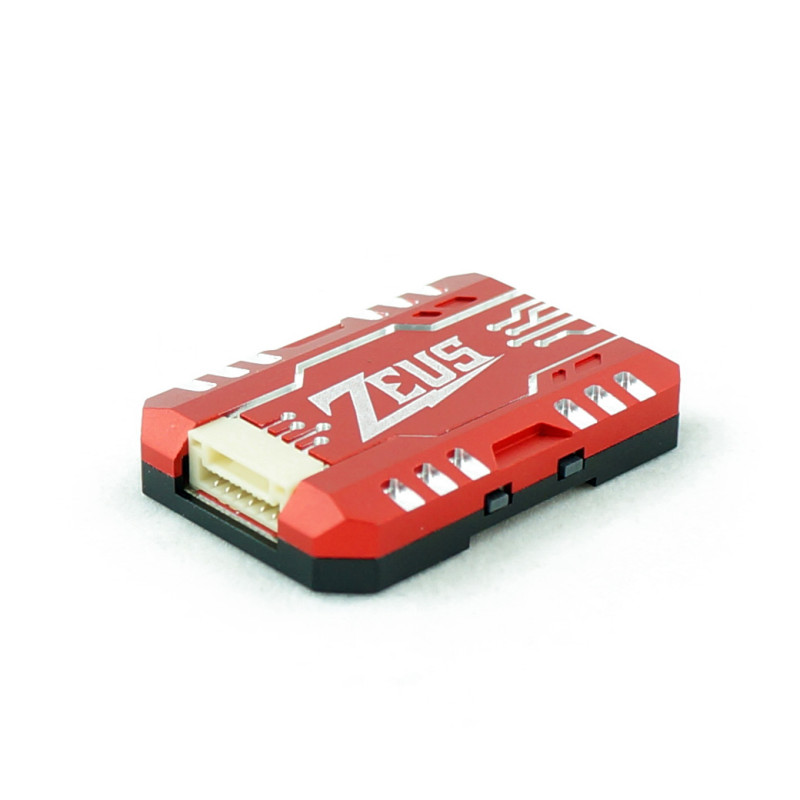

HGLRC Zeus VTX PRO 1.6W Video Transmitter
Brand: HGLRC. Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters. The HGLRC Zeus VTX PRO 1.6W is a compact and powerful video transmitter for FPV pilots, combining various power modes, reliable cooling, and flexible mounting options for modern quadcopter frames.
Key Features and Specifications
- 1. Stated Power: The name indicates 1.6W, emphasizing its capability to transmit a strong signal over long distances.
- 2. Output Power Levels and Consumption: PIT mode @75mA; 25 mW @180mA / 16dBm; 100 mW @280mA / 21.5dBm; 200 mW @330mA / 24.5dBm; 350 mW @400mA / 27.5dBm — allowing fine-tuning for flight tasks.
- 3. Number of Channels: To avoid interference, 48 channels are mentioned in the text, while the technical data block specifies 40 channels — both values are retained in the description as per the original.
- 4. Input Voltage: The description includes two versions: a wide operating range from 7 to 28V for flexible power schemes and a technical note "Input voltage: 5V DC" — both versions are retained for completeness of information.
- 5. Cooling and Protection: An integrated fan for efficient cooling during intensive modes and overheating protection enhance the device's reliability and longevity.
- 6. Additional Features: Built-in microphone for audio transmission, simple control, very compact size and low weight, as well as a unique mounting design.
- 7. Mounting Compatibility: Compatible with 16mm, 20mm, and 25.5mm mounting patterns (mounting holes: 16 x 16 M2 / 25.5 x 25.5 M2 / 20 x 20 mm M3), making it versatile for various frames.
- 8. Antenna Interface: IPEX UFL; includes a linear antenna and a UFL to SMA adapter for quick connection of an external antenna.
- 9. Size and Weight: Compact dimensions of 18.6 x 13.6 x 6 mm and a weight of 2.4 g ensure minimal impact on platform weight.
Technical Data
Power and Power Consumption:
PIT mode @75mA
25 mW @180mA / 16dBm
100 mW @280mA / 21.5dBm
200 mW @330mA / 24.5dBm
350 mW @400mA / 27.5dBm
Other:
Input voltage: 5V DC (the description also mentions a range of 7–28V)
Antenna interface: IPEX UFL
Number of channels: 40 (the description also mentions 48 channels)
Mounting holes: 16 x 16 M2 / 25.5 x 25.5 M2 / 20 x 20 mm M3
Size: 18.6 x 13.6 x 6 mm
Weight: 2.4 g

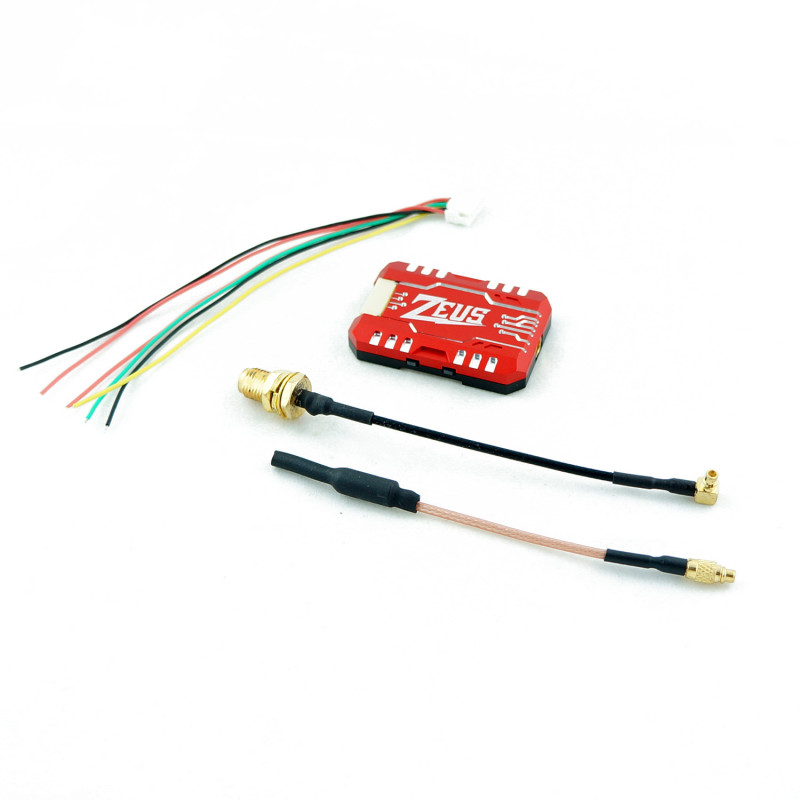

Package Contents
The kit includes:
1 x HGLRC Zeus nano video transmitter (VTX PRO version)
1 x linear antenna
1 x UFL to SMA adapter
1 x cable set
The HGLRC Zeus VTX PRO is an optimal choice for FPV pilots seeking a balance between power, compactness, and the ability to precisely adjust output power. The integrated fan and overheating protection allow the transmitter to operate in high modes without the risk of overheating, and the set of mounting holes makes integration into most frames simple and convenient. The presence of a microphone and a bundled antenna adapter makes the device ready for use immediately after installation.
