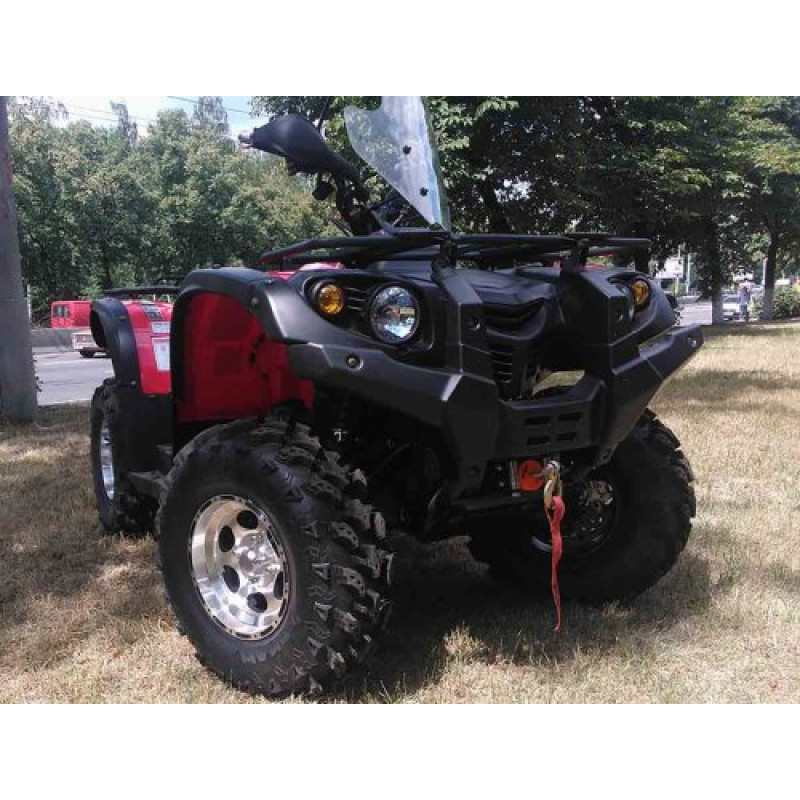

Speed Gear Force 500 ATV-S — Powerful and Reliable ATV from SPEED GEAR
Model: Speed Gear Force 500 ATV-S. Manufacturer: SPEED GEAR. Category: Motor Vehicles > ATVs. This all-wheel-drive ATV is designed for active recreation, field work, and off-road terrain, combining excellent cross-country capability, comfort, and a reliable technical base.
Overview and Key Advantages
The Speed Gear Force 500 is equipped with a 4-stroke, 500 cm3 gasoline engine that produces 35 hp at 6500 rpm. For convenient starting, an electric starter is provided, and the cooling system is liquid-based, which increases engine stability during long runs and under intense loads. The automatic transmission, based on a V-belt variator, ensures smooth operation, while the mode gearbox allows selecting high, low, forward, neutral, and reverse gears. Full all-wheel drive with 2x4 and 4x4 modes, combined with differential lock, guarantees confident conquering of challenging terrain sections.
The frame features a tubular metal body kit integrated into the design, allowing for the installation of additional trunks and cargo elements. The plastic body kit is made of high-strength ABS plastic (front bumper, side mudguards, fender flares), providing protection for external parts and durability during operation in harsh conditions.
Technical Specifications
Below are the detailed technical parameters of the Speed Gear Force 500 ATV-S model:
| Wheel formula | 4x4 |
| Engine power, hp | 35 hp at 6500 rpm |
| Engine type | gasoline, 4-stroke, carburetor |
| Engine displacement, cm3 | 500 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Transmission (КП) | automatic (V-belt variator) |
| Transmission modes | high, low, forward, neutral, and reverse / all-wheel drive, 2x4 and 4x4 modes |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc on wheel axle |
| Wheelbase, mm | 1365 |
| Tire size | front 26x8-10, rear 26x10-10 |
| Fuel tank capacity, L | 17 |
| Dimensions, LxWxH mm | 2250x1365x1225 |
| Front suspension | independent, double A-arm, coil springs, shock absorbers |
| Rear suspension | independent, double A-arm, coil springs, shock absorbers |
| Average fuel consumption, L / 100 km | 7 |
| Weight, kg | 329 |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional trunks |
Practical Application
Thanks to liquid cooling, electric starter, and automatic transmission, the Force 500 is ideal for long off-road rides, farm work, hunting, and fishing trips. The combination of ground clearance and tire sizes (front 26x8-10, rear 26x10-10) ensures excellent cross-country capability on rugged terrain. The 17 L fuel tank capacity, combined with an average consumption of 7 L/100 km, provides a confident range for long routes.
Configuration and Upgrade Options
The tubular frame design allows for the installation of trunks and additional equipment for transporting items or specialized gear. The presence of a differential lock and the ability to switch between 2x4/4x4 modes ensure control and cross-country capability in challenging conditions. Disc brakes on the front and rear axles guarantee effective braking under any load.
Product ID: 10226. If you are looking for a versatile and powerful ATV from SPEED GEAR with modern technical solutions and upgrade possibilities, the Speed Gear Force 500 ATV-S will be the right choice.
