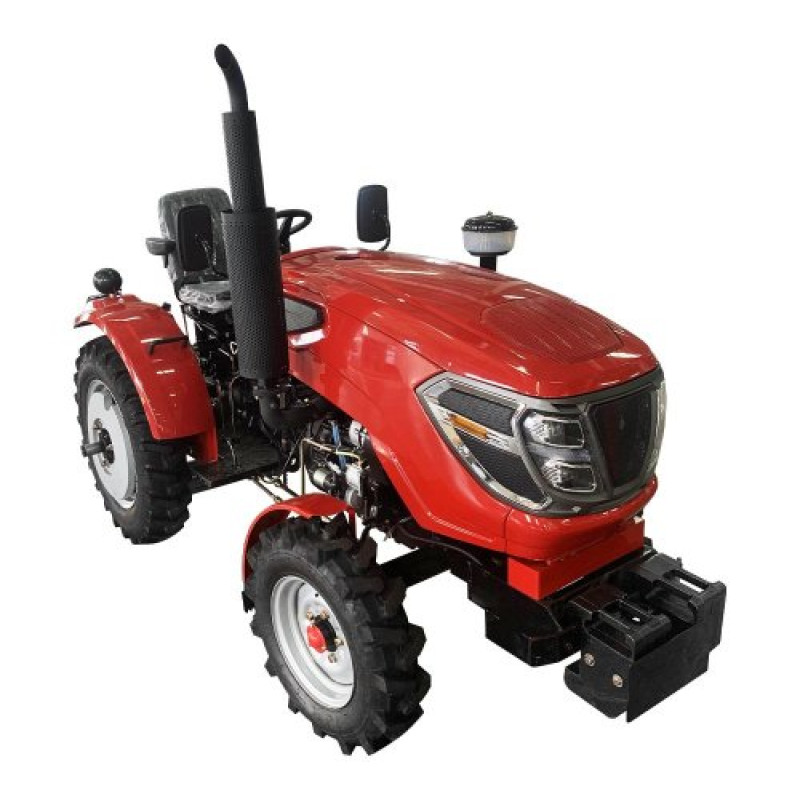

The Xingtai T240 TPKX New Mini Tractor from the Xingtai brand is a reliable and productive compact tractor for working on homestead plots, in gardens, on small farms, and in municipal utilities. This model combines ease of maintenance, a robust technical base, and versatility of application, ensuring efficiency when performing a wide range of agricultural and auxiliary tasks.
Brief Overview
The T240 TPKX New mini tractor is equipped with a three-cylinder diesel engine with a displacement of 1532 cm3 and a power of 24 hp (17.6 kW). The engine is four-stroke, with direct fuel injection, without turbocharging, and with liquid cooling, which guarantees optimal service life and stable operation under load. The structural mass of the engine is 234 kg, and the overall dimensions of the engine are 569 mm x 525 mm x 604 mm.
The overall dimensions of the machine, 2720x1260x1870 mm, and a wheelbase of 1560 mm ensure maneuverability in narrow passages and convenience for transportation and storage. A ground clearance of 220 mm allows working on uneven terrain and overcoming obstacles. The model is suitable for working with trailed and mounted implements thanks to the 540 rpm power take-off (PTO) shaft.
Technical Specifications
| Engine type | Three-cylinder diesel, four-stroke, with direct fuel injection, without turbocharging, with liquid cooling |
| Engine displacement, cm3 | 1532 cm3 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder diameter | 85 mm |
| Piston stroke | 90 mm |
| Engine overall dimensions, mm | 569 mm x 525 mm x 604 mm |
| Engine structural mass, kg | 234 kg |
| Wheelbase, mm | 1560 mm |
| Overall dimensions, mm | 2720x1260x1870 mm |
| Front wheel track, mm | 950 mm |
| Rear wheel track, mm | 990, 1340 mm |
| Ground clearance, mm | 220 mm |
| Drive type | 4x2 |
| Transmission type | Mechanical, non-synchronized |
| Number of gears (forward / reverse) | (3+1)x2 |
| Clutch | Single-disc dry |
| Power take-off (PTO) shaft, rpm | 540 |
| Front wheel size | 6.00x14 |
| Rear wheel size | 9.50x20 |
| Engine oil volume, L | 5 |
| Engine cooling system volume, L | 10 |
| Fuel tank volume, L | 20 |
Advantages and Application
The Xingtai T240 TPKX New Mini Tractor stands out for its ease of operation and repair: the mechanical non-synchronized gearbox and single-disc dry clutch ensure durability and accessible maintenance. Its compact size and sufficient ground clearance make it versatile for cultivating small fields, gardens, lawns, maintaining homestead plots, and municipal work. The 540 rpm PTO shaft allows the use of a wide range of mounted and trailed equipment — mowers, rotary tillers, haymaking, and other implements.
This model is suitable for owners of small farms, gardeners, landscaping companies, and municipal enterprises who need a reliable, easy-to-maintain, and economical mini tractor.
Brand: Xingtai. Category: Mini Tractors (Tractors > Mini Tractors).
