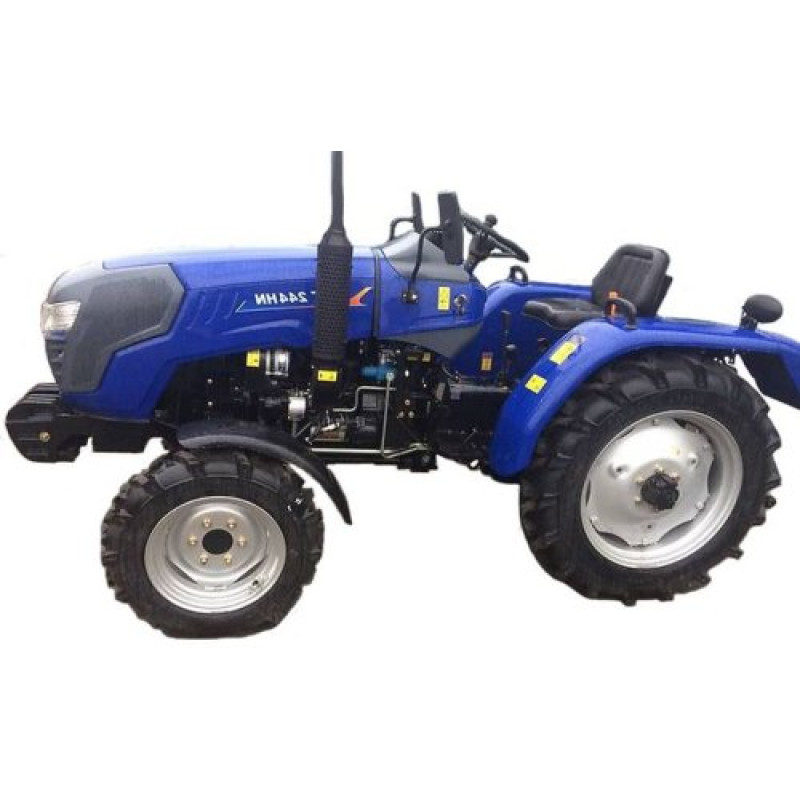

Foton-Lovol FT 244 HN Mini Tractor — A Reliable Assistant for Your Farm
The Foton-Lovol FT 244 HN mini tractor from the Foton brand combines high reliability, fuel efficiency, and versatile application. This model is created by a leading manufacturer of agricultural machinery and has proven itself well in various climatic conditions. The FT 244 HN is designed for soil cultivation, sowing, utility tasks, and working with a wide range of mounted and trailed equipment.
At the heart of the tractor is a four-stroke diesel engine, the KM385BT, with direct injection, delivering 24 hp (17.6 kW). The engine features three vertically arranged cylinders and a displacement of 1532 cm3. For stable operation, a closed liquid cooling system with forced circulation is provided, ensuring efficient heat exchange under load.
The FT 244 HN is equipped with 4x4 all-wheel drive, guaranteeing high проходимость on difficult soils and rough terrain. The model's nominal traction force is 5.8 kN, allowing it to perform heavy traction operations and work with a wide range of mounted equipment. Chevron-tread tires (front 6.0×16, rear 9.5×24) ensure reliable grip and minimize slippage.
The transmission features a (4+1)x2 gear shift formula, a single-disc dry clutch, and an electric starter for convenient starting. Steering is implemented using a hydrostatic control system, which facilitates maneuvering under load. The hydraulic system with a high-performance hydraulic pump ensures stable operation of mounted equipment in various operating modes.
Model Advantages
- 24 hp (17.6 kW) power for a wide range of tasks;
- KM385BT diesel engine, 4-stroke, direct injection, 3 cylinders, vertical arrangement;
- 4x4 all-wheel drive and nominal traction force of 5.8 kN for high проходимость;
- Wear-resistant chevron-tread tires (front 6.0×16, rear 9.5×24);
- Powerful hydraulic system and automotive-type dashboard for convenient monitoring of indicators;
- Electric starter and efficient liquid cooling system with forced circulation.
Technical Specifications
| Nominal engine power, hp (kW) | 24 (17.6) |
| Wheel formula | 4x4 |
| Nominal traction force, kN | 5.8 |
| Steering | hydrostatic |
| Gear shift formula | (4+1)x2 |
| Clutch | single-disc, dry |
| Overall dimensions (L x W x H), mm | 3240x1350x1850 |
| Operating weight, kg | 1376 |
| Engine model | KM385BT |
| Engine type | diesel, 4-stroke, direct injection |
| Number and arrangement of cylinders | 3, vertical |
| Cylinder volume, cm3 | 1532 |
| Nominal crankshaft speed, rpm | 2350 |
| Nominal fuel consumption, g/kWh | ≤248 |
| Fuel injection pressure, MPa (kgf/cm2) | 18.5-19.0 (185-190) |
| Starting system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Fuel tank volume, L | 29.0 |
| Oil volume in crankcase, L | 5.0 |
| Theoretical forward speed, km/h | 1.71-25.76 |
| Theoretical reverse speed, km/h | 2.23-10.29 |
Buying the Foton-Lovol FT 244 HN mini tractor in our online store Flash Army means getting official equipment with a warranty, the ability to select mounted and trailed equipment, and delivery. Our managers will help you choose the optimal set for your needs, coordinate delivery details and terms, and provide consultation on maintenance and operation.
Manufacturer: Foton. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
