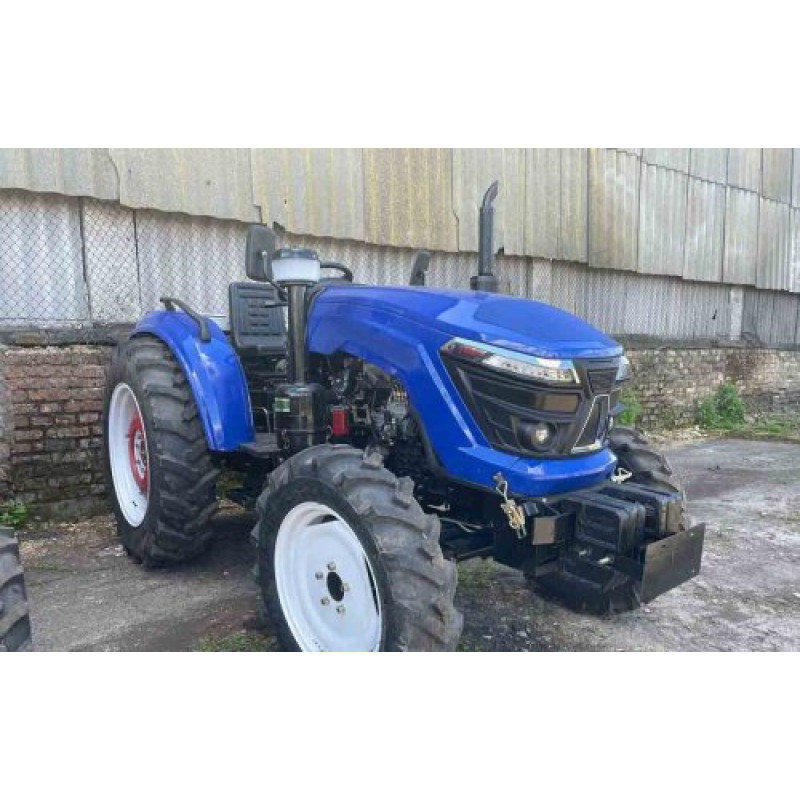

Mini Tractor GARDEN STAR GS-3254 DH2G
The GARDEN STAR GS-3254 DH2G mini tractor is a compact, reliable, and functional unit from the GARDEN STAR brand, designed for use on small farms, garden plots, and in municipal services. The model combines an economical 4-stroke diesel engine, 4x4 all-wheel drive, ergonomic design, and simple maintenance, making it a versatile solution for a wide range of tasks.
Key advantages at a glance:
- Powerful and economical 24 hp (17.65 kW) diesel engine with a displacement of 1532 cm3.
- 4x4 all-wheel drive for confident traction on any surface.
- Electric starter system for convenient engine ignition.
- Liquid-closed cooling with forced circulation and V-belt fan drive.
- Robust transmission: mechanical gearbox (4+1)x2, dry single-disc constantly closed clutch, direct final drive.
The GS-3254 DH2G is equipped with a gear pump hydraulic system, a rear splined power take-off (PTO) shaft with operating speeds of 540/1000 rpm, ensuring compatibility with a wide range of mounted and trailed equipment. The nominal engine crankshaft speed is 2300 rpm, and the fuel tank holds 17.0 L, allowing for longer shifts without frequent refueling.
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, with direct injection, non-turbocharged. |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1532 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Gearbox (КП) | (4+1)x2 |
| Clutch | dry single-disc constantly closed type |
| Final drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, brake drums |
| Power Take-Off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power Take-Off (PTO) shaft speed, rpm | 540/1000 |
| Maximum lifting capacity of mounted mechanism, kg | 420 |
| Minimum ground clearance, mm | 290 |
| Tire size | front 7.50-16, rear 11.2-24 |
| Fuel tank capacity, L | 17.0 |
| Overall dimensions (L x W x H), mm | 3220x1350x1500 |
| Curb weight, kg | 1300 |
For safe and convenient operation, mechanical steering and drum brakes on the rear wheels are provided. Compact dimensions of 3220x1350x1500 mm and a minimum ground clearance of 290 mm ensure excellent maneuverability in confined spaces. The maximum lifting capacity of the mounted mechanism is 420 kg, allowing for the use of a wide range of mounted equipment: plows, cultivators, trailed units, and more.
This mini tractor is suitable for plowing small plots, soil preparation, area cleaning, cargo transportation, and other agricultural tasks. If you are looking for a reliable and easy-to-maintain mini tractor with good traction characteristics and an economical diesel engine, the GS-3254 DH2G from GARDEN STAR will be an excellent choice for a small farm. Product category: Tractors > Mini Tractors.
