RushFPV TANK II ULTIMATE VTX (DA04-2) Video Transmitter
The RushFPV TANK II ULTIMATE VTX (DA04-2) video transmitter is a compact, robust, and functional module for drones and quadcopters, specifically designed for multi-drone racing and professional aerial video transmission. Manufacturer: RushFPV. Purpose: multi-drone racing and high-quality video transmission from a quadcopter. The unique combination of a metal casing with "tank armor," efficient heat dissipation, and impact protection ensures reliability even in aggressive flight conditions.
The transmitter features compact dimensions of 36 x 36 x 4.5 mm and a low weight of 6.8 g (including cable), making it an ideal choice for racing frames and lightweight chassis. The mounting holes conform to the standard 30.5 x 30.5 mm spacing, ensuring quick and easy integration into the drone chassis. Control is intuitive, and installation is easy even for those assembling their first racing quadcopter.
Technical Specifications and Electrical Parameters
- Input Voltage: 7-36 V DC.
- Output Voltage for Peripherals: 5 V 1 A.
- Current Consumption at 12 V: 40 mA @ Pitmode, 95 mA @ 25 mW, 185 mA @ 200 mW, 250 mA @ 500 mW, 380 mA @ 800 mW.
- Channels: 48CH / 37CH.
- Transmission Power Levels: PIT / 25 / 200 / 500 / 800 mW (four adjustable power levels).
- Audio Input Support: yes.
- Features: SmartAudio, Power LUT, LOCK-ON, silent tuning, Pit mode, side LED indicators, tank armor.
| RushFPV TANK II ULTIMATE VTX (DA04-2) Specifications | Value |
|---|---|
| Item Name | Rush Tank II |
| Input Voltage | 7-36 V DC |
| Output Voltage | 5 V 1 A |
| Input Current 12 V | 40 mA @ Pitmode, 95 mA @ 25 mW, 185 mA @ 200 mW, 250 mA @ 500 mW, 380 mA @ 800 mW |
| Channels | 48CH / 37CH |
| Power | PIT/25/200/500/800 mW |
| Audio | Audio input support |
| Dimensions | 36 x 36 x 4.5 mm |
| Weight | 6.8 g (including cable) |
| Features | Four adjustable transmission power levels, side LED indicators, SmartAudio, Power LUT, LOCK-ON, silent tuning, Pit mode, tank armor. |
| Purpose | Multi-drone racing, high-quality video transmission from a quadcopter. |
| Materials | Metal casing with efficient heat dissipation and excellent impact protection. |
| Mounting Holes | Mounting hole spacing 30.5 x 30.5 mm |
| Easy Installation | Simple installation, intuitive control. |

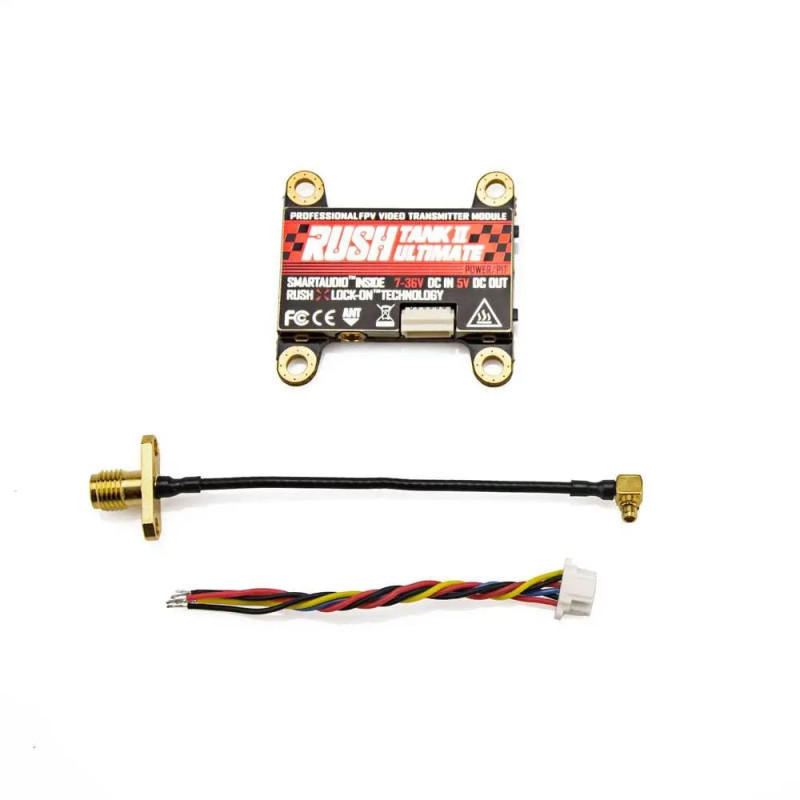

Package Contents:
- 1 x RUSH TANK II VTX
- 1 x MMCX – SMA cable
- 1 x 6-pin harness
The RushFPV TANK II ULTIMATE VTX combines high power and versatility: a wide power input range of 7-36 V, audio support, and compatibility with popular control protocols ensure quick setup via SmartAudio and flexible use on various platforms. The metal casing with "armor" protects against mechanical damage during hard landings or collisions, while side LED indicators facilitate orientation during races. Thanks to its miniature size and low weight, the device does not affect aircraft maneuverability but significantly improves video transmission quality.
This VTX will be a reliable choice for pilots who value signal stability, easy chassis integration, and the ability to quickly control power during races. The model's purpose is racing tracks and professional quadcopter broadcasts, but its universal power parameters and audio support also make it useful for other tasks.
