Product Description

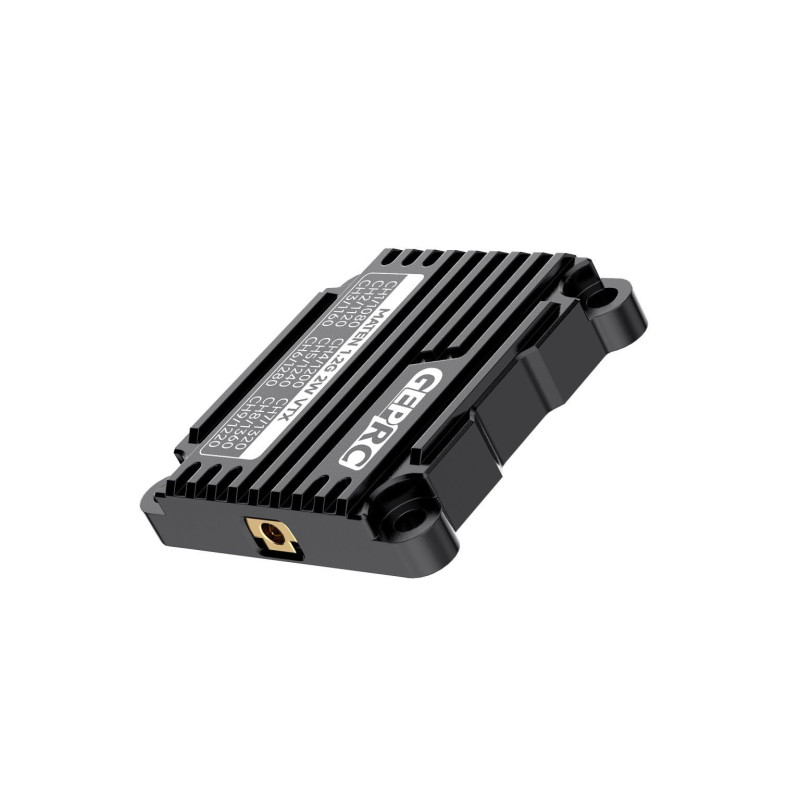

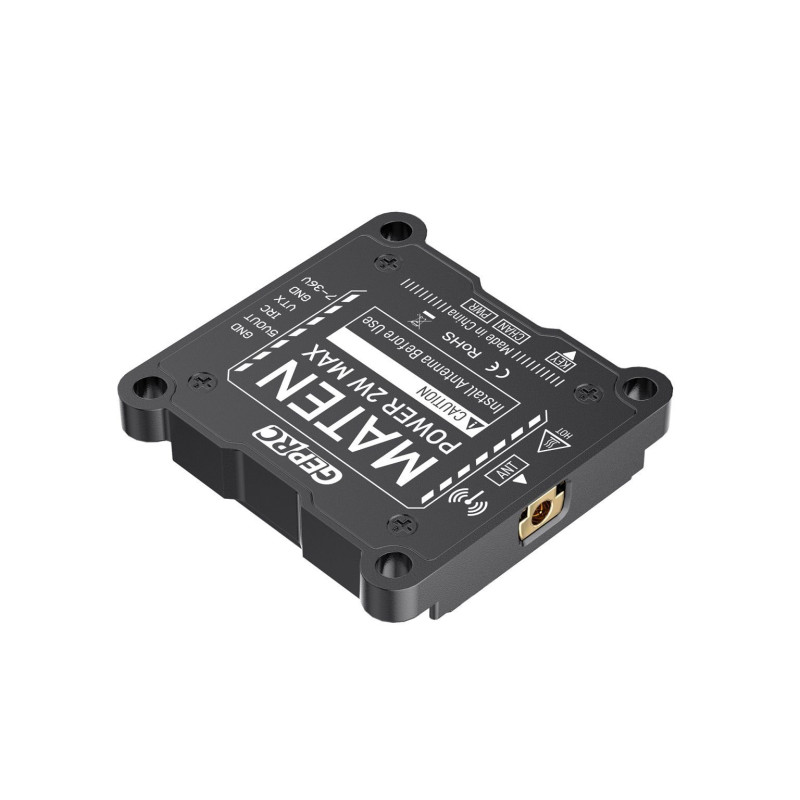

GEPRC MATEN 1.2G 2W VTX — a high-power video transmitter for drones, combining maximum transmission range and signal stability. This VTX from GEPRC is designed for racing, freestyle, and long-range flights where video signal quality, reliability, and thermal resistance are critical. The MATEN supports four adjustable power levels up to 2000mW (25mW, 400mW, 800mW, 2000mW) and Pit mode, allowing flexible output power adjustment to suit the pilot's task. The casing is made of high-strength CNC aluminum alloy for efficient heat dissipation and increased impact resistance.

Key Features

• Four adjustable power levels: 25mW, 400mW, 800mW, and 2000mW, plus Pit mode for safe operations in landing zones.
• Frequency range 1080MHz-1360MHz with 9 selectable channels.
• CNC aluminum alloy casing for improved heat dissipation and increased durability.
• Wide input power range DC7-36V (2-8S battery), compatible with various battery configurations.
• One functional button and two indicators for simple and intuitive control.
• Supports VTX control protocol: IRC Tramp; parameter settings possible via OSD.
• Built-in overheat protection function to reduce the risk of damage during intensive operation.
• Supports 30.5×30.5mm (M3) mounting holes for standard drone frame installation.

Technical Specifications

• Model: GEPRC MATEN 1.2G 2W VTX
• Size: 36.4×36.4×7.4mm
• Mounting hole: 30.5×30.5mm (M3)
• Frequency range: 1080MHz-1360MHz
• Number of channels: 9

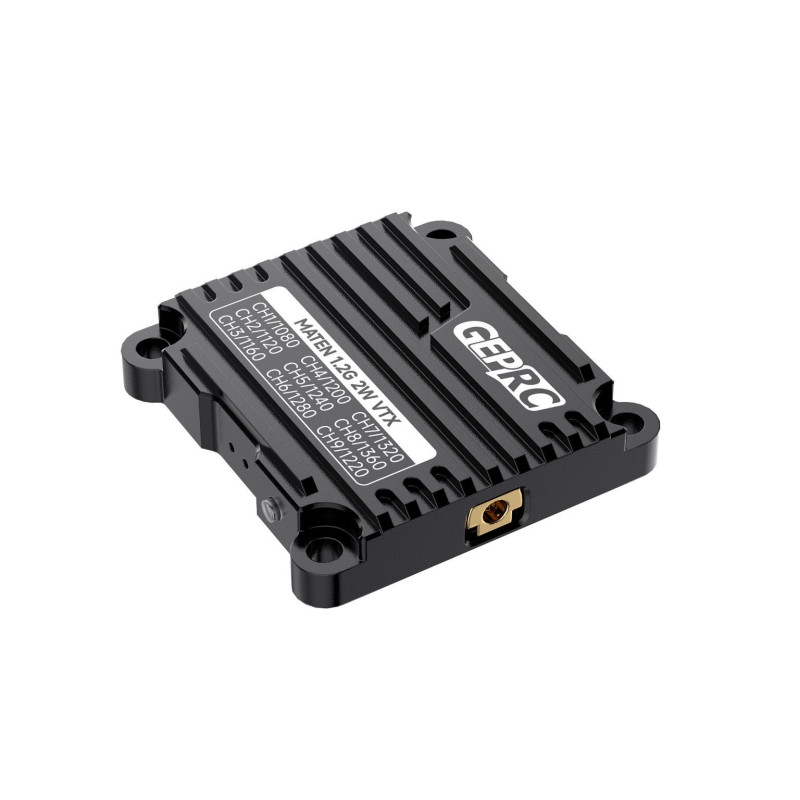

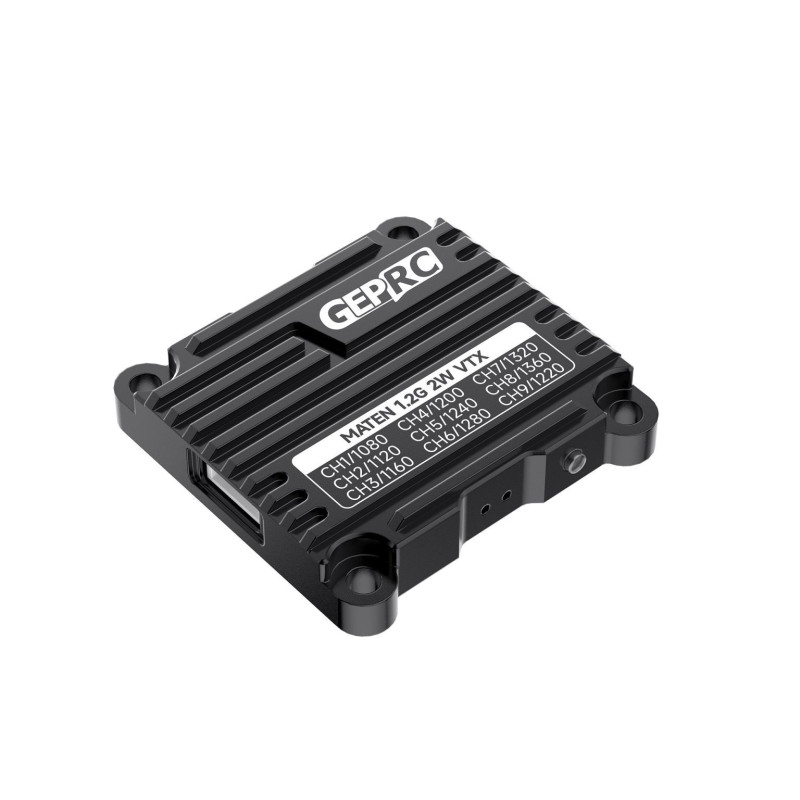

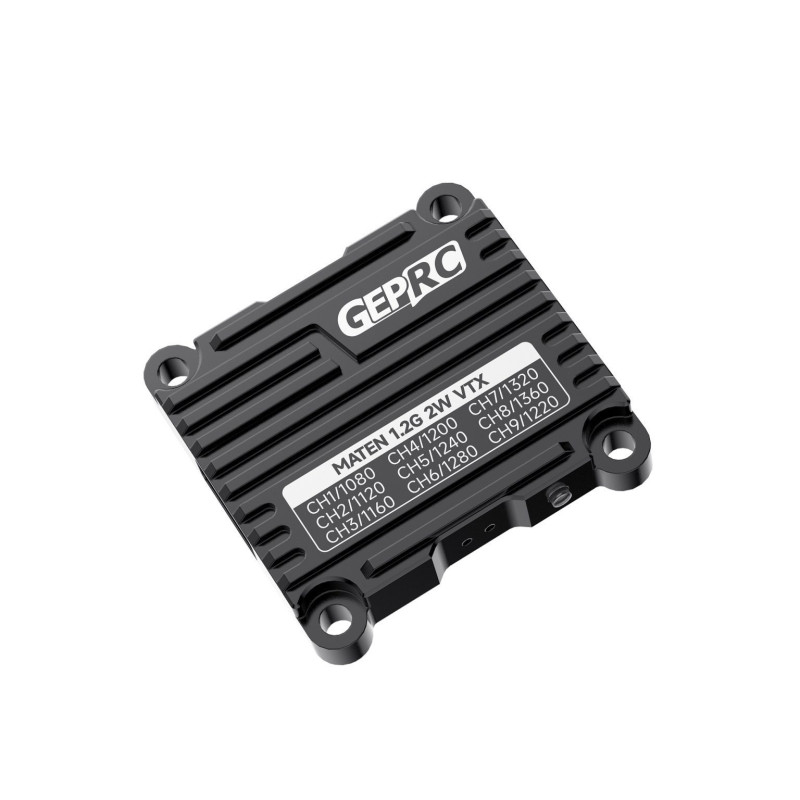

• Channel frequencies: 1080/1120/1160/1200/1240/1280/1320/1360/1220 (MHz)
• Output power: 25mW / 400mW / 800mW / 2000mW / Pit Mode
• Frequency stability: ±100KHz (Typ.)
• Frequency accuracy: ±200KHz (Typ.)
• Signal-to-noise ratio (Fo±3MHz): >70dBc
• Antenna port: 50 Ohm
• Input voltage: DC7-36V (2-8S battery)
• Output voltage: 5V @ 600mA (for camera or cooling fan)
• Protocol: IRC Tramp
• Antenna interface: MMCX
• Cable interface: sh1.25 6pin
• Video format: PAL/NTSC
• Operating temperature: -10℃ ~ +60℃
• Weight: 14.5 g (VTX only)

Recommendations and Precautions

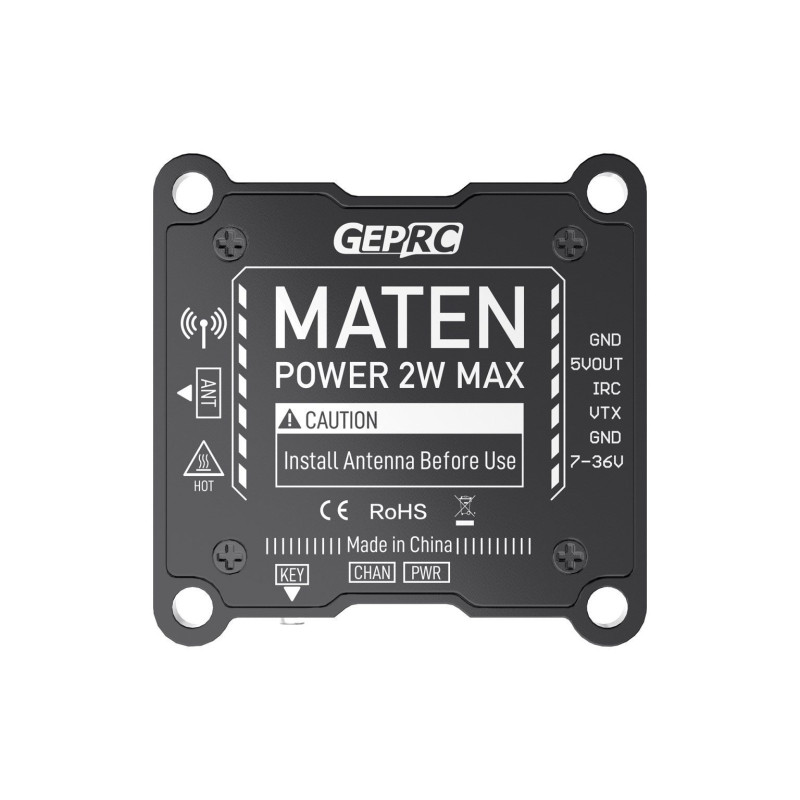

• Always install the antenna before use — operating without an antenna can damage the transmitter.
• To avoid overheating, ensure constant airflow and a well-ventilated environment; install a cooling fan if necessary.
• The 5V output is only for powering a camera or fan. Do not connect a power input or battery to the 5V output — this can severely damage the VTX.

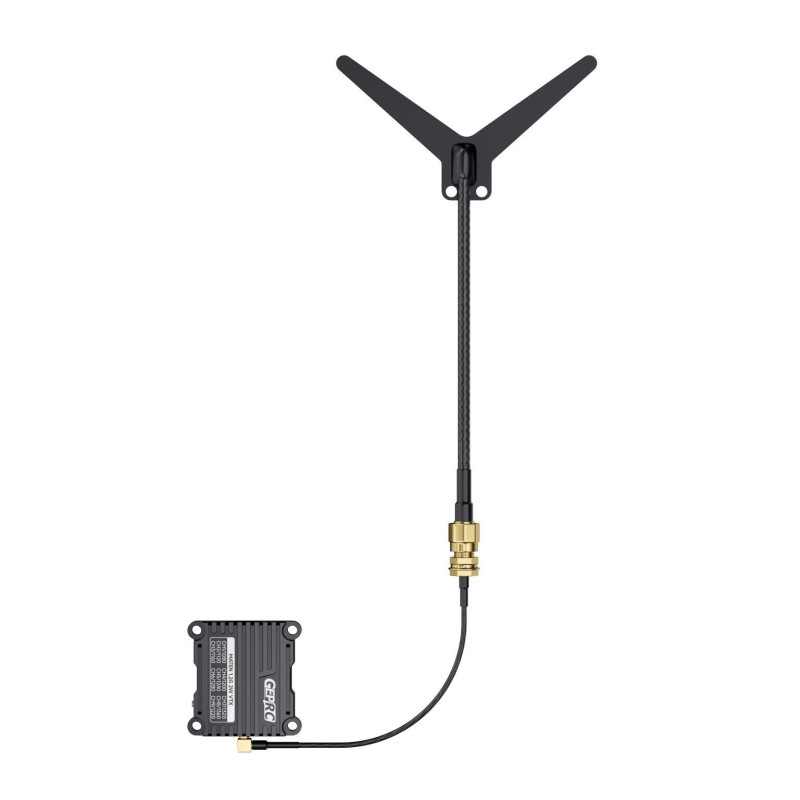

Package Contents

• 1 x MATEN 1.2G 2W VTX (module itself)
• 1 x MMCX to SMA (inner pin) connector
• 1 x 1.2G antenna (SMA inner hole)
• 1 x sh1.25 6P connection cable
• 5 x M3*7 screws
• 5 x M3*8 screws
• 5 x M3 x 10 standoffs
• 5 x M3*5 insulation columns
• 5 x M3 nylon nuts
• 1 x product manual

Brand: GEPRC. Product category: Drones & Quadcopters > Transmitters. The GEPRC MATEN 1.2G 2W VTX is ideal for pilots who require a reliable video signal over long distances; with IRC Tramp support and OSD integration, it is easy to connect to modern flight controllers and quickly change settings before flight.
