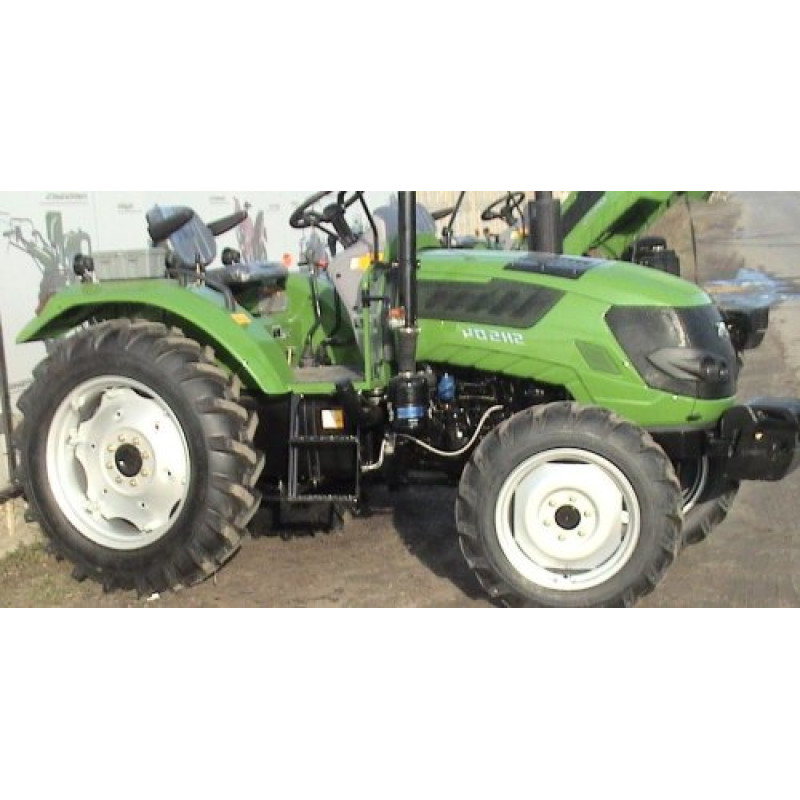

Deutz-Fahr SH-504 Mini Tractor — A Powerful and Reliable Assistant for Your Farm
The Deutz-Fahr SH-504 mini tractor from the DEUTZ-FAHR brand is a combination of proven German component quality and well-thought-out engineering solutions for small and medium-sized farms, municipal services, and private households. This model demonstrates high productivity, durability, and versatility, making it a profitable investment for a wide range of agricultural and transport tasks.
Brief Description and Key Advantages
The mini tractor is equipped with a reliable QUANCHAI Q13123120G (DEUTZ-FAHR, Germany) engine — a four-cylinder vertical block that operates stably at a nominal 2400 rpm and provides 50 hp. The forced liquid cooling system allows the equipment to be operated intensively even at high temperatures. Thanks to its well-thought-out design and German components, the SH-504 combines high productivity with fuel efficiency.
Model Advantages
- Powerful and fuel-efficient QUANCHAI Q13123120G engine, adapted to DEUTZ-FAHR standards;
- 4x4 all-wheel drive for excellent cross-country capability on rough terrain and off-road;
- 42 L fuel tank ensures a long operating cycle without frequent refueling;
- Reversible gearbox with creeper: 16 forward and 8 reverse gears provide a wide range of speeds for precise task matching;
- Dual-mode power take-off (PTO) shaft 540/1000 rpm for connecting various mounted and trailed equipment;
- Power steering (PS) simplifies control and reduces operator fatigue during maneuvering;
- Reliable dry dual-disc LUK (Germany) clutch and hydraulic disc brake system ensure safe operation;
- Integrated hydraulic cylinder and separate gear hydraulic pump for hydraulic lift drive increase aggregation versatility.
Application and Aggregation
The Deutz-Fahr SH-504 is suitable for a wide range of tasks: plowing, cultivation, sowing, orchard and vineyard care, municipal work, cargo transportation, as well as working with various mounted and trailed equipment. Thanks to its 50 hp power and dual-mode PTO, it can effectively aggregate plows, tillers, mowers, fertilizer spreaders, and other machines. The maximum lifting capacity of the three-point hitch is 650 kg, allowing for the use of a wide range of implements.
How to Order and Delivery
You can place an order for the Deutz-Fahr SH-504 mini tractor through the website cart or by contacting a manager. After placing the order and specifying the delivery address, the manager will clarify the terms and conditions of delivery to your home or business. To get the current price and model availability, we recommend contacting a manager using the contact information provided on the website.
Technical Specifications
Brief list of parameters:
| Tractor power: | 50 hp |
| Wheel drive: | 4x4 |
| Engine model: | QUANCHAI Q13123120G (DEUTZ-FAHR, Germany) |
| Number and arrangement of cylinders: | 4, vertical |
| Nominal crankshaft speed: | 2400 rpm |
| Engine cooling: | liquid |
| Fuel tank capacity: | 42 L |
| Nominal traction force: | 10.2 kN |
| Power steering: | yes |
| Gearbox: | 16+8R, reversible gearbox with creeper, Germany |
| Clutch: | dry, dual-disc LUK Germany |
| Brake system: | disc with hydraulic drive |
| Hydraulic lift drive: | integrated hydraulic cylinder, separate gear hydraulic pump |
| Power take-off (PTO) shaft speed: | 540/1000 rpm |
| Maximum lifting capacity of three-point hitch: | 650 kg |
| Tire size: | front: 8.3-20; rear: 12.4-28 |
The Deutz-Fahr SH-504 mini tractor is an optimal choice for those who value a combination of power, reliability, and versatility. The model uses German components, has well-thought-out ergonomics for operator comfort, and ensures high operational profitability in various conditions.
