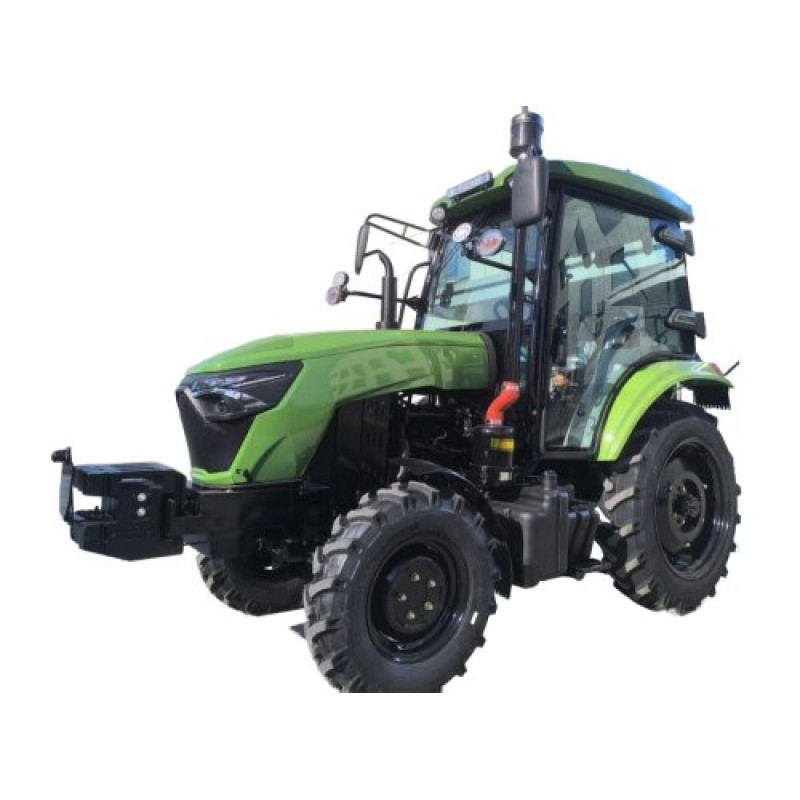

KENTAVR F404CXU Mini Tractor — Power and Reliability for Your Farm
The KENTAVR F404CXU mini tractor is a versatile unit in the category Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors, designed for heavy field work, transportation, and operation with mounted equipment. This model from the KENTAVR brand combines a powerful 4-cylinder diesel engine, reliable transmission, and a well-designed hydraulic system for stable operation on farms, private plots, and in municipal services.
Key Advantages at a Glance
The KM490BN engine develops 40 hp (29.3 kW), has a displacement of 2545 cm3, and a bore/stroke of 90x100 mm. The nominal crankshaft speed is 2350 rpm. The plunger-type in-line fuel pump and the ability to use mineral or semi-synthetic oil for diesel engines ensure durability and ease of maintenance. The nominal fuel consumption is ≤238 g/kWh.
The 4x4 all-wheel drive, combined with a (4+1)x2 gearbox, dry dual-disc clutch, and rear differential lock, guarantees confident movement in difficult conditions. Power steering with a separate pump and oil reservoir reduces operator fatigue, while disc brakes and V-belt fan drive enhance safety and operational efficiency.
The PTO with 540/1000 rpm modes makes the tractor compatible with a wide range of mounted equipment: seeders, cultivators, plows, loaders. The hydraulic system with a gear pump and a maximum lifting capacity of 550 kg for the three-point hitch ensure stable operation and easy use of tools.
Compact dimensions of 3540x1570x2050 mm, an unladen weight of 1530 kg, a minimum ground clearance of 300 mm, and a wheelbase of 1820 mm give this model good cross-country capability and stability on various terrains. Tire sizes: rear 11.20 - 24.0 and front 7.50 - 16.0. The fuel tank capacity is 35.0 L.
Below is a complete list of the technical specifications for the KENTAVR F404CXU model for your convenience:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | KM490BN |
| Engine type | vertical, 4-cylinder 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2545 |
| Bore/stroke | 90x100 |
| Nominal fuel consumption, g/kWh | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal crankshaft speed | engine, rpm 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Rear differential lock | + |
| Clutch | dry, dual-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | disc brakes |
| Power take-off (PTO) speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of three-point hitch, kg | 550 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1820 |
| Wheel track, mm | rear 1230; front 1240 |
| Tire size | rear 11.20 - 24.0, front 7.50 - 16.0 |
| Fuel tank capacity, L | 35.0 |
| Engine crankcase volume, L | 6.0 |
| Gearbox, rear axle, and lift crankcase volume, L | 12.5/4.0 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3540x1570x2050 |
| Unladen weight, kg | 1530 |
The KENTAVR F404CXU model will be useful for those who value reliability, ease of maintenance, and efficiency in various operating conditions. Thanks to the optimal combination of power, hydraulic system, and compact dimensions, this mini tractor is suitable for field cultivation, pasture care, work in greenhouses, and municipal tasks. The KENTAVR brand guarantees assembly quality and availability of spare parts.
