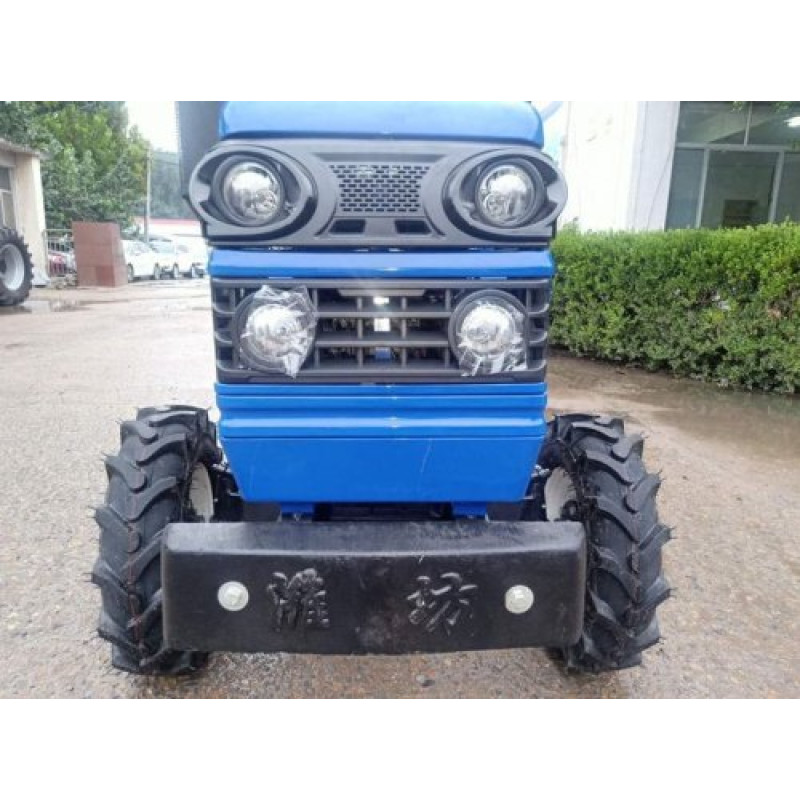

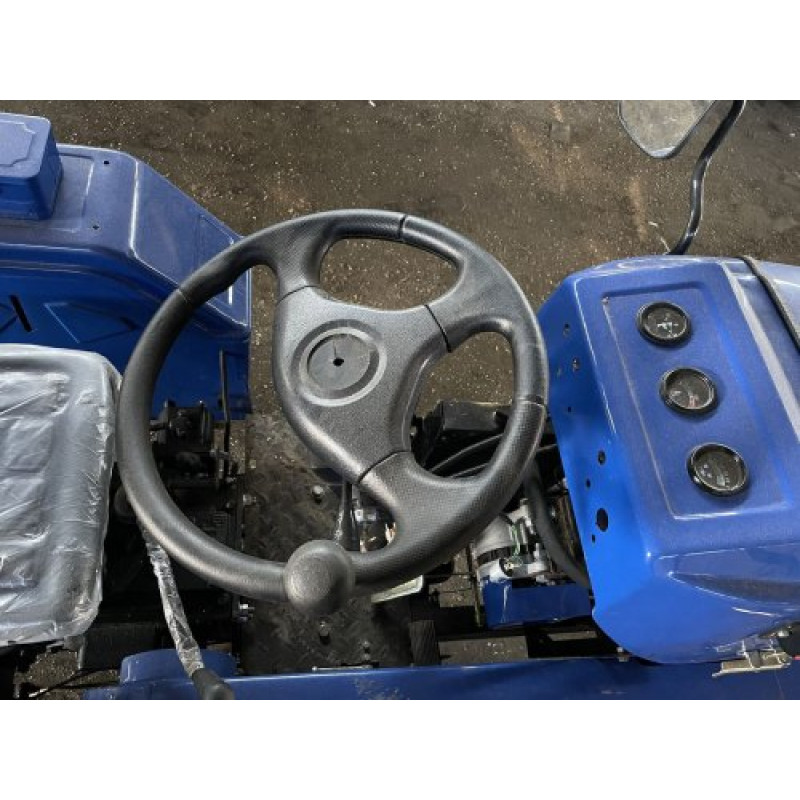

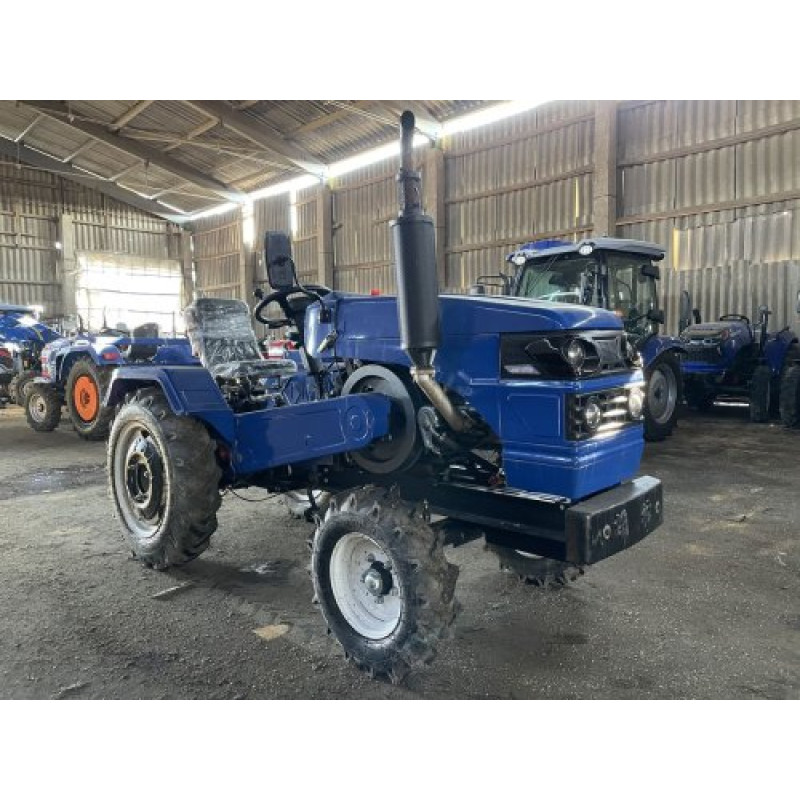

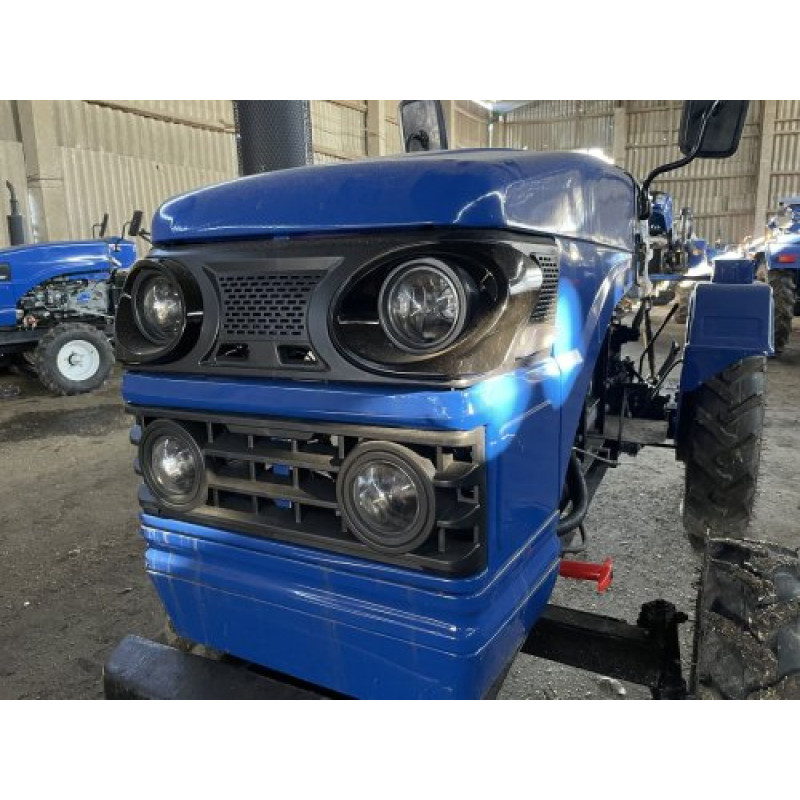

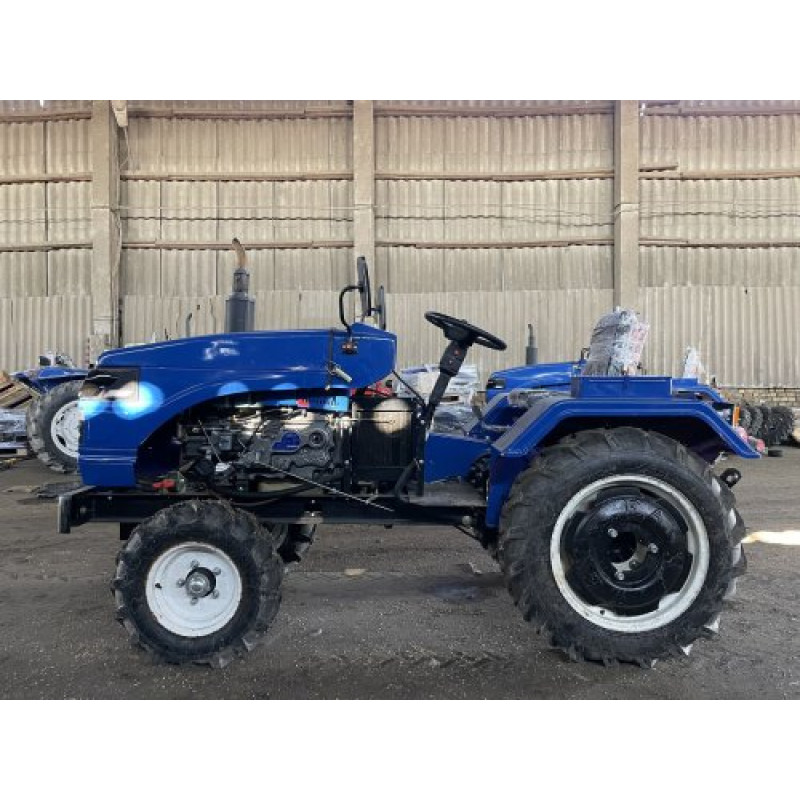

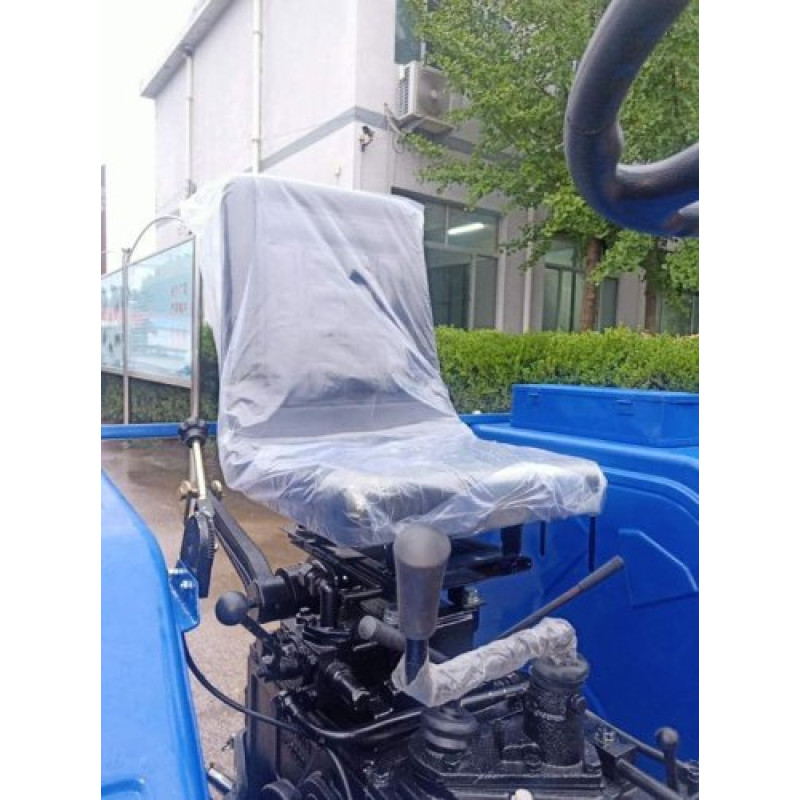

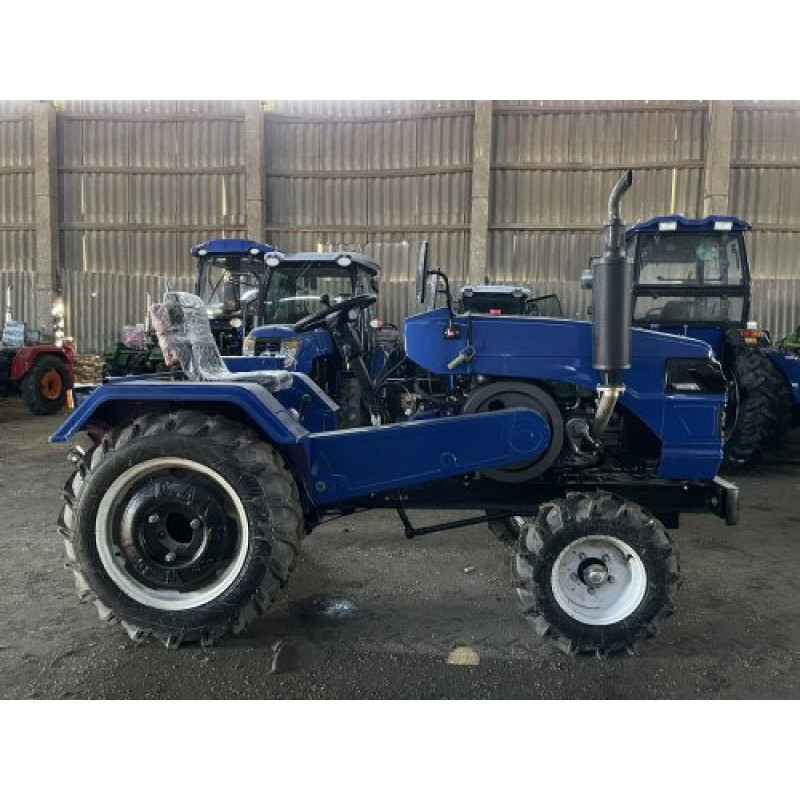

Mini Tractor Titan SF 240 — A Reliable Assistant for Small Farms

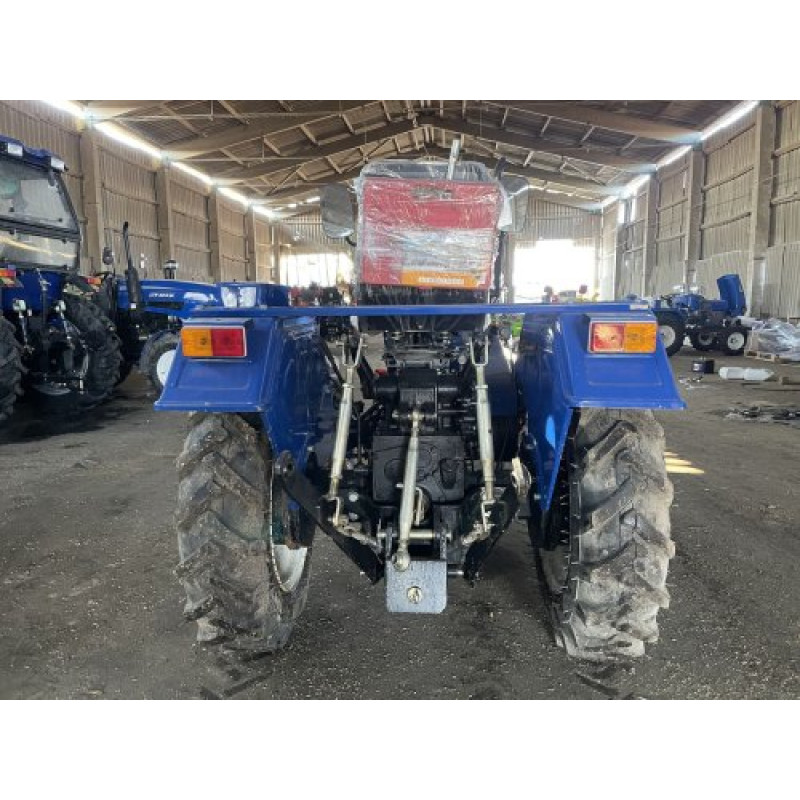

Model: Mini Tractor Titan SF 240 three-point hitch. Manufacturer: Titan. Category: Tractors > Mini Tractors. This compact and productive mini tractor is designed for efficient work on small fields, homesteads, and farms. Thanks to its three-point hitch mechanism, the Titan SF 240 is compatible with a wide range of implements — plows, cultivators, mowers, and other versatile equipment.
Key Advantages
- High maneuverability and compact dimensions for working in confined spaces.
- Economical 4-stroke diesel engine with a displacement of 1115 cm3 and 24 hp power.
- Reliable transmission with a (4+1)x2 gearbox and dry single-disc clutch.
- Differential lock for improved cross-country capability on difficult or slippery terrain.
- 300 mm ground clearance and optimal wheel sizes for stability and traction.

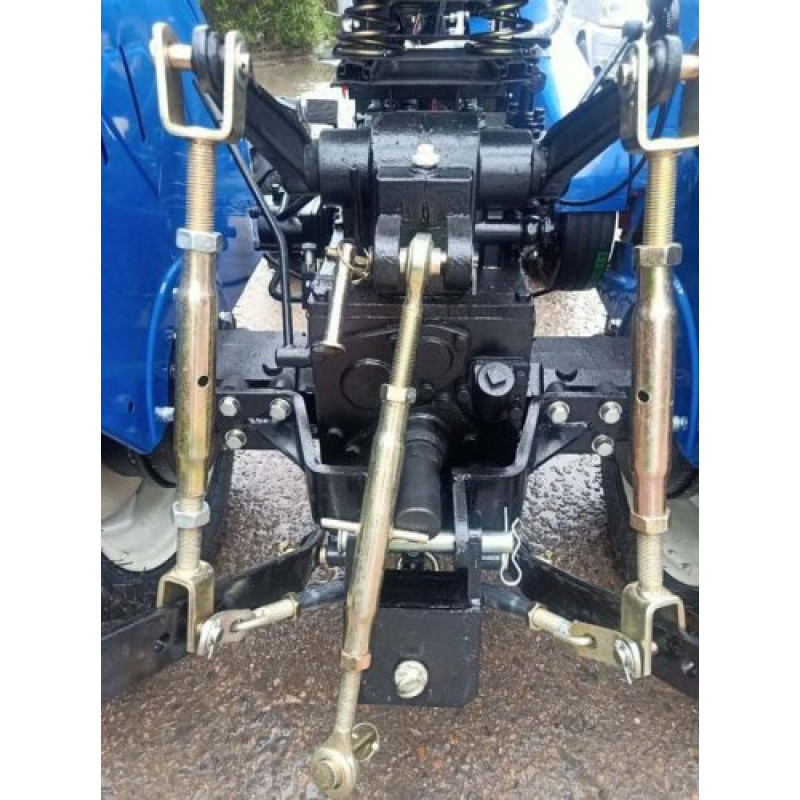

- Maximum lifting capacity of the hitch mechanism 400 kg — versatility in implement application.
Technical specifications are listed below:
| Engine power | 24 hp |
| Wheel formula | 4x2 |
| Engine type | 4-stroke, diesel engine with cooling pump |
| Engine displacement | 1115 cm3 |
| Gearbox | (4+1)x2 |
| Differential lock | yes |
| Clutch | dry, single-disc |
| PTO speed, rpm | 540 |
| Maximum lifting capacity of hitch mechanism, kg | 400 |
| Front tire size | 6.0-12 |
| Rear tire size | 9.5-16 |
| Ground clearance, mm | 300 |
| Theoretical forward speed, km/h | 27 |
| Theoretical reverse speed, km/h | 10 |
| Fuel tank capacity, L | 15 |
| Overall dimensions (LxWxH), mm | 2500x1300x1300 |
The 24 hp engine with a displacement of 1115 cm3 provides an optimal balance of power and fuel consumption, while the 15 L fuel tank offers sufficient reserve for most operations without frequent refueling. The (4+1)x2 gearbox allows selecting the necessary driving modes during field work and when transporting goods around the farm. The dry single-disc clutch is easy to maintain and reliable in operation.

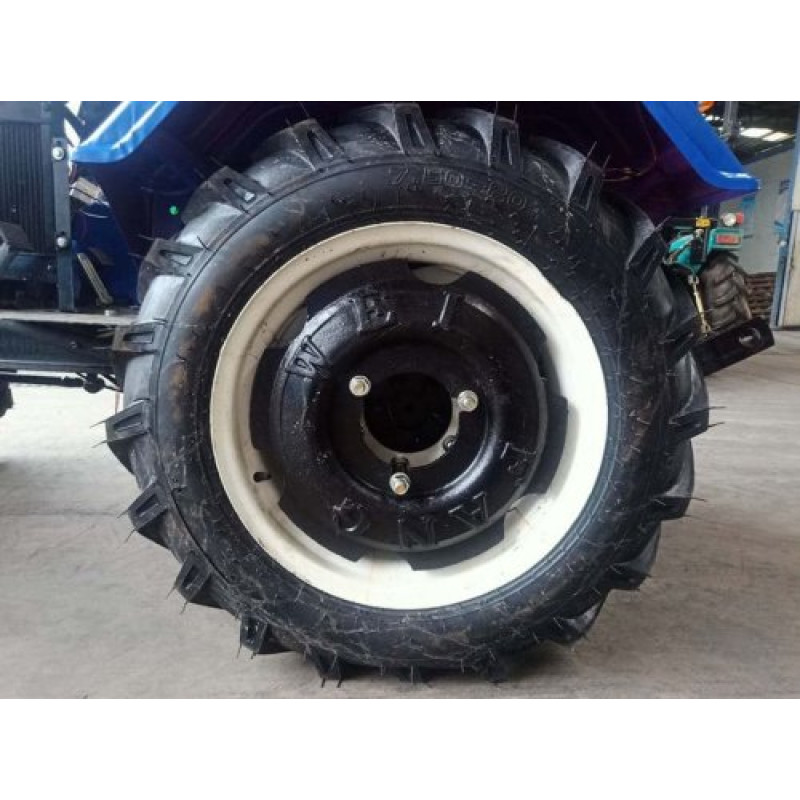

The presence of a differential lock improves cross-country capability on slippery or hilly terrain, which is especially important for working in uneven conditions. The 300 mm ground clearance allows safe operation in fields with dense vegetation and other obstacles. Tire sizes 6.0-12 at the front and 9.5-16 at the rear ensure stability, good traction, and machine control.
The 540 rpm PTO makes the tractor compatible with typical drive mechanisms of implements. The maximum lifting capacity of the hitch mechanism of 400 kg allows the use of a wide range of attachments for tillage, sowing, fertilizing, mowing, and other tasks on the plot.
Dimensions of 2500x1300x1300 mm and theoretical speeds of 27 km/h forward and 10 km/h reverse make the Titan SF 240 convenient for moving around the farm and on farm roads. The mini tractor is suitable for owners of small farms, gardeners, and farmers who need a reliable, economical, and easy-to-maintain unit for daily tasks.
The manufacturer Titan is known for its focus on quality and availability of spare parts, making the SF 240 a practical choice for those who value the balance of price and performance. The model is effectively used for tillage, garden plot maintenance, small transport operations, and other agricultural tasks within the stated characteristics.
