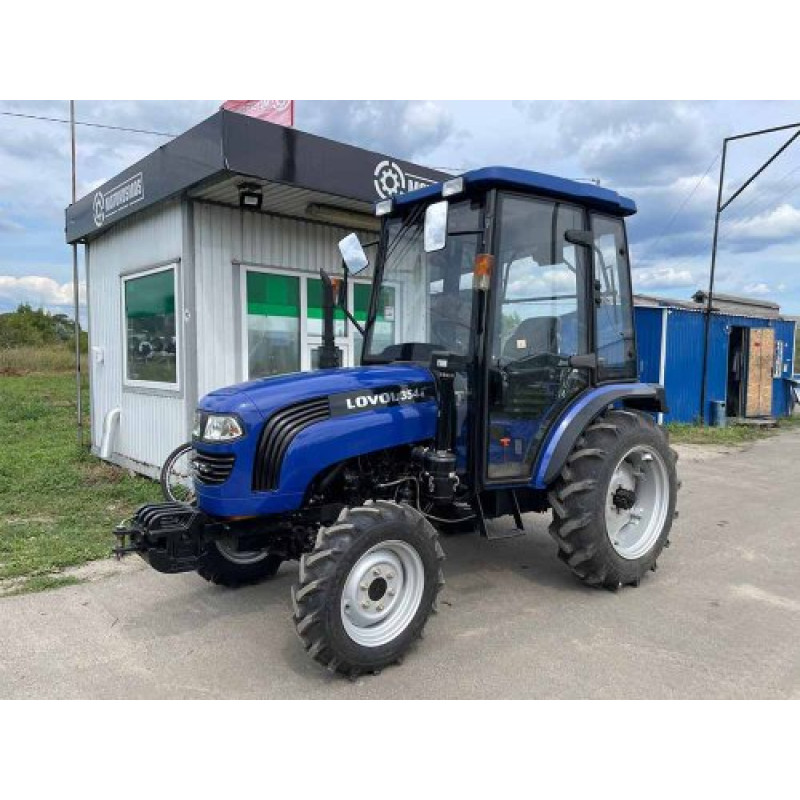

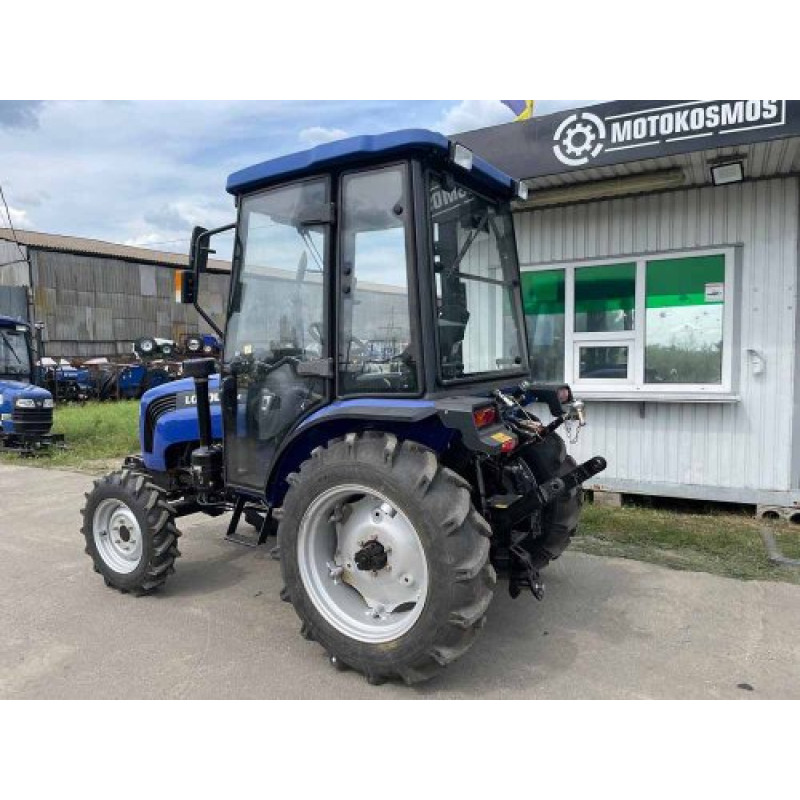

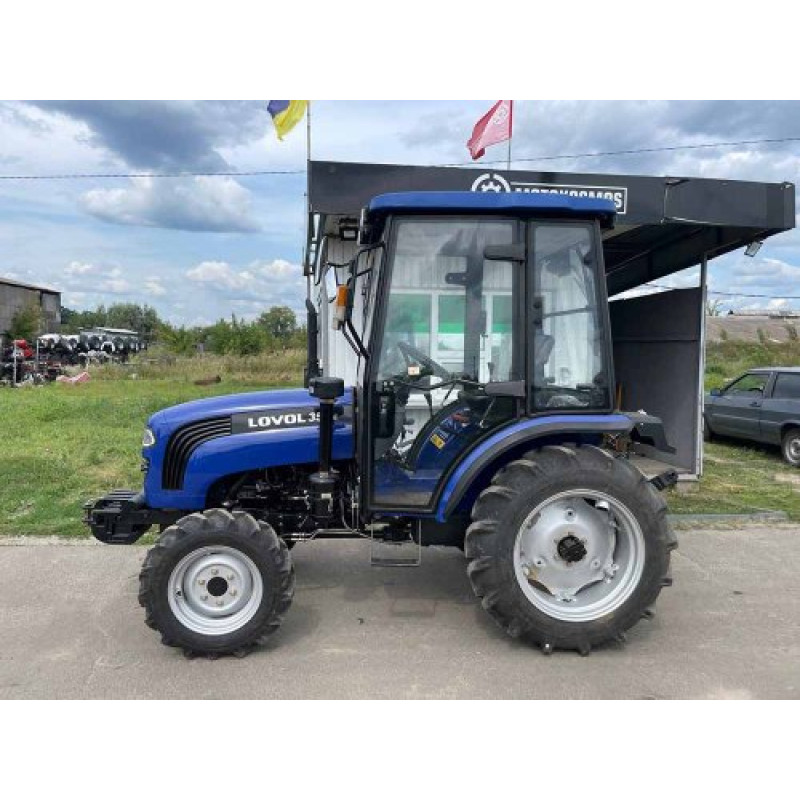

Foton FT 354 HXSC Mini Tractor — Power and Versatility for Your Farm
The Foton FT 354 HXSC is a compact 35 hp (25.7 kW) mini tractor with an enclosed panoramic cabin, designed for agricultural and municipal use. The model combines a four-cylinder diesel engine, modern hydraulics, and 4x4 all-wheel drive, ensuring reliable operation with mounted and towed equipment.
| Engine power, hp (kW) | 35 (25.7) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Fan drive | V-belt drive |
| Engine displacement, cm3 | 2155 |
| Cylinder bore / piston stroke, mm | 85 / 95 |
| Nominal engine fuel consumption, g/kW*h | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 5.8 |
| Nominal engine oil consumption, g/kW*h | 1.6 |
| Transmission (КП) | (4+4x2) with reverser |
| Rear differential lock | + |
| Clutch | dry 2-disc, constantly closed type |
| Final drive | direct |
| Steering | hydraulic |
| Brakes | on rear wheels, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump for hitch drive / gear pump for power steering operation |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of hitch mechanism, kg | 550 |
| Minimum ground clearance, mm | 290 |
| Wheelbase, mm | 1790 |
| Wheel track, mm | front 1290, 1390; rear 1155‑1520 |
| Tire size | front 6.50‑16; rear 11.2‑24 |
| Minimum turning radius, m | without brakes 3.75; with brakes 3 |
| Fuel tank capacity, L | 38 |
| Engine crankcase capacity, L | 5 |
| Transmission and rear axle crankcase capacity, L | 20 |
| Front axle crankcase capacity, L | 3.5 |
| Engine cooling system capacity, L | 12 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Overall dimensions (L x W x H), mm | 3240x1400x2380 |
| Curb weight, kg | 1875 |
Engine, Chassis, and Transmission
The 2155 cm3 engine has four vertical cylinders, a cylinder bore of 85 mm, and a piston stroke of 95 mm. Nominal crankshaft speed is 2300 rpm. Nominal fuel consumption is up to ≤275 g/kW*h, oil consumption is 1.6 g/kW*h. Starting is via electric starter, cooling is liquid with forced circulation, and the fan drive is V-belt. Front and rear axles are planetary gear type, final drive is direct, the transmission has a reverser, the clutch is dry two-disc, and there is a rear differential lock for better traction.
Hydraulics and PTO

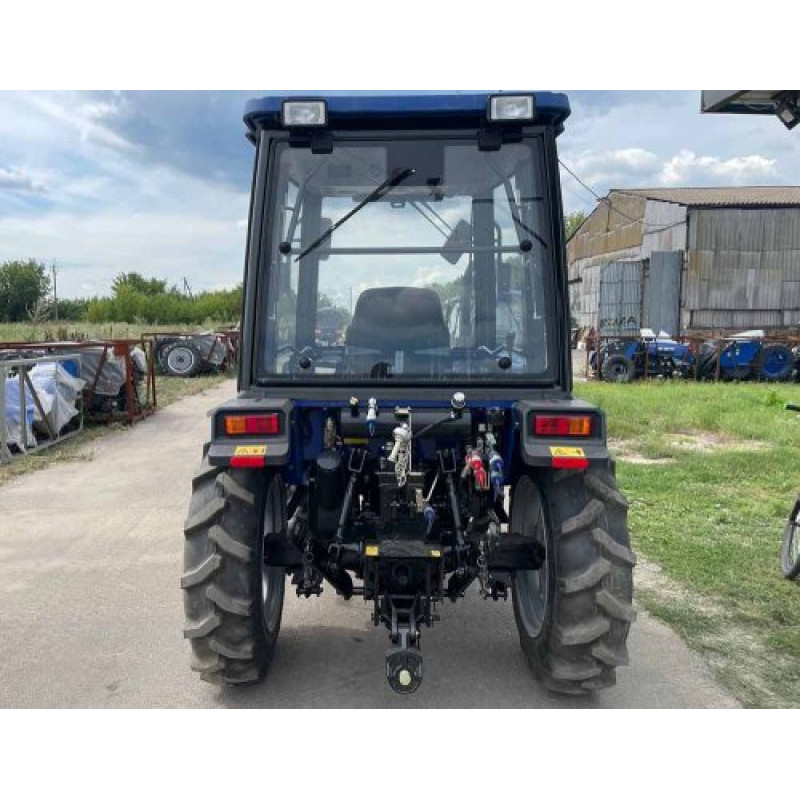

The hydraulic system is based on gear pumps — a separate pump for the hitch drive and a pump for power steering operation. The 3-point hitch mechanism has a maximum lifting capacity of 550 kg. The PTO shaft is splined, designed for 540 and 1000 rpm. Two hydraulic outlets and a trailer socket ensure quick connection of implements.
Cabin and Operator Comfort
The panoramic cabin provides excellent visibility: front, side, and rear glazing have opening elements for ventilation. The cabin is sealed to protect against dust and retain heat. The operator's seat is spring-loaded, the dashboard is automotive-style with backlighting, and pedals and controls are ergonomically arranged. The hood opens on gas struts; an enlarged radiator and a 750 W generator are located under the hood.
Maneuverability, Brakes, Wheels, and Dimensions
A wheelbase of 1790 mm and a minimum ground clearance of 290 mm make the tractor maneuverable on various terrains. Front wheel track is 1290 or 1390 mm, rear is 1155–1520 mm. Tire sizes: front 6.50‑16, rear 11.2‑24. Minimum turning radius without brakes is 3.75 m, with brakes 3 m. Braking system consists of drum brakes on the rear wheels. Dimensions are 3240x1400x2380 mm, curb weight is 1875 kg.
Capacities, Maintenance, and Warranty
Fuel tank capacity is 38 L; engine crankcase capacity is 5 L; transmission and rear axle crankcase capacity is 20 L; front axle crankcase capacity is 3.5 L; cooling system capacity is 12 L. The model has two hydraulic outlets and a standard trailer connector. The manufacturer provides an extended 24-month warranty; the service network and logistics ensure quality service and delivery.
About the Manufacturer and Purchase Options
Foton (Foton Lovol) holds international quality and safety certificates (ISO14001, ISO9001, GOST, EPA, EC) and has experience exporting equipment to European and global markets. The Flash Army online store offers the Foton FT 354 HXSC model with payment options including cash, bank transfer, credit, or installment. Delivery is carried out by the store's transport at the seller's expense; technical consultation and partner programs are available.
The Foton FT 354 HXSC mini tractor is ideal for farms requiring a reliable 35 hp tractor with a cabin, efficient hydraulics, and the ability to work with various mounted equipment.
