PIRANHA DETECTOR 300–6500 MHz Drone Detector

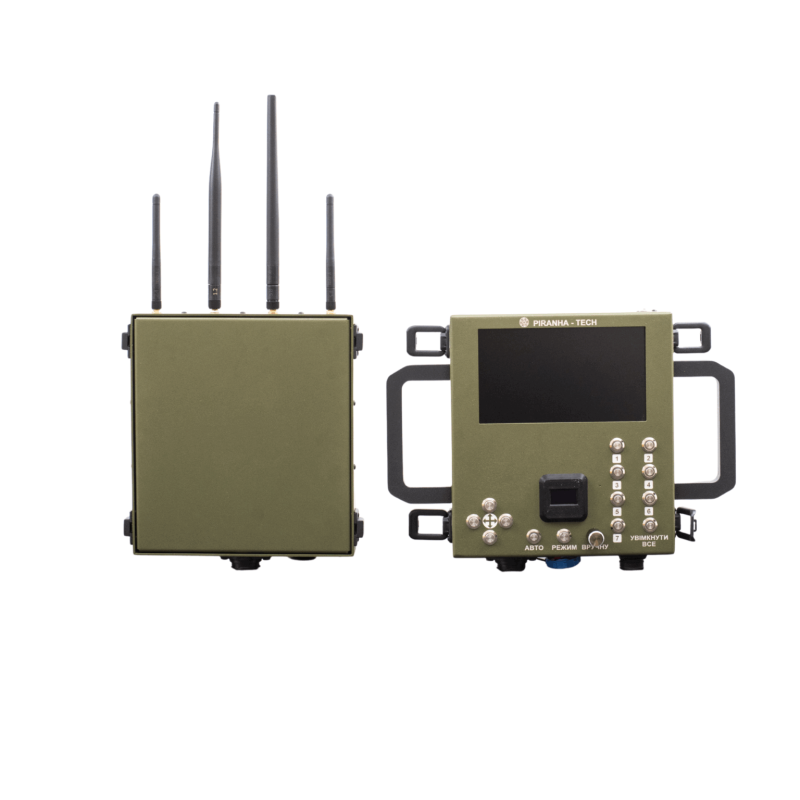

The system consists of two functional modules:
- RF unit with integrated antennas
- Control and display unit
The RF section has a modular design and can operate autonomously. It can be physically detached from the control unit and relocated: outside a vehicle, outside a shelter, on a mast, or at another height to improve coverage, reception sensitivity, and protection level.
The RF unit supports integration into external electronic reconnaissance (EIR) or electronic warfare (EW) systems without needing to connect the control and display unit. In this mode, the device functions as a sensor module.
Specifications
- Detection range: up to 1 km (at an altitude of 50–500 m)
- Frequency range: 300–6500 MHz
Scanning modes:
- Manual
- Automatic for FPV drones
- Automatic for FPV, DJI Mavic, Autel
Information display:
- 7-inch video display
- TFT information display
System design:
- RF unit with integrated antennas
- Control and display unit
PIRANHA DETECTOR 300–6500 MHz Drone Detector:
- Modular design, autonomous operation of the RF unit
- Can be placed outside a vehicle, shelter, or on a mast to improve coverage
- Supports integration into electronic reconnaissance (EIR) or electronic warfare (EW) systems without connecting the control unit
Technical parameters
Power: 50 W
Temperature range: −24 °C to +40 °C
Operating humidity: up to 85%
Weight: 3 kg
Display (shows):
- Operating mode
- Current scanning frequency
- Type of drone detected
- Analog video
Interfaces:
- 4 × SMA (for antennas)
- SA1613/S10B (power and control cable)
- 2 × RJ-45 (protected connectors for switching units)
Power supply:
- From a compatible electronic warfare system (power and control cable)
- Built-in battery for autonomous operation
