EW JAMMER KVERTUS AD CERBERUS 130-6000 MHz

Brand: Kvertus. Type: EW Jammers > Trench EW Jammers.

KVERTUS AD CERBERUS is a modular electronic warfare system designed to protect vehicles and stationary positions from attacks by radio-controlled unmanned aerial vehicles. The system features external antennas and allows for frequency configuration according to needs: from 1 to 12 bands, making it flexible for various tasks and application scenarios.

DEVICE JAMMING SPECTRUM: 130–6000 MHz. One generator block can accommodate one to four jamming generators, each operating in a separate fixed band within 130–6000 MHz. The width of each band can be 50, 80, 100, or 200 MHz, depending on the selected frequency. The system allows for combining up to three generator blocks, which expands spectrum coverage and increases the effectiveness of communication channel suppression. The power of each jamming generator is available in two options: 30 W or 50 W.

Key technical specifications and features:

• Effective range: up to 500 m (depending on application conditions).
• Enclosure protection rating: IP65 for reliable operation in harsh conditions.
• Antennas (for any frequency range):
  - external quadrifilar with 360-degree radiation pattern;
  - external directional with adjustable elevation angle;
  - external collinear with spring connection. Antennas can be supplied with 1.5 or 3 m cables.
• Remote control: wired remote control that allows individual activation of each channel and has a general system activation button.
• The generator block is mounted in a junction box for quick connection and electronics protection.
• Method of mounting external antennas: magnetic base for quick installation on a vehicle body or other metal surface.
• The device's power supply offers several options: 220 V, 50 Hz AC mains; 12 V or 24 V vehicle electrical system via a voltage converter; battery or autonomous generator. Operating time depends on the chosen power source.
• Cooling: active, ensuring stable operation during intense jamming radiation.
• Device readiness time: no more than 30 seconds, allowing for quick response to threats.

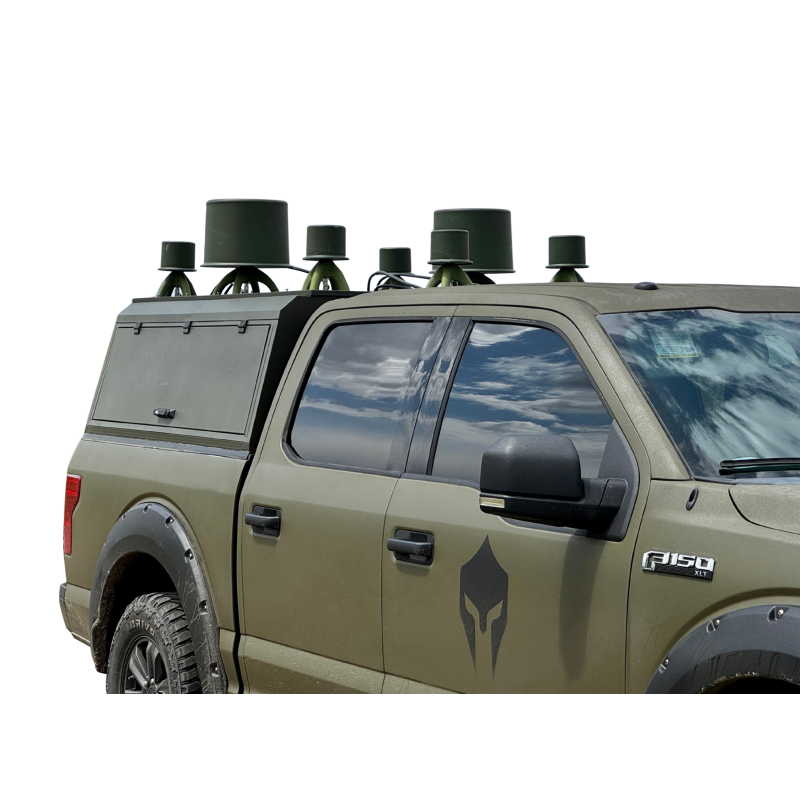

The system is designed with mobility and modularity in mind: it can be installed on vehicles for protection during movement or rapid deployment, and also adapted for use in combat positions or in a stationary configuration through appropriate outfitting. The configuration of antennas, the number of generators in a block, and the number of blocks allow for fine-tuning the system to specific tasks, providing reliable protection against various types of radio-controlled UAVs.

The KVERTUS AD CERBERUS EW jammer is a solution for those who need a powerful, flexible, and fast-acting jamming system with a wide frequency spectrum from 130 to 6000 MHz and the ability to combine generator blocks and antenna types for operational protection tasks.
