Product Code: 40007-999
In Stock
317 760 грн.
Buy this product in 1 click:
Main specifications
Ability to operate in EW environments:
Yes (ELRS)
Chassis type:
Wheeled
Clearance, mm:
150
Communication type:
ELRS (frequency hopping); analog night camera
Control range:
4–5 (tactical range, relay)
All specifications
We will deliver this product:
Payment
Description

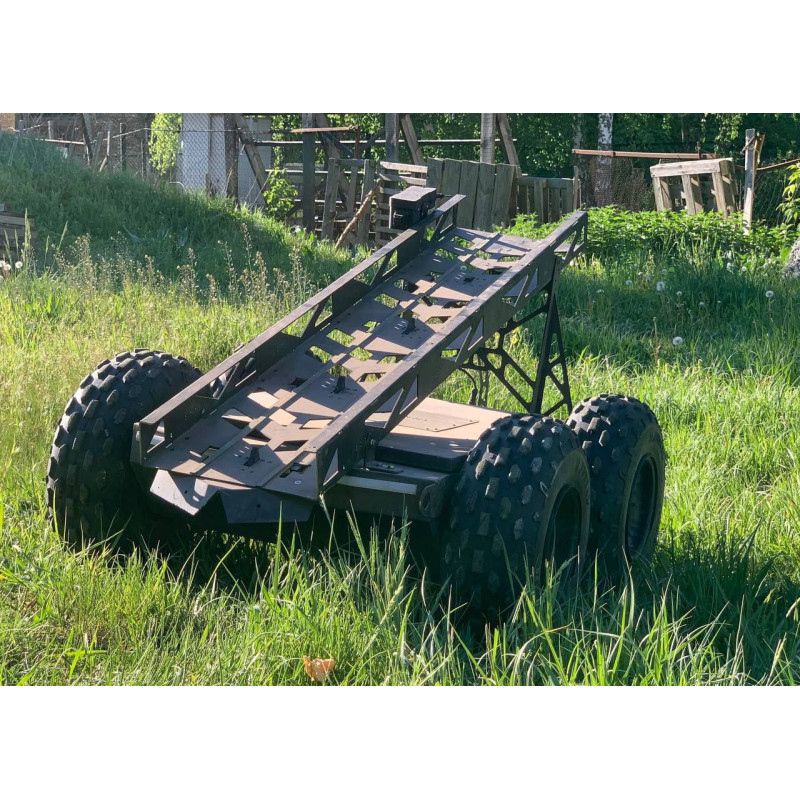

Bandura Miner Ground Drone by BlueBird
Name: Bandura Miner Ground Drone. Manufacturer: BlueBird. Category: Drones & Quadcopters > Ground Drones (UGVs). This “Bandura” ground robotic system — a miner by BlueBird — combines a simple, proven platform with effective engineering capabilities. It is equipped with a deployment mechanism designed for 4 TM6 anti-tank mines, making it suitable for specialized tasks of delivering and deploying explosive elements in challenging terrain.
Key Features
- Reliable Mechanics: long range and effective control allow operation in conditions where other equipment might fail.
- 4 Independent Drive Wheels: effective obstacle traversal — if one wheel gets stuck, the others continue moving.
- Low Center of Gravity and Wide Wheels: confident grip on the ground, reducing the likelihood of tipping over.
- Simple Architecture: quick maintenance, adaptation, and scaling of the platform to client tasks.
- Upgradeability without changing the core mechanics.
Power and Payload Capacity
- Total Power: 1.4 kW per platform.
- Platform Weight: up to 160 kg.
- Payload Capacity: up to 150 kg on hard surfaces.
Combat / Specialized Equipment
- Equipped with a deployment mechanism designed for 4 TM62 anti-tank mines. Documentation mentions both TM6 and TM62; the platform is designed to accommodate four anti-tank mines in the deployment mechanism.
Advantages of Use
- High cross-country capability and stability in challenging terrain.
- Modularity and ease of maintenance allow quick adaptation of the platform for various engineering tasks.
- Significant payload capacity ensures transportation and deployment of various equipment.
Technical Specifications:
| UGV Specification Name | Stated Specifications |
|---|---|
| Combat Characteristics: | |
| Tactical operating radius of UGV, km | 4-5 km with good relay conditions |
| Range (on one battery charge or fuel supply): off-road | 25.6 km in recent tests with battery discharged to half; theoretically capable of 30-40 km |
| Duration of continuous movement (travel), hours | In the last test, 25.6 km continuously off-road |
| Maximum UGV speed | 8 km/h |
| Available optoelectronic reconnaissance means | Analog night camera |
| Deployment and preparation time, min | Time to power on BMS and connect remote control |
| Ability to operate in EW conditions | ELRS control (with frequency change capability) |
| Level of mechanical protection | Nominally Class 2, theoretical protection against petals when equipped with metal wheels |
| Technical Characteristics: | |
| Base platform type | Modular |
| UGV chassis (undercarriage) type | Wheeled |
| Power plant type | Electric |
| Payload capacity, kg | Up to 150 kg |
| Method of transportation | Easily fits in a T4 and/or SUV bed |
| Implemented terrain movement modes | Manual-remote |
| UGV overall dimensions | Length — 1060 mm; width — 980 mm; height to top of platform — 700 mm; ground clearance — 150 mm |
| Obstacles overcome on dry, sodded ground | Climbing angle up to 25-30°, grass, sand, trees up to Ø30 mm, swamps, puddles, logs up to Ø300 mm, and two “pig-dogs” weighing up to 100 kg each |
| Operational Characteristics: | |
| Crew size, persons | 1 |
| UGV warranty period, years | 1 year |
| Enclosure protection level (sealing) | IP56 |
The Bandura Miner Ground Drone by BlueBird includes:
- Bandura Miner Ground Robotic System.
Detailed information on technical parameters, upgrade possibilities, and operating conditions is provided above. The BlueBird “Bandura” platform is designed for complex engineering tasks thanks to its modularity, reliable chassis, and high payload capacity.
Other products in this category here Ground Drones (UGVs)
Specifications
Ability to operate in EW environments
Yes (ELRS)
Chassis type
Wheeled
Clearance, mm
150
Communication type
ELRS (frequency hopping); analog night camera
Control range
4–5 (tactical range, relay)
Dimensions (HxWxD), mm
700 × 980 × 1060
Ingress Protection (IP) Rating
IP56
Maximum speed, km/h
8
Payload capacity, kg
Up to 150
Propulsion type
Electric (1.4 kW)
Range, km
25.6 (test); theor. 30–40
Weight, kg
up to 160
