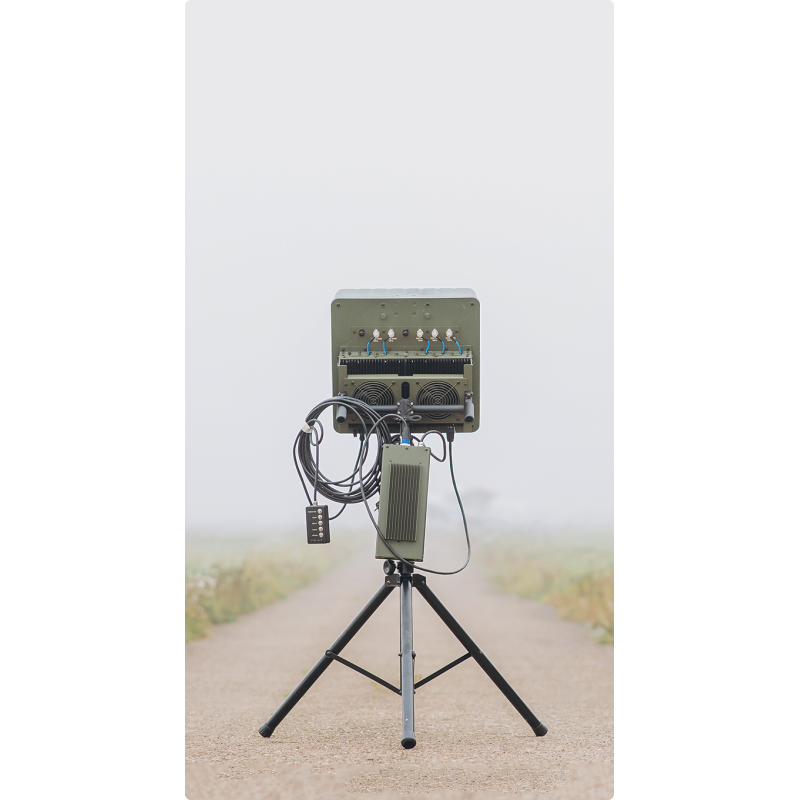

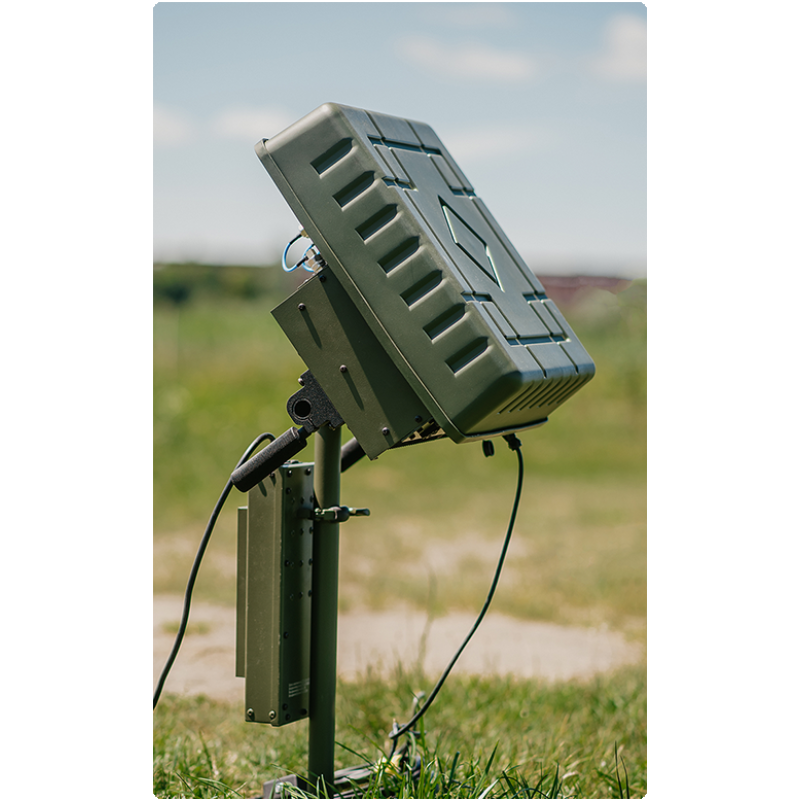

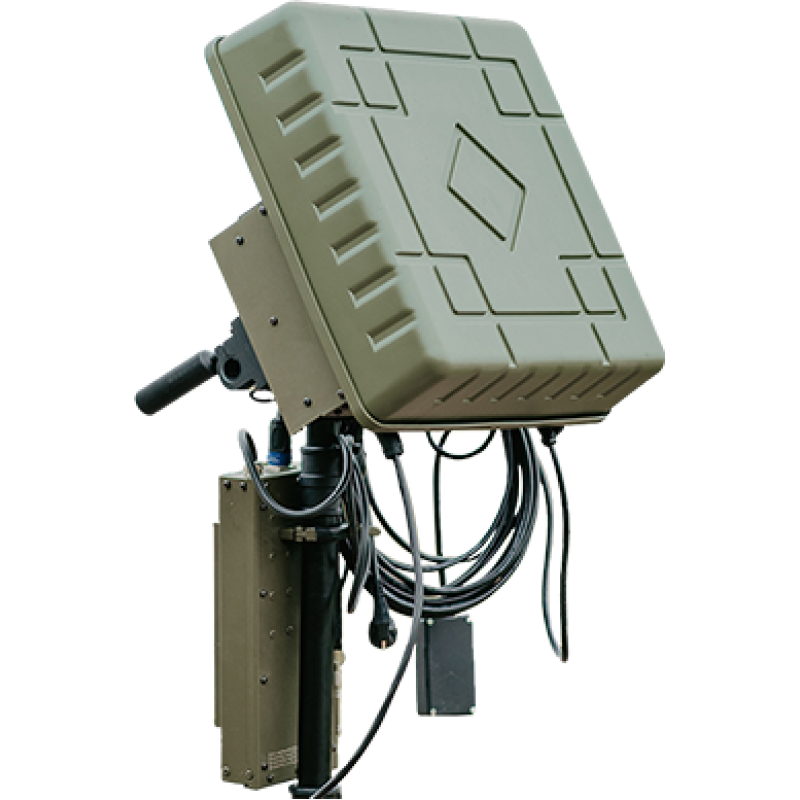

PIRANHA 5T Stationary Directional Anti-Drone System "Closed Sale"

Brand: Piranha-Tech. Product type: EW jammers. Category: Trench EW jammers. PIRANHA 5T is a five-channel stationary directional device designed for effective counteraction against unauthorized UAV flights and protection of high-risk objects. The price is for marketing purposes. Please inquire about the actual price from our manager. Calculation is performed individually based on your request!

The system implements directional radio jamming with the ability to precisely affect selected frequency bands, minimizing interference with other systems. In various modes, PIRANHA 5T can operate with a narrow beam for localized suppression, or in wide-angle directional jamming mode for broader coverage, providing flexibility in configuration for specific tasks.

Purpose and Applications

PIRANHA 5T is optimal for stationary deployment on the perimeter of important objects, protection of industrial zones, airports, strategic objects, and objects with increased security requirements. The system enhances the overall level of electronic protection of the territory and allows for managing risks associated with the use of civilian or subversive UAVs.

Operating Principle

The operating principle involves setting up directional radio jamming on selected frequency bands. Impact on communication and geopositioning systems can lead to drone crashes, loss of orientation, mission interruption, and premature return to the takeoff point. Using the system makes drone control impossible or significantly complicates its piloting due to loss of connection with navigation and telecommunication channels.

Counteraction Effect

• Loss of drone operator control or significant difficulties in control
• Loss of video signal from the drone
• Disables the use of geopositioning systems by drones
• Loss of telemetry readings from the drone

Specifications

• Maximum output power: 30/50 W per channel
• Maximum number of simultaneously operating channels: 2-5
• Antenna polarization: vertical, horizontal
• Weight: 14 kg
• Battery life: at least 1 hour*
• Protection rating: IP55

PIRANHA 5T from Piranha-Tech combines high output power and the ability to operate simultaneously on multiple channels, allowing for fine-tuning the system for specific UAV escort and counteraction tasks. Vertical and horizontal antenna polarization increases the likelihood of effective impact on various drone models. The IP55 protection rating and 14 kg weight simplify installation and maintenance at stationary deployment points.

Please note: precise configuration, number of channels, and frequency settings are selected individually according to customer requirements; for detailed information, delivery terms, and final price, please contact the manager. PIRANHA 5T is a reliable tool for ensuring the electronic security of objects.
