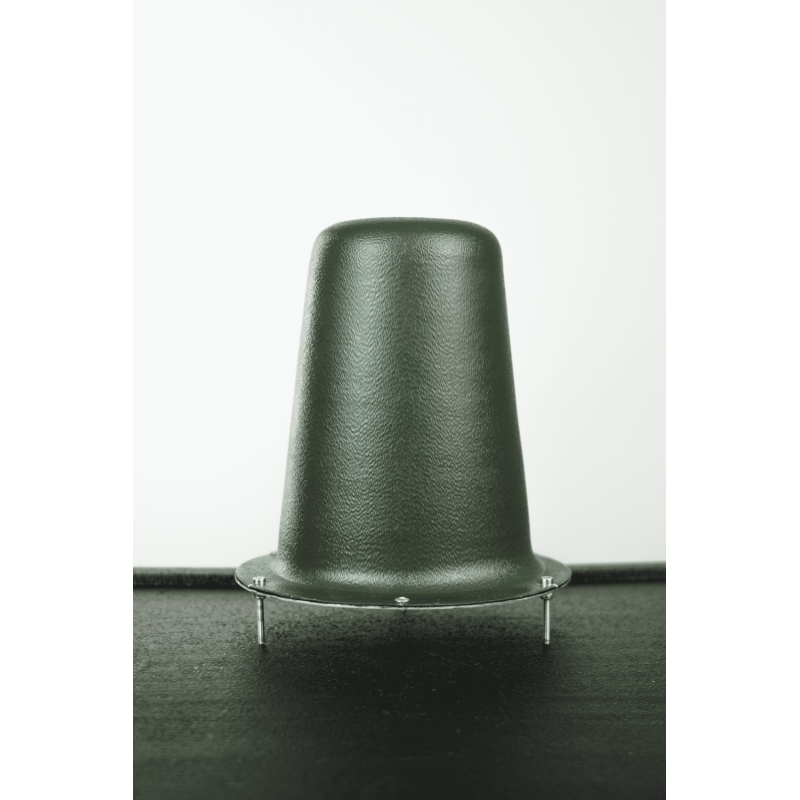

Directional Antenna "Harpina" 2.4 GHz BlueBird is a highly efficient directional transmit-receive module with circular polarization, designed to operate in the nominal 2400 MHz (2.4 GHz) band. The antenna is available in left or right polarization options, allowing for optimal selection for specific tasks and equipment compatibility. With a gain of up to 10.8 dBi and a power handling capability of up to 50-60 W, this model provides directed intensive radiation for reliable suppression of control and telemetry channels.
Purpose and Application:
The Harpina 2.4 antenna is designed for use in electronic warfare (EW) systems against unmanned aerial vehicles (UAVs) operating in the 2.4 GHz band, specifically for targeting and suppressing signals from DJI Mavic series drones. It is optimized for targeted suppression of control and telemetry transmission channels and can be integrated into various platforms and complexes:
- stationary complexes
- mobile complexes
- transport platforms
- tactical cases and other form factors
Technical Specifications:
| Parameter | Value |
|---|---|
| Nominal frequency range | 2400 MHz |
| Operating band (SWR < 2) | 2000 - 2800 MHz |
| SWR | < 1.8 |
| Polarization type | Circular (left or right) |
| Impedance | 50 Ohm |
| Gain | up to 10.8 dBi |
| Radiation pattern | single-lobe along the axis; main lobe width at -3 dB (HPBW) — 55° |
| Connector | SMA female |
| Element material | reflector — aluminum, copper, ABS, plastic |
| Temperature range | -40°C ~ +80°C |
| Weight | 250 g |
| Dimensions | width — 150 mm, height — 153 mm |
The antenna is made of durable and lightweight materials, ensuring long-term operation in extreme climatic conditions. The compatible SMA female connector provides easy integration with harmonized cable systems and transmitters, and optimized directivity allows for maximum efficiency in localizing signal sources. The use of circular polarization reduces the impact of mutual antenna orientation and is useful when working with moving targets.
Manufacturer: BlueBird. Product type: EW Jammers > Quadrifilar Antennas. This model is suitable for EW specialists, integrators of communication systems and tactical solutions where precise directional signal suppression in the 2.4 GHz band is required.
