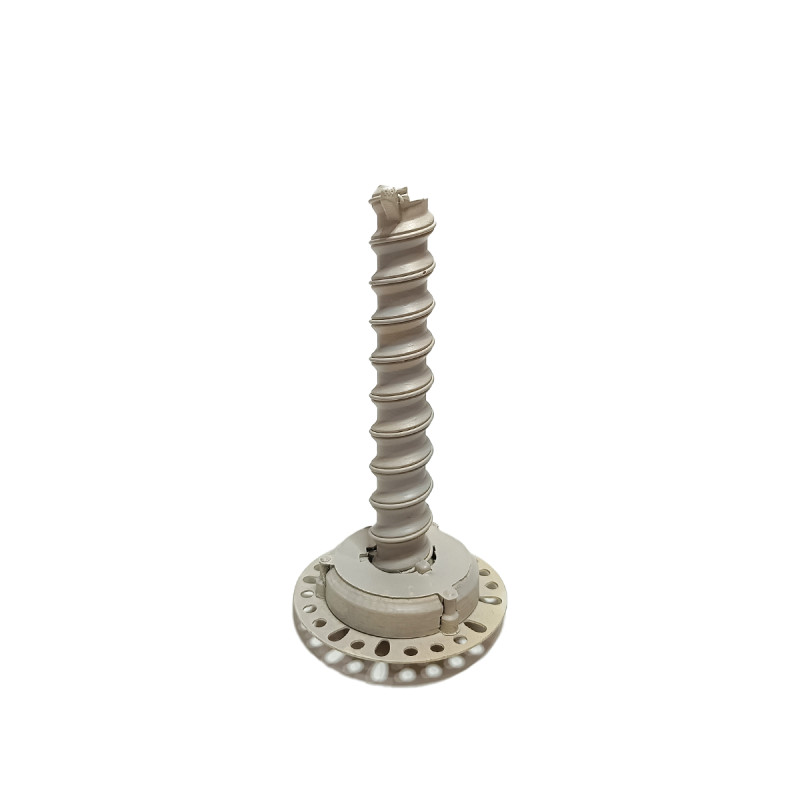

Videolink HA-2737-14-32.7 Helical Antenna - 3.7 GHz 14.0 dBi
Product Code: FA100-HA-2737-14-3-100
In Stock
1 947 UAH
Buy this product in 1 click:
Main specifications
Connector type:
SMA
Polarization:
RHCP / LHCP
Weight (depends on size):
75 g
Frequency range:
2.7–3.7 GHz
Beam angle:
35–47°
All specifications
We will deliver this product:
Payment
Bought together with
Pigtail RG402 20cm (SMA)
275 UAH
Antenna Helix 4.2-6.0 GHz 16 turns Skyvision (L)
1 850 UAH
1 650 UAH
Log-periodic Antenna for FPV Video Control 1.7-2.7 GHz SMA Aeronetix
1 200 UAH
860 UAH
Helical 6.0-7.5 GHz RHCP 15 cm (18V)
3 080 UAH
Antenna Helix 4.2-6.0 GHz 10 turns Skyvision (L)
1 599 UAH
1 399 UAH
-80x80.jpg "Helical RHCP Antenna 17.8 dBi 22 Turns 4.9-6.1 GHz (30 cm)")
-80x80.jpg "Helical Antenna RHCP 16.3 dBi 18 Turns 4.9-6.1 GHz (30 cm)")
Description
Broadband spiral antenna for the 2.7 - 3.7 GHz band, RHCP or LHCP, gain 12 dBi at 2.7 GHz up to 15.5 dBi at 3.7 GHz. Angle from 35 to 47 degrees. Optimized for installation on repeaters, has small size and weight
Frequency range: 2.7-3.7 GHz
Beamwidth 35-47 degrees
Number of turns - 14
Gain 12-15.5 dBi
Polarization - RHCP or LHCP
VSWR - no more than 2
Connector - SMA
Dimensions 96x96x180 mm
Weight - 75 g
Specifications
Connector type
SMA
Polarization
RHCP / LHCP
Weight (depends on size)
75 g
Frequency range
2.7–3.7 GHz
Enhancements
12–15.5 dBi
Size
96×96×180 mm
Antennas
Beam angle
35–47°
