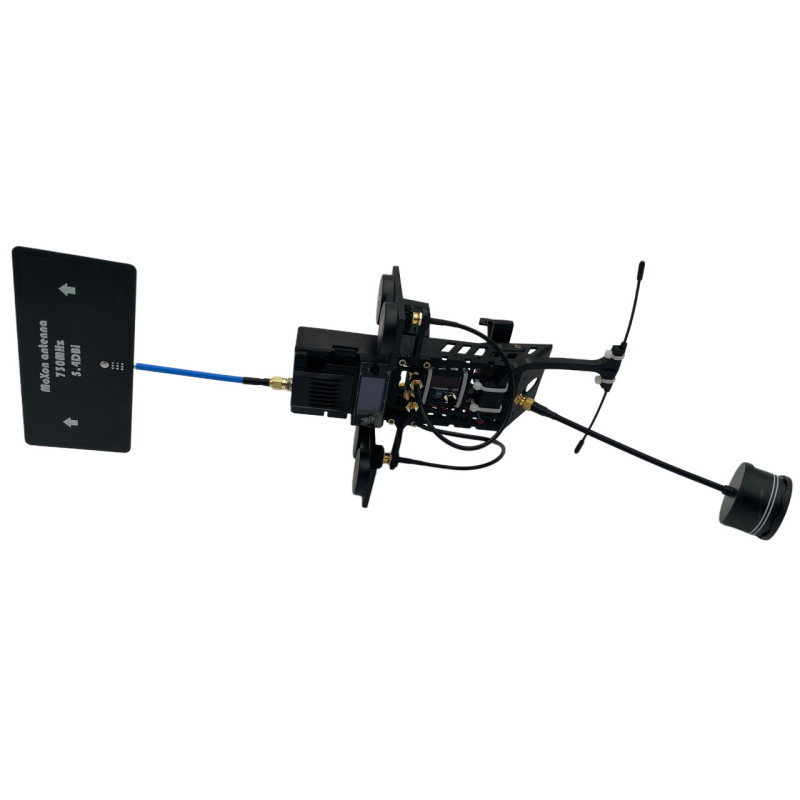

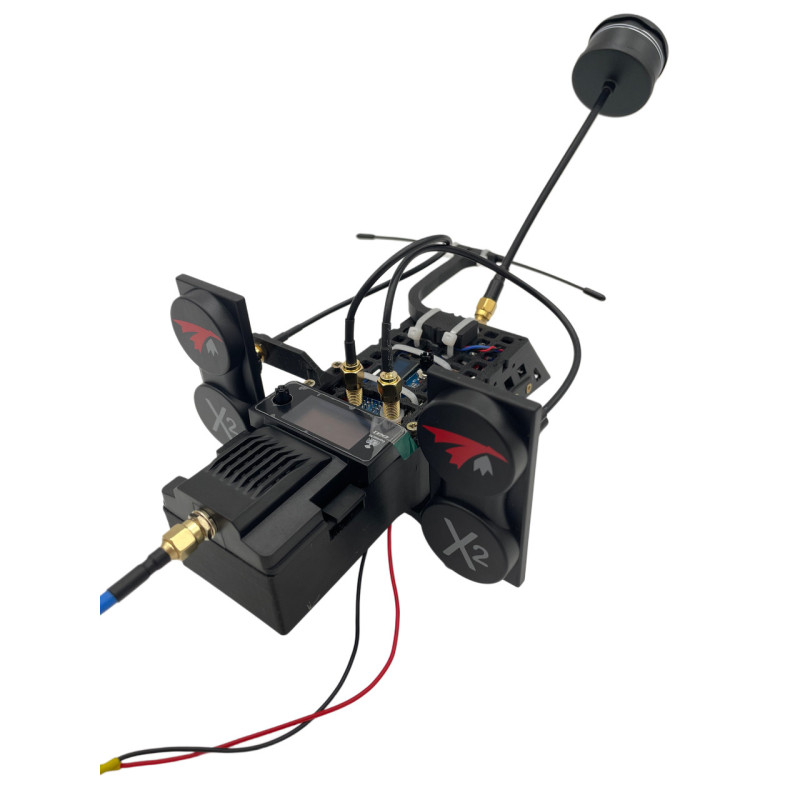

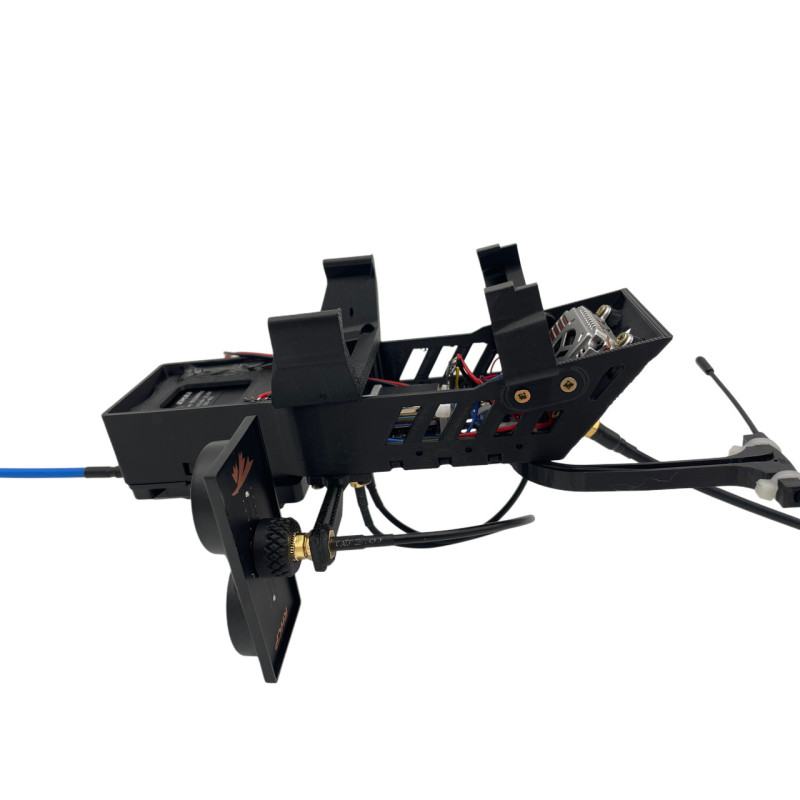

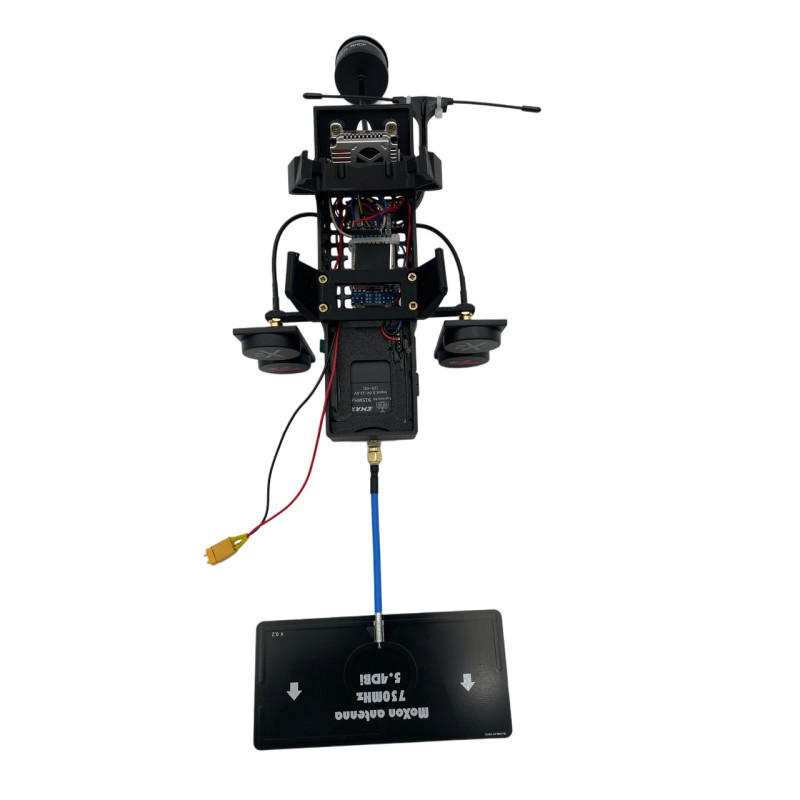

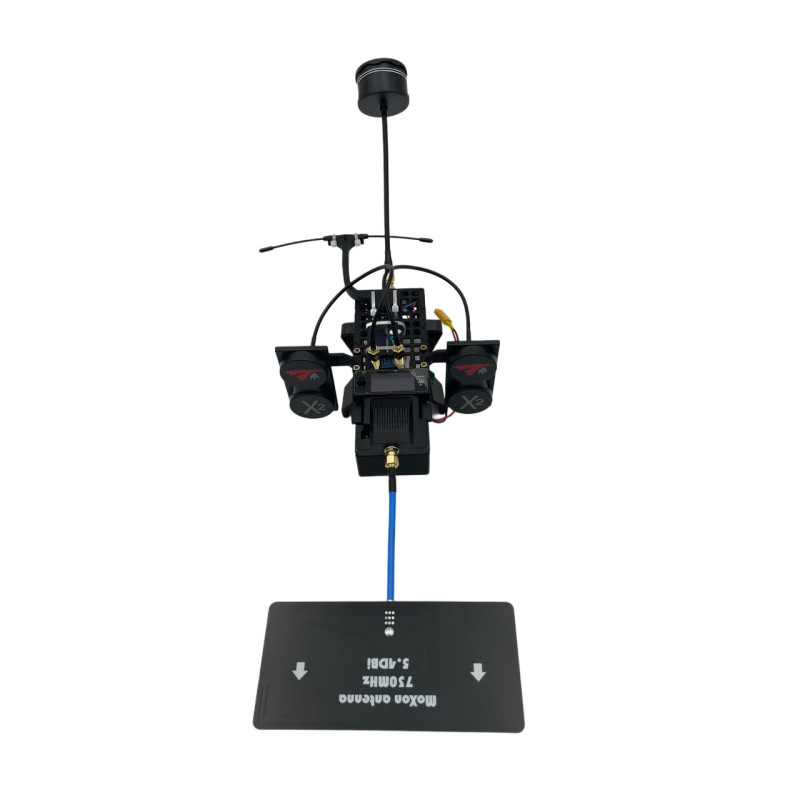

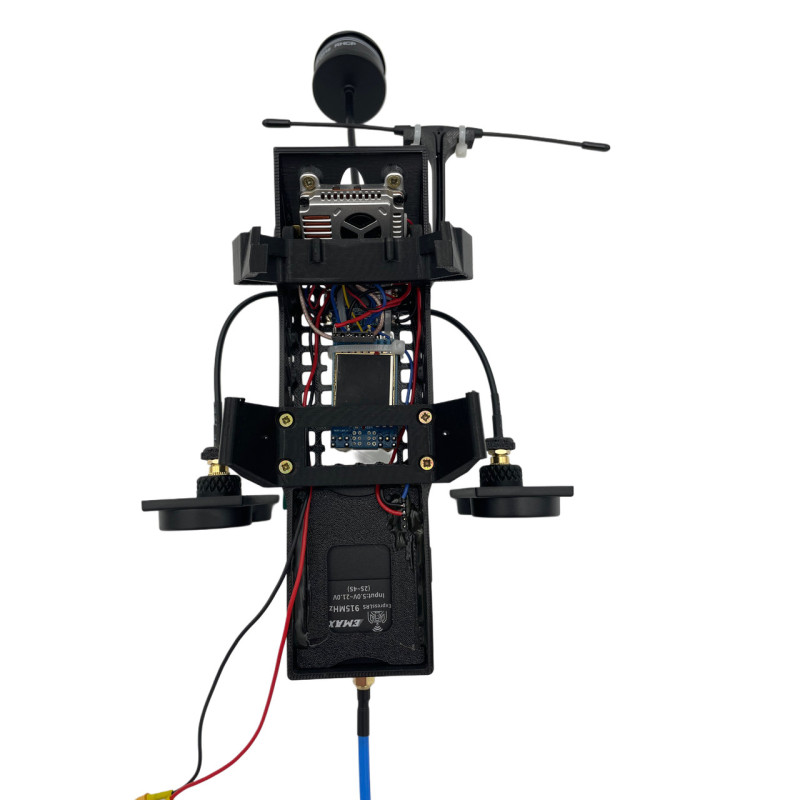

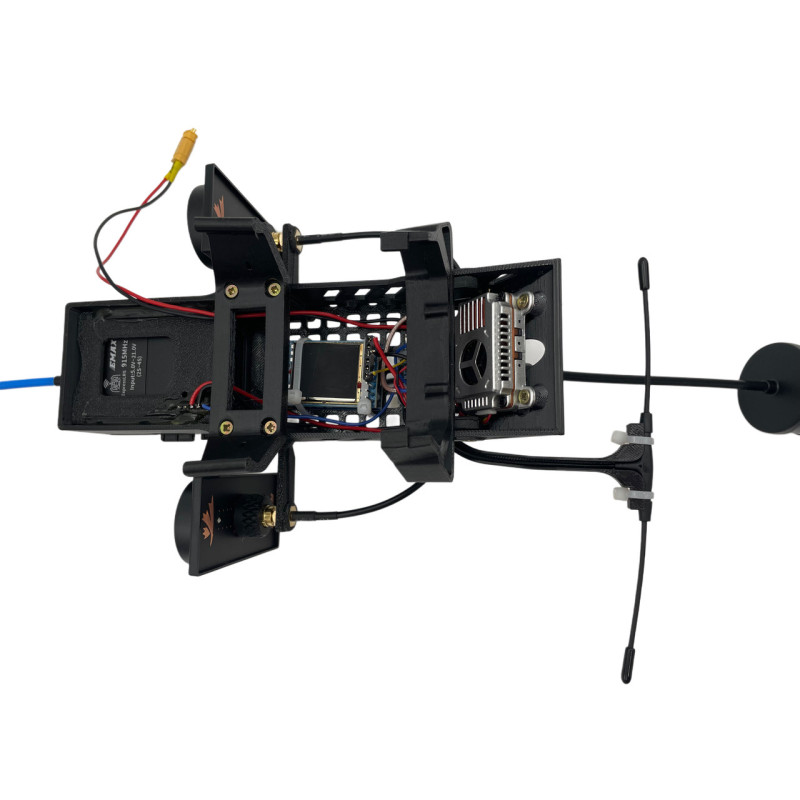

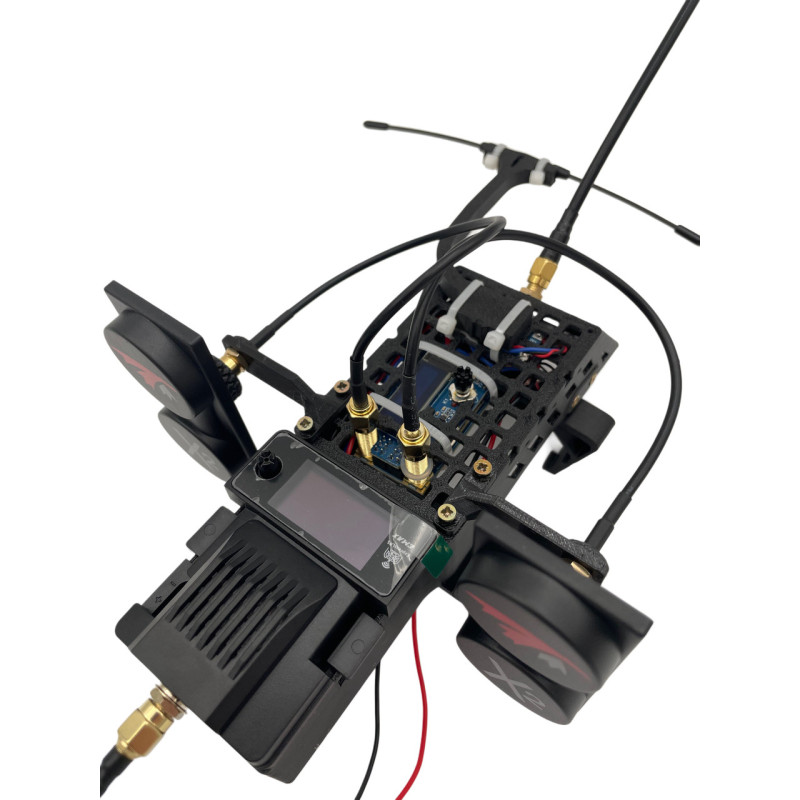

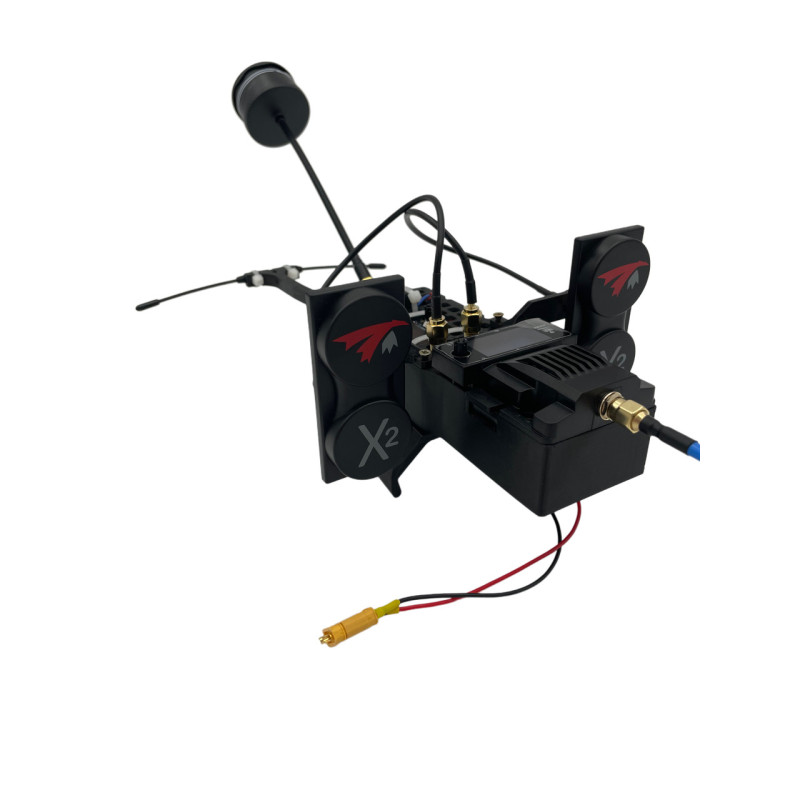

SkyReach 5.8GHz/1.2GHz Repeater for Mavic
The 5.8GHz/1.2GHz Repeater for Mavic from SkyReach is a professional solution for extending control range and improving video reception from UAV platforms. The device is designed to meet the needs of DJI Mavic 3 operators, providing a stable video signal in challenging conditions thanks to a combination of high-sensitivity antennas and quality transmitters. Equipment modification is possible according to customer needs.
Description and Purpose
This repeater is designed for industrial and professional use where it is necessary to amplify 5.0-5.8GHz signals from the drone and transmit them to the operator at 1.2GHz. This solution is especially useful when operating over long distances or in conditions of a weakened direct signal. Compact mounting with a non-removable adapter ensures secure attachment to the platform without unnecessary manipulation.
Advantages
- Compatibility with DJI Mavic 3 ensures easy integration with a popular drone lineup;
- Support for ELRS and TBS TX modules allows adapting transmission for specific tasks;
- Flexible control range of 700-1100MHz is selected according to customer preference for optimal operation in specific conditions;
- Powerful TrueRC x2 AIR MK II 13dBi patch antennas ensure high-quality video signal reception;
- Powered by a single 2S 21700 battery with an XT30 connector makes the system compact and convenient in flight;
- The package includes all necessary modules and antennas for quick deployment.
| Compatibility | DJI Mavic 3 |
| Operating time | up to 2 hours on a single charge |
| TX module support | ELRS/TBS |
| Control range | 700-1100MHz at Customer's choice |
| Control antenna | 700-1100MHz at Customer's choice |
| Video reception antennas | TrueRC x2 AIR MK II 13dBi patch antenna |
| Video signal range (reception) | 5.0-5.8GHz |
| Video signal transmission frequency to operator | 1.2GHz |
| Power elements | 2S 21700 battery (1 pc.), connector - XT30 |
| Mounting | Non-removable adapter |
| Package contents | Repeater with all necessary modules and antennas, battery - 1 pc. |
The SkyReach repeater will be useful for operators seeking to expand their equipment's capabilities without significant changes to the drone's configuration. Thanks to support for popular TX modules and the ability to choose the control range for the client, the device provides flexibility in setup and communication stability. An operating time of up to two hours on a single charge allows for long missions, and the presence of a single convenient 2S 21700 battery with an XT30 connector makes operation simple and predictable.
Please note that we can adapt the technical parameters to your tasks: change the control range, adjust antennas, or integrate specific TX modules (ELRS/TBS). This is an ideal option for professional applications where reliability, range, and video stream quality are important.
