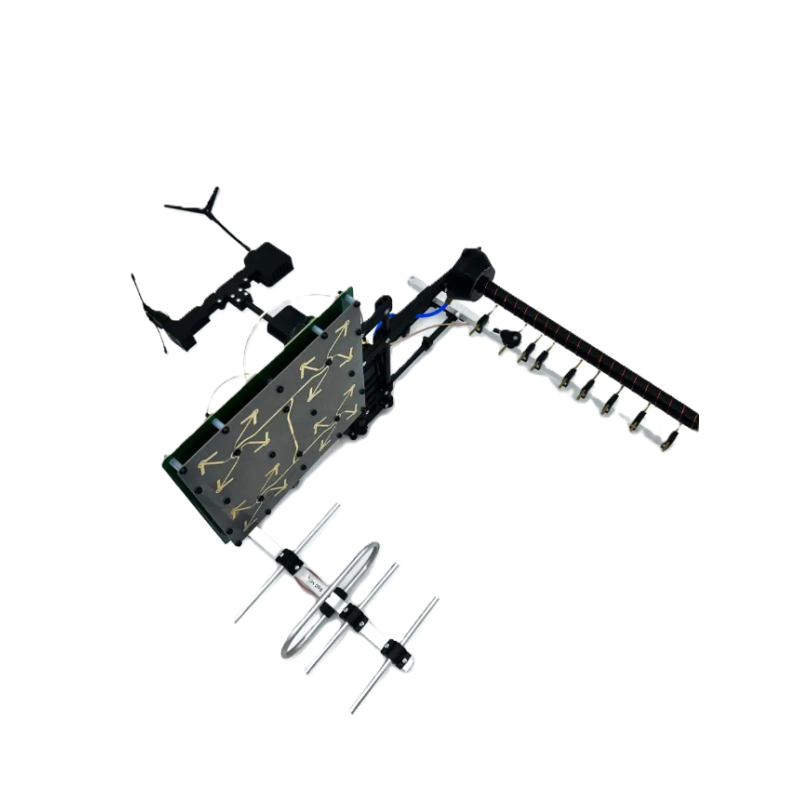

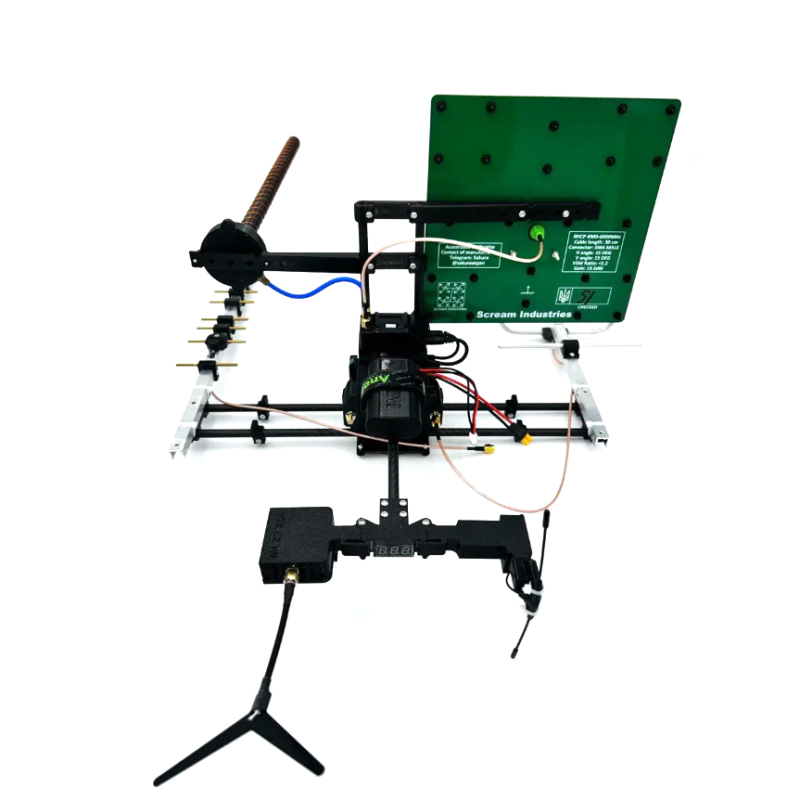

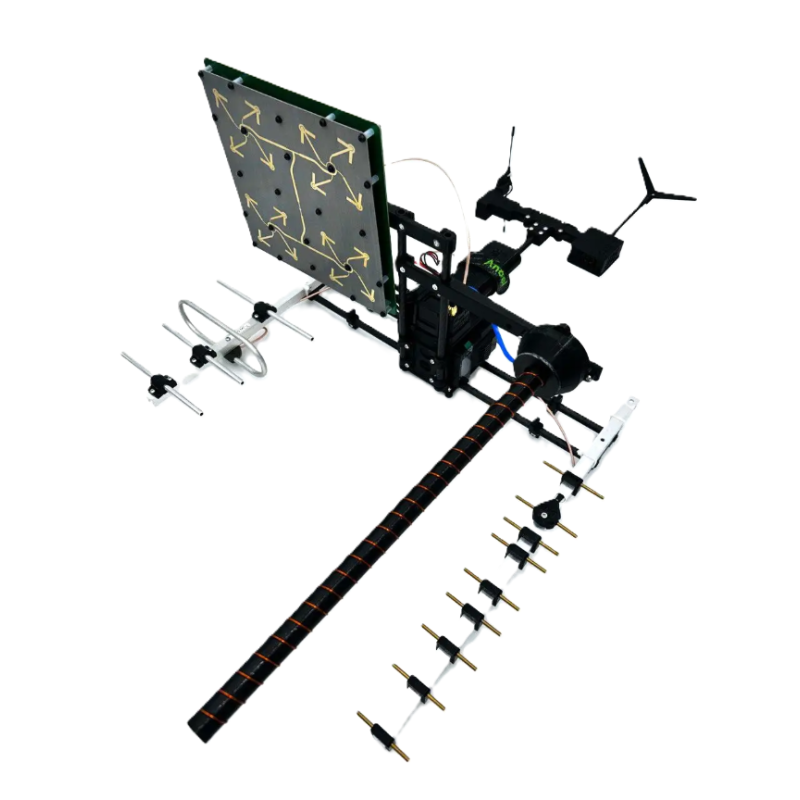

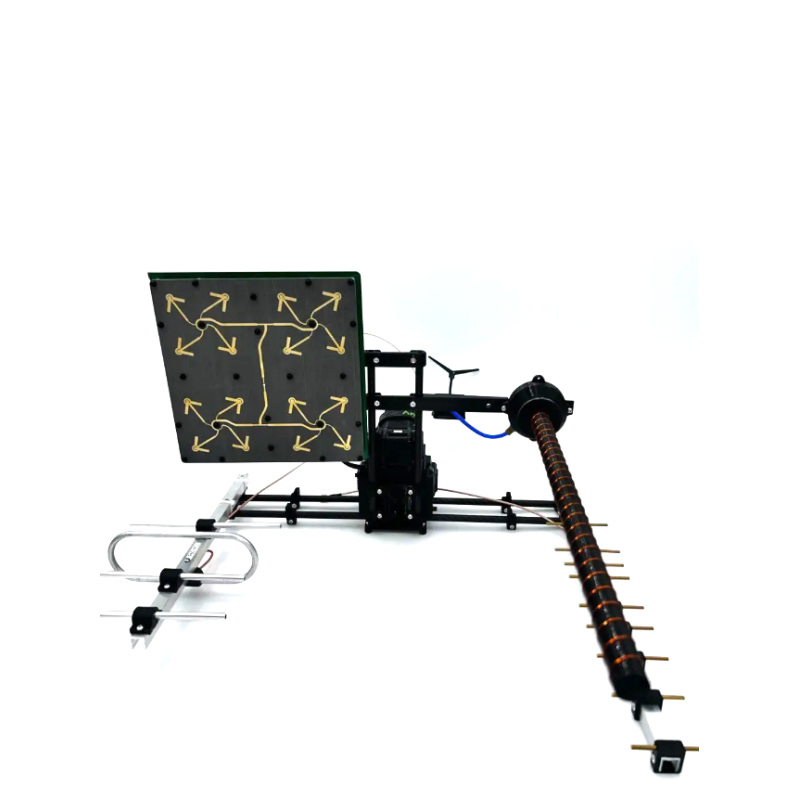

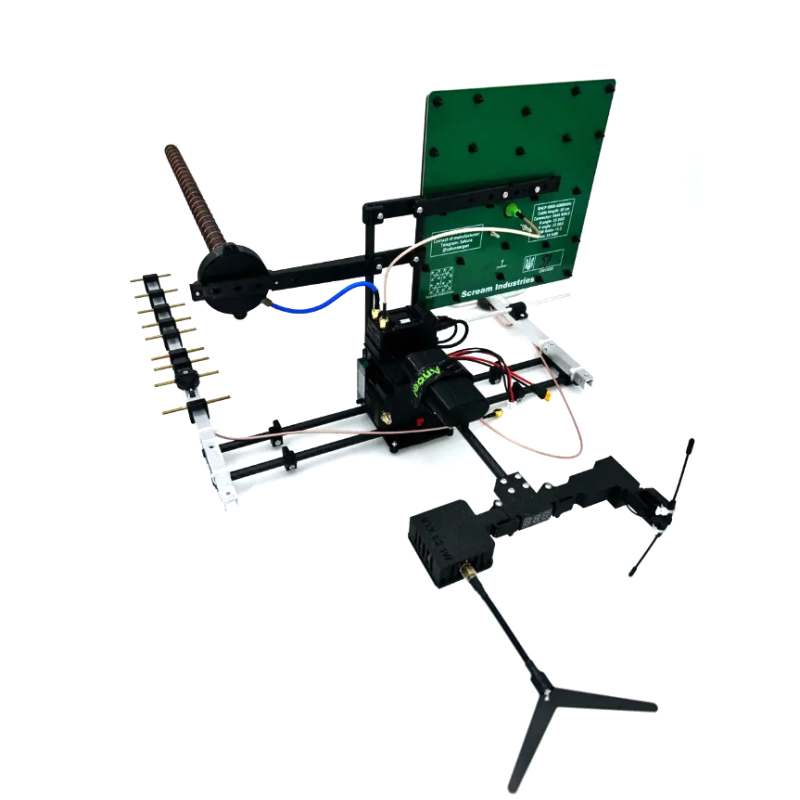

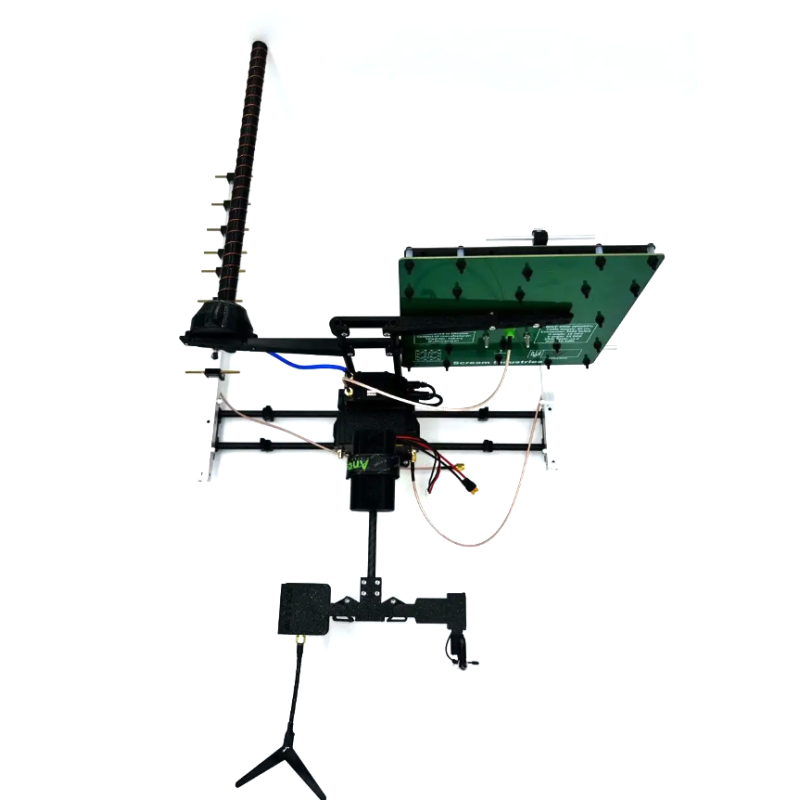

We offer a powerful solution from the SkyReach brand — a 5.8/1.2GHz repeater with support for two control systems (ELRS and TBS), specially adapted for integration with the Matrice 300 platform. This device combines simultaneous video transmission and drone control, significantly increasing communication reliability over long distances and minimizing the risk of losing control during flight.

Key Features and Components

Video Transmission:
Input Signal: 5.8GHz — receives video from the drone
Output Signal: 1.2GHz — transmits video to the ground receiver

Video Antenna:
Scream Industries 5.8GHz 19.5dBi RHCP (4.9 - 6.0GHz) — ensures maximum range and stability of the video signal.

Video Receiver (VRX):
Skyzone SteadyView X 5.8GHz or Skyzone SteadyView X 5.0GHz (X-band) — receives the video signal and transmits it to monitors or FPV goggles.

Video Transmitter (VTX):
Any compatible 1.2GHz VTX transmitter.

Control:
Operator → Repeater: ExpressLRS (ELRS) — fast and reliable connection.
Repeater → Drone: TBS/ELRS — dual-frequency control for long-range flight.

Transmitters (TX):
TBS Crossfire and Emax Aeris Link TX ExpressLRS 915Mhz 2000mW — provide a powerful and stable control signal.

Control Antenna:
Yagi antenna — improves the quality and range of the control signal transmission.

Power Supply:
External power via XT30 connector — supports connecting powerful batteries for extended operations.

Advantages of Use

• Stable and reliable communication over long distances;
• Simultaneous video transmission and drone control;
• Easy integration with existing FPV systems and configurations;
• Customization capability for individual tasks and experiments;
• Ideal for professional FPV racers, long-range flights, and aerial photography.

Who is this Repeater for

Suitable for FPV racers, long-range FPV operators, professional aerial photography, and researchers/experimenters who require a reliable and scalable solution for video transmission and control. The 5.8/1.2GHz Repeater with ELRS/TBS from SkyReach allows you to extend flight boundaries without increasing the risk of signal loss.

Product Type: Ground Relay Stations.

Adaptation for Matrice 300: structural and technical solutions ensure convenient integration with the DJI Matrice 300 platform, allowing you to utilize all the advantages of the repeater in professional tasks.

The 5.8/1.2GHz Repeater with ELRS/TBS — your reliable FPV assistant, allowing you to expand flight capabilities, stabilize video streams, and maintain control in remote areas.
