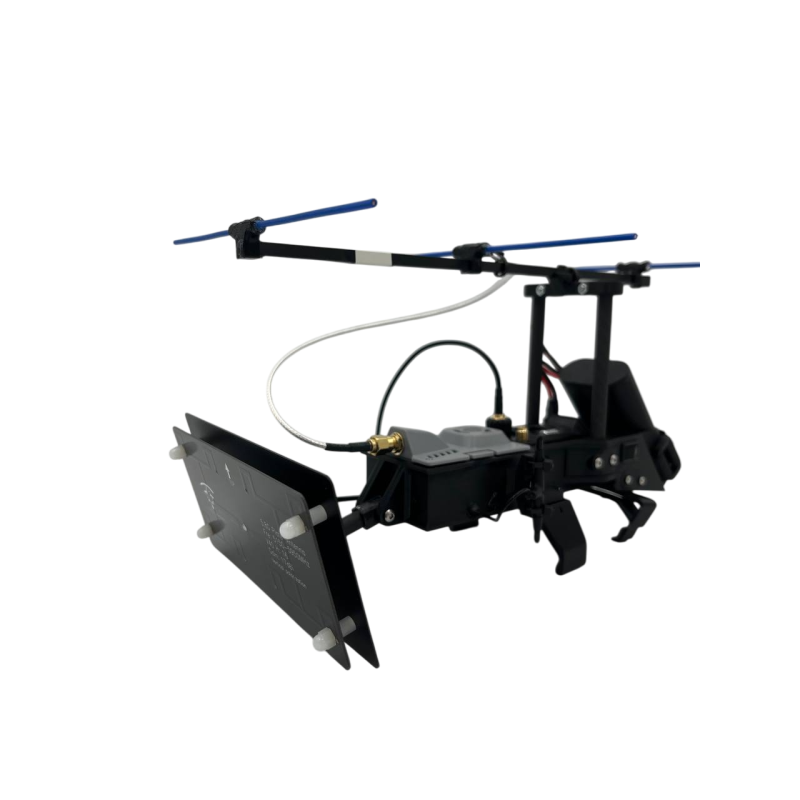

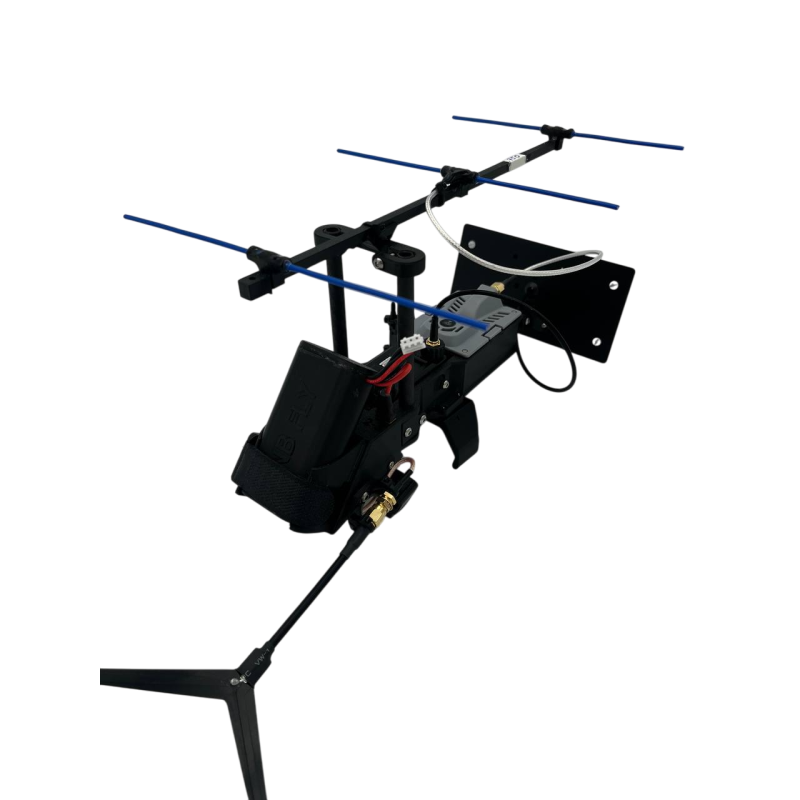

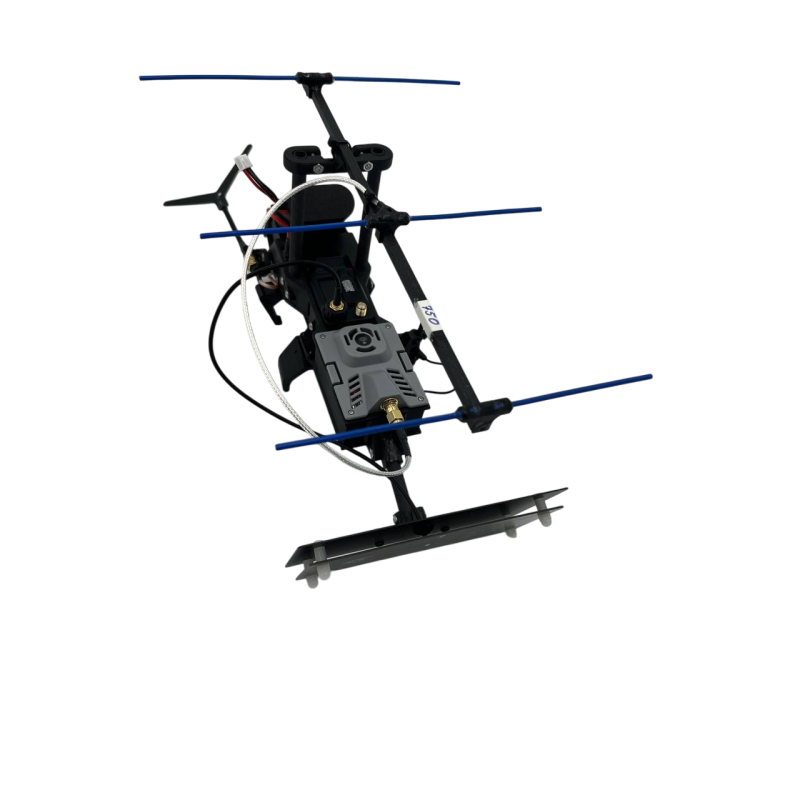

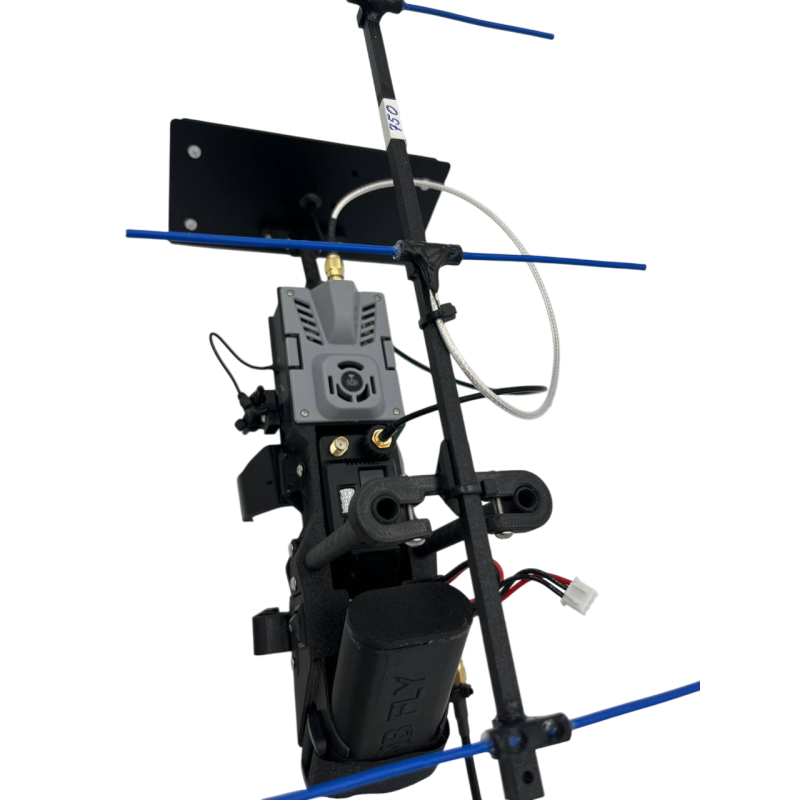

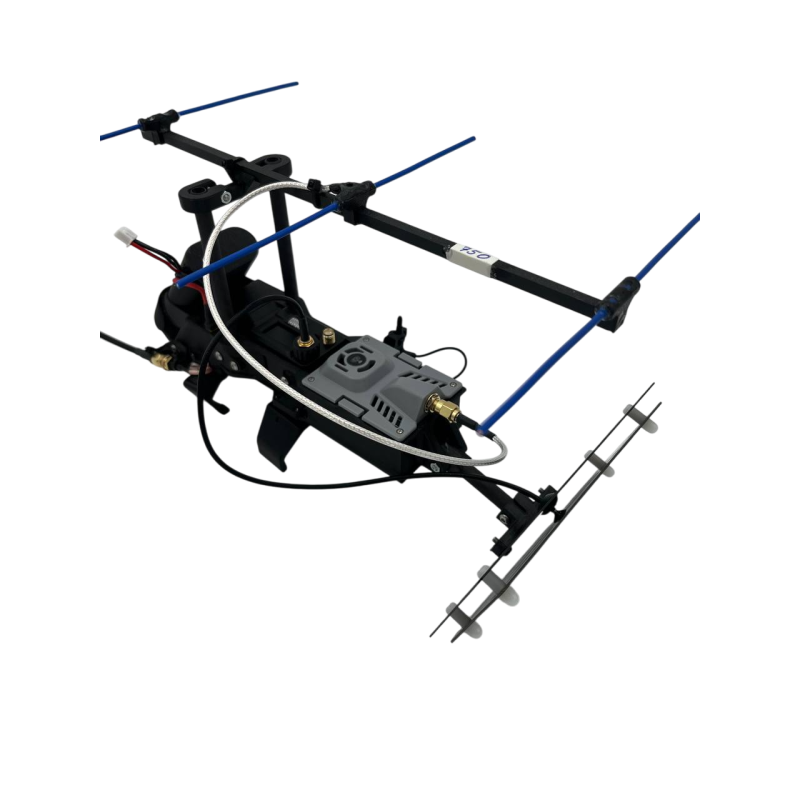

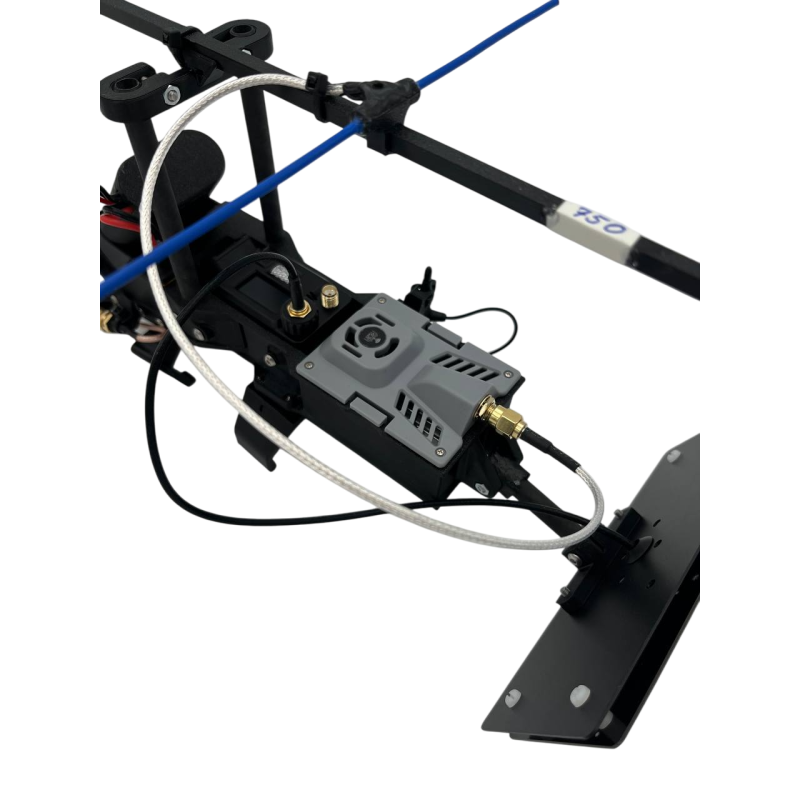

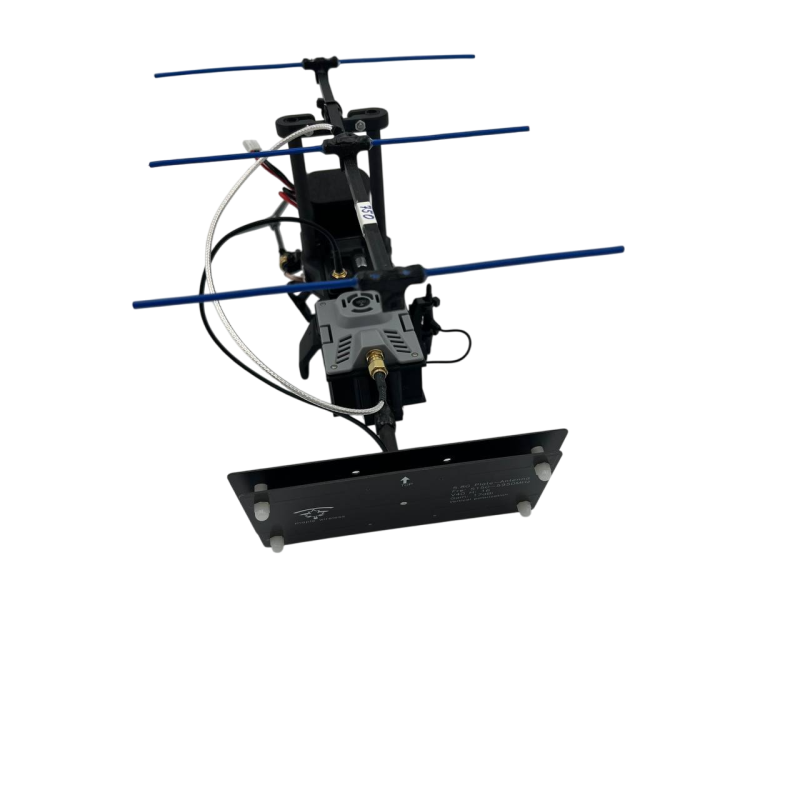

5.8/1.2GHz Repeater for Mavic 3

The 5.8/1.2GHz Repeater for Mavic 3 from SkyReach is a professional solution for those who require maximum range and stable communication in FPV flights. The device is designed with an emphasis on minimal weight and ease of integration with existing FPV systems, making it ideal for ground relay stations and long-duration missions.

Key features at a glance:

Protocol support: ExpressLRS (ELRS) and TBS Crossfire, for reliable control and command transmission; Weight: 480 g (including battery) — a light and compact unit that does not burden the drone.

Components and Capabilities

• Video Transmission: Input signal: 5.8GHz — receives video from the drone; Output signal: 1.2GHz — transmits video to the ground receiver.

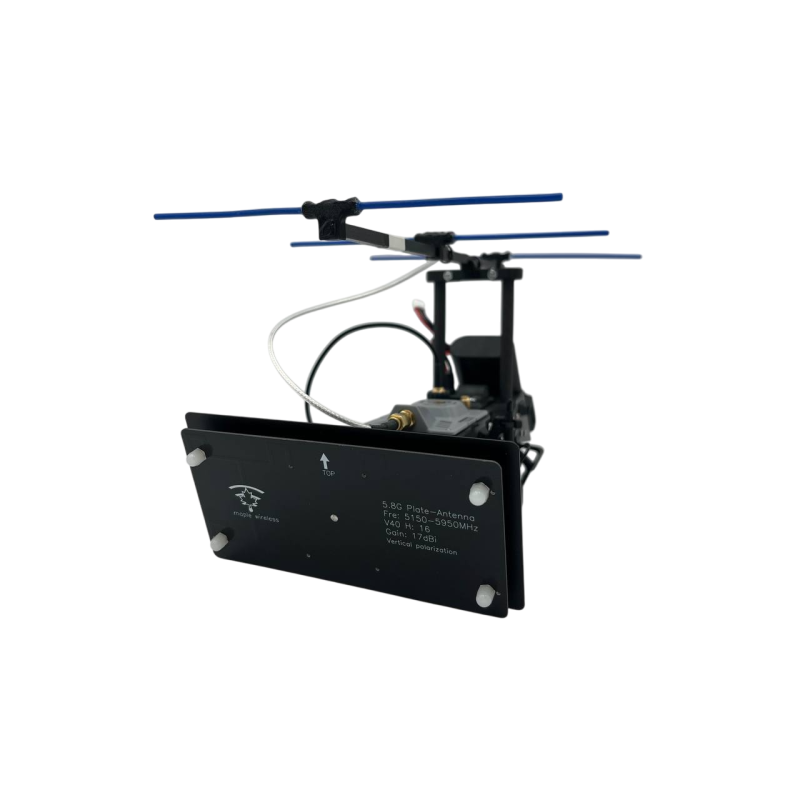

• Antennas: Maple Wireless 5.8GHz 17Dbi RHCP (5.1 - 6.0 GHz) and Triple Feed Patch 5.8GHz — ensure maximum stability and directionality of the video signal.
• Video Receiver (VRX): compatible with Skyzone SteadyView X 5.8GHz or Skyzone SteadyView X 5.0GHz (X-band) — reliable reception and transmission of images to monitors or FPV goggles.
• Video Transmitter (VTX): any compatible VTX 1.2GHz.
• Control: operator → repeater: ExpressLRS (ELRS) — fast and stable connection; repeater → drone: ELRS — ensures maximum reliable control.
• Transmitters (TX): TBS Crossfire or Emax Aeris Link TX ExpressLRS 915MHz 2000mW for a powerful and stable control signal.
• Control Antenna: lightweight Yagi antenna 8dBi (frequency selectable) — improves the quality and range of the control signal transmission.
• Power Supply: external power via XT30 connector — supports powerful batteries for long operation.

Main Advantages

• Minimal weight (480 g) — does not burden the Mavic 3 platform.
• High communication stability over long distances due to compatibility with ELRS and TBS Crossfire and high-quality antennas.
• Simultaneous video transmission and drone control — reduces the risk of signal loss during flight.
• Easy integration with existing FPV systems and readiness for modifications according to your tasks.

Who it's for

• FPV racers — reduces the risk of signal loss during races.
• Long-Range FPV flights — increases control and video transmission range.
• Aerial photography — stable video transmission without quality loss for long-distance shooting.
• Researchers and experimenters — possibility of modifications for individual tasks and laboratory tests.

Brand: SkyReach. Product type: Ground relay stations. The 5.8/1.2GHz Repeater for Mavic 3 — an optimal solution for those who value range, reliability, and compactness in one device.

Other technical details and compatible components mentioned above make this repeater flexible in configuration and ready for use in various flight scenarios — from sports races to professional aerial photography.
