Dome EW/SIGINT system “SPECTRON Kupol 5.0” with wide operating range against FPV, DJI, Autel.

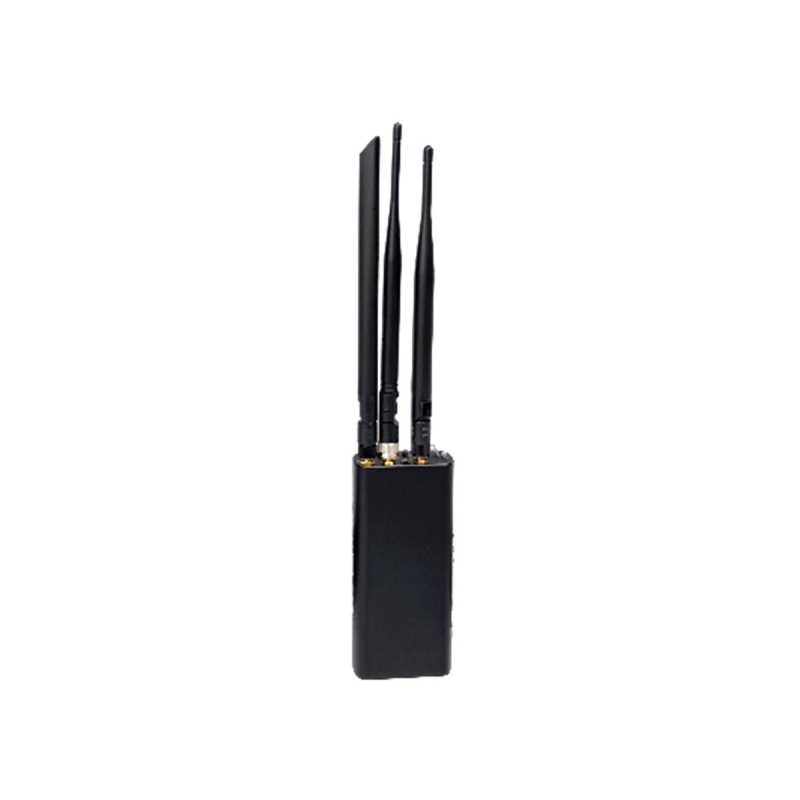

- Suppresses drone control channels within a radius of 100-1500 m, depending on the control protocol, distance, and other factors. Designed with immediate integration capability with a drone detector (Obriy 1.3C), allowing the EW system to activate automatically upon threat detection.
- Used by units of various specializations to protect mobile equipment or positions.

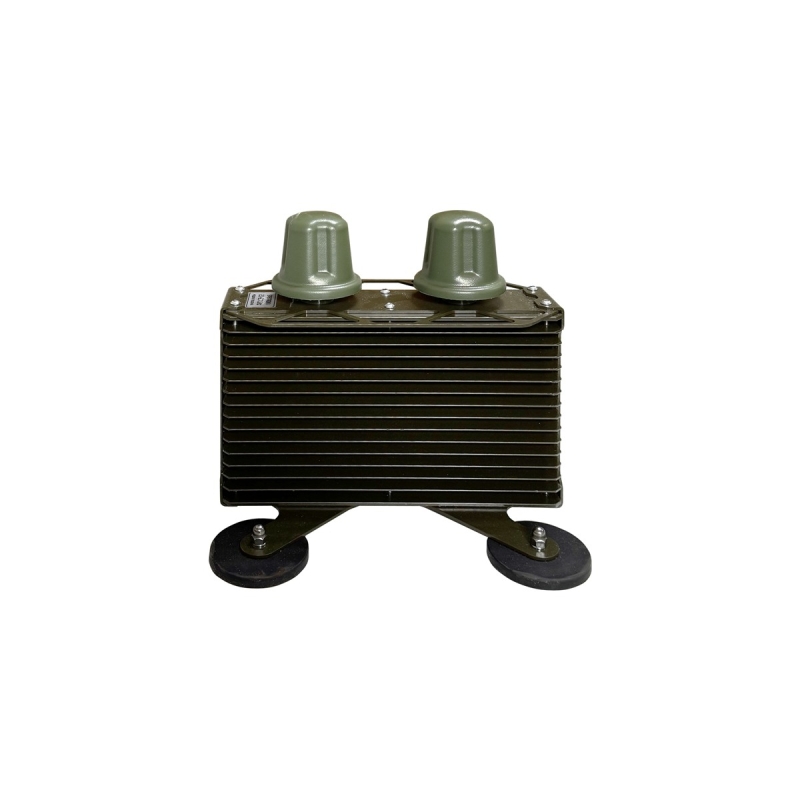

- Installs on car roofs or armored vehicles using powerful neodymium magnets.
- Suppression range 290-5850 MHz. The Spectron system can suppress drone control protocols at no less than 100 m (ERLS, TBS 25 packet rate at a distance of 5000 m from the drone operator, with 9 dBi antenna gain) - thanks to powerful Ukrainian-made jammers and unique technology for matching modules with crossed Moxon turnstile antennas with circular polarization (quadrifilar).

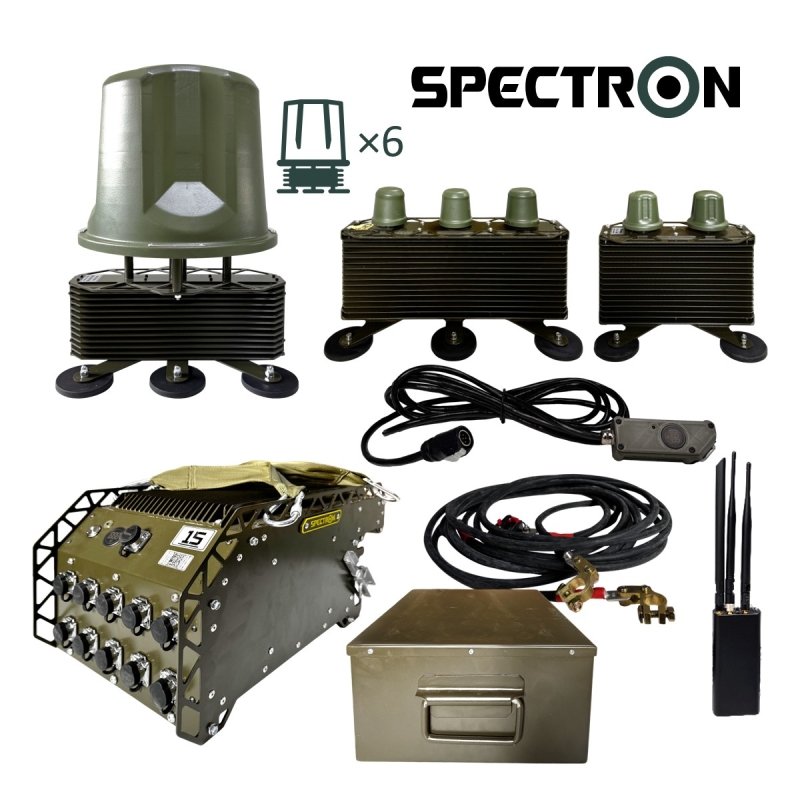

- The basic configuration of the SPECTRON Kupol 5.0 system covers 11 frequency bands:

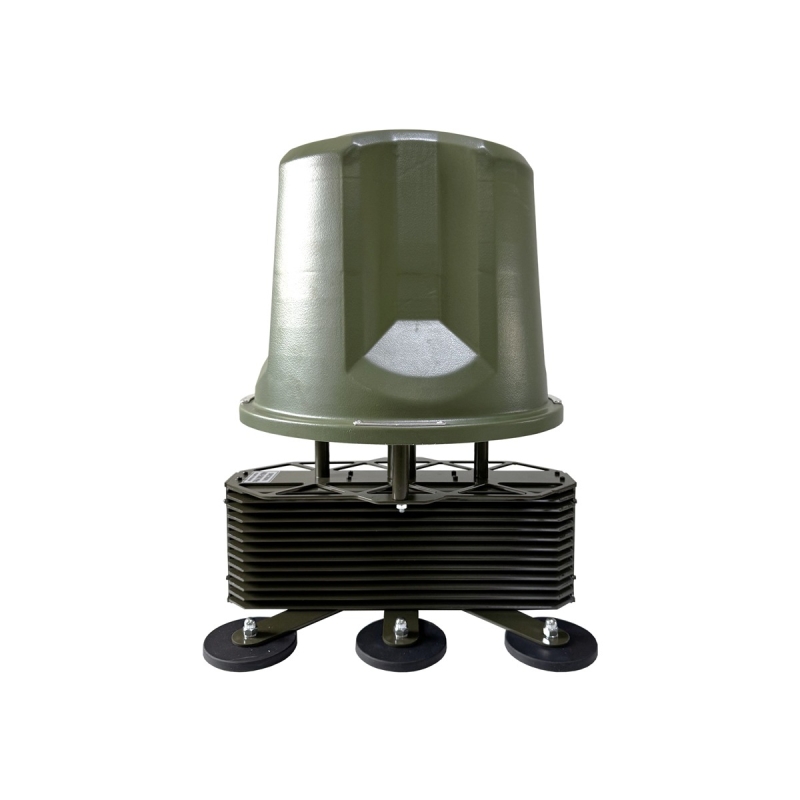

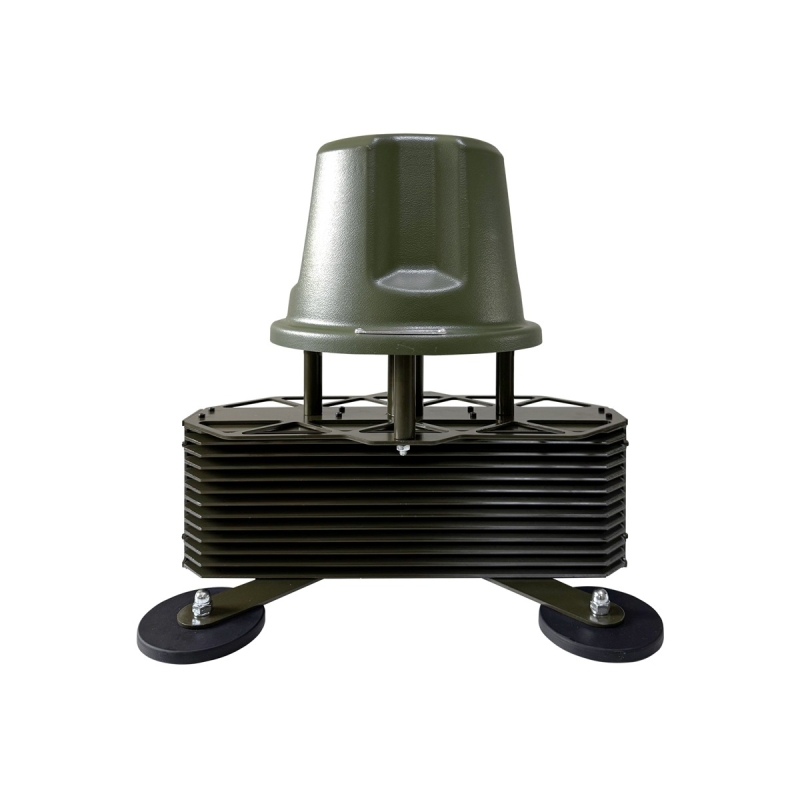

- EW system against FPV drones in frequency bands 290–360, 360-460, 460-560, 730-830, 830-930, 930-1030 MHz; (6 block modules for 6 antennas);

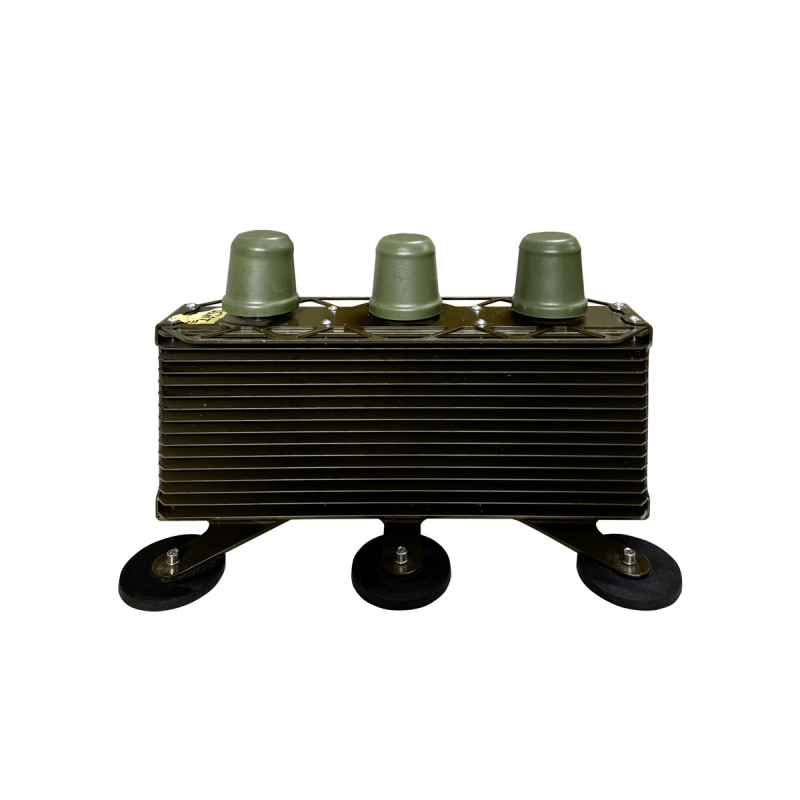

- Additional EW system against FPV drones in frequency bands 2100-2300, 2300-2500, 2500-2700 MHz, (block module for three antenna-jammers).
- EW system against drops in two bands 5150-5250, 5725-5850 GHz (block module for two antenna-jammers).

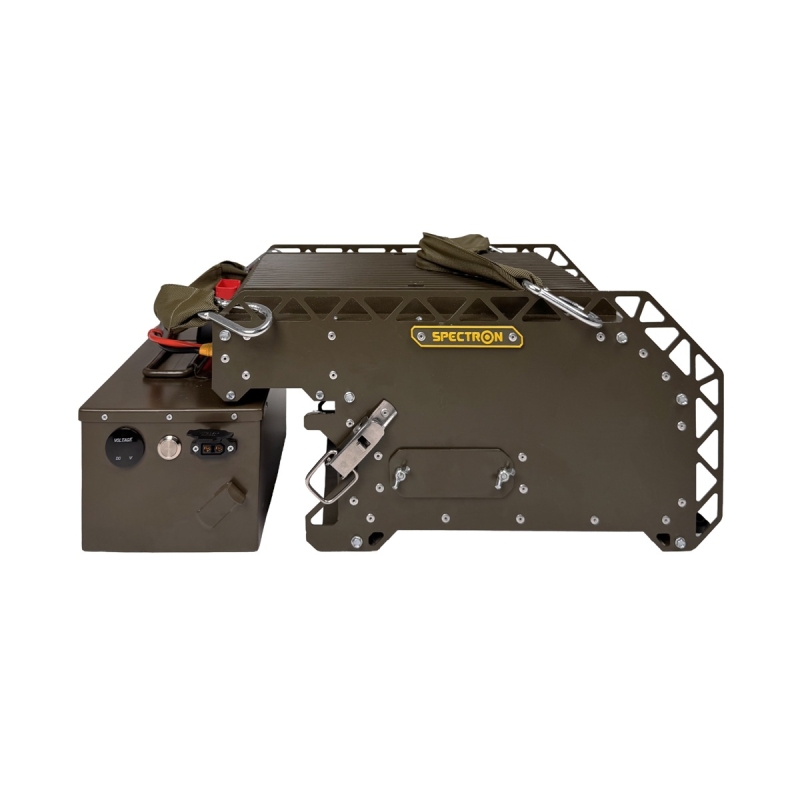

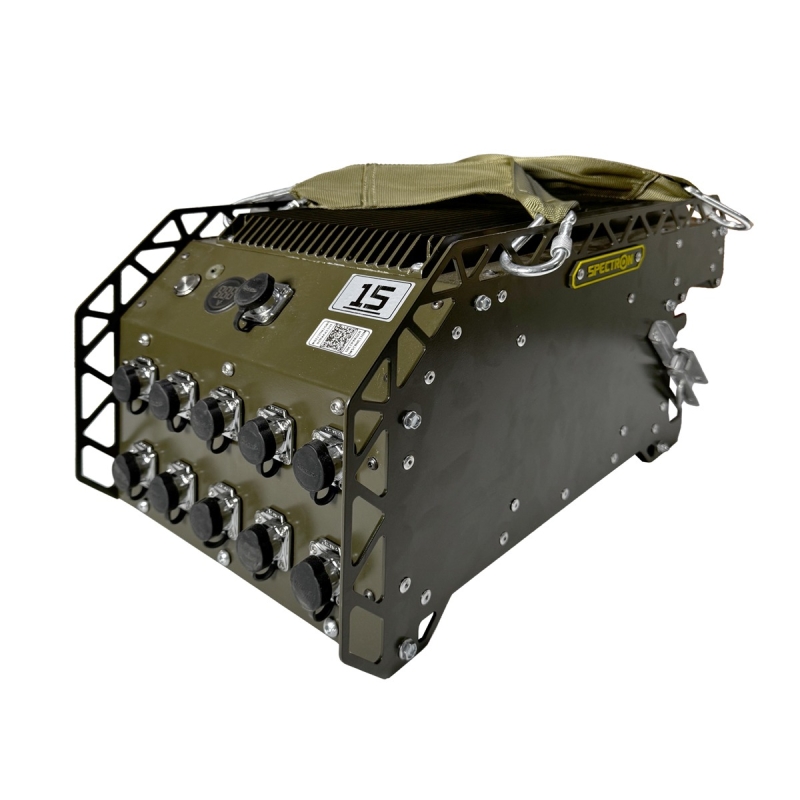

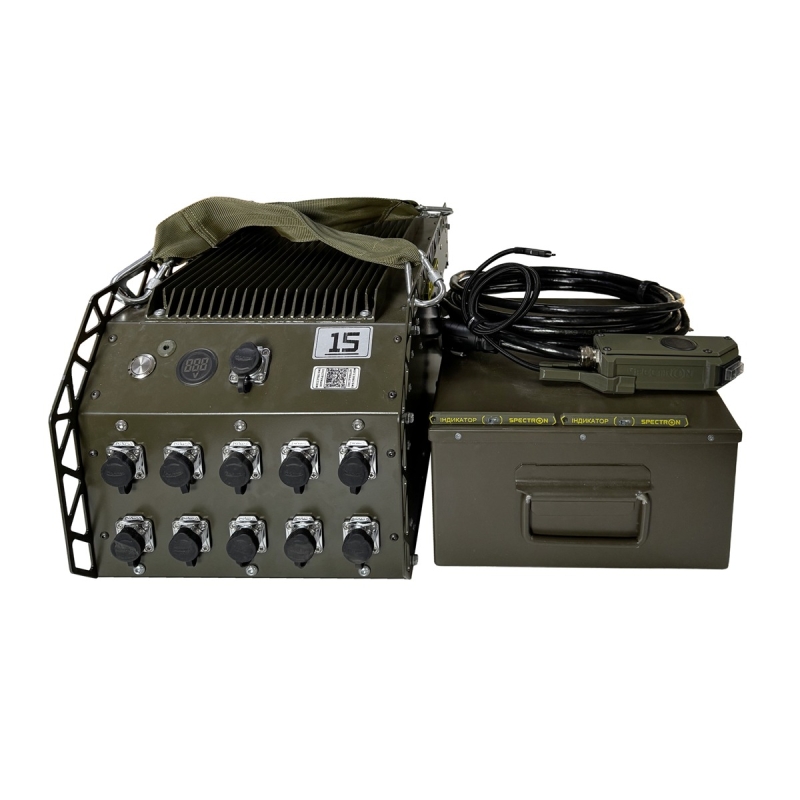

- Both EW systems are combined into a single EW/SIGINT complex via a switching-power unit (SPU).
- Modular design allows selecting necessary bands.
- Three power types. Full dust and moisture protection. Extremely easy to use.
We have official reviews and recommendations from military units. We conduct joint tests. The product is codified by the Ministry of Defense of Ukraine. NATO Code 5865-61-018-5771
Our EW/SIGINT system is one of the most effective and recommended dome-type EW systems by military units today. We are ready to prove this in any joint tests and for comparison with any existing EW system.
We are the only Ukrainian manufacturer that has created an EW system with immediate integration capability with a drone detector for automatic EW system activation upon threat detection.
Technical specifications
| Continuous operation time on battery, min | not less than 90 min |
| Electronic suppression range, m Average suppression range for protocol:
| |

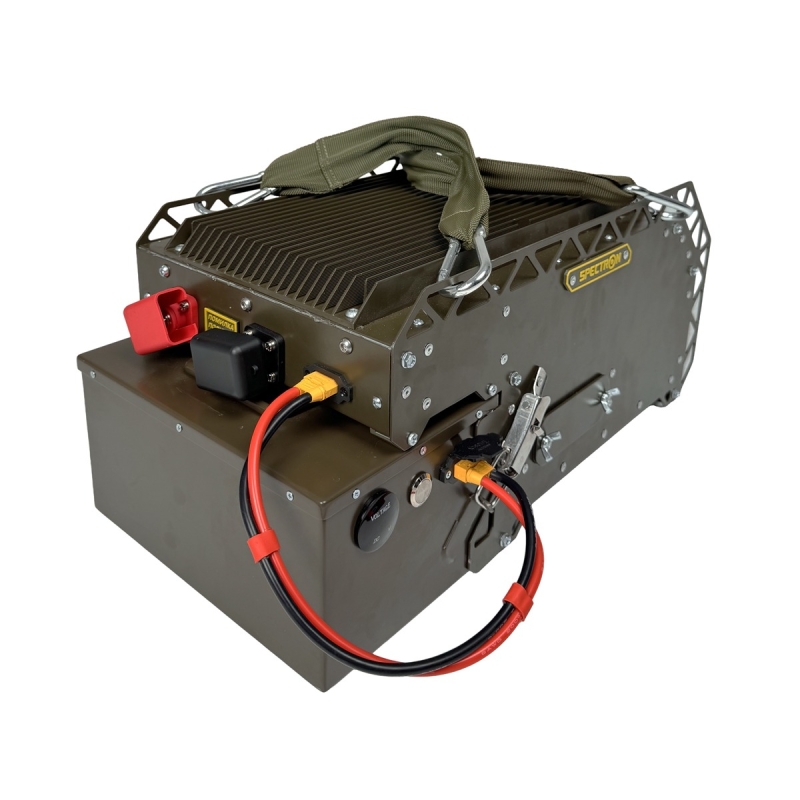

| Power parameters from SPECTRON Kupol 5.0 LiFePO4 battery: capacity/voltage | 100 Ah, 24 V |
| Detection range, m | 4000 |
| Electronic suppression frequency bands | 290-360; 360-460; 460-560; 730-830; 830-930; 930-1030; 2100-2300; 2300-2500; 2500-2700; 5150-5250, 5725-5850 |
| Detection frequency bands | from 1 to 6 GHz (1050-2600, 2720-4000, 4000-6040 MHz) |
| Ability to operate from internal battery | yes |

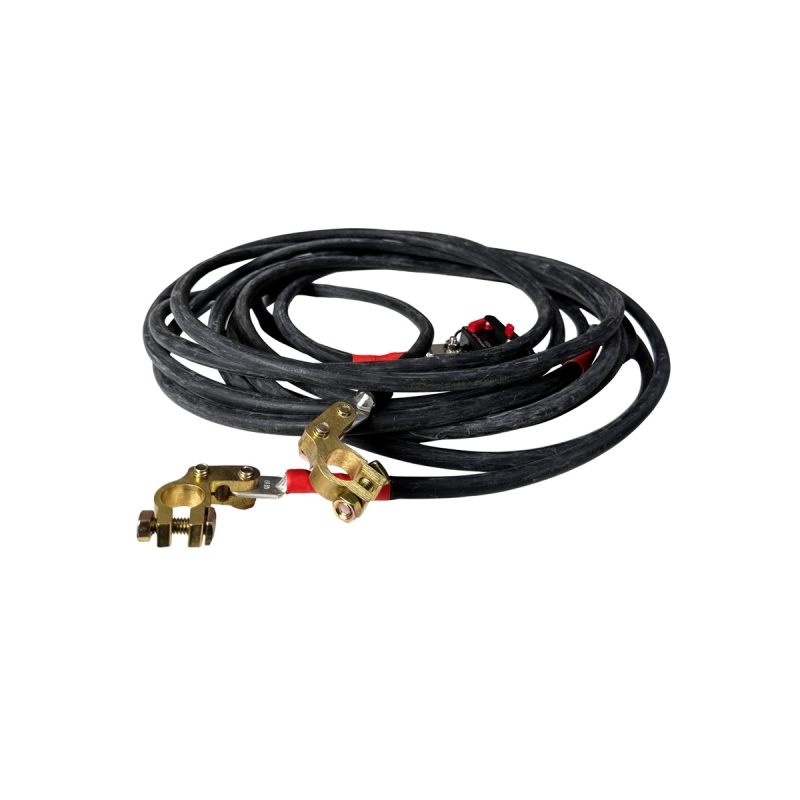

| Supply voltage, V | 9-36 |
| Interference power at the output of the interference generation device, W | 600 |
| Antenna type | crossed Moxon turnstile (quadrifilar) |
