EW Jammer 3 Bands 720 – 1100 MHz 300W "Amaga 6.2" — by Magura VPK

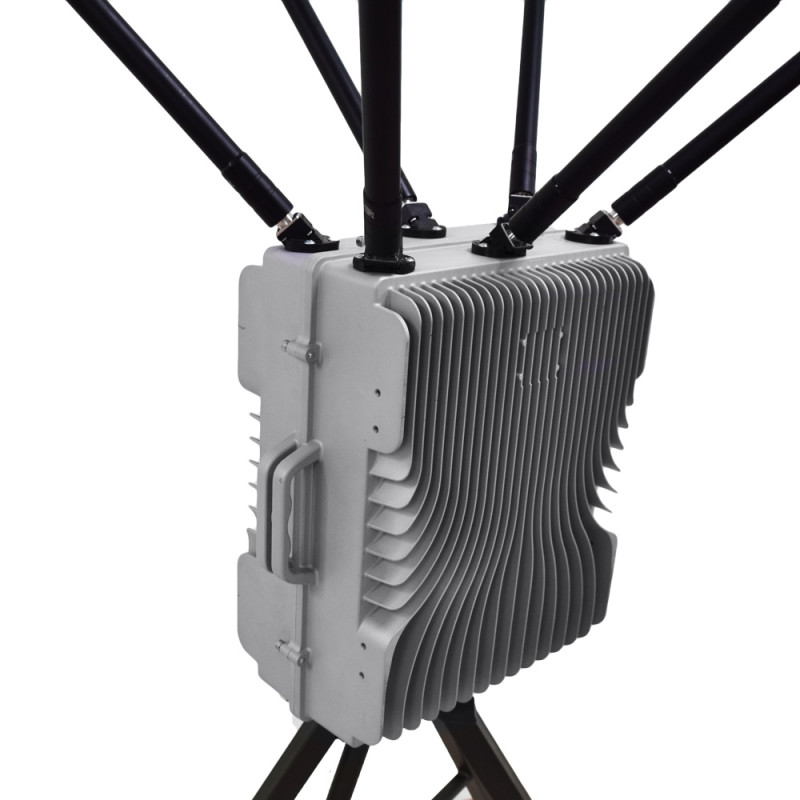

The "Amaga 6.2" mobile electronic warfare (EW) device from Magura VPK is designed for jamming and suppressing unmanned and radio-controlled systems. It is a portable system with a built-in battery, convenient remote control, and the ability to be powered by 12–24V or 220V mains, ensuring high autonomy and versatility for field use. The device is optimized for mobile perimeter protection, convoy escort, and UAV signal blocking.

Package Contents

• "Amaga 6.2" EW device – 1 pc.
• Set of collinear antennas – 6 pcs.
• Control panel with 10 m cable and 4 buttons – 1 pc.
• Tripod – 1 pc. (4.7 kg)
• 12-24 V power cable – 1 pc.
• 220 V charger – 1 pc.
• Operating manual
• Car mount for external antennas – 1 pc.

Technical Specifications

• Total radiated power: 300 W
• Jamming type: VCO, sawtooth, with thermal protection and circular polarization

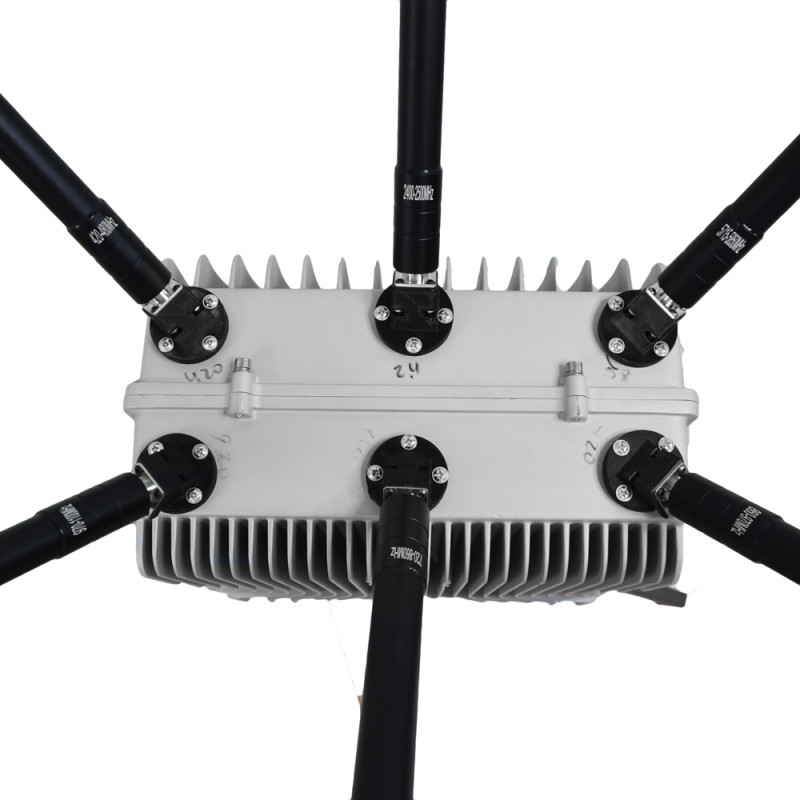

• Collinear omnidirectional antennas 400 mm, 3 dBi, VSWR=1.1
• Effective range: 100 – 400 m (depending on application conditions)
• Built-in Li-ion battery: 45 Ah
• Continuous operation time from battery at maximum load: 1.5 hours
• Power supply: 12-24 V DC or via the included 220 V power adapter. Amass XT90E – F connector with sealed plug
• Power consumption: up to 800 W
• Cooling: passive
• Housing: aluminum, IP65, dimensions: 462*405*214 mm
• Weight in deployed state without tripod: no more than 24 kg
• Control: wired remote 10 m, 4 buttons
• Jamming operation indication on the remote
• Battery charge indication on the remote and on the housing
• Readiness time: no more than 2 min

Advantages of the 6-channel EW Jammer

• Simultaneous coverage of most popular bands;
• Spatial separation of antennas reduces interference;
• Antennas at a 45° angle allow blocking both horizontal and vertical FPV antennas simultaneously;
• Optional ability to install other types of antennas — cloverleaf, quadrifilar;
• Option for external antennas for car mounting;
• Effective passive cooling simplifies the design and minimizes the risk of failures due to fan breakdown;
• Clear indication of module operation allows prompt monitoring of the device status;
• Double indication constantly monitors battery status;
• Convenient remote control allows protecting the operator and monitoring the EW jammer status from a distance of 10 m;
• Powerful charger ensures fast charging of the built-in battery;
• Built-in battery and all-in-one dust- and moisture-proof housing — no additional blocks required;
• Two charging options (two inputs):
  • from any 12-24 V DC source (car battery or charging station)
  • via the standard charger from 220 V mains or a generator

Additionally: the device can be equipped with quadrifilar antennas for car mounting; antenna price depends on the bands.

EW jammer configuration options for various frequency bands, MHz:

• 200 – 300 MHz
• 300 – 400 MHz
• 400 – 500 MHz
• 500 – 600 MHz
• 600 – 750 MHz
• 700 – 850 MHz
• 420 – 480 MHz
• 720 – 860 MHz
• 860 – 970 MHz
• 970 – 1100 MHz
• 1100 – 1280 MHz
• 2400 MHz
• 5800 MHz

The "Amaga 6.2" system is ideally suited for operational use in complex field conditions: perimeter protection, convoy escort, blocking UAV signals and other radio-controlled objects. The description includes all components of the kit, technical parameters, and options, providing a complete understanding of the device's capabilities from the manufacturer Magura and allowing for a quick assessment of the system's suitability for specific tactical tasks.
