EW Babay 12M MZ 200-5850 MHz — Trench/Vehicle Protection
Brand: Babay. This stationary electronic warfare system "Babay 12M" is designed for maximum suppression of FPV drones in positions, fortifications, and trenches, and is suitable for both trench and vehicle deployment.

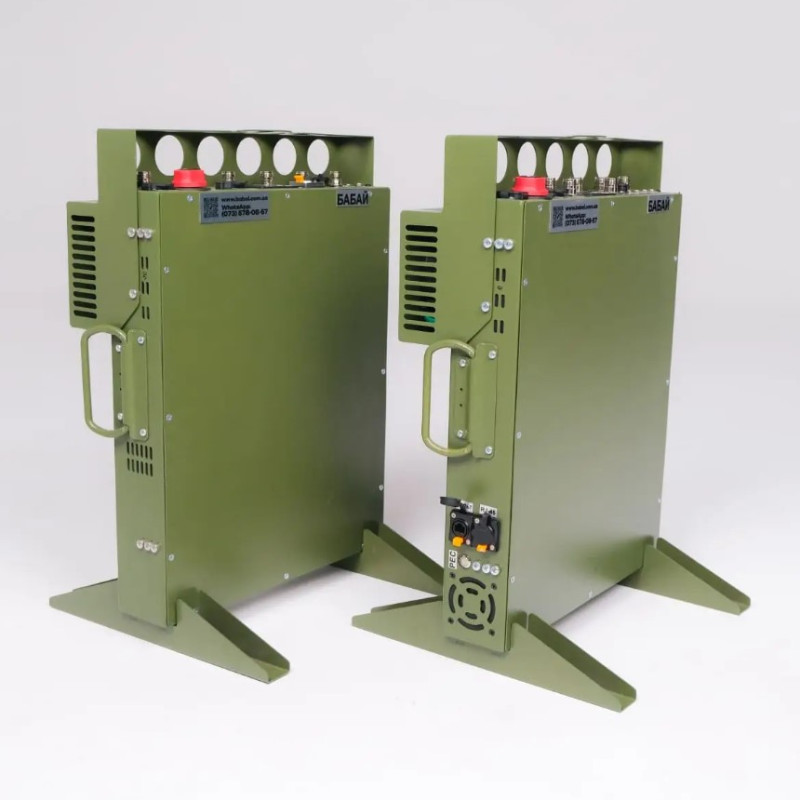

The station consists of two separate blocks, each measuring 52×38×8 cm, with a total weight of 60 kg, allowing for quick installation on special legs. The design provides 360° protection and effective suppression of drone control channels and video signals at a distance of 50 to 200 meters. The total radiated power of the system exceeds 670 W, and the power consumption is 1800 W.
Ranges and Antenna Solutions:

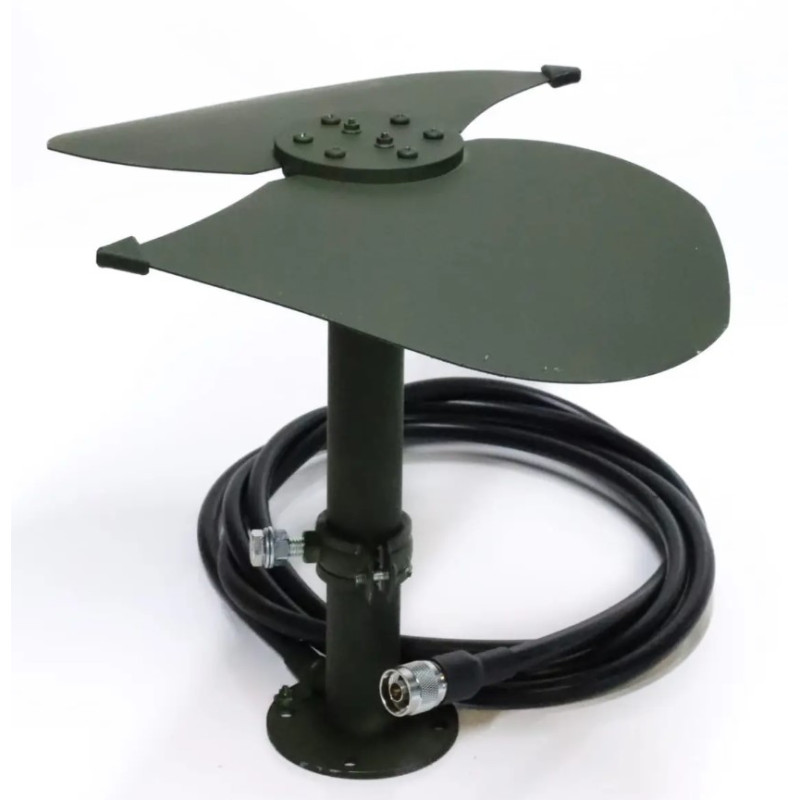

200–300 MHz — 50+ W, screw (modified dipole)
300–400 MHz — 60+ W, screw (modified dipole)
400–500 MHz — 50+ W, screw (modified dipole)
500–700 MHz — 50+ W, screw (modified dipole)

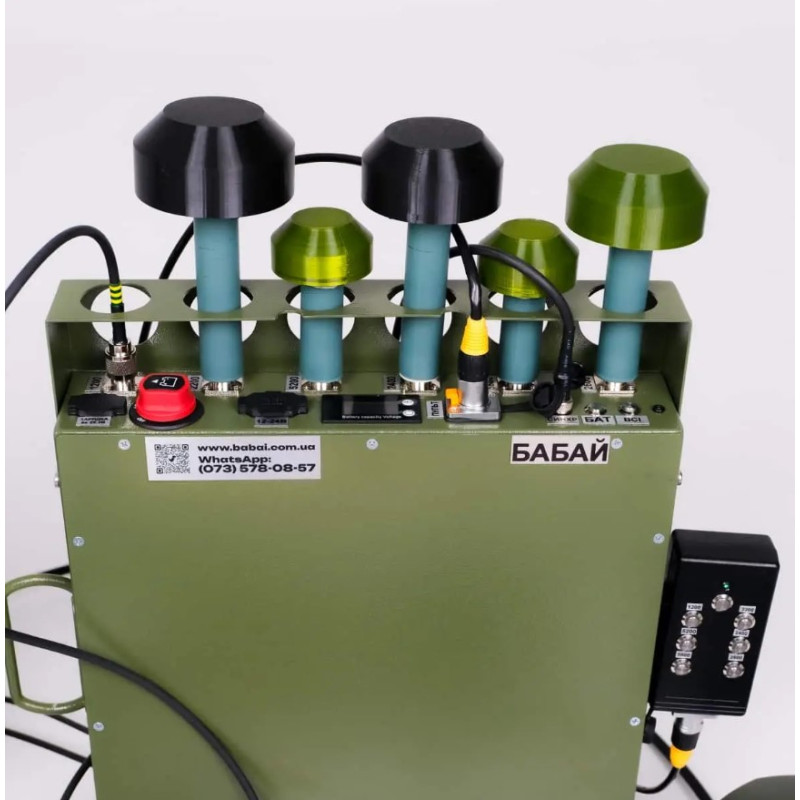

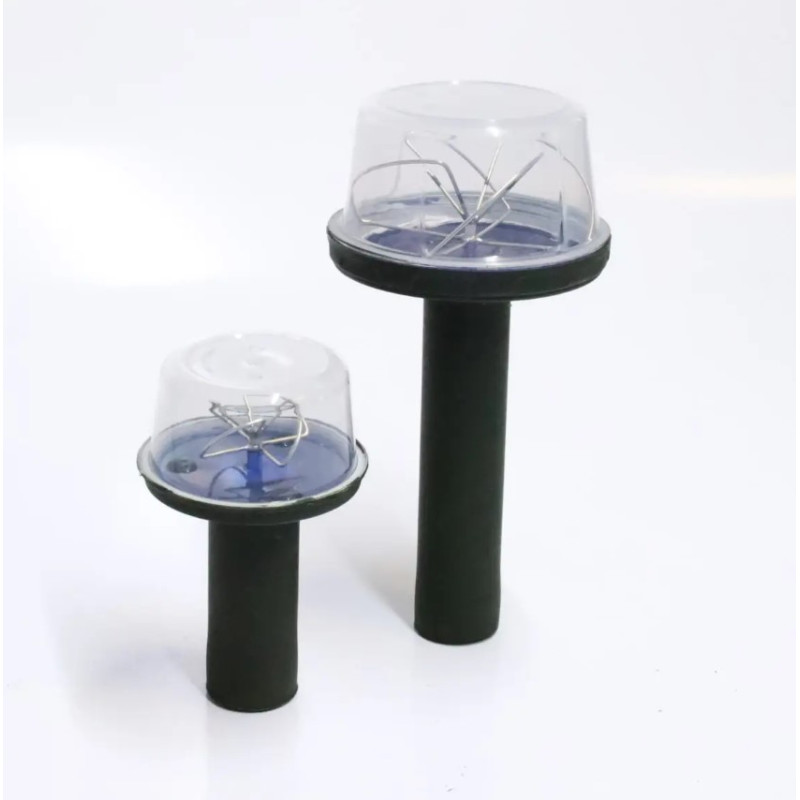

700–1000 MHz — 110+ W, mushroom
1000–1100 MHz — 50+ W, mushroom
1100–1200 MHz — 50+ W, mushroom

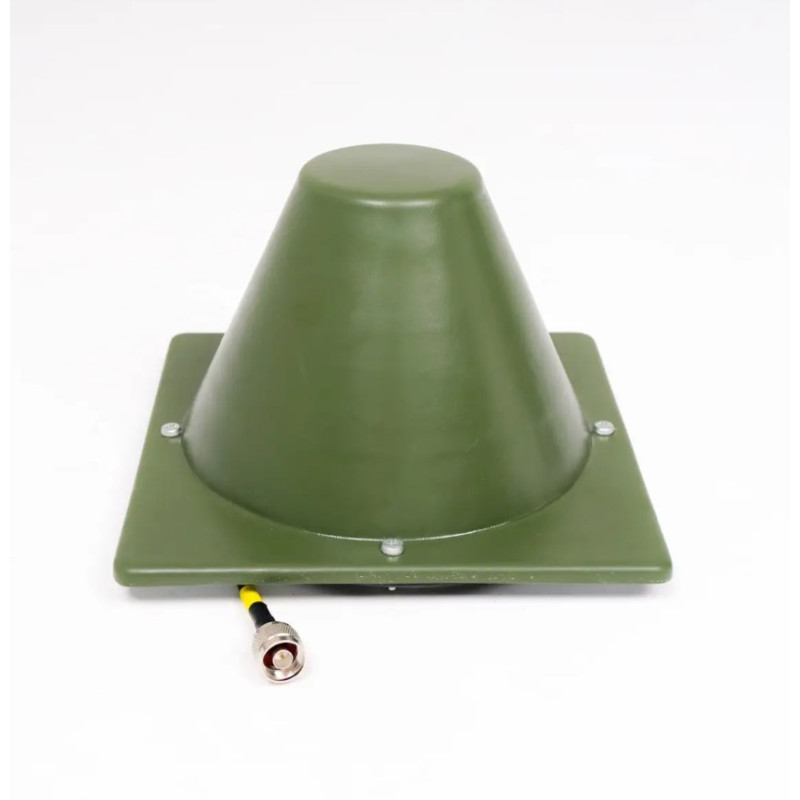

2100–2300 MHz — 50+ W, clover
2300–2500 MHz — 50+ W, clover
2500–2700 MHz — 50+ W, clover
5150–5270 MHz — 50 W, clover
5725–5850 MHz — 50 W, clover
The system is equipped with twelve powerful jammers (12 antennas/channels) that provide maximum coverage of critical frequency ranges. If necessary, the ranges and antenna types can be adapted to specific tasks.

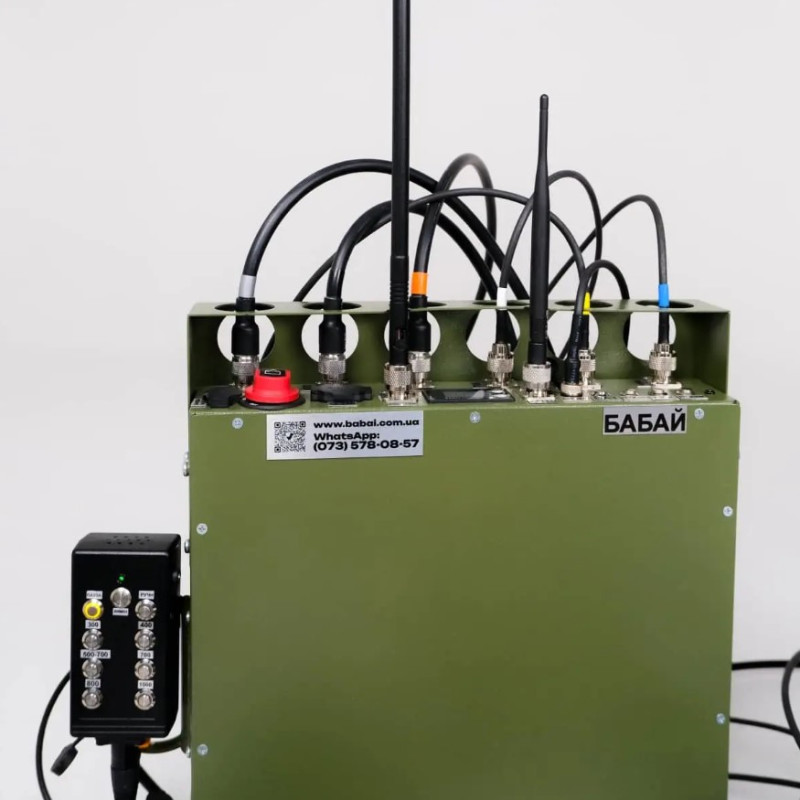

Automation and Control: An integrated spectrum analyzer constantly monitors the airwaves and automatically activates the relevant modules or the entire jammer complex upon threat detection, minimizing power consumption and extending autonomous operation. Setup and diagnostics are performed via Wi-Fi; control is possible via twisted pair up to 100 meters or using a remote control up to 3 meters. The system is equipped with voice notifications and a digital charge indicator display.
Power and Autonomy: The device is powered by a built-in 80 A/h (24 V) battery or FPV batteries. Battery autonomy ranges from 40 to 60 minutes, depending on the operating mode and the number of active jammers. The system's readiness time after power-on is 30–60 seconds. Charging is performed by two 10 A chargers each (20 A total).
Reliability and Performance Characteristics: The casing has an IP54 protection rating, ensuring resistance to dust, splashes, and mechanical impacts. Operating temperature range: -20°C to +40°C. An integrated active cooling system prevents overheating even under peak loads. Warranty is provided for the duration of martial law in Ukraine with free service, excluding cases of complete destruction, shrapnel damage, or flooding of the device.
Key Advantages
- Full automation: constant spectrum analysis and instant selection and activation of necessary suppression modules (200–1200 MHz, 2100–2700 MHz, 5150–5270 MHz, 5725–5850 MHz).
- Maximum frequency coverage thanks to 12 jammers and a total radiated power of over 670 W.
- 360° dome protection — uniform suppression field regardless of attack direction.
- Overheat protection through active cooling.
- Increased energy efficiency due to automatic mode.
- Universal power supply: from a large 80 A/h (24 V) battery or FPV batteries.
- Flexible remote control via Wi-Fi, twisted pair (up to 100 m) or remote control (up to 3 m), voice notifications, and digital charge indicator.
- Quick start: ready for operation in 30–60 seconds.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Total radiated power | 670+ W |
| Power supply | from battery, from FPV battery (220-24V) |
| Number of antennas (channels) | 12 |
| Housing size (dimensions) | 52x38x8cm + 52x38x8cm |
| Weight | 60 kg |
| Suppression range | 50-200m |
| System coverage radius | 360 degrees |
| Autonomy | 40 to 60 min (depending on operating mode and number of active jammers) |
| Built-in battery capacity | 80 A/h |
| Operating readiness time | 30-60 seconds after power-on |
| EW system control | via Wi-Fi, via remote control (up to 3 meters), twisted pair (up to 100 m) |
| Operating temperature range | -20C – +40C |
| Power consumption | 1800 W |
| Protection rating | IP54 |
| Charger power | 10 A + 10 A = 20A |
| Voice operation notification | yes |
| Digital battery charge indicator display | yes |

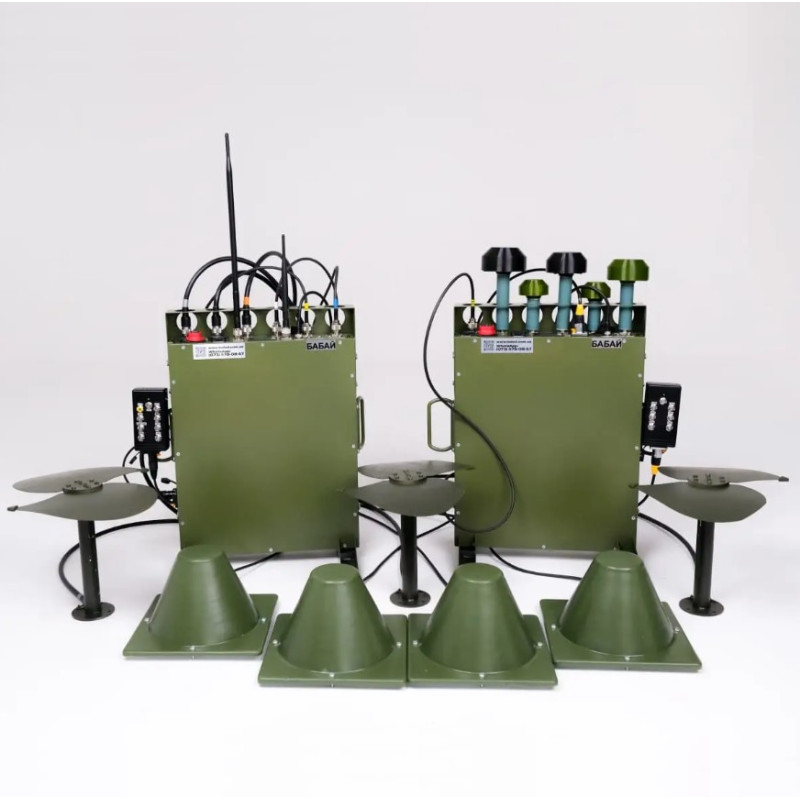

Package Contents:
- EW device and antennas — 2 pcs.
- Antenna mounting brackets — 12 pcs.
- Device corner mounts — 8 pcs.
- Remote control — 2 pcs.
- Remote control connection cable — 2 pcs.
- Ethernet RJ-45 cable — 1 pc.
- XT90 3m power cable and clamps — 2 pcs.
- N-type antenna connection cable (optional).
- Power supply for battery charging 25.2 V 10 A — 2 pcs.
- Legs for vertical placement — 4 pcs.
- Manual — 1 pc.
This system is designed for rapid deployment and reliable anti-drone protection on battlefields, observation posts, and during mobile operations. It combines a powerful hardware base, automatic spectrum scanning, and convenient control tools for quick response to aerial threats.
