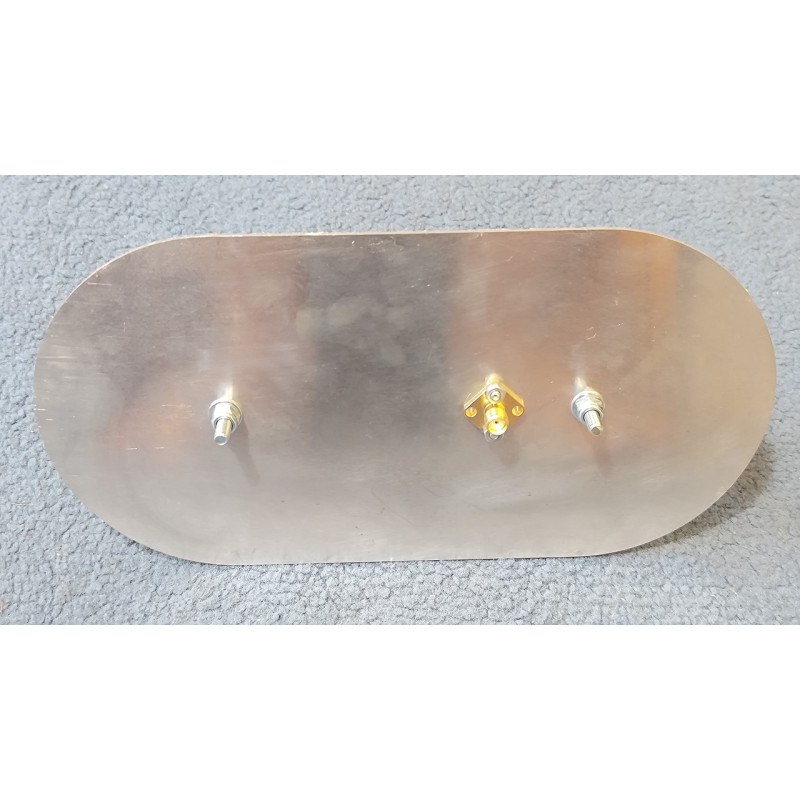

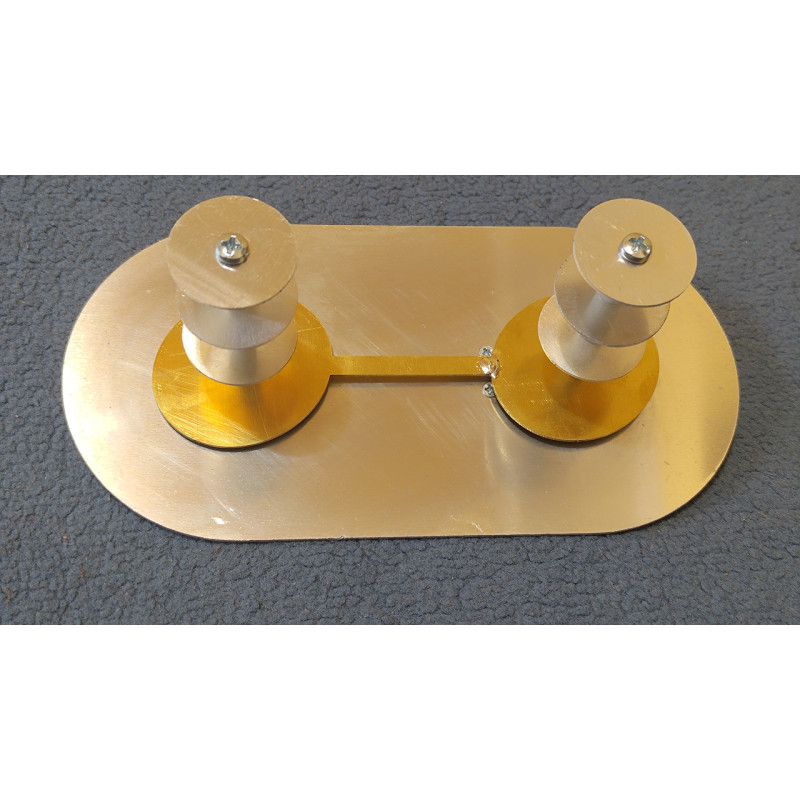

FPV Video Channel Receiver Antenna 3.3 GHz

Brand: Aeronetix
Category: Antennas > Log-periodic Antenna
Product Code (ID): 18331

This log-periodic receiver antenna is designed for stable FPV video signal reception in the approximately 3.3 GHz band. The antenna covers a frequency range of 3150-3450 MHz, ensuring reliable reception for drones, stationary receivers, and other applications where high video quality and ease of installation are important. The design combines compact dimensions with increased gain, making the model a versatile solution for both amateur and semi-professional FPV systems.

Key Technical Specifications

• Frequency Range: 3150 - 3450 MHz
• Gain: 13 dBi
• Beamwidth: 50° / 25°
• Dimensions: 196×100×80 mm
• Weight (in specifications block): 140 g

The 13 dBi gain, combined with 50° and 25° beamwidths, provides sufficient directivity for quality video reception while maintaining acceptable sector coverage. Compact dimensions of 196×100×80 mm and low weight make the antenna convenient for integration into compact systems where weight and size minimization are important.

Below is a table with additional product parameters and attributes that are part of the complete technical information:

Please note: the main specifications block indicates a weight of 140 g, while among the attributes, "Weight, kg: 0.200" (which corresponds to 200 g) is stated. This may be due to different measurement methods (without packaging / with packaging) or technical rounding. We recommend clarifying the final weight if necessary before purchase, especially if the exact weight-to-platform load ratio is important.

Advantages and Applications

The advantages of this model include increased gain for stable video reception, balanced beamwidths for an optimal ratio of directivity and coverage, as well as compact dimensions and ease of mounting. The antenna is compatible with typical FPV solutions and is suitable for use on quadcopters, in stationary receivers, and other systems requiring quality signal reception in the 3.3 GHz band.

The housing materials and design ensure resistance to mounting loads, and the low weight allows for easy integration of the antenna into mobile platforms. If you need a reliable solution to improve FPV video signal quality at 3.3 GHz, the Aeronetix model with parameters 3150-3450 MHz and 13 dBi is a perfect choice.
