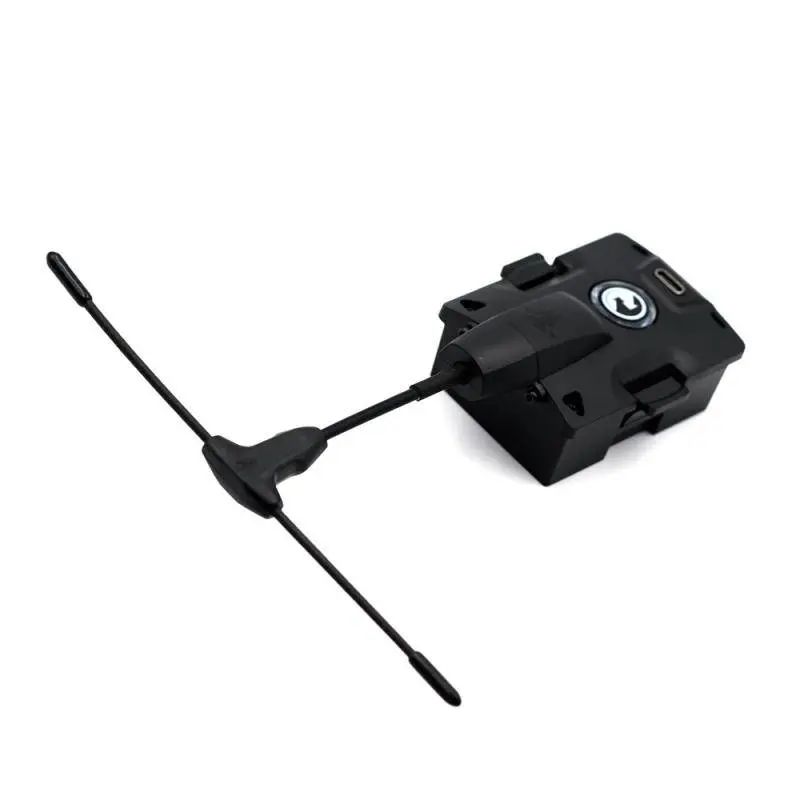

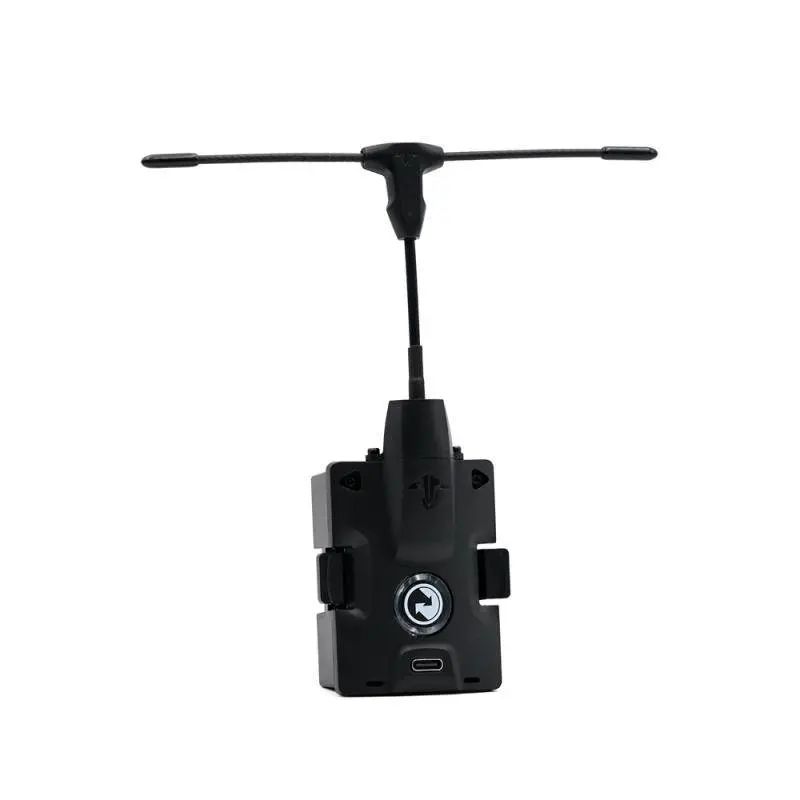

Radio Signal Transmitter TBS Crossfire Micro Transmitter Module V2

The TBS Crossfire Micro Transmitter Module V2 from TBS is a micro JR module designed for compact RC models and quadcopters, combining minimal weight and size with professional features for FPV flights and competitions. This V2 version features hardware and software improvements that enhance connection stability over long distances, making the module a reliable solution for amateurs and professionals.

Key Features:

• 1. Compactness and Low Weight: Thoughtful design for installation in small enclosures without unnecessary load.
• 2. High Transmission Efficiency: Optimized RF module ensures long-range and stable connections.
• 3. Compatibility: Support for CRSF protocol and integration with various transmitters and controllers.
• 4. Sensitivity and Low Latency: Important for precise, fast control in racing and aggressive flight.
• 5. V2 Improvements: Updated firmware and hardware optimizations for greater reliability.
• 6. Easy Installation and Setup: User-friendly interface and quick connection.
• 7. Flexible Parameters: Advanced settings for individual pilot needs.

Operational Advantages and Functions:

• Reliable connection for long-range FPV flights.
• Resistance to onboard interference — stability in challenging conditions.
• Real-time bidirectional telemetry for flight parameter monitoring.
• Connection self-recovery mechanisms and frequency hopping (DSSS, FHSS).
• Adaptive bandwidth management for optimal channel utilization.
• RX beacon mode for locating a crashed drone.
• Low latency and high refresh rate — 150 Hz, 3 times faster than standard RC connections.
• Support for simultaneous flights by multiple pilots and LED channel status indication.
• Full configuration via OpenTX and TBS TANGO using CRSF protocol; compatible with Betaflight, Kiss, and Raceflight.
• Firmware updates via RF directly in the field.

Technical Specifications:

Frequency bands: 868 MHz (EU, RF) / 915 MHz (USA, Asia, Australia). Input voltage: 3.5 – 13 V. RF power: 25 mW to 250 mW. Power consumption: 1.1 W at 10 mW, 2 W at 100 mW. Dimensions: 65 x 48 x 22 mm. Weight: 48 g. Interfaces: CRSF compatibility with popular flight controllers and firmwares.

Package Contents:

• 1 x JR module TBS Crossfire Micro TX
• 1 x antenna TBS Crossfire Stock Tx V2

Compatibility and Application:

The module is compatible with a wide range of RC transmitters and flight controllers, supports integration with OpenTX, TBS TANGO, and the CRSF interface for use with Betaflight, Kiss, and Raceflight. An ideal choice for FPV pilots, RC racers, and long-range flights where reliable bidirectional communication and telemetry are required.

This micro version of the transmitter combines compactness, power, and a set of professional features necessary for both beginners and experienced pilots seeking a reliable solution for long-range drone control.
