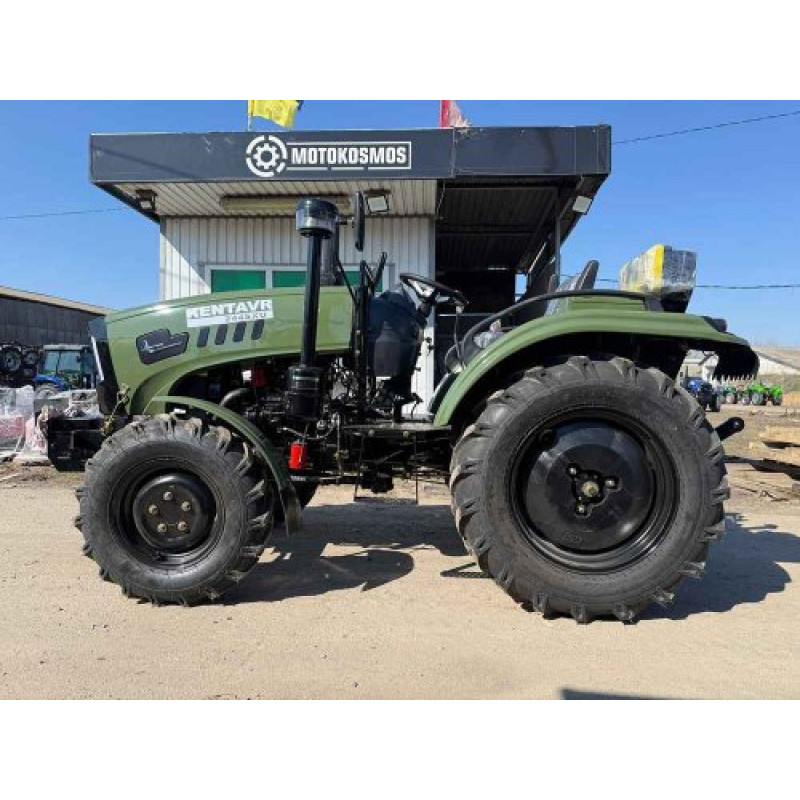

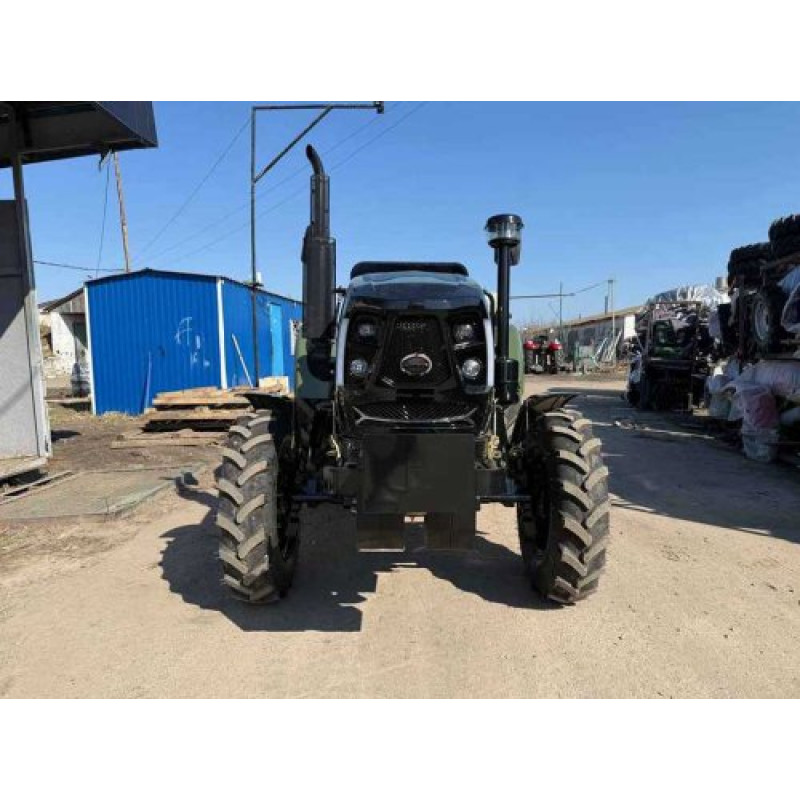

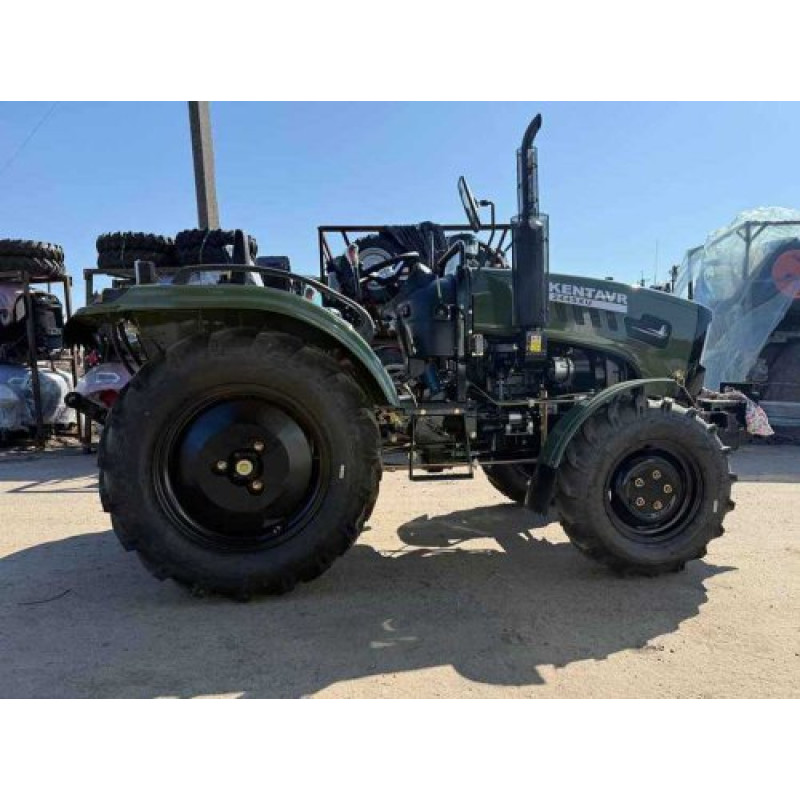

Mini Tractor KENTAVR 244 SXU
Manufacturer: KENTAVR. A reliable, compact mini tractor designed for private farms, agricultural enterprises, and municipal work: versatile in use, with 4x4 all-wheel drive and a diesel engine that ensures long-lasting and efficient operation in the field and on the homestead.

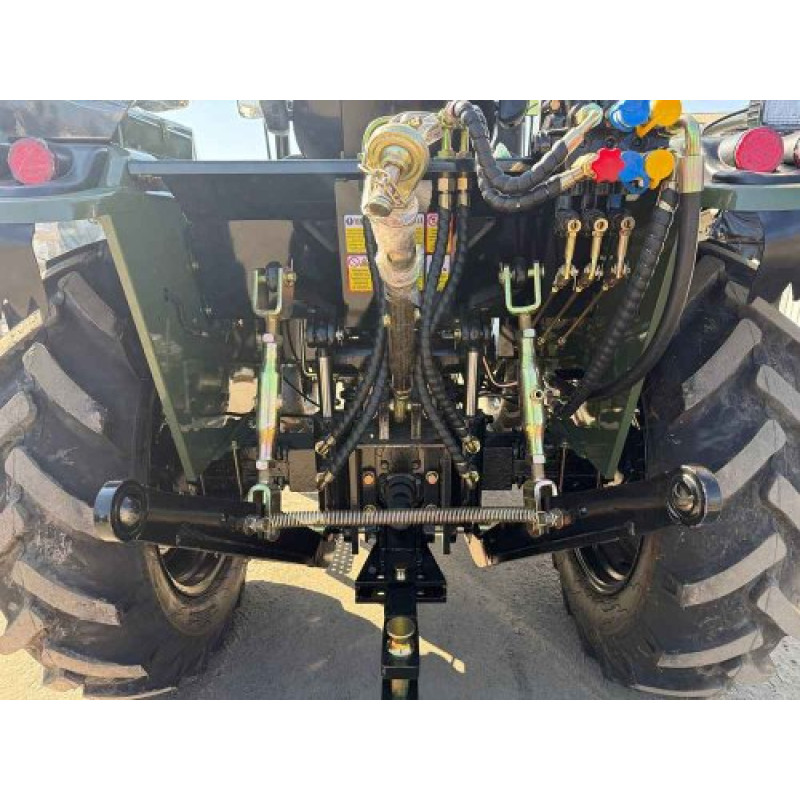

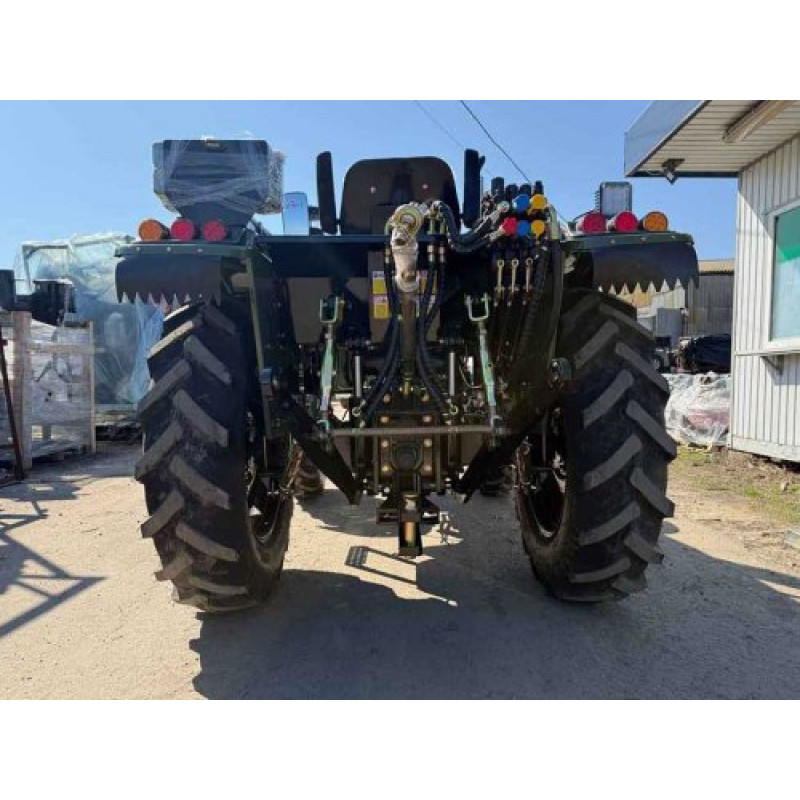

Key advantages at a glance: 24 hp (17.65 kW) engine — a three-cylinder vertical diesel with a displacement of 1530 cm3, electric starter, and liquid cooling system; all-wheel drive transmission (4+1)x2, rear differential lock for confident movement over difficult terrain; rear splined power take-off (PTO) shaft with speeds of 540/1000 rpm for connecting a wide range of mounted and trailed equipment; power steering for easy maneuvering; rear three-point hitch lifting capacity of 420 kg.
The mini tractor is distinguished by economical operation: nominal fuel consumption ≤275 g/kWh at nominal 2300 rpm, dry single-disc clutch, mechanical steering, and reliable drum brakes on the rear wheels. A wide range of speeds allows for slow aggregate work (minimum forward speed 0.37 km/h) and fast transport movements (maximum up to 30.64 km/h). The gear pump of the hydraulic system ensures stable operation of mounted equipment and allows for complex operations with aggregates.
Applications: plowing, cultivation, trimming, trailer towing, and working with a wide range of mounted equipment thanks to the versatile PTO and reliable hydraulics. Simple maintenance and robust construction make the KENTAVR 244 SXU a cost-effective choice for those who need a balance between cost and performance.
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, naturally aspirated |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1530 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kWh | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.31 |
| Gearbox (transmission) | (4+1)x2 |
| Transmission and rear axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Front axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Rear differential lock | + |
| Clutch | dry 1-disc, constantly closed type |
| Final drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, drum brakes |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of the hitch mechanism, kg | 420 |
| Minimum ground clearance, mm | 315 |
| Wheelbase, mm | 1660 |
| Wheel track, mm | front 1220, 1440; rear 1200, 1360, 1400 |
| Tire size | front 7.50-16; rear 11.20-24 |
| Minimum turning radius, m | without brakes 3.5; with brakes 3.2 |
| Travel speed, km/h | forward 0.37-30.64; reverse 0.49-12.23 |
| Fuel tank capacity, L | 18.5 |
| Engine crankcase capacity, L | 4.5 |
| Transmission and rear axle crankcase capacity, L | 14.0 |
| Front axle crankcase capacity, L | 3.0 |
| Engine cooling system capacity, L | 6.0 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Power steering | + |
| Overall dimensions (L x W x H), mm | 3400x1490x2050 |
| Curb weight, kg | 1370 |
The KENTAVR 244 SXU model demonstrates a balanced set of technical solutions: an economical diesel engine with moderate fuel consumption, a robust transmission with differential lock capability, a versatile PTO, and efficient hydraulics. This makes the tractor suitable for both field work (plowing, cultivation) and municipal tasks or transporting goods and trailers. Thanks to power steering and a relatively small turning radius, maneuvering is quick and precise, and the accessible fluid capacities simplify maintenance.
Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. Brand: KENTAVR. This model will be an optimal choice for farm owners seeking a combination of reliability, ease of operation, and economy.
